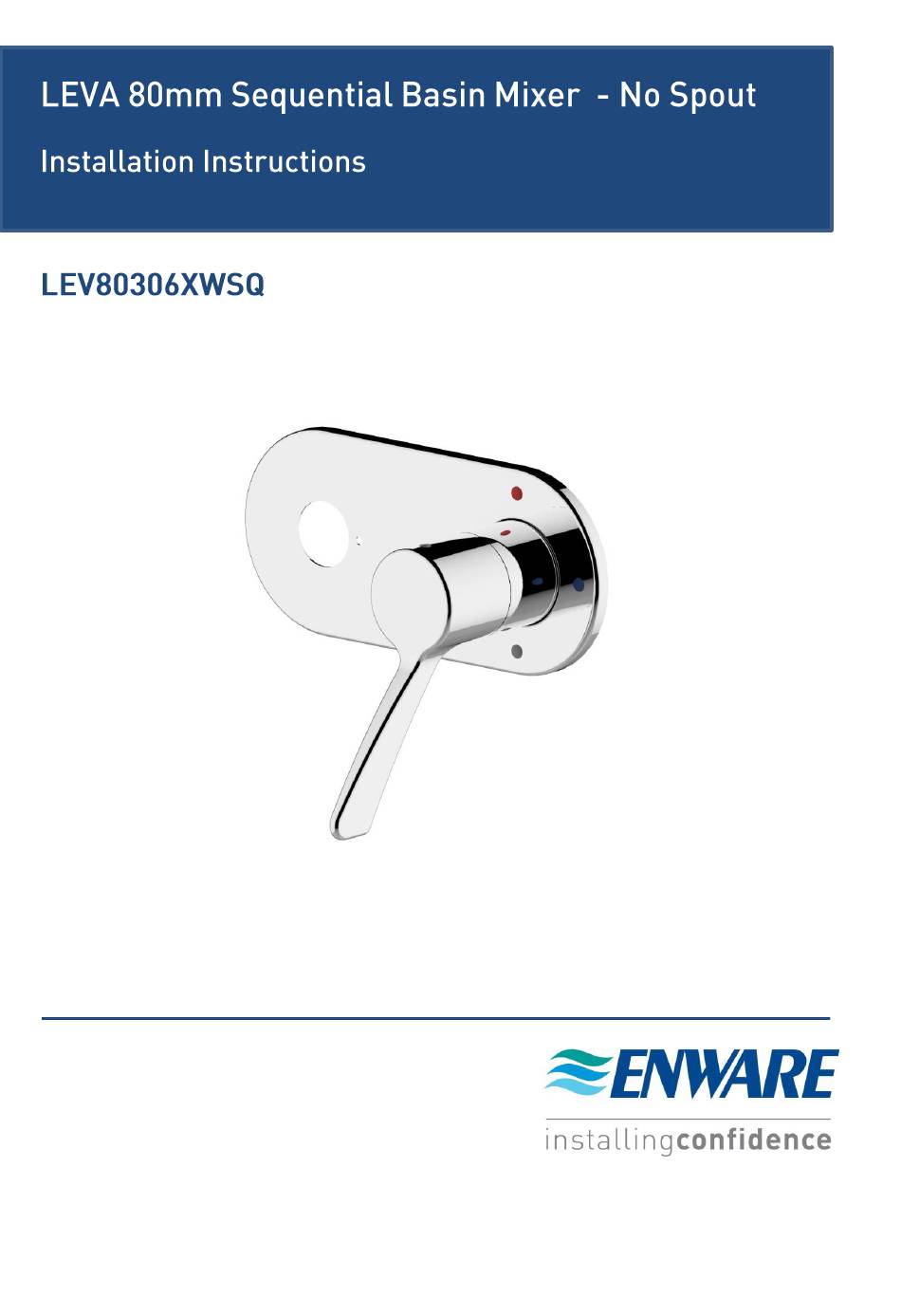

- Page 1 I00227_Jul 2016 Call 1300 369 273 www.enware.com.au Enware Australia Pty Limited 9 Endeavour Rd Caringbah NSW 2229 Australia Ph: +61 2 8556 4000 Fax: +61 2 8556 4055...
- Page 2 DIMENSIONS TOP VIEW SIDE VIEW (NOT TO SCALE)
-
Page 3: Technical Table
COMPONENTS TECHNICAL TABLE Working Pressure Range 50-800 kPa Recommended Maximum Pressure 500 kPa * Working Temperature Range 5 °C – 85 °C * For use with potable water only. -
Page 4: Installation
COMPLIANCE * Enware products are to be installed in accordance with the Plumbing Code of Australia and AS/NZS3500. Reference should also be made to the Australasian Health facility Guidelines (AHFG), ABCB and Local Government regulations when considering the choice of, and the installation of these products. - Page 5 6. Test operation of the tap. Turn mixer handle and test functionality of the system. If there is any problem see Troubleshooting Section following or contact Enware. 7. Take handle off the mixer, and keep handle and flange components in a secure place until fit...
- Page 6 Fit Off – Facia and Handle 8. After waterproofing and bathroom finishing trades are complete, operate the mixer to ensure system is still functional. 9. Seal any gaps between the wall cut-out and the mixer body, with appropriate silicone sealant. 10.
- Page 7 15. To secure the handle in place, firstly place the Anti-Rock Spacer Bush onto the cartridge. 16. Secondly, screw in Spindle Adaptor onto spline of cartridge so that it sits approximately 3mm from the cartridge spline.
- Page 8 If needed, unscrew or screw in the spindle adaptor 1/4 – 1/2 a turn, and repeat until grub screw pin presses into place correctly. Handle Too Loose: If the Leva handle is too loose - remove handle and tighten spindle adaptor 1/4 or 1/2 a turn, and refit Leva handle. Handle Too Tight: If the Leva handle feels too tight for smooth operation –...
- Page 9 OPERATING INSTRUCTIONS The sequential lever turns progressively from “OFF” to “COLD” to “WARM” or “HOT”. Starting from OFF position (handle lever pointing straight down), To operate the tap, turn the lever anticlockwise. The flow volume gradually increases. At COLD position, cold water is at its full flow. Turning the lever further past COLD, the flow rate stays at maximum but now the water is mixed with more hot or warm water.
-
Page 10: Spare Parts
CLEANING Enware Product should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Epoxy coated surfaces should only be cleaned with a cloth and clear water or mild detergent. -
Page 11: Warranty
Effective 1 September 2014 Enware Australia Pty Limited (ACN 003 988 314) (“we” or “us”) warrants that this product (also referred to as “our goods”) will be free from all defects in materials and workmanship for 12 months* from the date of purchase.
