Elevated Trough Planter Box
Installation Guide
Thank You!
You're only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Elevated Trough Planter Box.
You need at least 37" x 13" (94 x 33cm) for the finished
product. A flat and firm area (like a garage floor or flat
yard space) is perfect! The only tool you may need is a
rubber mallet.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load Capacity: approximately
3 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Everbloom-Garden.com
Questions or Comments?
Email us at service@everbloom-garden.com

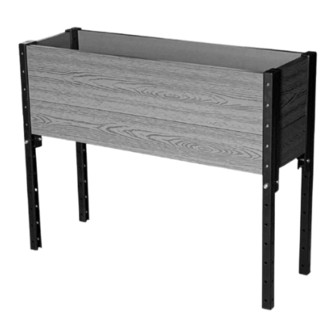

Model# E283612 / E283612G
Dimensions 36" L x 12" W x 28" H
1
Advertisement
Related Manuals for Everbloom E283612
Summary of Contents for Everbloom E283612
- Page 1 Elevated Trough Planter Box Installation Guide Thank You! Model# E283612 / E283612G Dimensions 36" L x 12" W x 28" H You’re only a few steps away from your perfect vegetable garden or elevated planter. We hope you enjoy! Before You Start Please read the instructions carefully to familiarize yourself with every detail and step involved.
-
Page 2: Parts List
Parts List Elevated Trough Planter Box - 36" L x 12" W x 28" H Left Corner Right Corner Long Long Support Short Short Bottom Post Post Board Board Board A Board B Board 240mm 240mm 420mm Bottom Bottom 900mm 900mm Post Cap Garden Bed... - Page 3 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H There are 2 different assembly methods providing 2 different planting depths: 10” (as shown in Image 1) and 7.5” (as shown in Image 2). * For deeper planting depth of 10”, please follow steps from page 4. * For easier but shallower planting depth of 7.5”, please go to page 10.
- Page 4 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Start by making sure each corner post is oriented correctly, as shown in Image 3. Slide one short board B into the corner brackets from above. Note: The short boards need to be placed in the inward “U”...
- Page 5 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Slide another short board B into the other two corner brackets from above, as shown in Image 5. IMAGE 5 Right Corner Post Left Corner Post Short Board B Short...
- Page 6 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H With the help of another person holding the 2 assembled parts, slide the 2 long supporting boards into the brackets from above. Make sure that one support board goes straight to the bottom, while the other one stays in the middle of the way (don’t push to the bottom), with the top edge between the 2nd and 3rd holes of the post.
- Page 7 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Put the bottom boards on lower slots of long support boards. Make sure the 2 ends of these bottom boards go into the lower slots and rest in them with enough contact as shown in Image 7. Adjust the height of the higher long support board slightly to hold these bottom boards if necessary.
- Page 8 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Push down the higher long support board to the bottom, as shown in Image 8. IMAGE 8 Long Support Board Long Support Board...
- Page 9 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Slide the remaining boards into place, as shown in Image 9. Now you get an elevated trough planter box with 10” planting depth. Then, go to page 15, and follow the steps afterwards. Note: If you want to add trellis kit onto this bed, please assemble the extension connectors before this step, to avoid disassembling the boards later.
- Page 10 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Start by making sure each corner post is oriented correctly, as shown in Image 3a. Slide one short board B into the corner brackets from above. Note: The short boards need to be placed in the inward “U”...
- Page 11 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Slide another short board B into the other two corner brackets from above, as shown in Image 5a. IMAGE 5a Right Corner Post Left Corner Post Short Board B Short...
- Page 12 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H With the help of another person holding the 2 assembled parts, slide the 2 long supporting boards into the brackets from above to the bottom, as shown in Image 6a. IMAGE 6a Long Support...
- Page 13 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Put the bottom boards on the long support boards, as shown in Image 7a. IMAGE 7a Bottom Board Long Support Board...
- Page 14 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Slide the remaining boards into place, as shown in Image 8a. Now you get an elevated trough planter box with 7.5” planting depth. Note: If you want to add trellis kit onto this planter box, please assemble the extension connectors before this step, to avoid disassembling the boards later.
- Page 15 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 4 end caps, as shown in Image 10. IMAGE 10 Rubber Post Cap...
- Page 16 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H For additional stability, we highly suggest using the included 8 self-tapping screws with washers (Image 11). Fasten 2 screws into each side of the inward facing corner posts using a #2 Phillips screwdriver (not includ- ed), as shown in Image 12.
- Page 17 Assembly Elevated Trough Planter Box - 36" L x 12" W x 28" H Unfold the liner and cover the bottom of the garden bed, as shown in Image 14 and Image 15. IMAGE 11 Garden Bed Liner IMAGE 14...
- Page 18 Note Elevated Trough Planter Box - 36" L x 12" W x 28" H Sometimes there might be a misalignment of the Corner Posts as shown in Image 16 and Image 17, which may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so that they are parallel to each other, and perpendicular to the ground.
- Page 19 Bloom On. Everbloom-Garden.com US Patent Pending Subscribe at www.everbloom-garden.com for extra savings and upgrading information! Distributed by: Dynaforge Trading LLC St. Paul, MN55101 Email: service@everbloom-garden.com...
