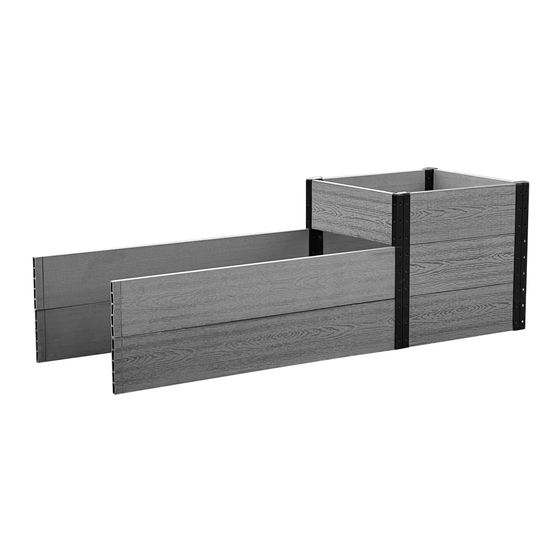

Terraced Double Bed Extension
Installation Guide
Thank You!
You're only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Terraced Double Bed Extension with
Everbloom Wallside Raised Garden Bed (Model# R144524)
or Cornerstone Raised Garden Bed (Model# R212421).
A flat and firm area (like a garage floor or flat yard
space) is perfect! The only tool you may need is a
rubber mallet.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load capacity: approximately
12 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Everbloom-Garden.com
Questions or Comments?
Email us at service@everbloom-garden.com
Model# R1421E4821
Dimensions 68" L x 21" W x 14" & 21" H
1
Advertisement
Related Manuals for Everbloom R1421E4821
Summary of Contents for Everbloom R1421E4821
- Page 1 Find a suitable space to assemble your new Terraced Double Bed Extension with Everbloom Wallside Raised Garden Bed (Model# R144524) or Cornerstone Raised Garden Bed (Model# R212421). A flat and firm area (like a garage floor or flat yard space) is perfect! The only tool you may need is a rubber mallet.
-
Page 2: Parts List
Parts List Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Left Joiner Right Joiner Short Board Long Board Post Cap Corner Corner + 2pc replacement 540mm Bottom Bottom 1140mm... - Page 3 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H This kit can be assembled with Everbloom Wallside Raised Garden Bed (R144524) to create a Low-Hi-Low triple bed. And it also can be assembled with Everbloom Cornerstone Raised Garden Bed (R212421) to create a Hi-Low-Hi triple bed.
- Page 4 Assembly 1 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Fix the left joiner corner and left corner post (360mm) on one long board from above, as shown in Image 2. Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 2). IMAGE 2 Left Joiner Corner...
- Page 5 Assembly 1 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Fix other joiner corners and corner posts (360mm) on long boards from above, as shown in Image 3. IMAGE 3 Right Corner Post (360mm) From R144524 Left Corner...
- Page 6 Assembly 1 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Slide all the short boards to form the bed, as shown in Image 4. IMAGE 4 Short Board x 3 Short Board x 2 Short Board Short...
- Page 7 Assembly 1 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 8 end caps, as shown in Image 5. IMAGE 5 Rubber Mallet...
- Page 8 Assembly 1 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Now you get a Low-Hi-Low triple garden bed, as shown in Image 6. IMAGE 6 Note: Store the additional caps for future use.
- Page 9 Assembly 2 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Start by making sure each corner post is oriented correctly. Reference image 7. IMAGE 7 Right Corner Post (540mm) From R212421 Left Joiner Corner Right Joiner Corner...
- Page 10 Assembly 2 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Fix the right joiner corner and left joiner corner on one long board from above, as shown in Image 8. Note: The boards need to be placed in the inward “U” shape of the brackets. (Image 8). Left Joiner IMAGE 8 Corner...
- Page 11 Assembly 2 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Slide another long board from bottom and fix another two joiner corners on long boards from above, as shown in Image 9. IMAGE 9 Right Corner Post (540mm)
- Page 12 Assembly 2 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Slide all the short boards to form the bed, as shown in Image 10. Short IMAGE 10 Board x 3 Short Board x 3 Short Board Short...
- Page 13 Assembly 2 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 8 end caps, as shown in Image 11. IMAGE 11 Post Cap Post Cap...
- Page 14 Assembly 2 Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Now you get a Hi-Low-Hi triple garden bed, as shown in Image 12. IMAGE 12 Note: Store the additional caps for future use.
- Page 15 Note Terraced Double Bed Extension - 68" L x 21" W x 14" & 21" H Sometimes there might be a misalignment of the Corner Posts as shown in Image 13 and Image 14, which may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so that they are parallel to each other, and perpendicular to the ground.
- Page 16 Bloom On. Everbloom-Garden.com US Patent Pending Subscribe at www.everbloom-garden.com for extra savings and upgrading information! Distributed by: Dynaforge Trading LLC St. Paul, MN55101 Email: service@everbloom-garden.com...
