AMGO PRO-18A Installation And Service Manual

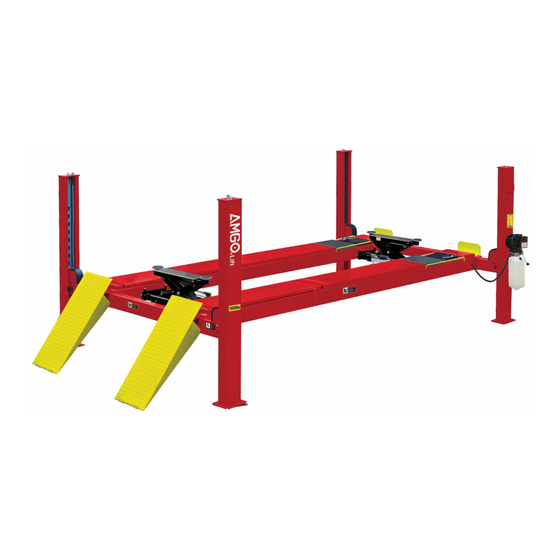

Four post lift
Hide thumbs Also See for PRO-18A:
Table of Contents

Advertisement

Quick Links

Download this manual
Original
PRO-18A
PRO-18
FOUR POST LIFT
Model: PRO-18（A）

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-18A and is the answer not in the manual?

Questions and answers

Related Manuals for AMGO PRO-18A

Summary of Contents for AMGO PRO-18A

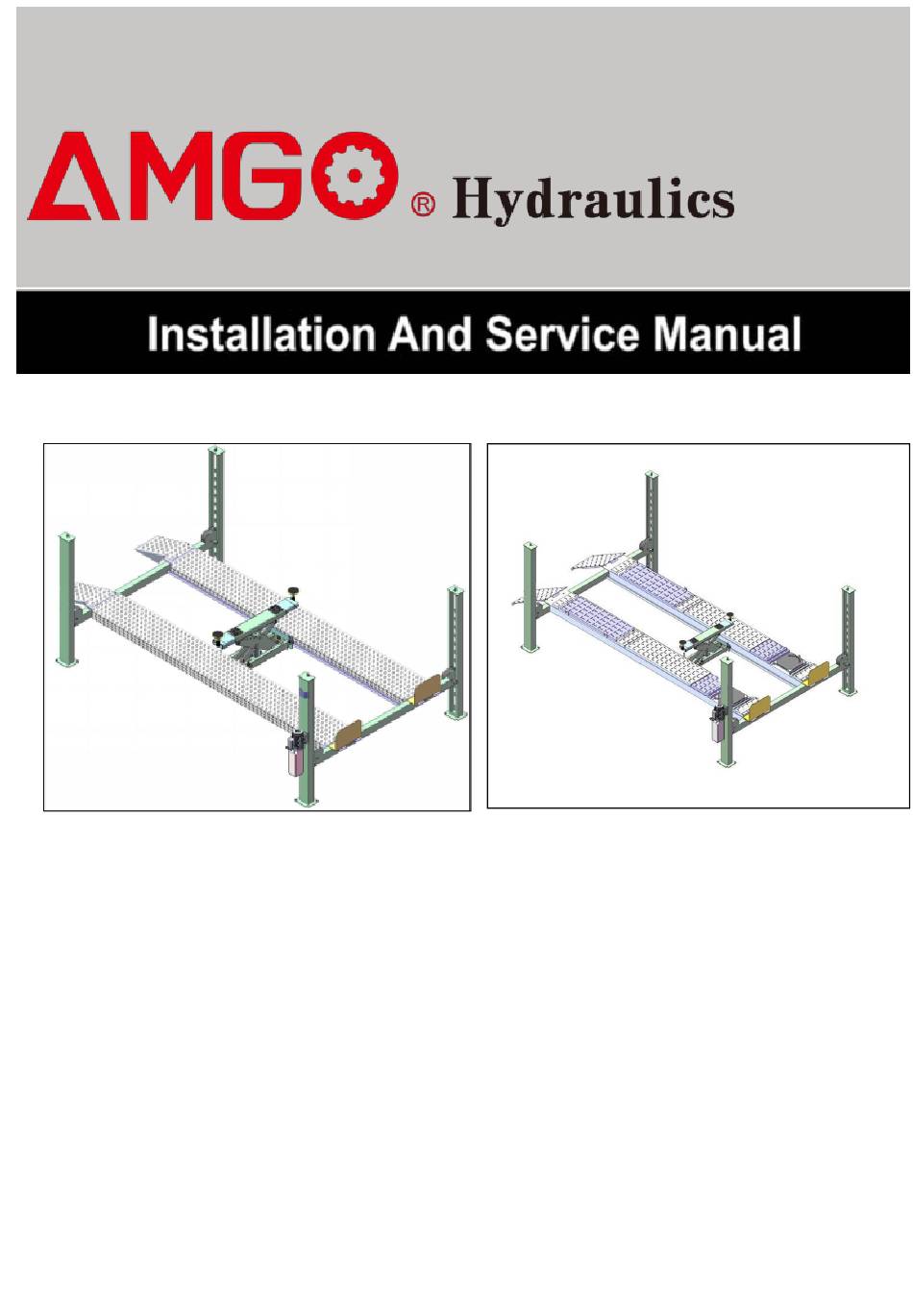

  • Page 1 Original PRO-18A PRO-18 FOUR POST LIFT Model: PRO-18（A）...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ............. 1 Installation Requirement ..............2 Steps of Installation ................ 4 Exploded View ................. 23 Test Run ..................32 Operation Instruction ............... 33 Maintenance ................... 33 Trouble Shooting ................34 List Disposal..................34...

  • Page 3: Product Features And Specifications

    · Multiple turn plate pockets fit with different wheel base. · Adjustable platform and adjustable safety lock ladders. · Optional Jack: With hand pump/Air-operated hydraulic pump/Controlled by power unit. . Optional Turn plate (Only for PRO-18A) PRO-18 PRO-18A Fig.1 Fig.2...

  • Page 4: Installation Requirement

    II. INSTALLATION REQUIREMEN A. TOOLS REQUIRED Rotary Hammer Drill ( Carpenter’s Chalk Φ3/4   Hammer Screw Sets   Level Bar Tape Measure (295”)   English Spanner (12") Pliers     Wrench Set Lock Wrench , 12 , 13 , 14 , 17...
  • Page 5 B. Equipment storage and installation requirements. The equipment should be stored or installed in a shady, normal temperature, ventilated and dry place. C. SPECIFICATIONS OF CONCRETE (See Fig. 4) Specifications of concrete must be adhered to the specification as following. Failure to do so may result in lift and/or vehicle falling.

  • Page 6: Steps Of Installation

    III. STEPS OF INSTALLATION A. Location of installation Check and insure the installation location (concrete, layout, space size etc.) is suitable for lift installation. B. Check the parts before assembly 1, The equipment should be unload and transfer by forklift. (See Fig.5) ×...
  • Page 7 4. Take off the Drive-in Ramps and Columns (See Fig. 8) Fig. 8 5. Loose the screws of the upper package stand, take off the offside platform, take out the parts inside the power side platform, than remove the package stand. 6.
  • Page 8 6.2 Model PRO-18A Fig.10 7. Open the carton of parts and check the parts according to the parts box list (See Fig. 11) Fig. 11 - 6 -...
  • Page 9 8. Check the parts of the parts bag according to the parts bag list (See Fig. 12) Parts bag 1 for PRO-18 Parts bag 1 for PRO-18A Parts bag 2 Fig.12 - 7 -...
  • Page 10 Use a carpenter’s chalk line to establish installation layout, Make sure the size is right and base is flat (see Fig.13) Note: Reserve space before and behind the installation site. Car in Direction Use a carpenter’s chalk line to establish installation layout Fig. 13 Model 252-1/4” 137-1/8” 287-1/8” PRO-18 PRO-18A - 8 -...
  • Page 11 D. Install cross beams (See Fig. 14, Fig. 15) Hole towards inside Fig. 14 Fig. 15 - 9 -...
  • Page 12 E. Fix the anchor bolts 1. Prepare the anchor bolts (See Fig. 16). Spring washer Washer Fig. 16 2. Using the prescribed rotary hammer drill, and drill all the anchor holes and install the anchor bolts, do not tighten the anchor bolts first (See Fig.
  • Page 13 2. Install safety ladders (See Fig. 19). This height should be the same for four safety ladders Safety ladder pass through the hole of the top plate, then tighten the two nuts Fig. 19 G. Put the Cross Beams at the same height (See Fig.
  • Page 14 H. Install power side platform. 1. Put the power side platform upon the cross beams by fork lift or manual, offset the cross beams to the outside till the pulleys of both platforms can set up into the cross beam , Install the power side platform and screw up the bolts.
  • Page 15 I. Assembly offside platform and slider block, check the vertical of columns with level bar, adjusting with the shims if not, and then tighten the anchor bolts (See Fig. 22). 3-15 3-16 Note: Torque of Anchors is 150N.m. Using the ratchet spanner with socket to tighten the bolts 3-14 Install the slider block...
  • Page 16 J. Install cables 1. Pass through the cables from the platform to the columns according to the number of the cables (See Fig. 23). Fig. 23 ○ ○ ○ ○ Cable Length for PRO-18 (A) 198-5/8” 515-3/4” 271-1/2” 442-1/8” (inc. connecting fitting) Fig.
  • Page 17 2. The cable pass through the cross beam to top plate of columns and be screwed with cable nuts (See Fig. 24). Cable pass through top plate and be screwed Cable pass through with cable nuts. between the big pulley and tension pulley Pulle Cable...
  • Page 18 3. Illustration for platform cables (See Fig. 25). Limit block cable ② cable ④ cable ② cable ④ cable ③ cable ① cable ④ cable ③ cable ④ cable ② cable ② cable ① Limit slider cable ④ cable ② Hex Bolt M10*150 Fig.
  • Page 19 K. Install Oil-water separator, Manual control air valve and Power unit (See Fig. 26). Air inlet Air outlet Air flow of oil water separator The ”P” side on air solenoid valve is for Air inlet flow Fig. 26 air solenoid valve Air flow of Item Part#...
  • Page 20 L. Install Hydraulic System (See Fig. 27). Note: Oil hoses connected to oil cylinder must be passed above the cable, cylinder inlet port must swing upward to avoid the oil hose and oil return pipe scratched by cable. Protective ring Oil hose and air line pass through the retainer...
  • Page 21 M. Install air-line system 1. Connecting front and rear Cross Beam cylinders by using 6*4 black air line. (the actual length of air line can be cut by user) ( See Fig.28 2. Cut the 6*4 black air line by scissor between two retainer, then connect the air line with T fitting.
  • Page 22 5. Install oil-water separator and manual control air valve. (see Fig.31) Oil-water separator Connecting Oil-water separator and manual controlled air valve using black air line 8*6 Manual controlled air valve 6*4 black air line Fig. 31 6. Connecting air inlet (Air supply pressure 5kg/cm - 8kg/cm ), adjusting the air pressure of Oil-water separator to 0.8MPa...
  • Page 23 N. Install Electrical System Connect the power source on the data plate of Motor. Note: 1. For the safety of operators, the power wiring must contact the floor well. Single phase motor (See Fig. 33) 1. Connecting the two power supply lines (fire wire L and zero wire N) to terminals of AC contactor marked L1, L2 respectively.
  • Page 24 P. Install Drive-in ramp, Tire stop plate, Steel ball set (See Fig. 35) Install Drive-in ramp Install Tire stop plate Fig.35 - 22 -...

  • Page 25: Exploded View

    IV. EXPLODED VIEW Model PRO-18 Fig.36 - 23 -...
  • Page 26 Model PRO-18A Optional turnplates When using turn plates, need to put a #1 adjustable block for turn plate with 35mm on each side. Fig.37 - 24 -...
  • Page 27 Parts list for PRO-18 PRO-18A Item Part# Description PRO-18 PRO-18A 11460021 Power-side Column 11460020 Offside Column 11476035 Cross Beam assy. 10476016 Limit slider 10209059 Anchor Bolt 11460074 Safety Ladder 10476014 Hex Nut 11460024 Power-side Platform 11476010 Pulley Shaft Weldment 10476029...
  • Page 28 Item Part# Description PRO-18 PRO-18A 10420004 Pin for Drive-in Ramp 10420005 Fixing Bolt 10476500 Parts box 10477500 11420031-1 Tire Stop Plate 10201005 Split pin 10201090 Shim（1mm） 10620065 Shim（2mm） 10209056 Self locking nut 11420217 Cable Limit Pin 11477005 Turn plate cover...
  • Page 29 4.1 CROSS BEAM EXPLODED VIEW (11460063) Fig. 38 Item Part# Description Note 11460063 Front Cross Beam 10460043 Pulley Safety Cover 10209009 Cup Head Bolt 11420044 Limit Plate 10420138 Socket Bolt 11420038 10420037 Snap Ring 10420033 Spring 10209021 Hex Nut 3-10 10420049 Split Pin 3-11...
  • Page 30 EXPLODED VIEW (10460030) 4.2 CYLINDERS Fig. 39 Parts list For Cylinder Item Part# Description Note 55-1 10420059 Dust Ring 55-2 10420060 Y- Ring 55-3 11460046 Head Cap 55-4 10460047 O- Ring 55-5 11460048 Bore Weldment 55-6 11420064 Piston Rod 55-7 11460050 55-8 10460051...
  • Page 31 4.3 POWER UNIT EXPLODED VIEW（071102） 220V/60Hz Single Phase Fig.40 - 29 -...
  • Page 32 81400290 Filter 81400413 Steel Motor 10420070 Push button 41030055 AC connector 81400287 Motor terminal box cover 71111216 AMGO power unit label 81400560 Throttle valve 81400266 Relief valve 81400284 Inner hex iron plug 10720118 Hair pin 81400451 Release valve handle 10209020...
  • Page 33 Illustration of hydraulic valve for power unit Oil return port Relief Release valve valve Check valve Throttle Oil outlet valve Handle for relief valve Fig.41 - 31 -...

  • Page 34: Test Run

    V. TEST RUN 1. Fill the reservoir with approximately 14L Hydraulic Oil (Note: In consideration of Power Unit’s durability，please use Hydraulic Oil 46#). 2. Press the button on the power unit, the Cables will be strained. Check whether the Cables match the Pulley. Make sure the Cables are not across. 3.

  • Page 35: Operation Instruction

    VI. OPERATION INSTRUCTIONS To lift vehicle 1. Keep clean of environment near the lift; 2. Drive vehicle to the Platform and put on the brake; 3. Turn on the power and press the button, raise the lift to the working position; Note: make sure the vehicle is steady when the lift is raised.

  • Page 36: Trouble Shooting

    VIII. TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1. Start Button does not work 1.Replace Start button 2.Wiring connections are not in good 2.Repair all wiring connections condition Motor does 3. Motor burned out 3.Repair or replace motor not run 4. AC contactor burned out 4.Replace AC contactor 5.
  • Page 37 AMGO HYDRAULIC CORPORATION 1931 Joe Rogers Blvd, Manning, South Carolina, Zip:29102 Tel: (803) 505-6410 fax: (803) 505-6410 NO.：72147801 Date：2019/12 - 35 -...
