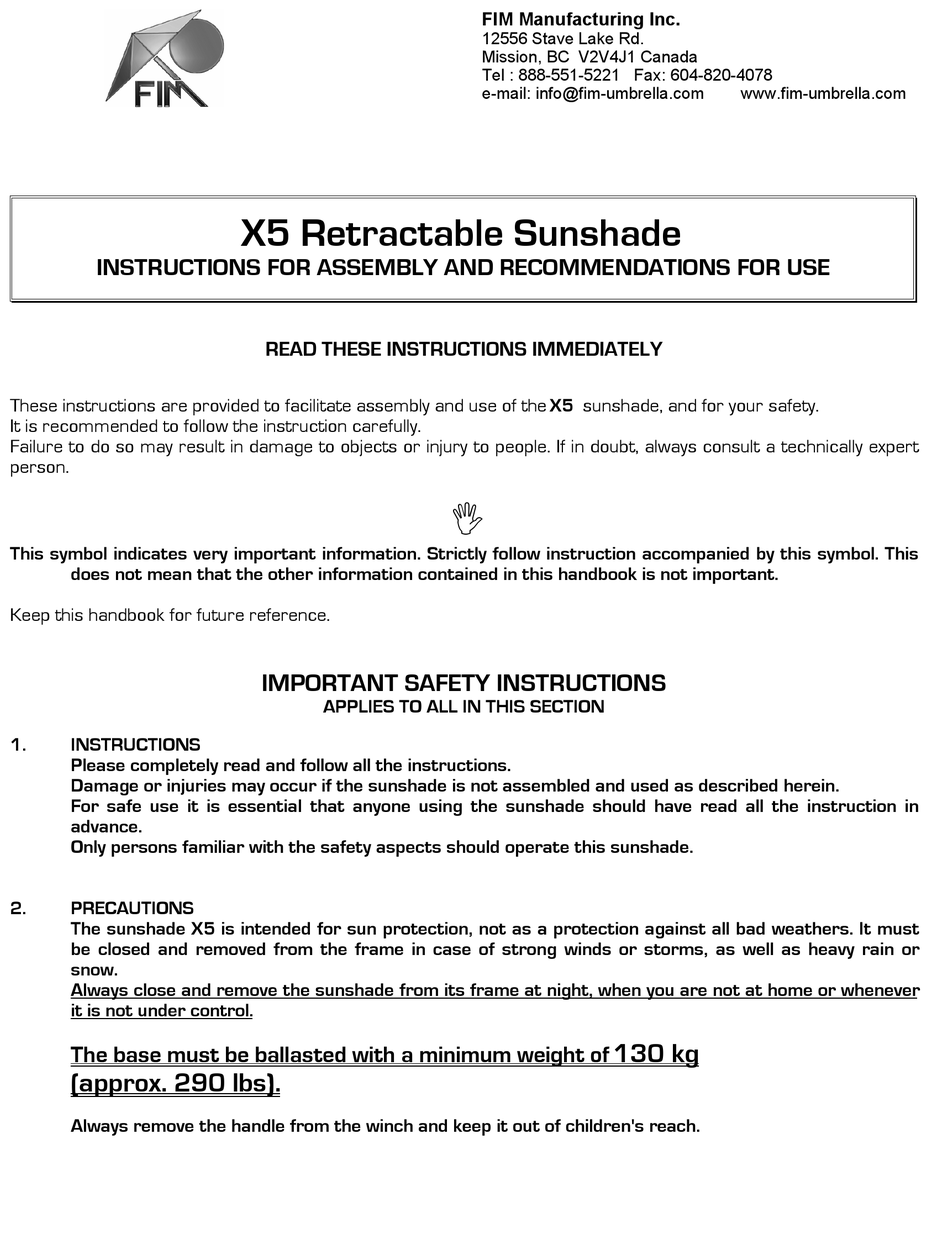

INSTRUCTIONS FOR ASSEMBLY AND RECOMMENDATIONS FOR USE
These instructions are provided to facilitate assembly and use of the X5 sunshade, and for your safety.
It is recommended to follow the instruction carefully.
Failure to do so may result in damage to objects or injury to people. If in doubt, always consult a technically expert
person.
This symbol indicates very important information. Strictly follow instruction accompanied by this symbol. This
does not mean that the other information contained in this handbook is not important.
Keep this handbook for future reference.
1.
INSTRUCTIONS
Please completely read and follow all the instructions.
Damage or injuries may occur if the sunshade is not assembled and used as described herein.
For safe use it is essential that anyone using the sunshade should have read all the instruction in
advance.
Only persons familiar with the safety aspects should operate this sunshade.
2.
PRECAUTIONS
The sunshade X5 is intended for sun protection, not as a protection against all bad weathers. It must
be closed and removed from the frame in case of strong winds or storms, as well as heavy rain or
snow.
Always close and remove the sunshade from its frame at night, when you are not at home or whenever
it is not under control.
The base must be ballasted with a minimum weight of
(approx. 290 lbs).
Always remove the handle from the winch and keep it out of children's reach.
X5 Retractable Sunshade
READ THESE INSTRUCTIONS IMMEDIATELY
IMPORTANT SAFETY INSTRUCTIONS
APPLIES TO ALL IN THIS SECTION
FIM Manufacturing Inc.
12556 Stave Lake Rd.
Mission, BC V2V4J1 Canada
Tel : 888-551-5221 Fax: 604-820-4078
e-mail: info@fim-umbrella.com
130 kg
www.fim-umbrella.com
Advertisement
Table of Contents
Related Manuals for FIM X5
Summary of Contents for FIM X5
- Page 1 Only persons familiar with the safety aspects should operate this sunshade. PRECAUTIONS The sunshade X5 is intended for sun protection, not as a protection against all bad weathers. It must be closed and removed from the frame in case of strong winds or storms, as well as heavy rain or snow.
-
Page 2: Getting Started
Getting Started 1. Connecting Umbrella Top Unwrap the top and structure and place them on a flat surface as shown in the first image Slide in bolt and secure with locknut. Tighten securely, but do not overtighten. 2. Connecting the stabilizer... - Page 3 3. Attaching the pole sleeve Your X5 is now ready to be set onto the umbrella base. Before proceeding please see the following setup and operating instructions for details on how to properly use and operate the umbrella.
-
Page 4: Assembly Instruction
ASSEMBLY INSTRUCTION STANDARD CROSS BASE ASSEMBLY (Fig. 1) Take out the content of the hardware bag (I) and assemble the base as shown in pict. 2 CAUTION: tighten the base bolts well Place floor slabs in the appropriate places of the base ... -
Page 5: Maintenance And Care
For perfect conservation of the parasol during the winter months it is advisable to store it in a dry room. I MPORTANT: to avoid damage caused by mould or oxidation never store your X5 away when it is wet or damp. IMPORTANT: to avoid damage caused by mould or oxidation never store your X5 away when it is wet or damp. Standard Cross Base... -
Page 8: Installation Procedure
Call toll-free at 1-888-551-5221 with any questions DECK MOUNT PLATE - INSTALLATION HARDWARE AND TOOLS REQUIRED: ⇒ on wooden sundecks • Drill with ¼” drill bit • 2 galvanized lag screws 3/8” x 4”, 2 galvanized lag screws 3/8” x 2 1/2”, 4 galvanized washers 3/8”... - Page 9 Deckmount Plate - correct placement Deck Joist 3 1/2" Lag Bolts Locking Pin 2 1/2" Lag Bolts Support Tube mounting hole...
-
Page 10: Materials And Tools Required
Make sure to let the concrete cure for at least 3 days in warm conditions, and up to 7 days if the temperature is below 50deg. Fahrenheit /10deg. Celsius FIM Manufacturing Inc. Toll-free phone: 888-551-5221...
