Summary of Contents for FIM FLEXY

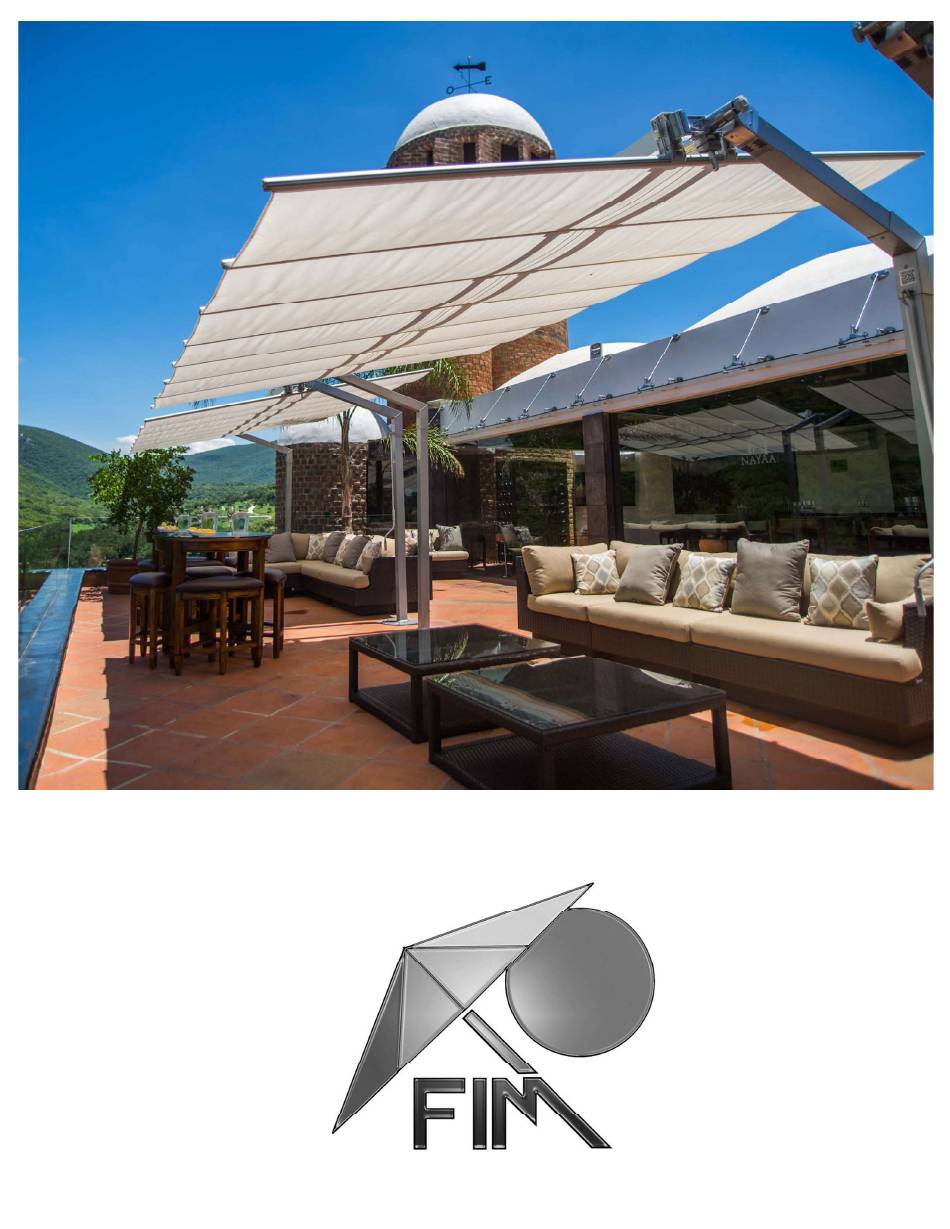

- Page 1 Before starting, check out the FIM Flexy Setup Video at www.fim-umbrella.com/instructions.htm...
- Page 2 These instructions have to be handed over to the end-user of the product who has to read and keep them. These instructions are provided for an easy set-up of your FLEXY and for your safety. It is essential that the given instructions are followed carefully.
- Page 3 4. (Fig.12- Fig.12A – 12B) unscrew the handwheel r’’ from the casting R . Pull the belt support V and insert it in the casting R and lock it replacing the handwheel r’’. Important: make sure that the belt is not tangled (Fig.11) The Flexy is now ready to be used.
- Page 4 To extend the life span of the product, it is advisable to disassemble and store the awning away in a dry place at the end of the season. Before sto ing your FLEXY away, clean the structure with a damp cloth and dry it. For the cleaning of the cover see the preceeding paragraph.
- Page 5 Freestanding Base design differs slightly for the North American market. Please refer to the instructions included in the base carton...
