Product Manual : Ver 1.00
SD-480-IV-US

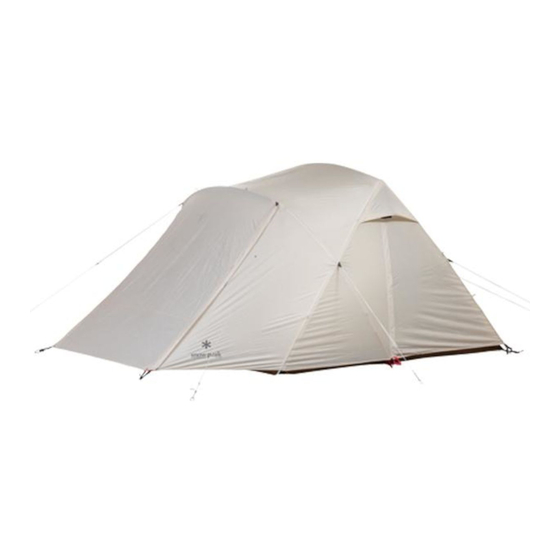

Alpha Breeze
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC
This tent is made with flame resistant fabric which meets CPAI-84 specifications. It is not fire proof. The fabric
will burn if left in continuous contact with any flame source.
The application of any foreign substances to the tent fabric may render the flame resistant properties ineffective.
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Snow Peak Alpha Breeze
Summary of Contents for Snow Peak Alpha Breeze
- Page 1 Product Manual : Ver 1.00 SD-480-IV-US Alpha Breeze WARNING KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC This tent is made with flame resistant fabric which meets CPAI-84 specifications. It is not fire proof. The fabric will burn if left in continuous contact with any flame source.
-
Page 2: Set Contents
Thank you very much for purchasing a Snow Peak product. This product is a tent designed for camping. To use this product safely and correctly, please read these instructions carefully. After reading these instructions, keep this manual in a safe place for future reference. Although this product is expected to be complete and safe, please check that all accessory items are included before attempting to assemble the product. - Page 3 Safety Precautions Before use please read thoroughly to ensure safety and to avoid accidents. DANGER Misuse could easily result in a serious accident or death. ●Do not use combustion-based heat sources such as lanterns, stoves or heaters, or open flames such as matches, candles, lighters or cigarettes, inside the tent.
- Page 4 Name of Parts [Fly] Ventilation (2 locations) Vestibule Velcro Strap (6 locations) Rear Room [Inner Tent] Ridge Pole Sleeve C Pole Sleeve Ridge Pole Entrance A Pole Plastic Hook (14 locations) Corner Belt (6 locations) C Pole...
-
Page 5: Preparations Before Use
How to Attach Rope with Rope Tensioner to the Fly and Peg Down Attach the Rope with Rope Tensioner to the Fly and peg it down as shown in the figure. 3.5m Return Part of (11’ 5” ) Rope O ring Rope Tensioner (6’... -
Page 6: Setup Procedure
Set-Up Procedure Follow the instructions below for setup and removal so you’re prepared to use the tent in camp. Ensure all the accessories are included in the package. Forcible installation or removal may result in damage to the main unit or frames, or an accident. - Page 7 Assemble the A Pole on one side and insert the Ring Pin attached to the dark blue Corner Tape at the corner of the Inner Tent into both ends of the A Pole. Then, adjust the tension of the Center Ring tape. * When inserting the ring pin into the tip of A Pole, hold the tip of Pole firmly so that it does not move, and insert while being careful to avoid catching your fingers.
- Page 8 Insert the Ring Pins that are attached to the red Corner Tape on the Bottom of the Inner Tent into both ends of the C Pole. * When inserting, please ensure the color of the tip of the Pole (red) matches the color of the Corner Tape (red).
- Page 9 Spread the Fly in front of the Inner Tent so that the back of the Fly (the side without the logo printed on it) faces up. Then, align the Fly Entrance Panel with the panel that has the Inner Tent logo printed on it. Entrance Panel of Vestibule Logo Print Zipper at Both Sides of...
- Page 10 Secure the Fly by winding the slip prevention Velcro Tape inside the Fly around the Poles. (6 locations) Velcro Tape Pole Connect the buckle at the tip of each Corner Tape of the Inner Tent and the Fly (4 locations). After connecting, pull the adjusting tape on all the buckles.
- Page 11 How to set up the door panel When using the Door Panel for extended shelter, insert the tip of the upright Pole into the Grommet at the end of the Door Panel, hook the center loop of the Forked Rope, and peg down as shown in the figure. View from Above Forked Forked...
-
Page 12: How To Disassemble
How to disassemble Disassembling should be done in the reverse order of setup. Make sure there is nothing inside the Inner Tent or Fly before beginning. It will be easier to roll up the tent if you slightly open the zipper at the entrance of the Inner Tent. - Page 13 Fold the Fly and Inner Tent to fit the width of the Carry Bag as shown in the figure. ・ How to fold the Inner Tent ① Fold both ends inward toward the center. ② Fold the Fly in half and roll it in the direction of the arrow.
- Page 14 Water-Repellent and Waterproof Functions ●The fabric of the Fly is treated with a high-quality, water-repellent finish. However, the level of water-repellency and durability may vary slightly due to the characteristics of each material. In addition, the water repellency will deteriorate after long periods. When the water repellence decreases, please use a water-repellent spray purchased from your local outdoor gear retailer.
- Page 15 10. Damage caused by the use of the product in combination with other maker’s products. Regarding Repair ●If a professional repair is necessary, please contact the dealer where the product was sold or Snow Peak Customer Service. ●Please dry and clean the product before sending it for repair.
-
Page 16: Specifications
Specifications ●Material: Fly / 75D Fire-resistant Polyester Taffeta, PU ●Capacity: 3-5 persons coating, Waterproof rating: 1,800mm minimum, Water-repellent finish, UV protection treatment; Inner Wall / 68D Fire-resistant Polyester Taffeta; Bottom / 300D Fire-resistant Polyester Oxford, PU coating, Waterproof rating: 5,000mm minimum; Pole / Duralumin A6061 (Ф16mm (0.6”) + Ф13mm (0.5”)) (Indoor height 186cm (6.1')) ●Contents: Tent;...
