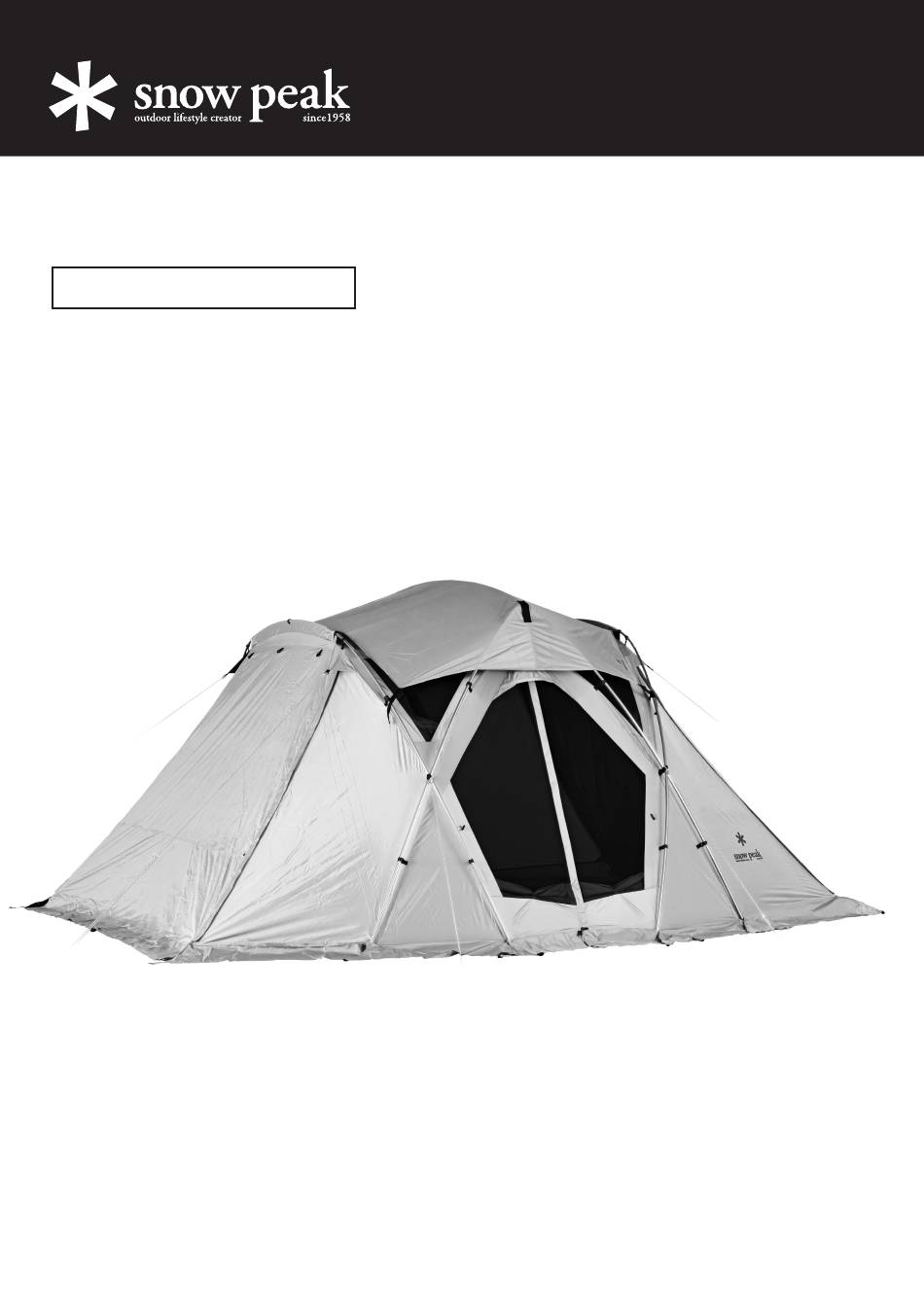

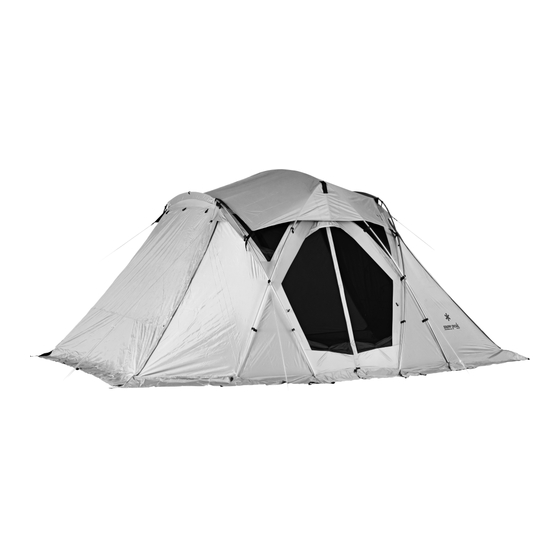

  • Page 1 Instruction Manual Ver 1.00 TP-623-IV Living Shell in Ivory...

  • Page 2: Table Of Contents

    Thank you for purchasing this Snow Peak Product. This product is a shelter designed for camping. In order to ensure your safety when using this product, please read these instructions carefully before use. Please be sure to keep this document for future reference. If you find anything in the instruction manual that is difficult to understand, or if you find any product defects, stop using it immediately and contact the dealer where you purchased the product, or Snow Peak Customer Service.
  • Page 3 Safety Precautions: Before use, please read thoroughly to ensure safety and avoid accidents. DANGER: Misuse could easily result in a serious accident or death. ●Do not use combustion-based heat sources such as lanterns, stoves or heaters, or open flames such as matches, candles, lighters or cigarettes, inside the shelter. The use of such heat or light sources inside a small enclosed space is very dangerous and may result in fire, oxygen deficiency, or carbon monoxide poisoning.

  • Page 4: Preparations Before Use

    Name of the Parts Tent connecting port Skirt Mesh panel Entrance side Back side Door panel (Tent connection side) Preparations Before Use Sealing with seam sealant Apply the seam sealant to the perforations that hold the loops and toggles together from the outside to prevent water from entering through the stitches.

  • Page 5: Main Body

    Rope with rope tensioner, peg down position Secure and peg down the tension ropes as shown below. 2 m (6.6') rope 2 m (6.6') rope A-pole 3.5 m (11.5') rope 3.5 m (11.5') rope C-pole Ridge pole C-pole A-pole The ideal position to insert the peg is the place where the rope is at an angle of 45° to the ground when set up.

  • Page 6: Setup Procedure

    Set-up Procedure: Make sure that two or more people take part in the set-up for safery. Please practice shelter setup and disassembly repeatedly according to the following explanation to prepare for use when camping. Make sure that you have all the accessories in advance. Inappropriate setup or disassembly may damage the shelter or poles, or lead to an accident.
  • Page 7 Hold the peg down loop (navy blue) of the ring pin at the bottom of the main body, and insert it into the A-pole. Then, adjust the tension of the center ring tape on both sides. Note) When inserting the ring pin into the edge of the A-shape frame, hold the edge of the frame firmly so that it does not move, and insert it while being careful not to pinch your fingers.
  • Page 8 Connect the C-pole with the black sticker little by little, and insert it into the sleeve with the black tape on both sides. Next, insert the ring pin in the same way as in step ③. After raising the C-pole on one side, raise the other C-pole as well.

  • Page 9: (23') Forked End Rope

    Pass the duralumin peg through the peg down loop attached to the hem ring pin, and insert all pegs. When flipping up the entrance door panel, use the two included upright poles, and set up them with the forked end rope. Adjust the direction of the rope so that there are no wrinkles.
  • Page 10 Attach the triangular pockets (x2) to your desired locations on the four triangular panels at the bottom side of the room. Hook Adjusting tape Plastic ring Hook Hook Metal ring...
  • Page 11 The following Snow Peak tents can be connected to the back of the main body. Roll up the panel along the connection line of your corresponding tent. Insert the vestibule pole of the tent into the tent connecting port, and connect the tent.

  • Page 12: Roof Sheet

    How to attach the roof sheet: Please set up with two or more people. [Name of each part] Connection hook Connection hook Corner ladder tape 3) Hang the connecting hooks on all the 1) Unfold the roof sheet inside out, and C-poles.

  • Page 13: Carry Bag

    How to store the Shelter in the Carry Bag 1) Fold the Shelter according to the length of the Carry Bag and place them inside it. 2) Store the Poles and the pegs in their cases, then place the cases in the Carry Bag. If you store the Poles and Pegs without putting them in the case, it may damage the products or Carry Bag.

  • Page 14: Maintenance And Storage

    ● When using the product again after not using it for a long period of time, inspect the product and its included items. If you have any questions, please contact Snow Peak Customer Service. ● A polyester fabric blend is used for this product. Considering the material characteristics, we have adopted processing and color patterns that will result in less color migration.

  • Page 15: Warranty

    Snow Peak Customer Service. If there are apparent defects in the product's manufacturing, the defective product will be repaired or exchanged free of charge. In other cases, Snow Peak will repair the product for an appropriate fee. The decision to repair or replace the product will be at our discretion.

  • Page 16: Specifications

    ○Carry Bag Size: 73 x 30 x 33 (h) cm (28.7" x (Inddor Height 215 / 84.6' ) 11.8" x 13") ○Weight: 15 kg (33.1 lbs) If you have any questions or concerns, please contact your retailer or Snow Peak customer service. Snow Peak +1(503)461-0781 ( 9:00-17:00 ) Customer Service Email: info@snowpeak.com...
