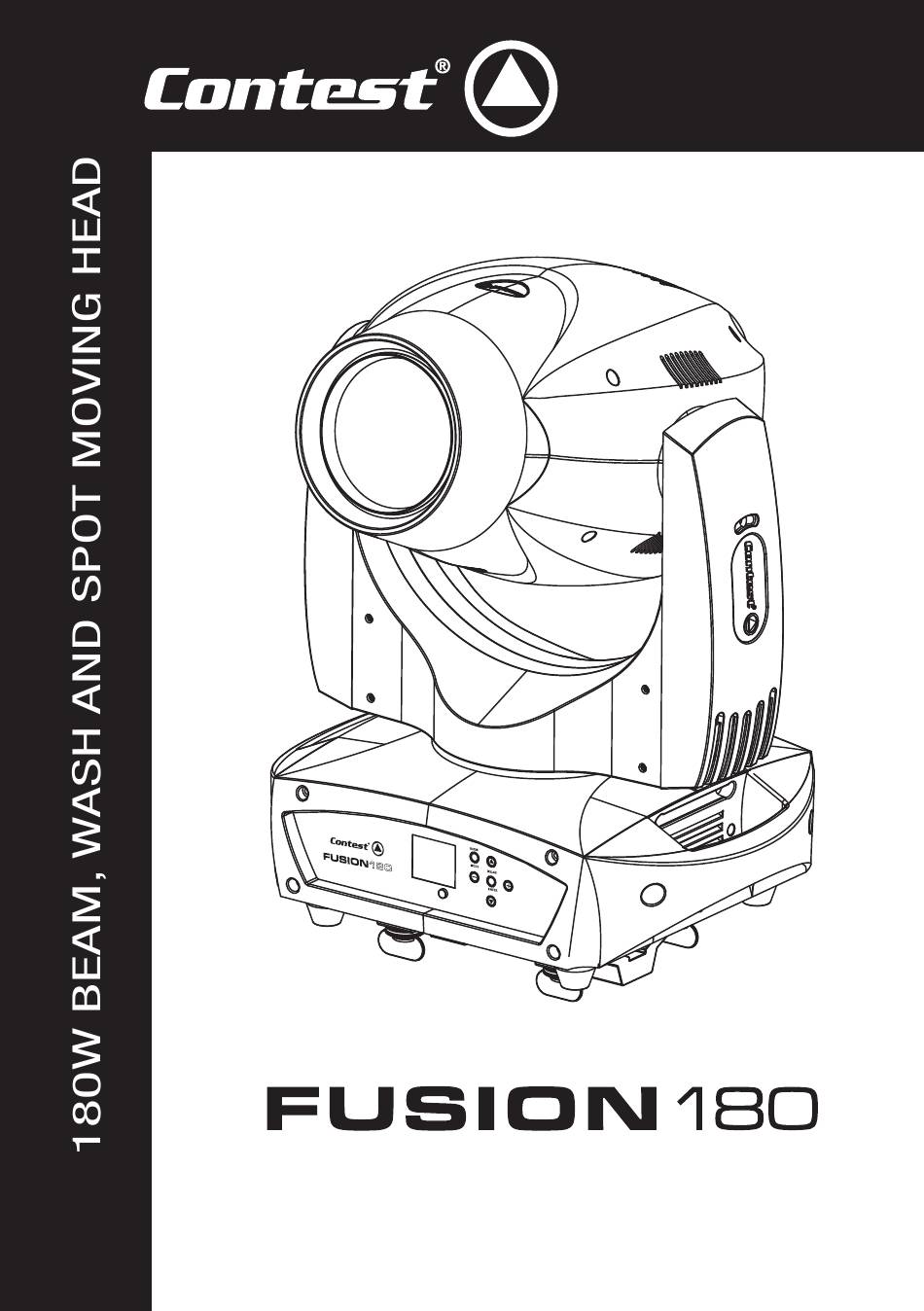

- Page 1 USER GUIDE 10661 - Version 1 / 03-2017...
-
Page 2: Important Safety Information
WARNING: This unit contains no user-serviceable parts. Do not open the housing or attempt Any maintenance procedure must be performed by a CONTEST authorised any maintenance by yourself. In the unlikely even your unit may require service, please contact technical service. Basic cleaning operations must thoroughly follow our safety your nearest dealer. -
Page 3: Technical Specifications

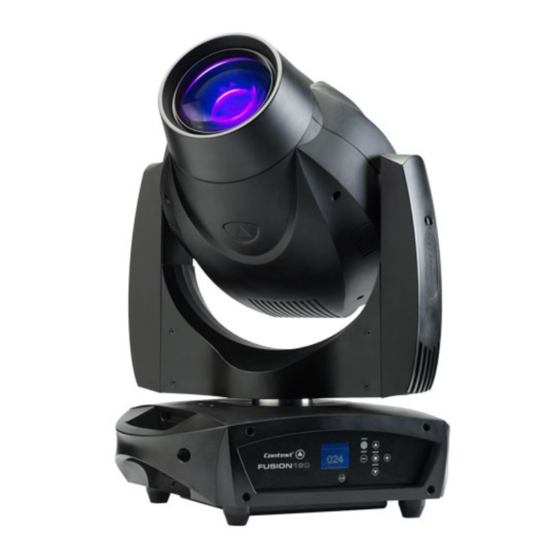

FUSION180 - 180W Beam, Wash and Spot moving head English 2 - Introduction Thank you for choosing the FUSION180 moving head. You have now in your possession a high-quality, powerful and smart device, which will certainly bring radiance and joy to your parties, concert, etc... 3 - Technical specifications Light source Movements... - Page 4 FUSION180 - 180W Beam, Wash and Spot moving head English 1 -Output lens 4 - Description 2 - Display Allows you to visualize menus. 3 - BATT button Allows you to activate the menu when your projector is off. 4 - ENTER button Allows you to select functions and enter values.
- Page 5 FUSION180 - 180W Beam, Wash and Spot moving head English 5 - Cabling, addressing and daisy chaining Connecting the DMX remote control : Connect the female plug of your XLR cable to your DMX remote control XLR output, then connect your cable male output to the moving head.
- Page 6 FUSION180 - 180W Beam, Wash and Spot moving head English 6 - Menus Menus allow you to configure your projector in order to adapt it to any kind of situation. Press MODE to access menus. Use the navigation buttons to navigate through menus and sub-menus. Press ENTER to access a menu. Use the buttons to change values.
- Page 7 FUSION180 - 180W Beam, Wash and Spot moving head English 6.2 INFORMATION menu Allows you to visualize the total uptime of your projector, its temperature and the current software version. Sub-menus Sub-sub-menus Values Description Current XXXX (hours) Uptime since last initialization. Total Time XXXX (hours) Total uptime since the first initialization.
- Page 8 FUSION180 - 180W Beam, Wash and Spot moving head English 6.3 PERSONALITY menu Sub-menus Sub-sub-menus Values Description Allows you to configure the auto movements speed Mov Speed Speed 1 ~ 4 AUTO : 1 = fast ; 4 = slower Mic Sens 0 ~ 99% Adjusts the microphone sensitivity for music-sensitive modes...
- Page 9 FUSION180 - 180W Beam, Wash and Spot moving head English 6.4 Reset Function menu Allows you to re-initialize motors one by one. Sub-menus Description Reset ALL Resets all motors ResetPanTilt Resets PAN and TILT motors ResetColorWheel Resets colour wheel motors ResetRotGobo Resets rotative gobo wheel motors ResetFixedGobo...
- Page 10 FUSION180 - 180W Beam, Wash and Spot moving head English 6.6 Edit Program menu Allows you to select programs assigned to each program groups, edit the 9 built-in programs and the 250 scenes composing these programs. Your FUSION180 can be assigned to 3 slave groups (Slave mode from the Function menu) The Master unit sends programs with groups information.
- Page 11 FUSION180 - 180W Beam, Wash and Spot moving head English More details about program groups and their scenes Example: Program 2 contains scenes 10, 11, 12 and 13 Program 4 contains scenes 8, 9 and 10 Program 6 contains scenes 12, 13, 14 and 15 Pro Part 1 is assigned to program 2 Pro Part 2 is assigned to program 4 Pro Part 3 is assigned to program 6...
- Page 12 FUSION180 - 180W Beam, Wash and Spot moving head English 7 -DMX channels and their functions Your FUSION180 moving head features 3 DMX modes: The Basic mode features 15 channels, while the Standard mode features 17 and the Expert mode features 20. The following chart indicates DMX values of each channels.
- Page 13 FUSION180 - 180W Beam, Wash and Spot moving head English Rotative gobo wheel 000 - 003 Open 004 - 007 Rotative gobo 1 008 - 011 Rotative gobo 2 012 - 015 Rotative gobo 3 016 - 019 Rotative gobo 4 020 - 023 Rotative gobo 5 024 - 027...
- Page 14 FUSION180 - 180W Beam, Wash and Spot moving head English 164 - 173 Fixed gobo 8 shake effect 174 - 183 Fixed gobo 9 shake effect 184 - 193 Fixed gobo 10 shake effect 194 - 203 Fixed gobo 11 shake effect (last (last (last...
-
Page 15: Error Messages
FUSION180 - 180W Beam, Wash and Spot moving head English 8 - Error messages Upon activation, your projector will first initialize. The message « Error channel is XX » may appear on the display as the results or problems occuring with one or several channels. Your device will then generate an order or re-initialization and all motors will go back to their initial position. - Page 16 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the CONTEST products on www.contest-lighting.com CONTEST ®...
