CYBEX R Series Assembly Instructions Manual page 21

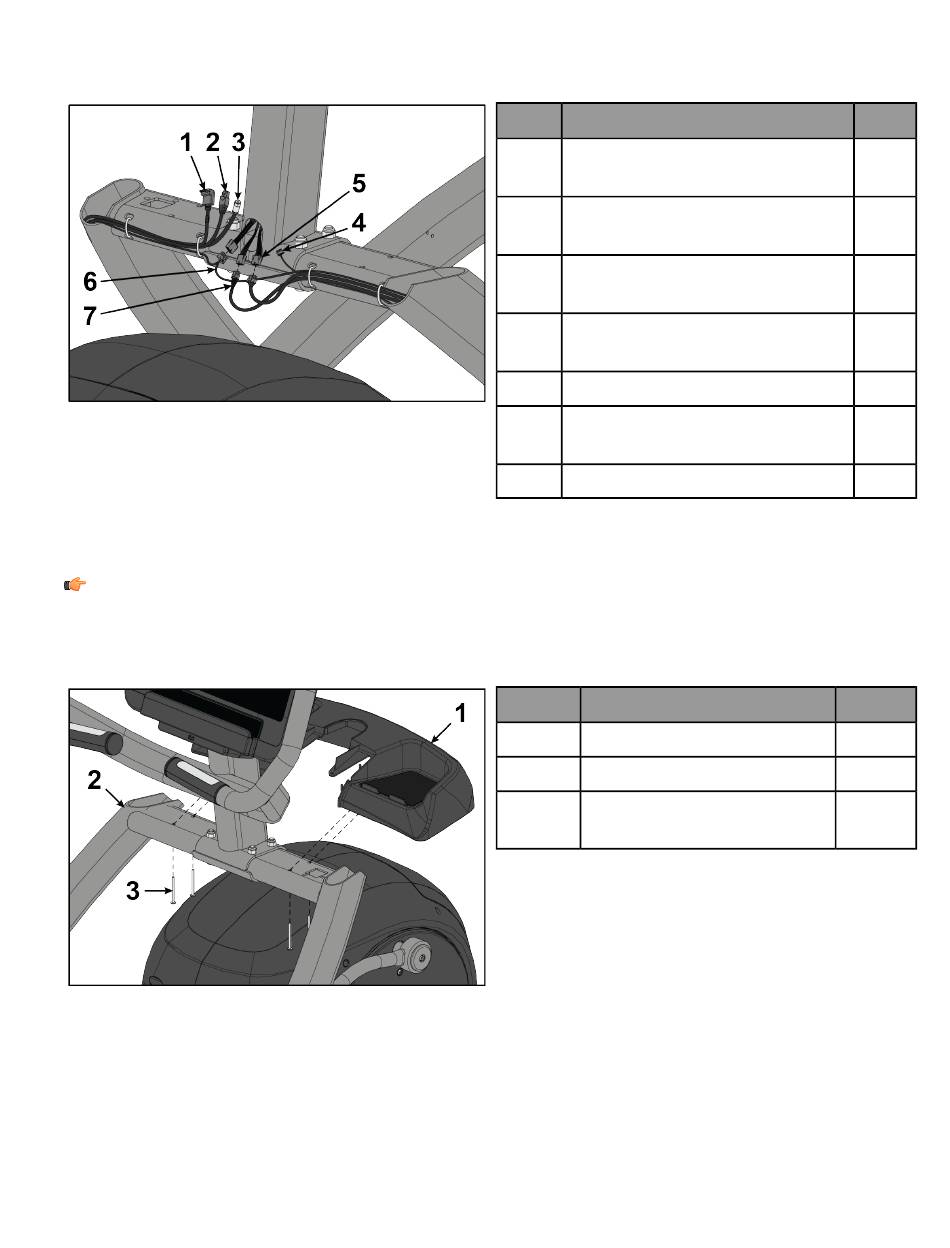

Install Console Cables to Base (Advanced Cabling)
This procedure applies to the Advanced Cabling option.
1. Plug upper display cable into lower display cable.
2. Plug upper heart rate cable into lower heart rate cable.
3. Plug console power cable connectors into each other.
NOTE: Console power cables must be connected last.
Install Accessory Tray Base
Install screws securing accessory tray base to frame using a Phillips screwdriver.
Install Accessory Tray Top
Install screws securing accessory tray top to accessory tray base using a stubby Phillips screwdriver.
Item
1
(previously routed to console)
2
(previously routed to console)
3
(previously routed to console)
4
(previously routed to console)
5 Cable, Console to Base Power
Cable, Heart Rate and Keypad
6
7
Item
1
2
Screw, Pan Head Phillips, Tap
3
Page 21 of 47
Description
Cable, HDMI
Cable, Ethernet
Cable, Coax
Cable, IR
Switches
Cable, Base Signal
Description
Accessory Tray Base
Frame
10-12 x 2"
Qty
1
1
1
1
1
1
1
Qty
1
1
4
