modway Genevieve MOD-6048 Manual page 3

MOD-6048, MOD-6049

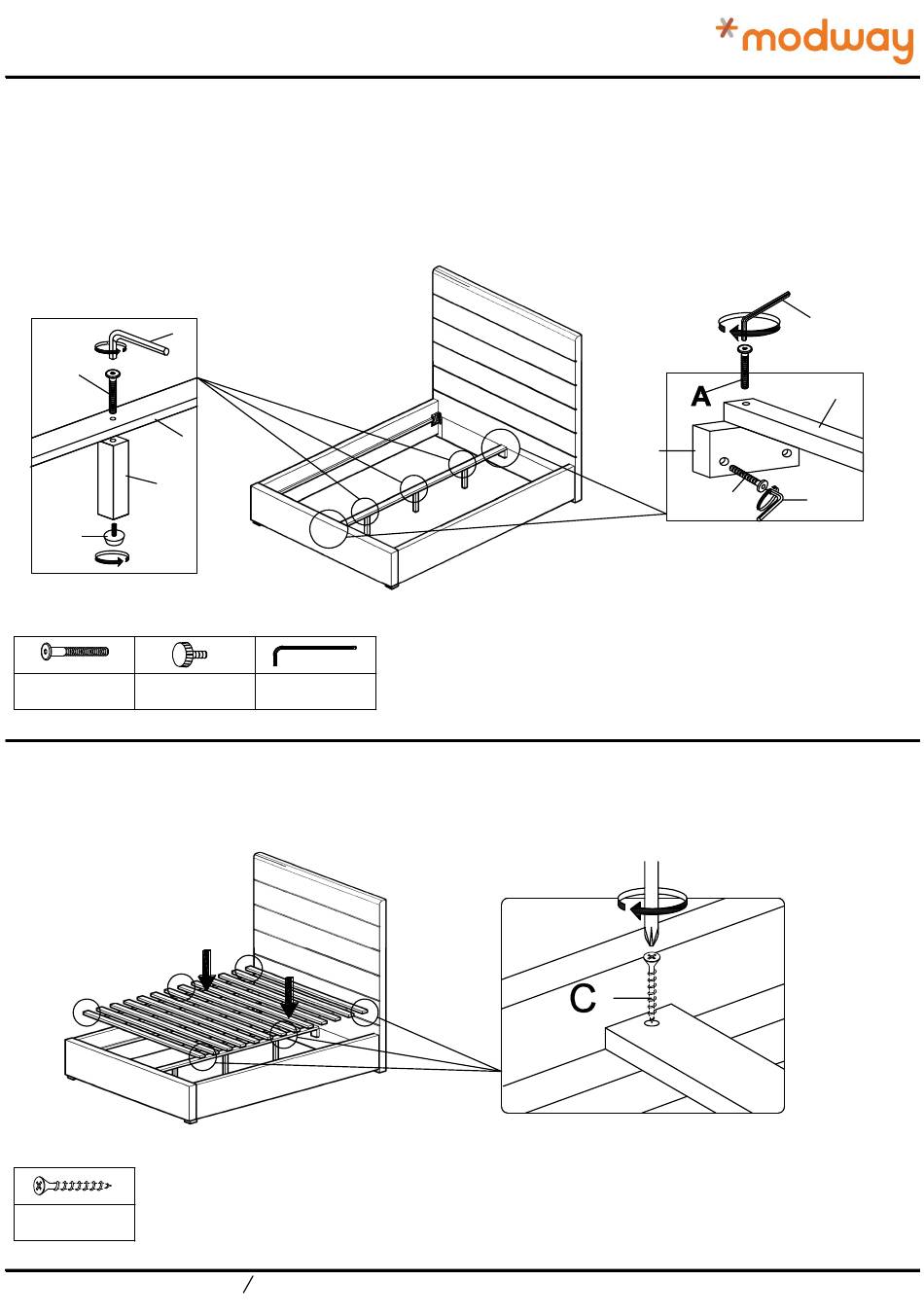

STEP 3:
1. Attach the Support Bar (6) to the predrilled hole at center of Headboard (1). Place the JCBC bolt 40MM(A) and tighten by using M4 Allen Key(E).
Repeat again at Footboard(2).
2. Place the Center Support bar (4) as per picture shown and attach JCBC bolt 40MM(A) and tighten using M4 Allen Key(E). Repeat again at
Footboard(2)
3.Attach the Adjuster(D) to the two Center Support Leg(5).
4. Attach the Center Support Leg(5) to the Center support bar(4) as shown in diagram., Insert JCBC 40MM (A) to the predrilled hole and tighten by
using M4 Allen Key(E)
E
A
4
5
D
Ax10 Dx3
Hardware & Tool required Hardware & Tool required
STEP 4:
Attach Slat (7) into bed by inserting CSK screw (C) into the predrilled holes on the Slat (7) . Tighten with Screwdriver (Not
provided) .
Cx6
Hardware & Tool required
Customer Service 908-368-1025 www.modway.com
Ex1
6
Screwdriver (Not provided) .
Assembly is completed. The bed is ready to enjoy now!
E
4
A
E
Page 3/3
