modway Genevieve MOD-6048 Manual page 2

MOD-6048, MOD-6049

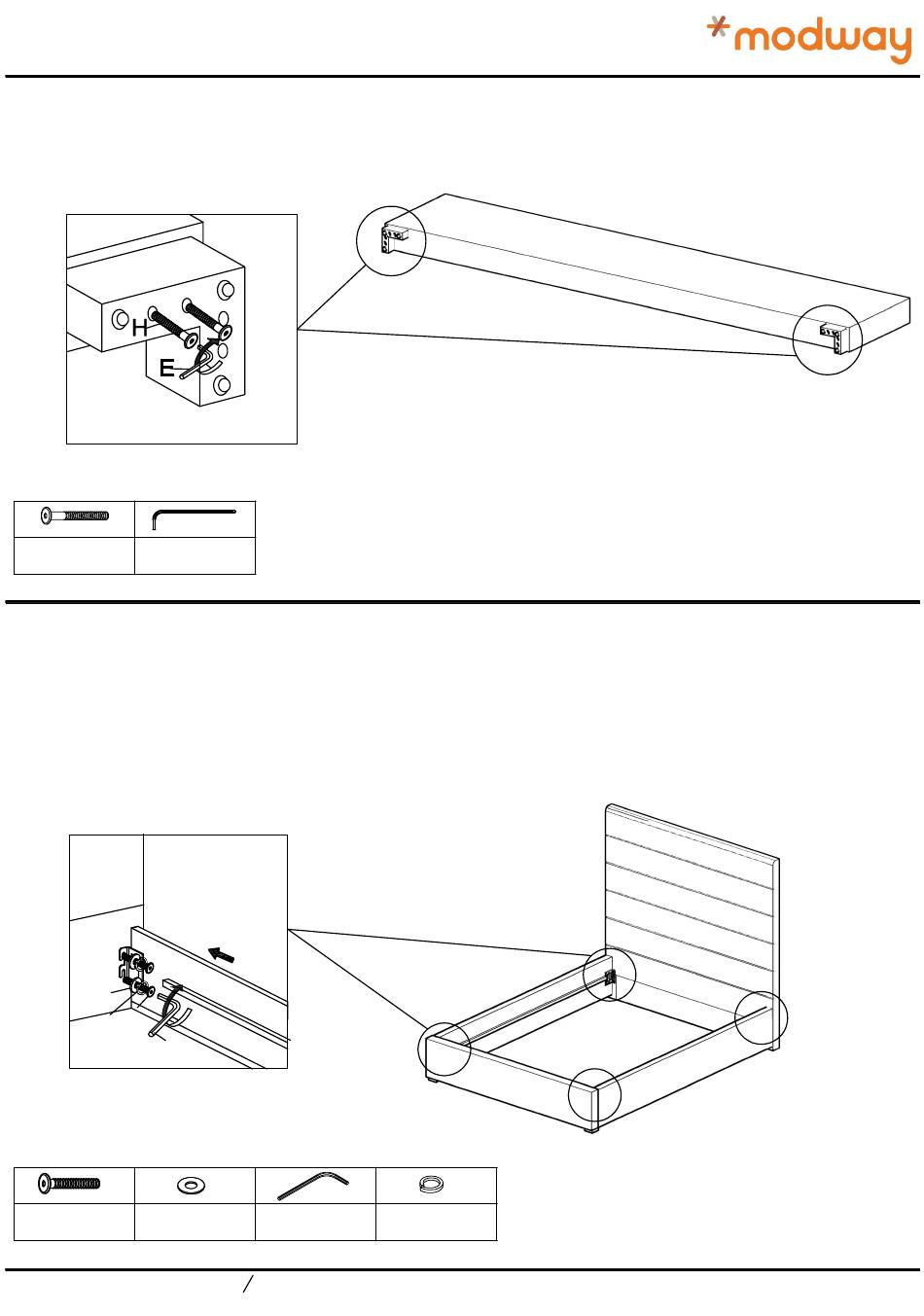

STEP 1:
Place Footboard (2) on a carpeted or padded area as shown. Attach wooden Bed leg (8) into Footboard (2) by inserting and JCBC
70mm Bolt (H) into the predrill holes at Footboard(2). Tighten with M4 Allen Key (E).
Hx4
Ex1
Hardware & Tool required Hardware & Tool required
STEP 2:
Place Headboard (1) , Footboard (2) and Siderail (3) on a carpeted or padded area as shown. Attach Side rail (3) into Headboard
(1) and Footboard (2) by inserting Flat Washer (G) and JCBB 35mm Bolt (B) into the holes of Headboard (1) and Footboard(2).
Tighten with M5 Allen Key (F).Repeat the same steps for other three corner
G
B
I
F
Bx8 Gx8
Hardware & Tool required
Customer Service 908-368-1025 www.modway.com
3
Fx1 Ix8
Page 2/3
