Components and Ports

Vehicle Key Chip Slot – holds the vehicle key chip.
1.
Vehicle Key Slot – holds the vehicle key.
2.
Status LED Light – indicates the current operating status.
3.
Connection Port – connects EEPROM Adaptor and EEPROM
4.
Clamp Integrated MC9S12 Cable.
USB Port – provides data communication and power supply.
5.
Vehicle Key Slot
Holds the Vehicle Key to read and write vehicle key information.
Vehicle Key Chip Slot
Holds the Vehicle Key Chip to read and write vehicle key chip
information.
Status LED Light
The status LED of the XP201 indicates the operating status of the

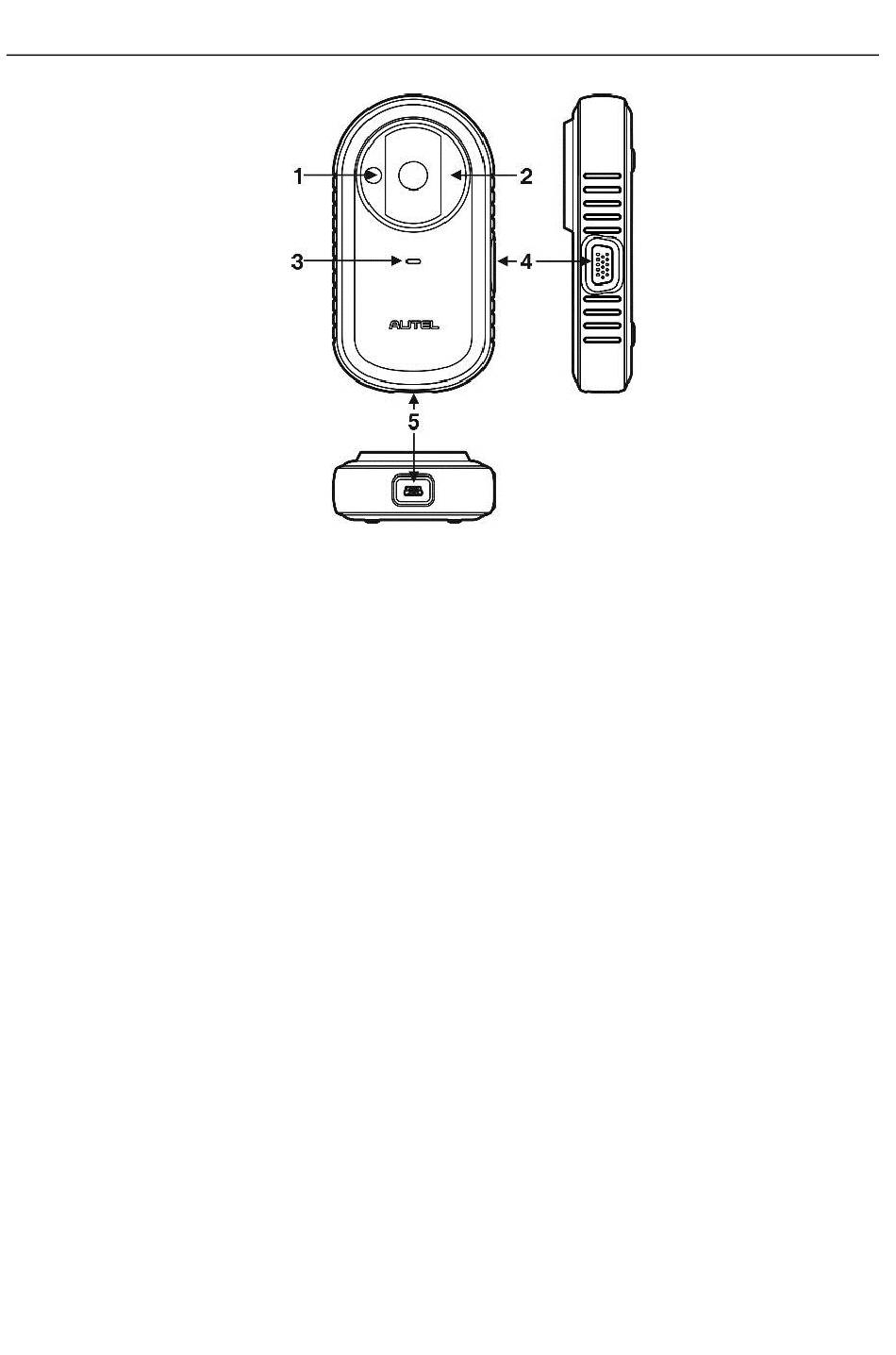

Figure 2-1 MaxiProgrammer 201 Views
