3. Mechanical Installation

3.1.

General

•
Store the Optidrive in its box until required. Storage should be clean and dry and within the temperature range –40°C to +60°C
•
Install the Optidrive on a flat, vertical, flame-resistant, vibration-free mounting within a suitable enclosure, according to
EN60529 if specific Ingress Protection ratings are required
•
The Optidrive must be installed in a pollution degree 1 or 2 environment
•
Sizes 1 & 2 are DIN rail mountable
•
Ensure that all terminals are tightened to the appropriate torque setting
3.2.

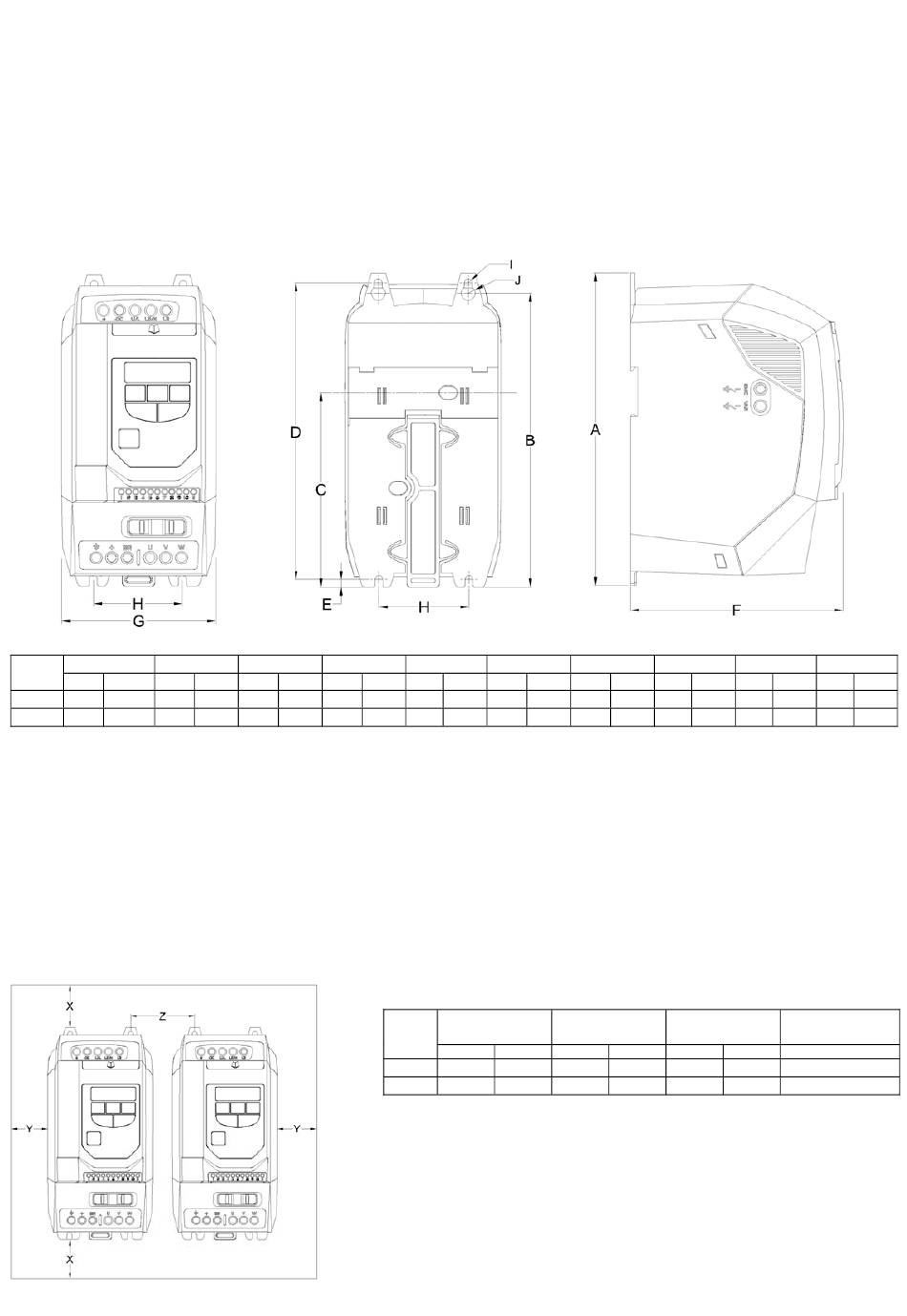

Mechanical dimensions and mounting

Drive A
Size
mm in mm
1 173 6.81 160
2 221 8.70 207
Control Terminal Torque Settings of 0.5 Nm (4.5 lb-in)
Power Terminal Torque Settings of 1 Nm (9 lb-in)
3.3.

Enclosure mounting

For applications that require a higher IP rating than the IP20 offered by the standard drive, the drive must be mounted in a metallic
enclosure. The following guidelines should be observed for these applications:
•
Enclosures should be made from a thermally conductive material.
•
When vented enclosures are used, there should be venting above the drive and below the drive to ensure good air circulation.
Air should be drawn in below the drive and expelled above the drive.
•
If the external environment contains contamination particles (e.g. dust), a suitable particle filter should be fitted to the vents
and forced ventilation implemented. The filter must be serviced / cleaned appropriately.
•
High moisture, salt or chemical content environments should use a suitably sealed (non-vented) enclosure.
6
B C D
in mm in mm
6.30 109 4.29 162
8.15 137 5.39 209
E F
in mm in mm
6.38 5 0.20 123 4.84
8.23 5.3 0.21 150 5.91
Drive X
Size Above/Below
mm in
1 50 1.97
2 75 2.95
Note: Dimension Z assumes that the drives are mounted side-by-side with
no clearance.
Typical drive heat losses are 3% of operating load conditions.
Above are guidelines only and the operating ambient temperature of the
drive MUST be maintained at all times.
www.invertek.co.uk
G H
in mm in mm in
82 3.23 50 1.97
109 4.29 63 2.48
Y
Either Side Between
mm in mm
50 1.97 33
50 1.97 46
Optidrive E2 Single Phase Output User Guide
I J
mm In mm in
5.5 0.22 10 0.39
5.5 0.22 10 0.39
Z Recommended
airflow
3
in CFM (ft /min)
1..30 11
1.81 11
