Michelangelo Gateway
OFF when the device is not powered
ON Green when the device in powered and ready
LAN Act
Flashing Green when data is transferred over the LAN
Flashing Green/Orange means a hardware device failure. Contact support.

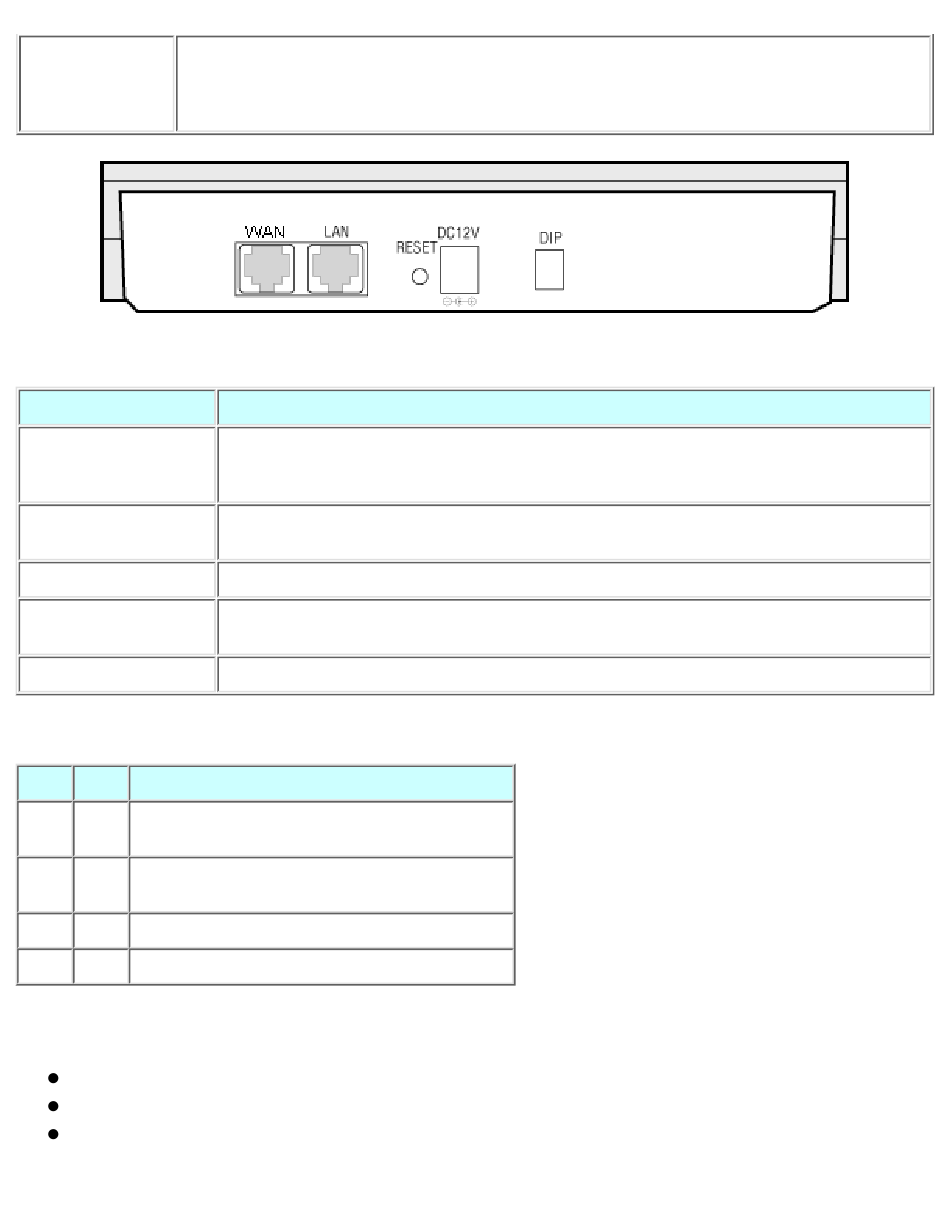

Connectors and Components
Item
WAN
LAN
Reset button
DC12V
DIP
DIP Switch Table
SW1 SW2
OFF OFF Normal operation (default)
DHCP Server enabled.
OFF ON Normal operation.
DHCP Server disabled.
ON OFF Restore device IP and password (see below)
ON ON Normal Operation
Restore Device IP Address and Password
If the IP address or password is lost, use the following procedure to:
Restore the device IP address to the factory default of 192.168.0.1
Set the Network Mask to 255.255.255.0
Set the password to NULL (no password)
WAN port. Use a cable with RJ45 connectors to connect this port to the xDSL or
Cable modem's Ethernet port.
In some cases a cross-wired cable could be required.
10/100BaseT Ethernet port. Use a LAN cable fitted with RJ45 connectors to connect
this port to your 10/100BaseT hub. (Use Cat 5 cable if LAN is running 100Mbit/s)
Use this to reset (reboot) Michelangelo Gateway.
Connect the supplied power DC 12V supply unit here. Do NOT use other power
supplies.
See the following DIP switch table for details.
