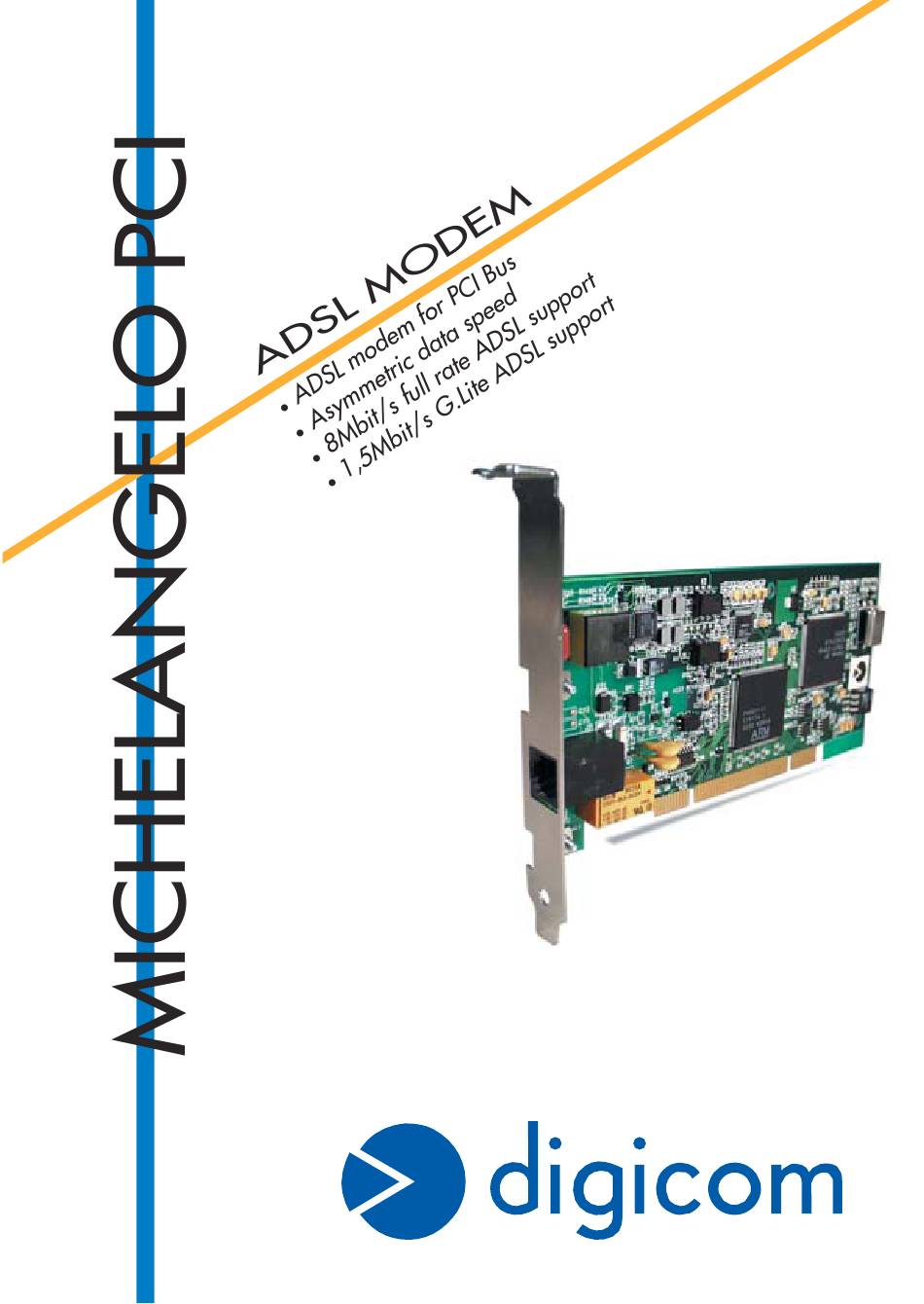

  • Page 1 User's Guide rev. 2.0 02/2002 http://www.digicom.it...

  • Page 3: Table Of Contents

    PMICHELANGELO PCI Index INDEX PREFACE ENVIROMENTAL CONDITIONS CLEANING THE TERMINAL VIBRATIONS OR DROPPING WARNING DECLARATION CE OF CONFORMITY GENERALITY 1.1. PRODUCT FEATURES HARDWARE INSTALLATION SOFTWARE INSTALLATION 3.1. WINDOWS® XP, 2000, ME, 98 3.2. CHANGE THE INSTALLATION 3.3. CHANGE CONFIGURATION 3.3.1. LINE SETUP MENU 3.3.2.

  • Page 4: Preface

    Digicom S.p.A. The contents of this booklet may be modified without prior permission. Every possible care has been taken in testing and putting together all the documentation contained in this booklet, however Digicom can not take any responsability brought by the use of this booklet.

  • Page 5: Generality

    MICHELANGELO PCI Generality GENERALITY Asymmetric Digital Subscriber Line (ADSL) technology provides high-speed data access over regular phone lines. ADSL service is able to co- exist on the same line with your telephone service. The ADSL has an unbalanced connection speed.
  • Page 6 MICHELANGELO PCI Generality Windows® Plug&Play Flash upgradable CE mark Driver for Windows® XP/ME/2000/98...

  • Page 7: Hardware Installation

    Remove the computer cover. Choose a free PCI bus slot. Remove the slot cover and keep the screw. Carefully insert Michelangelo PCI into the selected slot. Secure the bracket with the screw. Close the computer cover and plug it.
  • Page 9 MICHELANGELO PCI Software Installation SOFTWARE INSTALLATION 3.1. WINDOWS® XP, 2000, ME, 98 At the next reboot, Windows® (98/98SE, ME, 2000, XP) will automatically detect a new hardware and start the driver installation process. Follow the instructions. For a right installation you have to cancel the driver installation and then perform the configuration utility.

  • Page 10: Software Installation

    MICHELANGELO PCI Software Installation You have to select the right configuration. Ask your Provider for the profile to be used. Name Protocols Default PPPoA PPPoATM VCMUX (RFC2364) PPPoATM LLC (RFC2364) PPPoE PPPoEthernet VCMUX (RFC2516) PPPoEthernet LLCSNAP (RFC2516) Bridge IP over ATM VCMUX (RFC1483)
  • Page 11 MICHELANGELO PCI Software Installation The utility configuration will now install and configure Michelangelo PCI. This could take a few minutes. It’s possible that you have to restart the PC and insert the CD-Rom of your operating system.

  • Page 12: Change The Installation

    MICHELANGELO PCI Software Installation Click on “Finish” to confirm the installation. 3.2. CHANGE THE INSTALLATION To check the installation use the “Michelangelo Control Panel” utility. By pressing the “ALT” and “A” key, you’ll see more informations.

  • Page 13: Change Configuration

    MICHELANGELO PCI Software Installation 3.3. CHANGE CONFIGURATION To change the configuration use the “Michelangelo Control Panel” utility , and press the “ALT” and “P” key.

  • Page 14: Line Setup Menu

    MICHELANGELO PCI Software Installation 3.3.1. LINE SETUP MENU If you experience any problem when connecting, you can change the setting in Line Setup: Chose the Line Setup window and change the ADSL Head End ENV. parameter from No Line Driver (BNA) to Non-Specific.

  • Page 15: Protocol Setup Menu

    MICHELANGELO PCI Software Installation 3.3.2. PROTOCOL SETUP MENU With Protocol Setup menu you can change the VPI, VCI parameters and Encapsulation Mode.

  • Page 17: Uninstall

    MICHELANGELO PCI Uninstall UNINSTALL To uninstall the modem use the “Digicom DSL Wizard” utility. You will find it in Star Menu, Program and Michelangelo DSL. Choose “Uninstall Michelangelo DSL”, click on the “Next” button, then follow the instructions.

  • Page 19: Adsl Service (Pppoa)

    You can use the remote access connection if your ISP uses the RFC2364 (PPPoA) profiles. In this case Michelangelo PCI will be installed as Digicom Michelangelo PCI ADSL WAN Adapter and you can choose it in RAS. You can use the Michelangelo DSL utility (Shortcut on the desktop) to make an easy connection.
  • Page 20 MICHELANGELO PCI ADSL Service...
  • Page 21 ITALY 21010 Cardano al Campo VA via A. Volta 39...
