Digicom VoiceGate ATA User Manual

Voip gateway ethernet
Hide thumbs
Table of Contents

Advertisement

Quick Links

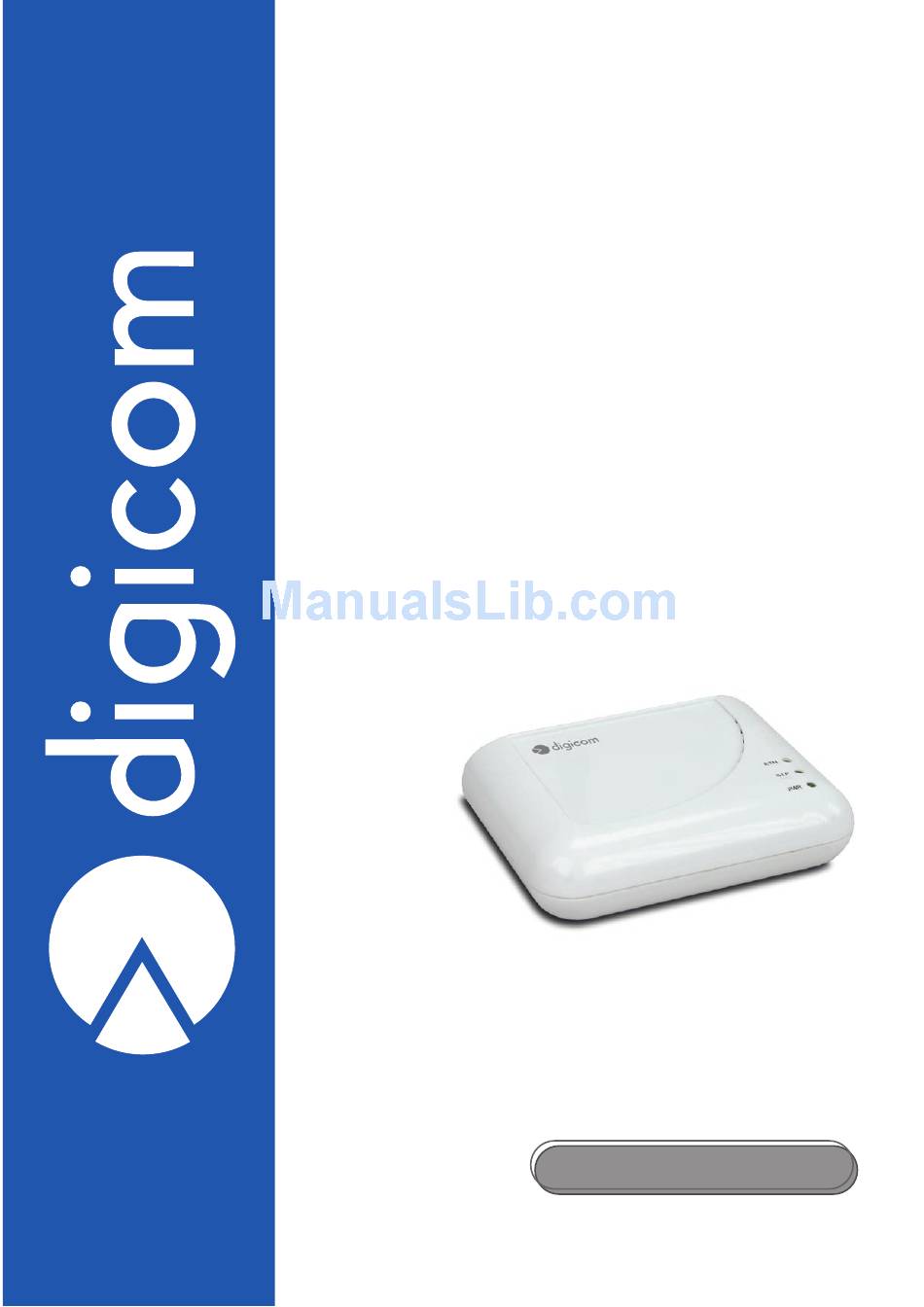

VoIP
Gateway Ethernet
VoiceGate ATA
User's Guide
rev. 1.0 10/2007
2 VoIP lines

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VoiceGate ATA and is the answer not in the manual?

Questions and answers

Related Manuals for Digicom VoiceGate ATA

Summary of Contents for Digicom VoiceGate ATA

  • Page 1 VoIP Gateway Ethernet VoiceGate ATA User’s Guide rev. 1.0 10/2007 2 VoIP lines...
  • Page 2 VoIP Gateway Configuration...
  • Page 3 1.0 Features Network Protocol Tone SIP v1 (RFC2543), v2(RFC3261) Ring Tong IP/TCP/UDP/RTP/RTCP Ring Back Tone IP/ICMP/ARP/RARP/SNTP Dial Tone TFTP Client/DHCP Busy Tone Client/ PPPoE Client Programming Tone Telnet/HTTP Server DNS Client NAT/DHCP Server Codec Phone Function G.711: 64k bit/s (PCM) Volume Adjustment G.723.1: 6.3k / 5.3k bit/s Speed dial key...
  • Page 4 IP G ARAMETERS THAT YOU NEED TO CONFIGURE THE ATEWAY Following table is the parameters that you need to configure the VoIP Gateway. If you cannot get the Internet/WAN access of your own network and VoIP Configuration of your VoIP Service Provider, it’s difficult to configure the VoIP Gateway correctly and have it work properly.

  • Page 5: Voip Gateway Overview

    2. VoIP Gateway Overview VoIP Gateway has many ports, switches and LEDs. VoIP Gateway may have some or all of the features listed below 2.1 Ports and Buttons POWER: Connect the power adapter that came with the VoIP Gateway. Using a power supply with a different voltage rating will damage this product.

  • Page 6: Led Description

    2.2 LED Description PWR LED: The LED stays lighted to indicate the system is power on properly. SIP LED: This LED is lighted when the VoIP Gateway is REGISTERED successfully to the SIP Server. ETH LED: The LED is lighted when a connection is established to WAN/LAN port and flashes when WAN/LAN port is sending/receiving data.
  • Page 7 3. Installing VoIP Gateway 3.1 Hardware Installation 1. Locate an optimum location for the VoIP Gateway. 2. For connections to all interfaces, refer to figure below. 3. Connect the AC Power Adapter. Depending upon the type of network, you may want to put the power supply on an uninterruptible supply.
  • Page 8 3.2 Basic VoIP Configuration 3.2.1 Access to the web configuration of VoIP Gateway Step 1: 1. Launch the Web browser (Internet Explorer, Netscape, etc.). 2. Enter the LAN port default IP address (default gateway) http://10.0.0.2 in the address bar. 3. Entry of the username and password will be prompted. Enter the default login User Name and Password: The default login User Name of the administrator is admin, and the default login Password is administrator.
  • Page 10 3.2.2 VoIP Configuration Step 1: Click " Configuration -> VoIP -> SIP Service Provider " Step 2: Click On ratio in Active, enter the information of "Domain Server / Proxy Server / OutboundProxy / Display Name / User Name / Register Name / Register Password " , which was provided by your VoIP Service Provider and then click "Submit ".
  • Page 11 Step 4: Click " Configuration -> Save Settings/Reboot " and then click " Save & Reboot " button. Step 5: System will reboot automatically to effect those changes and please wait for a moment while rebooting..

  • Page 12: Wan Configuration

    3.2.3 WAN Configuration 3.2.3.1 Static IP Configuration Step 1: Click " WAN -> Fixed IP " and then enter the " IP Address / Subnet Mask / Gateway / DNS Server1 / DNS Server2 " and then click " Submit " Step 2: You have to save and reboot the SIP VoIP Gateway to effect those changes.
  • Page 13 Click " Configuration -> Save Settings/Reboot " and then click " Save & Reboot " button. Step 4: System will reboot automatically to effect those changes and please wait for a moment while rebooting..Please check the SIP LED is lighted or not. If the SIP LED is lighted, the VoIP Gateway is REGISTERED successfully to the SIP Server.
  • Page 14 Step 2: Click " WAN -> DHCP client " and then click " Submit "...
  • Page 15 Step 3: You have to save and reboot the SIP VoIP Gateway to effect those changes. Step 4: Click " Configuration -> Save Settings/Reboot " and then click " Save & Reboot " button. Step 5: System will reboot automatically to effect those changes and please wait for a moment while rebooting..Please check the SIP LED is lighted or not.
  • Page 16 3.2.3.3 PPPoE Client Mode Configuration Step 1: 1. Launch the Web browser (Internet Explorer, Netscape, etc.). 2. Enter the LAN port default IP address (default gateway) http://10.0.0.2 in the address bar. 3. Entry of the username and password will be prompted. Enter the default login User Name and Password: The default login User Name of the administrator is admin, and the default login Password is administrator.
  • Page 17 Step 3: You have to save and reboot the SIP VoIP Gateway to effect those changes. Step 4: Click " Configuration -> Save Settings/Reboot " and then click " Save & Reboot " button.
  • Page 18 Step 5: System will reboot automatically to effect those changes and please wait for a moment while rebooting..Please check the SIP LED is lighted or not. If the SIP LED is lighted, the VoIP Gateway is REGISTERED successfully to the SIP Server. If not, please press reset button and reconfigure configuration again.

  • Page 19: Advanced Voip Configuration

    4. Advanced VoIP Configuration The configuration of VoIP Gateway is web based. The page of VoIP Gateway Configuration can be reached as follows: 1. Launch the Web browser (Internet Explorer, Netscape, etc.). 2. Enter the LAN port default IP address (default gateway) HYPERLINK "http://10.0.0.2/"http://10.0.0.2/ in the address bar.
  • Page 20 not done, then these Voice Parameters will not be saved over a power cycle. The Voice Parameters that can be changed “on the fly” are noted in the respective sections. 4.1 Status Page 4.1.1 System Information Page This page illustrates the system related information. 4.1.2 Network Status Page You can check the current Network setting in this page.

  • Page 21: Configuration Page

    4.2 Configuration Page 4.2.1 WAN Configuration Page You can configure the WAN settings in this page. 4.2.1.1 The TCP/IP Configuration item defines the LAN port’s network environment. You may refer to your current network environment to configure the VoIP Gateway properly. 4.2.1.2 The PPPoE Configuration item defines the PPPoE Username and Password.
  • Page 22 4.2.2 LAN Configuration Page You can configure the LAN settings/DHCP Server in this page. 4.2.3 VoIP Gateway Configuration Page The VoIP Gateway Configuration page sets the parameters for the VoIP application. The VoIP Gateway Configuration page is divided into three general categories: SIP Setting, Phone Book, Phone Setting, and Others.
  • Page 23 4.2.3.1 SIP Setting Configuration In SIP Settings you can setup the Service Domain, Port Settings, Codec Settings, RTP Setting, RPort Setting and Other Settings. If the VoIP service is provided by ISP, you need to setup the related information correctly then you can register to the SIP Proxy Server correctly.

  • Page 24: Outbound Proxy

    SIP Service Provider Active First you need click On to enable the Service Domain, then you can input the following items: Domain Server For example, in test@domain.com, the domain is “domain.com”. Provided by your VoIP Service Provider. Proxy Server If your VoIP service provider has an proxy address and requires that you provide the address to VoIP Gateway.
  • Page 25 4.2.3.1.3 Codec Settings You can setup the Codec priority, RTP packet length, and VAD(Voice Activity Detection) function in this page. Follow the suggestion of your ISP to setup these items. When you complete the setting, please click the Submit button. 4.2.3.1.4 Codec ID Setting You can set the value of Codec ID in this page.

  • Page 26: Dtmf Setting

    4.2.3.1.5 DTMF Setting You can setup the Out-Band DTMF and Send DTMF SIP Info Enable/Disable in this page. To change this setting, please follow your VoIP Service Provider’s information. When you complete the setting, please click the Submit button. • RFC 2833: Click this button to send Mid-Call DTMF tones in RTP packets separately using RFC2833, i.e., dynamic negotiation of RTP payload for DTMF digits will be done.
  • Page 27 The QoS sets the voice packets’ priority. If you set the value higher than 0, then the voice packets will get the higher priority to the Internet. But the QoS function still needs to cooperate with the other Internet devices. 4.2.3.2 Phone Book Configuration 4.2.3.2.1 The Phone Book contains Speed Dial Settings.
  • Page 28 Phone Book Page Book Page Default page is Page1. There are total 14 pages from Page 1 to Page 14 Phone Show the phone number by sequence. There are total 140 phone numbers from Phone 0 to Phone 139 can be set Name Enter the Name Number...
  • Page 29 Example 1: Position: 0, Name: IPtel User test, Number: 000, URL: HYPERLINK "mailto:test@iptel.org" test@iptel.org When the user dials the Number 000, he will call the VoIP User test who is registered to the SIP Server iptel.org. Please note that you need also to register to the SIP Server iptel.org. If you register to different SIP Server, please make sure that the SIP Server allows you to call iptel.org.
  • Page 30 If your VoIP Service Provider supports the VoIP OUT, please follow the instructions of your VoIP Service Provide to dial the PSTN phone number by VoIP OUT. For example: as suggested by the VoIP Server Provider, dial the recommended dialing sequence: 00 + country code + telephone number (e.g.
  • Page 31 All Forward All incoming call will be forwarded to the URL/number you configured. Busy Forward If you are on the phone, the new incoming call will be forwarded to the URL/number you configured. No Answer Forward If you can not answer the phone after a specific ring you configured, the incoming call will be forwarded to the URL/number you configured.
  • Page 32 All incoming calls will be forwarded to the VoIP IP Gateway’s WAN IP Address 192.168.10.36. Example 3: All Forward: PSTN, Name.: 88888888, URL/Number: 88888888 All incoming calls will be forwarded to the PSTN phone number 88888888. Example 4: All Forward: IP, Name.: 7777, URL/Number: 7777 If you are on the phone, the new incoming call will be forwarded to the VoIP phone number 7777.
  • Page 33 If you are on the phone, the new incoming call will be forwarded to the VoIP IP Gateway’s WAN IP Address 192.168.10.36. Example 6: All Forward: IP, Name.: 7777, URL/Number: 7777 If you can not answer the phone after 3 rings, the incoming call will be forwarded to the VoIP phone number 7777.
  • Page 34 If you can not answer the phone after 3 rings, the incoming call will be forwarded to the PSTN phone number 88888888. 4.2.3.3.2 Volume Setting function You can setup the Handset Volume, PSTN-Out Volume, Handset Gain and the PSTN-In Gain. When you complete the setting, please click the Submit button.
  • Page 35 DND Always Default is Off (disable). When it was On (enable). All incoming call will be blocked and the caller will hear the busy tone any time when place a call until disable this feature. DNS Period Default is Off (disable). When it was On (enable). All incoming call will be blocked and the caller will hear the busy tone any time when place a call during the time period until disable this feature.
  • Page 36 Single Caller ID Default is Off (disable). When it was Yes (enable), It’ll detect the Singel Caller ID. CID Without Time Default is Off (disable). When it was Yes (enable), It’ll detect the Caller ID without time. CID Type 2 Default is Off (disable).

  • Page 37: Auto Dial Time

    Replace rule3 +: or Replace rule4 xxx: Define the length of digits. Dial now If the numbers which you dialed met this rule, it will dial out with its dial plan immediately. Be noted that the first digit cannot be 0 due to 0 in the first digit is to ignore this rule.
  • Page 38 [006+xxx] will be dialed out. For example, when you dial the number 0035555 and the digits 003 will be replaced with 006, then the real phone number 0065555 will be dialed out. When the number 004 is dialed, the digits 004 will be replaced with 006 and the real phone number [006+xxx] will be dialed out.
  • Page 39 0075000 will be dialed out. For example, when you dial the number 5999 and the prefix 007 is added, the real phone number 0075999 will be dialed out. When the number 35xx is dialed and the prefix 007 is added, the whole digits [007+35xx] will be dialed out.

  • Page 40: Fax) Setting

    222.222.222.222, then you need to dial 222*222*222*222# to make a IP Dialing. 4.2.3.3.6 Flash Time Settings function When you use the PSTN Phone and you need to press the Hook to do the Flash(Switch to the other phone line or HOLD). This function sets the time you must press the Hook to activate the Flash function. 4.2.3.3.7 Call Waiting Settings In this page you can enable/disable the call waiting setting.
  • Page 41 T.38 (FAX) Default is Off (Disabled). When it is On (Enabled), it enables the T.38 Fax function. T.38 Port/ T.38 Port of Phone1 Default is 60000. (Only one port at a time is supported) T.38 Port of Phone2 Default is 60100. (Only one port at a time is supported) Submit Button When you complete the setting, please click the...

  • Page 42: Hot Line Number

    4.2.3.3.9 Hot line Settings Provide the Hot Line function. It'll dial the configured URL, VoIP Phone Number or the Remote WAN IP Address of VoIP Gateway automatically every time you pick up the phone. Use Hot Line Default is Disable. When it is Enable, it enables the Hot Line function.
  • Page 43 Every time you pick up the phone, it will dial the VoIP Phone Number voiptest automatically. Example 3: Use Hot Line: Enable, Hot line number: 192.168.10.63 Every time you pick up the phone, it will dial the WAN IP Address 192.168.10.63 of Remote VoIP Gateway automatically.

  • Page 44: Auto Configuration

    4.2.3.4.1 Auto Configuration Settings In this page you can enable/disable the auto configuration/provisioning settings. The VoIP Gateway provides secure provisioning and remote upgrade. Provisioning is achieved through configuration profiles transferred to the device via TFTP, HTTP or FTP. The VoIP Gateway can be configured to update its VoIP Configuration from a remote profile at power up or reboot.
  • Page 45 Every time you power on the VoIP Gateway, it will update its VoIP configuration to the latest one from Auto Provisioning Server (HTTP Server) automatically. Example 2: Auto Configuration for TFTP Server Auto Configuration: TFTP, TFTP Server: 192.168.10.100 Every time you power on the VoIP Gateway, it will update its VoIP configuration to the latest one from Auto Provisioning Server (TFTP Server) automatically.
  • Page 46 Every time you power on the VoIP Gateway, it will update its VoIP configuration to the latest one from Auto Provisioning Server (FTP Server) automatically. 4.2.3.4.2 FXO & FXS Impedence Setting In this page you can select the FXO & FXS Impedence Setting for different countries. FXO Port Default is USA.

  • Page 47: Stun Server

    4.2.3.4.3 STUN Setting In this page you can Enable/Disable the STUN and configure the STUN Server IP address. This function helps your VoIP Gateway working properly behind NAT. To change these settings please follow your VoIP Service Provider’s information. When you complete the setting, please click the Submit button. STUN Default is Off (disable).

  • Page 48: Mac Clone

    4.2.3.4.4 MAC Clone Settings Some ISPs do not want you to have a home network and have a DSL/Cable modem that allows only 1 MAC to talk on the internet. If you change the network cards, you have to call them up to change the MAC. The VoIP Gateway can clone the computer's MAC that was originally set up for such an ISP.
  • Page 49 4.2.3.4.6 Advanced Settings In this page you can change advanced setting. CPC (Calling Party Control) is a signal sent from most modern electronic COs to indicate that the "Calling Party" has hung up. The CPC signal tells the phone equipment that the outside party has hung-up, so it can stop recording to an answering machine or voice mail, drop the call off hold, or just release a line that might be used for dictation or announcements.
  • Page 50 SIP Encrypt Default is Disable. There are four types of SIP Encrypt: INFINET, AVS, WALKERSUN1, WALKERSUN2, CSF1, CSF2 and GX. PPPoE retry period Default is 5 seconds. The range is 5 to 255. When PPPoE failed to connect to ISP, it will wait for the period which you configured to redial. System Log Server To upload the system log on the specified Server System Log Type...
  • Page 51 4.2.4 DDNS Configuration Page In this page you can configure the DDNS setting. You must have the DDNS account and insert the information properly. You can have a DDNS account with a public IP address so that others can call you via the DDNS account.
  • Page 52 Configure the Host Name, User Name, Password, and E-mail Address.
  • Page 53 If every parameter is correctly configured, you can visit the home page of the VoIP Gateway entering the DDNS Host Name as follow. 4.2.5 VLAN Settings Page In this page you can set the VLAN settings.
  • Page 54 VLAN Packets Default is Off(Disable). When it was On(Enable), It’ll enable to receive VLAN Packets function. VID (802.1Q/TAG) Default is 136. Configure the Virtual LAN ID (VLAN ID or VID) for VLAN Server. The VLAN Identifier is a 12-bit field. It uniquely identifies the VLAN to which the frame belongs.
  • Page 55 4.2.7 Virtual Server Page Virtual Servers are used for port forwarding from the WAN to LAN networks. The Virtual Server Configuration page allows you to set the configuration of the Virtual Server. All UDP/TCP ports are protected from intrusion. If any specific local PCs need to be mapped to the UDP/TCP port on WAN side, please insert the mappings here.

  • Page 56: Add Virtual Server

    [Button] Delete Selected Delete selected item [Button] Delete All [Button] Delete all items Reset [Button] Reset selected item Add Virtual Server Enter the number corresponding to the Virtual Server configuration. Server IP Enter the private network IP address for the particular server. Protocol Select TCP or UDP.
  • Page 57 Table 4-3. Well Known TCP/UDP Ports Port Protocol File Transfer Protocol (FTP) Data FTP Commands Telnet SMTP Whois Domain Name System (DNS) Trivial File Transfer Protocol (TFTP) Gopher Finger HTTP POP3 SUN Remote Procedure Call (RPC) SFTP Network News Transfer Protocol (NNTP) Network Time Protocol (NTP)
  • Page 58 Routing Information Protocol (RIP) 1701 Layer 2 Tunneling Protocol (L2TP) 2000 Open Windows 2049 Network File System (NFS) 6000 4.2.8 PPTP Settings Page A VPN is a private network of computers that uses the public Internet to connect some nodes. Because the Internet is essentially an open network, the Point-to-Point Tunneling Protocol (PPTP) is used to ensure that messages transmitted from one VPN node to another are secure.
  • Page 59 If synchronization is enabled, your VoIP Gateway clock is synchronized with an Internet time server once a day. However, if you don't have a continuous Internet connection through a cable modem or DSL modem, the automatic synchronization might not always occur. If time synchronization fails, it might be due to: You are not connected to the Internet.
  • Page 60 Alarm Default is OFF (Disabled). When it is ON (Enabled), it will enable the Alarm function. Alarm Time Default is 0:0 (hh:mm). Set the Alarm Time. (24 hours format, hh:mm) Current time It’s the current time of the VoIP Gateway. Submit Button When you complete the setting, please click the Submit button.
  • Page 61 The alarm will sound when it reached the current time 23:31. 4.2.11 System Authority Page In the System Authority you can change your login name and password. 4.2.12 Save Settings/Reboot Page In Save Settings/Reboot you can save the changes you have done or reboot only. If you want to use new setting in the VoIP Gateway, you have to click the Save &...
  • Page 62 4.3 System Page 4.3.1 Reset factory default Page In Reset to Factory Default setting you can restore the VoIP Gateway to factory default. Just click the Restore button, the VoIP Gateway will restore to default and automatically restart. 4.3.2 Firmware Update Page In Update you can update the VoIP Gateway’s firmware to the new one or do the factory reset to let the VoIP Gateway back to default setting.
  • Page 63 4.3.3 Auto Update Page To update the firmware, power on the VoIP Gateway or Scheduling. Update via Default is OFF (Disable). When it was TFTP/FTP/HTTP(Enable), it’ll enable the auto update function and request from the TFTP/FTP/HTTP Server. TFTP Server Enter IP or Domain Name of TFTP Server. HTTP Server Enter IP or Domain Name of HTTP Server.
  • Page 64 Server by scheduling. Scheduling (Date) Default is 14. It’ll check if there is a new firmware on the TFTP/FTP/HTTP Server periodically. The range of the Scheduling Date is 1 - 30. Scheduling (Time) Default is AM 00:00- 05:59. It’ll check if there is new firmware on the TFTP/FTP/HTTP Server periodically.
  • Page 65 RULE of AUTO UPDATE: Every time you power on the VoIP Gateway, it will notify you with “BEEP BEEP BEEP” that there is an up to date firmware available on HTTP Server after you pick up the phone; you can update the firmware manually.

  • Page 66: Auto Update Settings

    4. Put the TA2S_701250.gz and TA2S_ver.dat in Server AUTO UPDATE PROCEDURES: Power on the VoIP Gateway and it will check if there is any firmware update on the Server. If a newer firmware is avilable, it will only notify you with “BEEP BEEP BEEP” after you pick up the phone. Please press #190# and then hang up the phone to unlock the special key on keypad.
  • Page 67 RULE of AUTO UPDATE: Every time you power on the VoIP Gateway, it will notify you with “BEEP BEEP BEEP” there is an up to date firmware available on TFTP Server after you pick up the phone; you can update the firmware manually.
  • Page 68 4. Put the TA2S_701250.gz and TA2S_ver.dat in Server AUTO UPDATE PROCEDURES: Every time you power on the VoIP Gateway, it will check if there is an up to date firmware available on TFTP Server and update the firmware manually. When there is a newer firmware, it will only notify you with “BEEP BEEP BEEP”...
  • Page 69 RULE of AUTO UPDATE: Every time you power on the VoIP Gateway, it will notify you with “BEEP BEEP BEEP” an up to date firmware is available on FTP Server after you pick up the phone; you can update the firmware manually. Create the Auto Update files on FTP Server: 1.
  • Page 70 AUTO UPDATE PROCEDURES: Every time you power on the VoIP Gateway, it wil check if there is an up to date firmware available on FTP Server and update the firmware manually. If there is a newer firmware, it will only notify you with “BEEP BEEP BEEP”...
  • Page 71 RULE of AUTO UPDATE: It will update its VoIP firmware to the latest version from FTP Server automatically when it reaches the Scheduling Date and Scheduling Time (Next update time). Create the Auto Update files on FTP Server: 1. To check the current firmware version of the VoIP Gateway: a.
  • Page 72 AUTO UPDATE PROCEDURES: Every time the VoIP Gateway reaches the scheduling date and time, it will notify you with “BEEP BEEP BEEP” an up to date firmware is available on FTP Server after you pick up the phone and you can update the firmware manually.
  • Page 73 RULE of AUTO UPDATE: It will update its firmware to the latest one from HTTP Server automatically when it reaches the Scheduling Date and Scheduling Time (Next update time). Create the Auto Update files on HTTP Server: 1. To check the current firmware version of the VoIP Gateway: a.

  • Page 74: Auto Configuration Settings

    AUTO UPDATE PROCEDURES: Every time the VoIP Gateway reaches the Scheduling date and time, it will check if there is an up to date firmware available on HTTP Server and update the firmware automatically. It takes about 3 minutes for updating the new firmware, the SIP LED starts blinking while updating the firmware.
  • Page 75 RULE of AUTO UPDATE: It will update its firmware to the latest one from TFTP Server automatically when it reaches the Scheduling Date and Scheduling Time (Next update time). Create the Auto Update files on TFTP Server: 1. To check the current firmware version of the VoIP Gateway: a.
  • Page 76 4. Put the TA2S_701250.gz and TA2S_ver.dat in Server AUTO UPDATE PROCEDURES: Every time the VoIP Gateway reaches the Scheduling date and time, it will check if there is an up to date firmware available on TFTP Server and update the firmware automatically. It takes about 3 minutes to update the new firmware, the SIP LED starts blinking while updating the firmware.
  • Page 77 RULE of AUTO UPDATE: It will update its firmware to the latest one from FTP Server automatically when it reaches the Scheduling Date and Scheduling Time (Next update time). Create the Auto Update files on FTP Server: 1. To check the current firmware version of the VoIP Gateway: a.
  • Page 78 AUTO UPDATE PROCEDURES: Every time the VoIP Gateway reaches the Scheduling date and time, it will check if there is an up to date firmware available on FTP Server and update the firmware automatically. It takes about 3 minutes to update the new firmware, the SIP LED starts blinking while updating the firmware.
  • Page 79 Info Check Gateway IP #124# None IVR will announce the current Address gateway IP address of the VoIP Gateway Info Check Primary #125# None IVR will announce the current DNS Server Setting setting in the Primary DNS field. Info Check IP Address #126# None IVR will report the WAN port...

  • Page 80: How To Make A Phone Call

    6. How to make a phone call When your VoIP Gateway is configured properly, you can make a phone call to your friend with the same Service provider. Please make sure all the cables are connected properly, like PSTN Line cable, Phone cable, Ethernet cable, Power cable.

  • Page 81: 3-Way Conferencing

    6.2.3 3-Way Conferencing How to Use: 1. Dial the first number. 2. During connection to the first party, perform a hook flash to put the first party on hold. 2. When you hear the dial tone, press #512# on your telephone dial-pad. 3.

  • Page 82: Troubleshooting

    7. Trouble Shooting 7.1 To check what the Internet/WAN access if your own Network is DHCP Client, Static IP or PPPoE Client 1. Please make sure that you have the Interent/WAN access before changing to the VoIP Gateway, please check if you could surf the Internet. If you could surf the Internet, you have the Interent/WAN access. 7.1.1 If your Internet/WAN access is the PPPoE client a.
  • Page 83 Or click on Start Menu -> Run .. -> enter command -> click OK -> enter ipconfig /all and then press enter key. The detail IP configuration is showed as follow: If you could see the PPP adapter as follow, your WAN access is the PPPoE client: C:\Documents and Settings\ASUS P4P800VM>ipconfig /all Windows IP Configuration Host Name .
  • Page 84 Default Gateway ..: 10.0.0.2 DHCP Server ... : 10.0.0.2 DNS Servers ... : 10.0.0.2 Lease Obtained.
  • Page 85 the DHCP client: C:\Documents and Settings\ASUS P4P800VM>ipconfig /all Windows IP Configuration Host Name ... . : asus-00ef66a32b Primary Dns Suffix ..: Node Type ... . : Unknown IP Routing Enabled.

  • Page 86: Appendix A Glossary

    Host Name ... . : asus-00ef66a32b Primary Dns Suffix ..: Node Type ... . : Unknown IP Routing Enabled.
  • Page 87 machine or voice mail, drop the call off hold, or just release a line that might be used for dictation or announcements. Generally speaking, if a human is using a phone line, it doesn't matter whether the phone equipment recognizes CPC or not, since the human will physically hang-up the phone when they're done with the call, or they'll pick the call up off of hold when the phone system rings back after X seconds / minutes.

  • Page 88: Sip Account

    across a network. IP is the most common protocol used on the internet. IP address A unique number that devices use in order to identify and communicate with each other on a computer network using the IP standard. Message Waiting Indicator. An indicator that there is a voicemail message for the owner of an account.
  • Page 89 internet. VoIP Service A business that provides a VoIP service, allowing a user to connect to the Provider internet in order to make VoIP phone calls using VoIP Gateway. The VoIP service provider sets up a SIP account for the user. A.2 Keyword and Definitions Caller Call Originating End is called the Caller...
  • Page 90 Italy 21010 Cardano al Campo VA via Alessandro Volta 39 http://www.digicom.it...
