Digicom Michelangelo Gateway User Manual page 12

Michelangelo Gateway

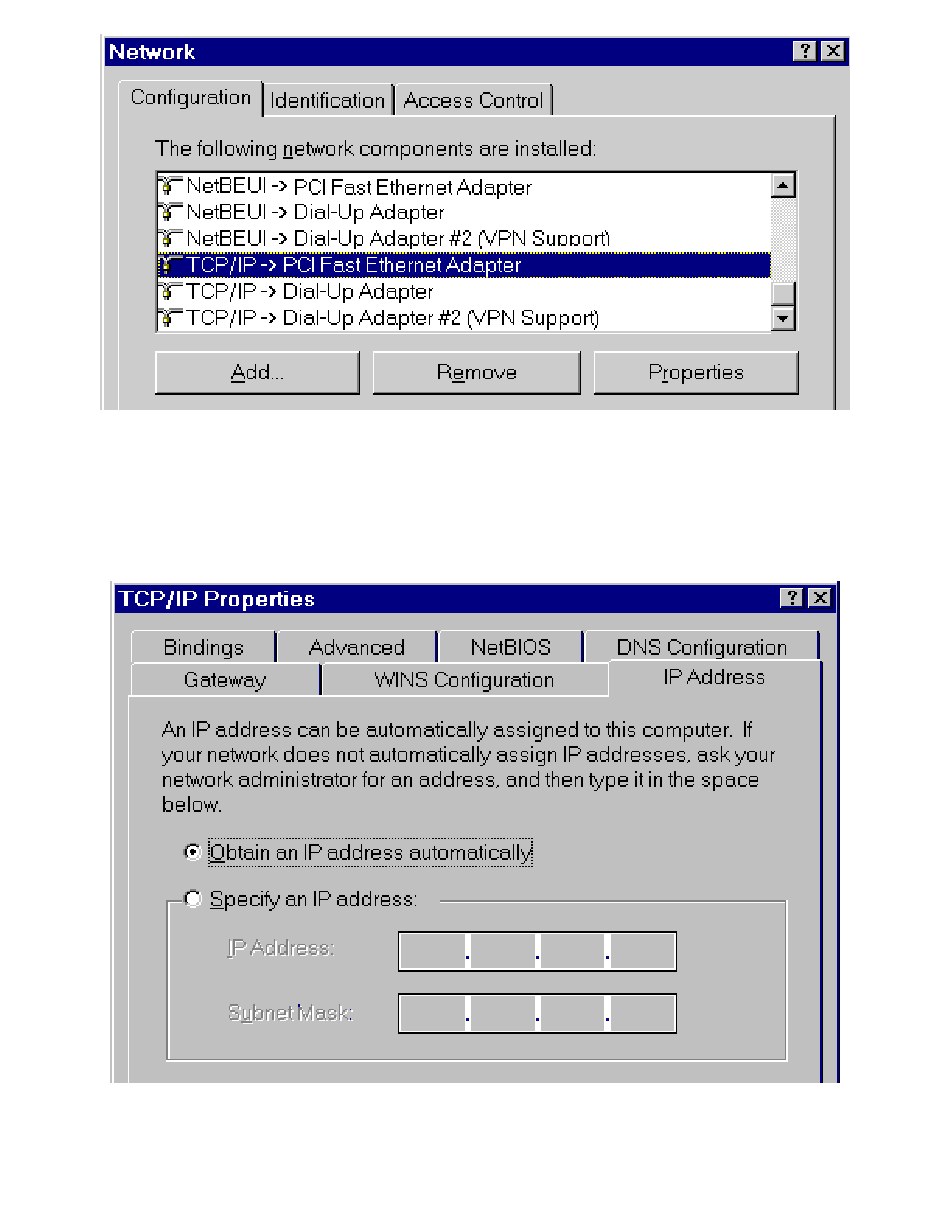

Figure 1: Network Configuration tab
2. If a line like the one highlighted ("TCP/IP -> Network Card") is not listed, select
Add-Protocol-Microsoft-TCP/IP-OK to add it.
3. Select Properties for the "TCP/IP -> Network card" entry. You will then see a screen like the following
example:
Figure 2: TCP/IP Properties - DHCP
4. On the IP Address tab, click the radio button for "Obtain an IP address automatically", as above, then reboot.
