145x210mm FS40-13QR
GD Midea Environment Appliances MFG.CO.,Ltd.
Midea Industrial Park, Dongfu Road, Dongfeng Town, Zhongshan, Guangdong,
528425, P.R.China
ELECTRIC FAN
OWNER'S MANUAL

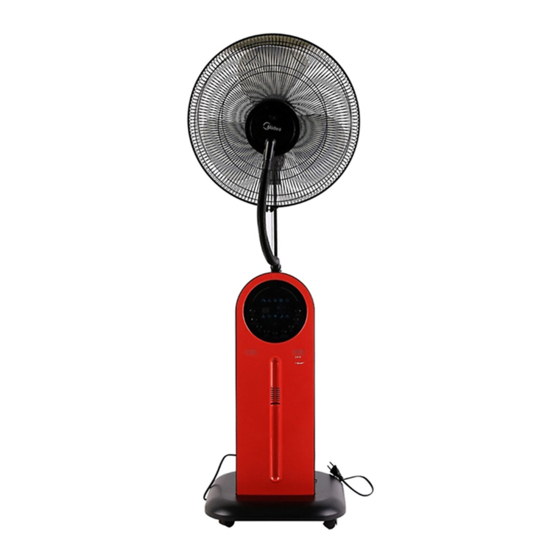

16" MIST STAND FAN
MODEL: FS40-13QR
READ AND SAVE THESE INSTRUCTIONS
Attention: Pictures in the IM are for reference only.
Advertisement
Table of Contents
Related Manuals for Midea FS40-13QR
Summary of Contents for Midea FS40-13QR
- Page 1 ELECTRIC FAN OWNER’S MANUAL 16" MIST STAND FAN MODEL: FS40-13QR READ AND SAVE THESE INSTRUCTIONS GD Midea Environment Appliances MFG.CO.,Ltd. Attention: Pictures in the IM are for reference only. Midea Industrial Park, Dongfu Road, Dongfeng Town, Zhongshan, Guangdong, 528425, P.R.China...
- Page 2 CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING 1. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 2. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 3 PART FIGURE 1. Spray cap 2. Corrugated hose 3. Front grill 4. Screw (ST3*7.5) 5. Net clamp 6. Blade nut 7. Blade 8. Guard nut 9. Rear grill 10.Motor assy 11.Tightening knob 12.Host assy 13.Base assy 14.Caster (Universal wheel) 15.Screw (M5*20) 16.Water tank assy 17.Spring clamp 18.Drain plug...
- Page 4 4. Mounting the rear grill and blade Fig.4 As is shown in Figure 4, in sequence, mount the rear grill, grill nut, blade, blade nut and net clamp. 5. Assembling the chassis As is shown in Figure 5, press the spray cap into a corrugated hose, during assembly, perform pressing while rotating, and then with screws, fix Fig.5...
- Page 5 SPEED Fan level selection switch: it cycles in the sequence of low - mid - high - low-. TIMER Fan timer switch: it cycles in the sequence of 1H-2H-4H-8H-0-1H-. MIST Humidification switch: For use, see the User’s Manual of Humidifier. MOSQUITO REPELLENT Mosquito repellent heating switch: Push the mosquito repellent into the appliance, and press the button, the indicator lighting up.
- Page 6 PRECAUTIONS · Before use, please check that the machine has been assembled completely and fixed motor components have been mounted and fastened; before this, do not connect the power supply. · Before turning on the power, check whether the used voltage is the same as the voltage indicated on the machine.
- Page 7 HUMIDIFIER CLEANING METHOD · Before cleaning the humidifier, turn off the power, remove the spring clamp and drain plug, and clear the machine of remaining water. · After removal of the scale and use for some time, scale is prone to accumulation inside the water tank, sink, and transducer;...
