145x210mm
GD Midea Environment Appliances MFG.Co.,Ltd.
No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town,
Zhongshan, Guangdong 528425 P.R.China
ELECTRIC FAN
OWNER'S MANUAL

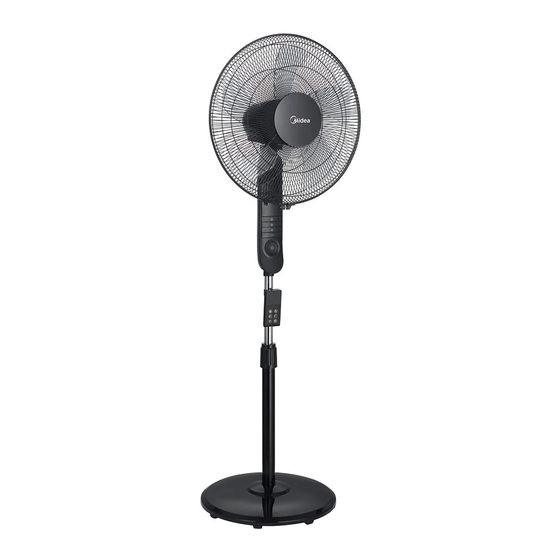

16" STAND FAN
MODEL: FS40-15FR
READ AND SAVE THESE INSTRUCTIONS
Attention: Pictures in the IM are for reference only.
Advertisement
Table of Contents
Related Manuals for Midea FS40-15FR
Summary of Contents for Midea FS40-15FR
- Page 1 OWNER’S MANUAL 16" STAND FAN MODEL: FS40-15FR READ AND SAVE THESE INSTRUCTIONS GD Midea Environment Appliances MFG.Co.,Ltd. Attention: Pictures in the IM are for reference only. No.28, Dong Fu Road, Hesui East Industrial Area, Dong Feng Town, Zhongshan, Guangdong 528425 P.R.China...
- Page 2 CAUTION Read Rules for Safe Operation and Instructions Carefully. WARNING 1. If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. 2. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
- Page 3 PART FIGURE Plastic nut Front grill Fan blade Rear grill Motor shaft Motor housing Circlip Push button Thumb Tighten screw Internal Pole Loosen Spinner Fasten Remote Control Hook Extension Pole Height adjustment ring Chassis Note: All the pictures in this manual are for explanation purpose only.
- Page 4 Fig.1 Fig.2 ig.3 Fig.4 Mounting hole Thumb screw Loose e n Annular groove Fig.5 Fig.6 Straight face Hook hole Internal Pole Hook Opening GRILL & FAN BLADE ASSEMBLY 1. Unscrew the spinner clockwise (or take the spinner out from the bag) and the plastic nut counterclockwise to remove both of them.
- Page 5 OPERATING INSTRUCTION I. Remote Controller (Fig.10) a. KEY INSTRUCTION 1. “ ” ON/OFF KEY The “ ” key is for switching on the fan .The fan will be started at normal wind. Press the “ ” key if the fan needs to switch off. Fig.10 2.
- Page 6 Sleep wind Press the “mode” key to select the sleep wind, then press the “speed” repeatedly to choose 3 speed. 6. “ ” SILENCE KEY In the state of non-silence, press silence button, the fan would be in silent state and the silence icon is lightened, while the indicator icons of the other wind types and wind levels would turn off.
- Page 7 II. Control Panel (Fig.12) These keys of the control panel may be used as same as of the remote controller. III. Tilt Adjustment To adjust the air flow upward or downward, push the grilles lightly to the desired direction. IV. Height Adjustment The height of the fan can be adjusted by loosening the height adjustment ring carefully raising or lowering the fan and firmly re-tightening the height adjustment ring.
