HVTest HTYX-III Manual

Phase shifter
Hide thumbs

Advertisement

Quick Links

Download this manual

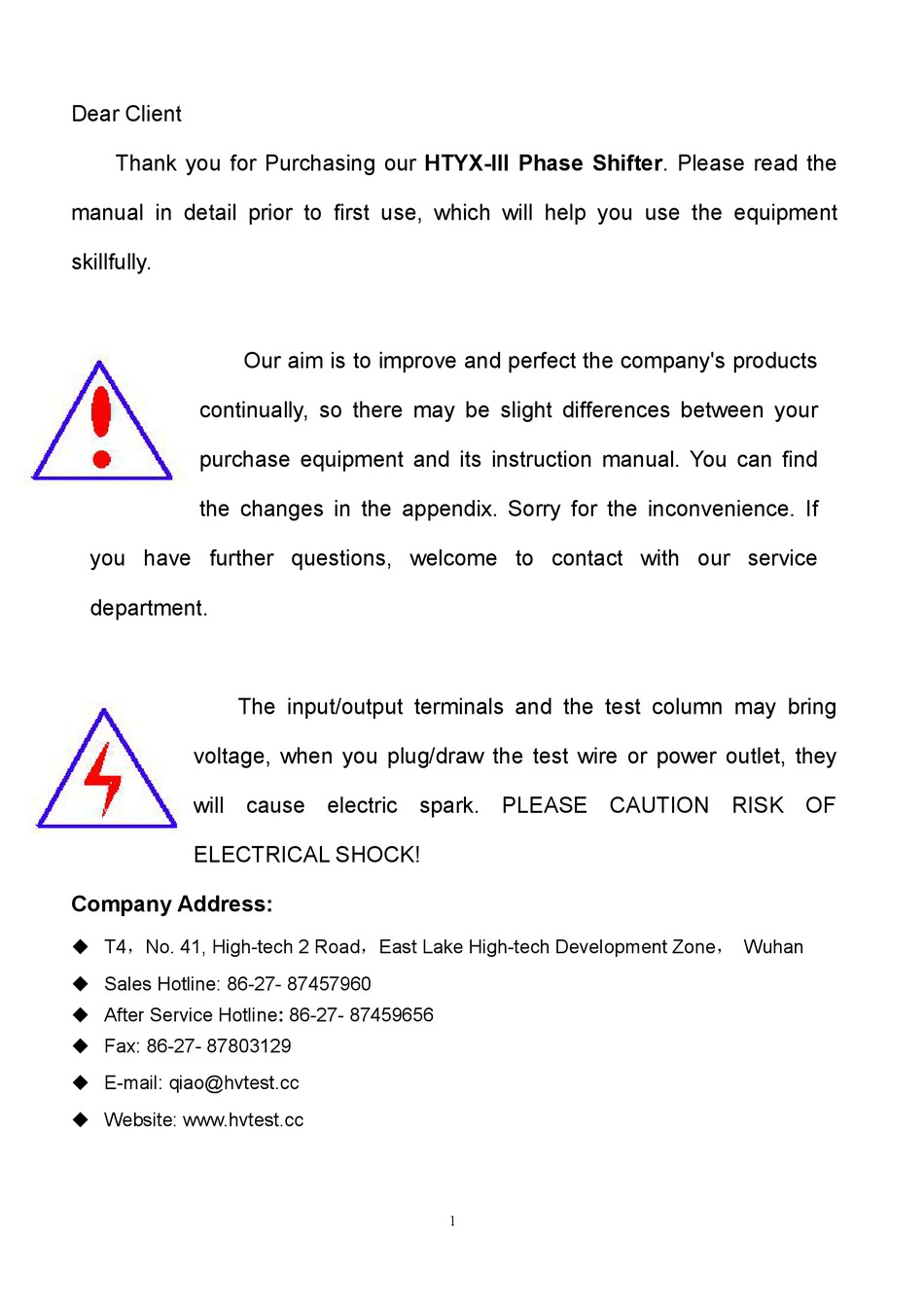

Dear Client
Thank you for Purchasing our HTYX-III Phase Shifter. Please read the
manual in detail prior to first use, which will help you use the equipment
skillfully.
continually, so there may be slight differences between your
purchase equipment and its instruction manual. You can find
the changes in the appendix. Sorry for the inconvenience. If
you have further questions, welcome to contact with our service
department.
The input/output terminals and the test column may bring
voltage, when you plug/draw the test wire or power outlet, they
will cause electric spark. PLEASE CAUTION RISK OF
ELECTRICAL SHOCK!
Company Address:
 T4，No. 41, High-tech 2 Road，East Lake High-tech Development Zone， Wuhan
 Sales Hotline: 86-27- 87457960
 After Service Hotline: 86-27- 87459656
 Fax: 86-27- 87803129
 E-mail: qiao@hvtest.cc
 Website: www.hvtest.cc
Our aim is to improve and perfect the company's products
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HTYX-III and is the answer not in the manual?

Questions and answers

Related Manuals for HVTest HTYX-III

Summary of Contents for HVTest HTYX-III

  • Page 1 Dear Client Thank you for Purchasing our HTYX-III Phase Shifter. Please read the manual in detail prior to first use, which will help you use the equipment skillfully. Our aim is to improve and perfect the company's products continually, so there may be slight differences between your purchase equipment and its instruction manual.
  • Page 2  SERIOUS COMMITMENT All products of our company carry one year limited warranty from the date of shipment. If any such product proves defective during this warranty period we will maintain it for free. Meanwhile we implement lifetime service. Except otherwise agreed by contract.
  • Page 3 Make sure the product has been grounded correctly before connecting with the input/output port. Pay Attention to the Ratings of All Terminals To prevent the fire hazard or electric shock, please be care of all ratings and labels/marks of this product. Before connecting, please read the instruction manual to acquire information about the ratings.
  • Page 4 －Security Terms Warning: indicates that death or severe personal injury may result if proper precautions are not taken Caution: indicates that property damage may result if proper precautions are not taken.

  • Page 5: Table Of Contents

    Contents Ⅰ.OUTLINE....................6 Ⅱ. APPLICATION AND APPLIED SCOPE...........6 Ⅲ. MAIN TECHNOLOGY INDICATORS..........7 Ⅳ.FUNDAMENTAL THEORY..............8 Ⅴ.HOW TO USE..................8 Ⅵ.NOTES....................11 Ⅶ.MAINTENANCE.................. 12 Ⅷ.TRANSPORT AND STORAGE............13...

  • Page 6: Ⅰ.outline

    Ⅰ.OUTLINE Phase shifter is a new generation of portable electrical equipment which is composed by transformer phase shifter, digital phase display, digital voltage and current display, output voltage adjustment, fine-tune of phase shift and power source modules and so on, this product combine the technology of transformer phase shifter and digital measurement, with the advantages of high precision for phase adjustment ,accurate and intuitive readings, adjustable output voltage.

  • Page 7: Ⅲ. Main Technology Indicators

    The phase shifter has the characteristics of easy operation, small size, low noise and good output waveform, whith is able to meet the test and calibration for high AC power and phase of single or three phases, phase and other, and can also be used among test device of meter. Ⅲ.

  • Page 8: Ⅳ.fundamental Theory

    12.Size: 480×360×230mm 13.Weight: about 35kg ＊ When doing the rough tune adjustment clockwisely to decreasing phase shift, please exchange the sequence of any input three phase. Ⅳ.FUNDAMENTAL THEORY This phase shifter is designed amd maded by the theory of transformer phase shift,and the fundamental theory is explained in the block diagram: Ⅴ.HOW TO USE (1)The panel diagrame and description of digital three-phase phase shifter...
  • Page 9 A1. Phase shift display, Four figures display 0° ~ 360° phase angle. A2. Load current display of output V phase, three and a half figures display. A3. Voltage display of between output U, W phase, three and a half figures display.
  • Page 10 current function, the machine gives the output of AC current range from 0~20 A, witch lead to the phase shift of iuput B source. A9. Fine tune selection switch, choice of two range: -3°~18°, 12°~33°. A10. Adjustment button of output voltage, and the outputs of U,V,W phase are adjusted simultaneousely by this button.The voltage display gives the voltage of U,W phase range from 0~380V.

  • Page 11: Ⅵ.notes

    panel B3. the load power can not exceed the maximum output power of the machine. 4. Close the external blade, and turn on the machine power switch A7, the displays of A1, A2, A3 also should be light. 5. Adjust the output voltage button A10 to the designed value after power on for half a minute.Get the output voltage from U, V, M, N phases, among witch A3 dispalys the voltage of U, W phases, A2 displays the load current of V phase.

  • Page 12: Ⅶ.maintenance

    column of the chassis to be grounded. 3.The maximum current of the fuse is 5A and as the short circuit and overload protection it is necessary to comply the provision. 4. Minus the number of A2, A3 witch is get from the situation as output is zero to resist the environment interference.

  • Page 13: Ⅷ.transport And Storage

    the equipment indoors in dry, clean, non-corrosive gas environment. 3. The way of replacing the fuse The fuse and the power plug is connected so turn off the power before replacing, then set aside the fuse box with a small flathead screwdriver. Ⅷ.TRANSPORT AND STORAGE Transport ■...
