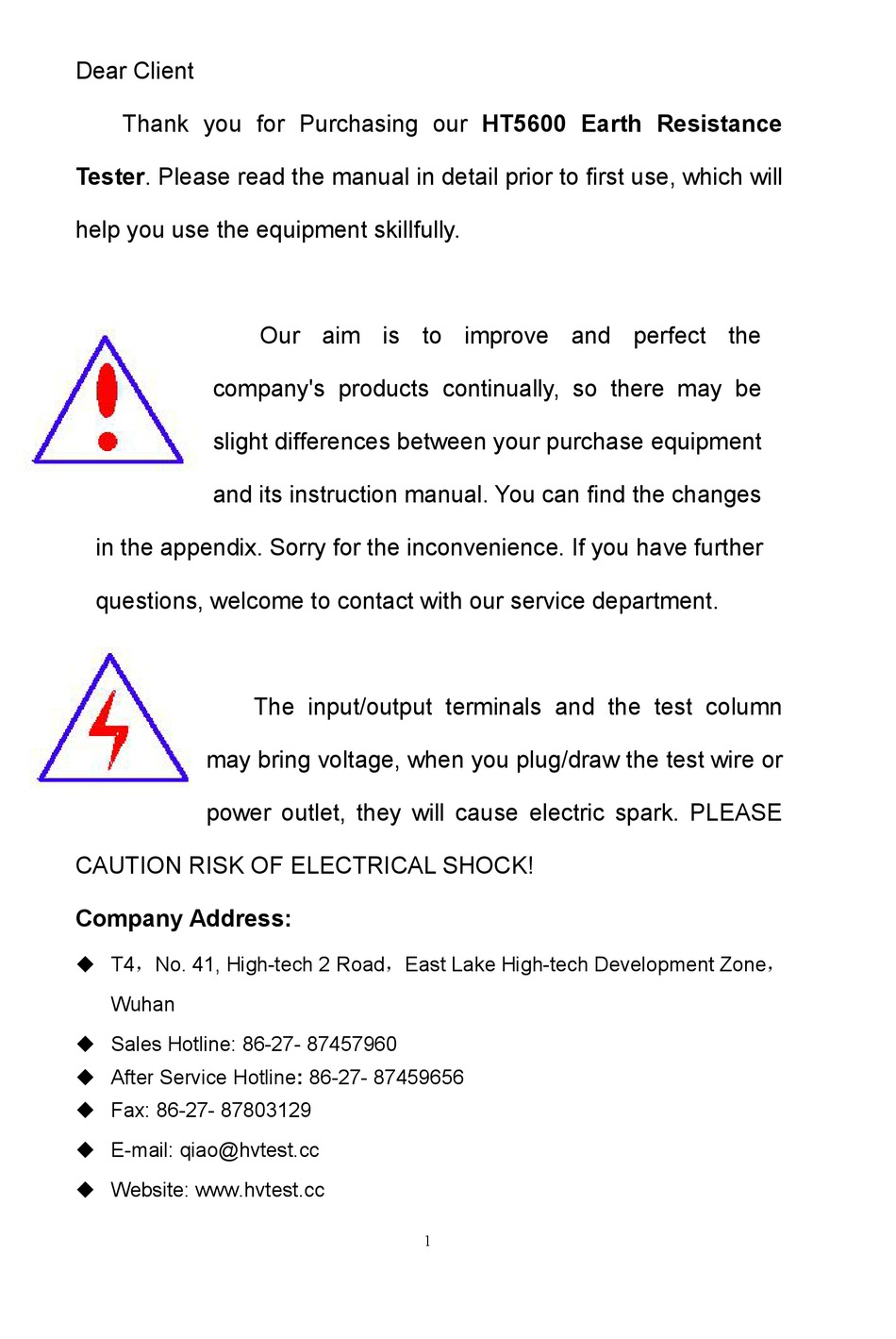

Dear Client
Thank you for Purchasing our HT5600 Earth Resistance
Tester. Please read the manual in detail prior to first use, which will
help you use the equipment skillfully.
company's products continually, so there may be
slight differences between your purchase equipment
and its instruction manual. You can find the changes
in the appendix. Sorry for the inconvenience. If you have further
questions, welcome to contact with our service department.
may bring voltage, when you plug/draw the test wire or
power outlet, they will cause electric spark. PLEASE
CAUTION RISK OF ELECTRICAL SHOCK!
Company Address:
T4，No. 41, High-tech 2 Road，East Lake High-tech Development Zone，
Wuhan
Sales Hotline: 86-27- 87457960
After Service Hotline: 86-27- 87459656
Fax: 86-27- 87803129
E-mail: qiao@hvtest.cc
Website: www.hvtest.cc
Our aim is to improve and perfect the
The input/output terminals and the test column
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HVTest HT5600
Summary of Contents for HVTest HT5600
- Page 1 Dear Client Thank you for Purchasing our HT5600 Earth Resistance Tester. Please read the manual in detail prior to first use, which will help you use the equipment skillfully. Our aim is to improve and perfect the company's products continually, so there may be slight differences between your purchase equipment and its instruction manual.
- Page 2 SERIOUS COMMITMENT All products of our company carry one year limited warranty from the date of shipment. If any such product proves defective during this warranty period we will maintain it for free. Meanwhile we implement lifetime service. Except otherwise agreed by contract.
- Page 3 ground pole of the shell must be grounded. To prevent electric shock, the grounding conductor must be connected to the ground. Make sure the product has been grounded correctly before connecting with the input/output port. Pay Attention to the Ratings of All Terminals To prevent the fire hazard or electric shock, please be care of all ratings and labels/marks of this product.
- Page 4 －Security Terms Warning: indicates that death or severe personal injury may result if proper precautions are not taken Caution: indicates that property damage may result if proper precautions are not taken.
-
Page 5: Table Of Contents
Contents I .Introduction ..................... 6 II .Overview....................6 III .Main Features ..................7 IV. Main Technical Index ................. 8 V. Panel Features..................8 VI. Measurement principle and application ........10 (1) Two- clamp method ............... 10 1、The measuring principle............10 2、Multi-polar parallel grounding resistance measurement ..11 3、Two-clamp method measure the independent grounding objection ..................... -
Page 6: I .Introduction
I .Introduction HT5600 Clamp Earth Resistance Tester with multi-function used in evaluation on ground resistance. Our company are experienced in designing and manufacturing ground tester. Is hand portable and is equipped with the necessary attachments. It is easy to use. Operators can use it just following this instruction without participating in specialized training. -
Page 7: Main Features
contacting the grounding system and load. Auxiliary electric-pole test method can be used just in single-point grounding system or strong interference conditions. III .Main Features 1. Dual-Clamp method & pile method: Grounding for any place, multi-point or single point grounding; 2. -
Page 8: Main Technical Index
IV. Main Technical Index 1、Grounding resistance measuring range: Two-clamp method：0.01Ω～200Ω Four-leads method：0.01Ω～200Ω 2、Error: Two-clamp method：±3%±2d Four-leads method：±2%±2d 3、Minimum resolution：0.01Ω 4、Clamp size：Φ50mm 5、Storage capacity: 200 group data 6、Working temperature: 0ºC ～ + 50°C 7 、 Power Supply: Eight 5 Ni-MH rechargeable batteries or regular AA batteries 8、Weight：0.8kg (including battery) 9、Dimensions：265mm×130mm×65mm... - Page 9 any operation , it will be automatically shutdown. “Two-clamp method▲”: In multi-point grounding of the grounding grid, to test this way; In addition, other functions, the key for the cursor up or increase the bond. “Four-leads method▼”: Click here to play auxiliary keys used to pile measured grounding resistance, while, in other functions, the key for the cursor down or reduce the bond.
-
Page 10: Measurement Principle And Application
indicator, please use the company’s charging instrument to charge. It’s the smart charger for the battery charger. When the battery is full, that is, the charger indicator light to turn off automatically stop charging the battery, effectively preventing battery overcharge. Note: if the instrument will not be used in long-term, you also should be carried out regularly charge the battery (such as two months) ,in order to avoid battery over-discharge damage. -
Page 11: 2、Multi-Polar Parallel Grounding Resistance Measurement
instrument is equipped with two shut up: voltage clamp and current clamp. As shown in Figure 2, potential E in the voltage-clamp is excited in the measured and cause current I in the circuit. And the current in the clamp can be measured. Using Ohm's law: R = E / I, the value of R can be obtained. - Page 12 below. Figure 4 Then R Of which: : the measured value; : grounding resistance; : All other tower grounding resistance of the equivalent parallel resistance. Although from a strictly theoretical, because of the so-called "mutual resistance" existence, R is not the usual sense electrotechnics parallel value (it will larger than the value in electrotechnics), but because the grounding hemisphere is much less than their distance and number of the grounding points is big...
-
Page 13: 3、Two-Clamp Method Measure The Independent Grounding
Note: The clamps of charging and receiving are not interchangeable. 3 、 Two-clamp method measure the independent grounding objection A ． There must be an effective closed-loop for two-clamp method in the testing process The solution is to find an auxiliary electrode, and link the tested grounding objection with well grounding system (such as water pipes, etc.) Then clamp the two clamps on the wire with a distance of 30cm. -
Page 14: Four-Leads Method
D 、 During clamp method dual-resistance, if the measured value display overflow, then the measured resistance exceeds the measuring range of the instrument or description does not shut up any metal clamp around the conductor or the grounding line under test (2) Four-leads method Using the connection method as Figure 6. -
Page 15: View / Delete
stored. Shifted right or left button , the cursor stop in the "Storage" and press the "confirm" key to enter the storage function. Enter the number, and then press "confirm" to store, for example, measurement data to be stored in Group 7, the number will be adjusted to 007, and then "confirm"... -
Page 16: Notes
there may has a phenomenon of numerical instability. During testing, when the cursor stays in the "maintain" you can press the "confirm" key to lock the measurement values for the surveyor to record and read values. At this time screen "keep" change into "disarm", and then click "confirm"... - Page 17 One 20m wires for four-leads Two 1.5m wires for four-leads 6、One test certificate 7、One operation manual 8、One certification...
