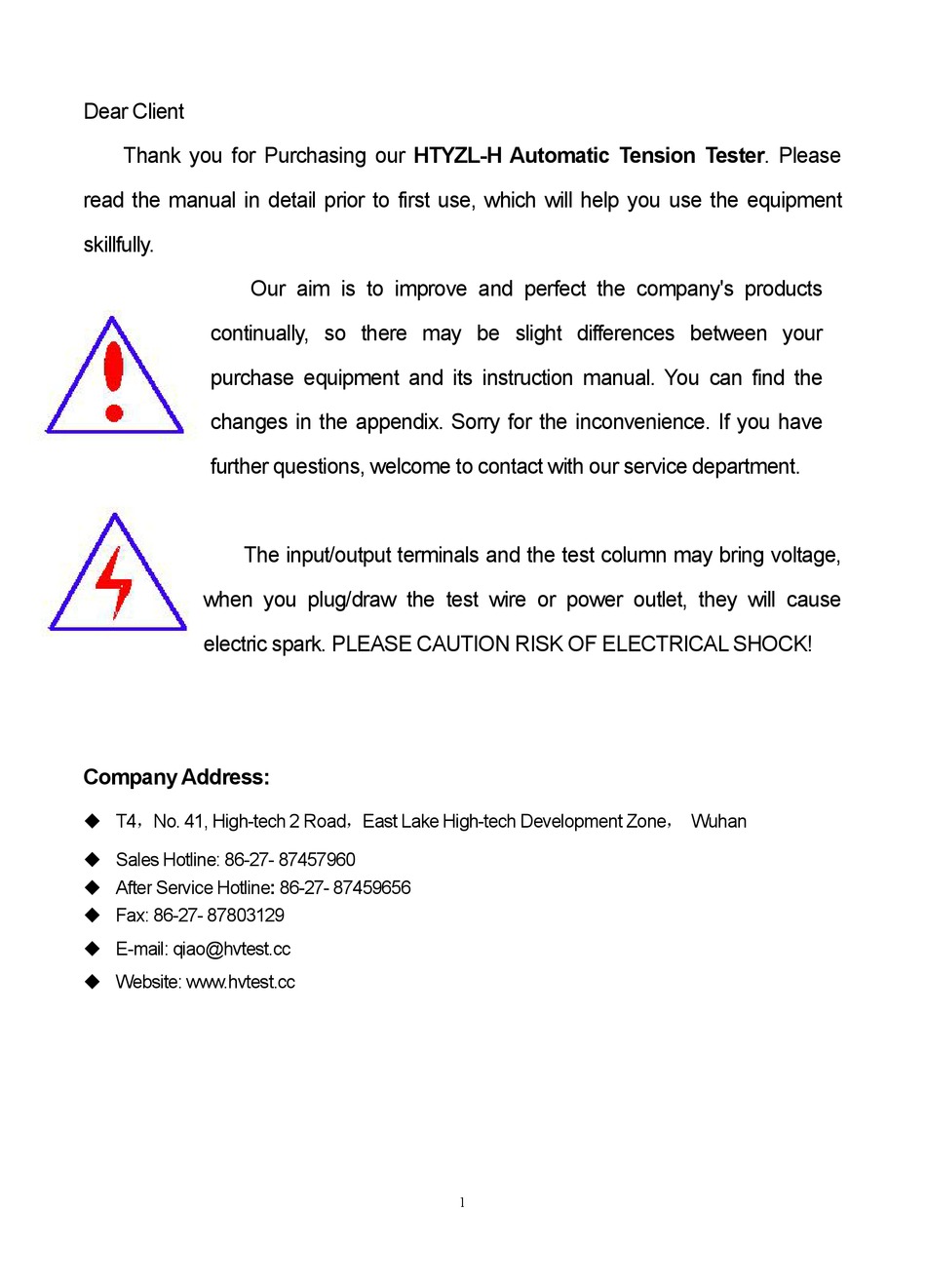

Dear Client
Thank you for Purchasing our HTYZL-H Automatic Tension Tester. Please
read the manual in detail prior to first use, which will help you use the equipment
skillfully.
continually, so there may be slight differences between your
purchase equipment and its instruction manual. You can find the
changes in the appendix. Sorry for the inconvenience. If you have
further questions, welcome to contact with our service department.
The input/output terminals and the test column may bring voltage,
when you plug/draw the test wire or power outlet, they will cause
electric spark. PLEASE CAUTION RISK OF ELECTRICAL SHOCK!
Company Address:
T4，No. 41, High-tech 2 Road，East Lake High-tech Development Zone， Wuhan
Sales Hotline: 86-27- 87457960
After Service Hotline: 86-27- 87459656
Fax: 86-27- 87803129
E-mail: qiao@hvtest.cc
Website: www.hvtest.cc
Our aim is to improve and perfect the company's products
1
Advertisement
Related Manuals for HVTest HTYZL-H
Summary of Contents for HVTest HTYZL-H
- Page 1 Dear Client Thank you for Purchasing our HTYZL-H Automatic Tension Tester. Please read the manual in detail prior to first use, which will help you use the equipment skillfully. Our aim is to improve and perfect the company's products continually, so there may be slight differences between your purchase equipment and its instruction manual.
- Page 2 SERIOUS COMMITMENT All products of our company carry one year limited warranty from the date of shipment. If any such product proves defective during this warranty period we will maintain it for free. Meanwhile we implement lifetime service. Except otherwise agreed by contract.
- Page 3 Make sure the product has been grounded correctly before connecting with the input/output port. Pay Attention to the Ratings of All Terminals To prevent the fire hazard or electric shock, please be care of all ratings and labels/marks of this product. Before connecting, please read the instruction manual to acquire information about the ratings.
- Page 4 －Security Terms Warning: indicates that death or severe personal injury may result if proper precautions are not taken Caution: indicates that property damage may result if proper precautions are not taken.
-
Page 5: Table Of Contents
Contents I. Overview........................6 II. Technical parameters..................... 6 III. working principle......................7 IV. Structural features (Figure 1)..................7 V. installation and level adjustment..................8 VI. Instrument Operation....................9 VII. Packing List......................18... -
Page 6: Overview
I. Overview Automatic interfacial tension tester, in accordance with GB6541-86 "Petroleum products oil to water interfacial tension measurement method" (circle method) standard requirements, measure the surface tension of various liquids (liquid-gas interface) and the interface between mineral oil and water Tension (liquid-liquid interface). -
Page 7: Working Principle
III. working principle The working principle of the instrument is to apply the high-frequency induction micro-displacement automatic balance measurement system to the torsion balance, that is, when the force acting on the platinum ring changes, the balance bar connected with the platinum ring is in the two eddy current probes Displacement occurs in the two eddy current probes, causing the differential transformer to lose balance, and the input signal of the differential amplifier in the circuit also loses balance. -
Page 8: Installation And Level Adjustment
Figure 1 V. installation and level adjustment Place the host on a stable platform with no wind flow, as shown in Figure 2, unscrew the two fixing screws on the back of the instrument, remove the upper top plate, and install the control magnet, ring frame rod, and platinum as shown in Figure 3. -
Page 9: Instrument Operation
Figure 3 Instrument Operation After turning on the power, turn on the power switch. The instrument enters the following startup interface. Press any key or automatically switch to the main menu page after 5 seconds. - Page 10 Sample test: enter the sample test interface to perform sample test. Pure water calibration: enter the pure water calibration interface and perform a pure water calibration test. Parameter setting: Enter the parameter setting interface to set related parameters. Historical record: Enter the historical record interface to view historical data. Weight calibration: Enter the weight calibration interface.
- Page 11 instrument normally displays within 0.050g. If the value is too large or lower than 0g, please check the position of the torque wire and the inductor magnet (whether it is in the center of the inductor). Figure 4 1.2 Click the "Reset" button and hang the 1.0g hook-shaped weight on the platinum ring according to Figure 4.
- Page 12 2.1 Platinum wire radius: the radius of the platinum ring wire. Normally it is 0.30 mm. Click the data box to pop up the numeric keyboard, enter the data. 2.2 Platinum ring radius: the radius of the platinum ring. Normally it is 9.8 mm. Click the data box to pop up the numeric keyboard, enter the data.
- Page 13 mark of the sample cup. Place the sample cup in the middle of the sample pan. Figure 5 3.2 Click "Pure Water Calibration" to enter the pure water calibration interface 3.3 Click ‘Up’ to increase the sample tray, and click ‘Down’ to decrease the sample tray.
- Page 14 To stop the test, click ‘Stop’. Click ‘Return’ to stop the current operation and return to the menu selection interface. After the countdown is over, the pure water test will start automatically and the tension dynamic curve will be displayed After the test, the instrument will calculate the result according to the set parameters and display it on the interface Click "retest"...
- Page 15 pure water with alcohol, and repeat the pure water calibration test to improve the cleanliness of the platinum ring. The tension value of absolute ethanol above 22 indicates the cleanliness of the platinum ring Basically, it can be replaced with pure water for pure water calibration until the calibration value reaches between 71 and 72 millinewtons/m) 3.5 After passing the pure water calibration, press the "return"...
- Page 16 If you need to pause the test, click the "Stop" button. Click ‘Return’ to stop the current operation and return to the menu selection interface. At the end of the test, the instrument will display the calculation result of the set parameters to the interface. Test results are automatically stored in history.
- Page 17 6.0 Click "Previous" or "Next" to view historical records. Click ‘Empty’ to delete historical data. 7. Calculation basis for the results displayed by the instrument The interfacial tension (millinewtons/m) of the sample is calculated according to the formula б=M×F……(1): Among them: M-the value displayed on the display for the first time, millinewtons/meter;...
-
Page 18: Packing List
VII. Packing List 1. Host 2. Platinum ring 3. Set of pendant 4. Weight (1g) 5. Tension cup 6. Power cord 7. Printing paper 8. Product manual 9. Inspection report 10. Certificate...
