5.4.1.2.2 Snapshot

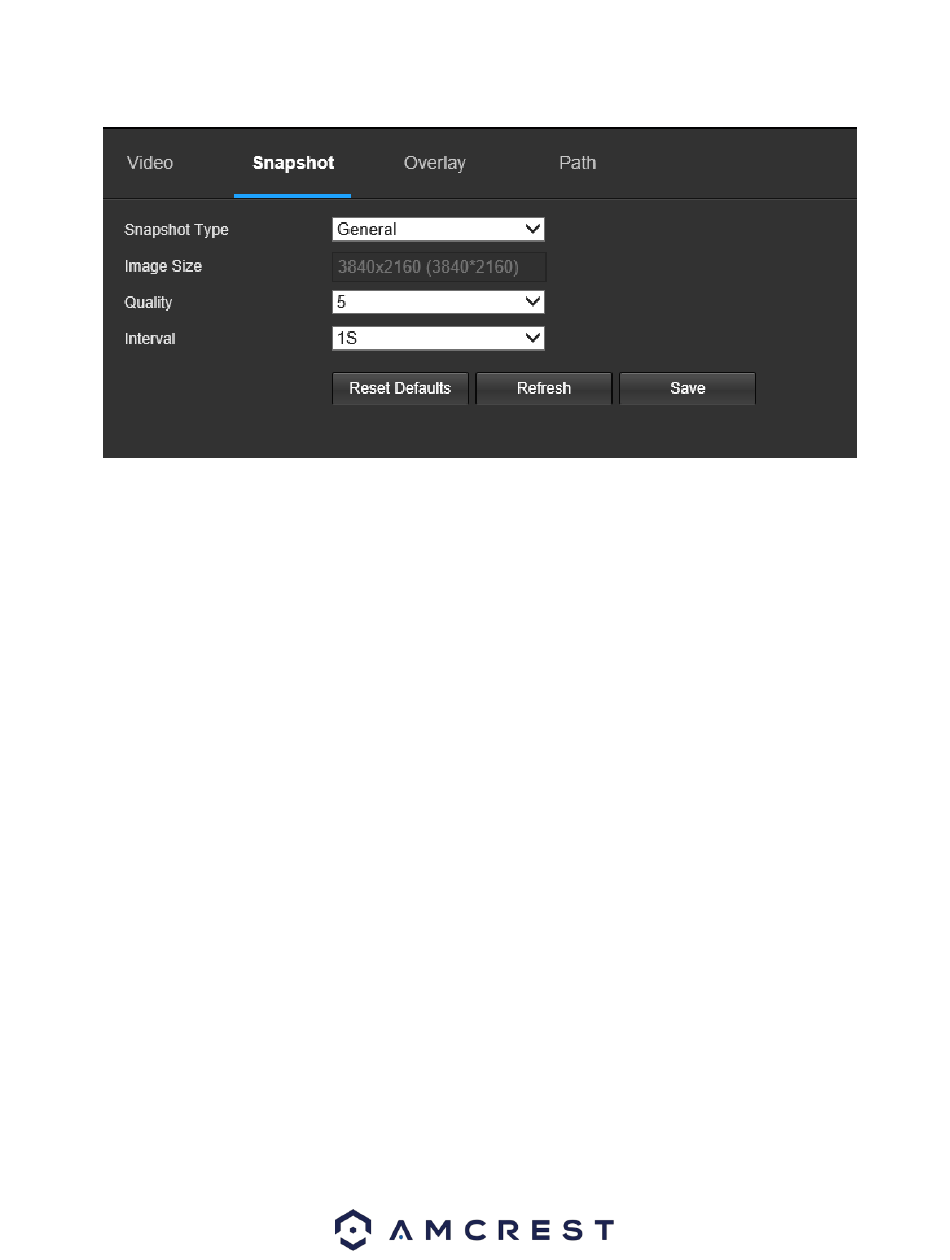

Below is a screenshot that shows the Snapshot tab in the Video menu item:
Below is an explanation for each of the fields on the Snapshot tab in the Video menu item:
•
Snapshot Type: This dropdown box allows the user to select a snapshot mode. There are two snapshot modes:
▪
▪
Event: Snapshots occur when a motion detection alarm or tampering alarm is triggered
•
Image Size: This dropdown box shows the image size. By default, the screenshot size is the same size as the video
feed's resolution.
•
Quality: This dropdown box allows the user to select image quality. Quality is adjusted on a scale of
1-6.
•
Interval: This is to set snapshot frequency. The value ranges from 1 to 7 seconds. The maximum setting for a
customized interval is 3600s/picture.
To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the
settings, click the Save button.
5.4.1.2.3. Overlay
Below is a screenshot that shows the Overlay tab in the Video menu item:
General: Snapshots are taken as scheduled.
