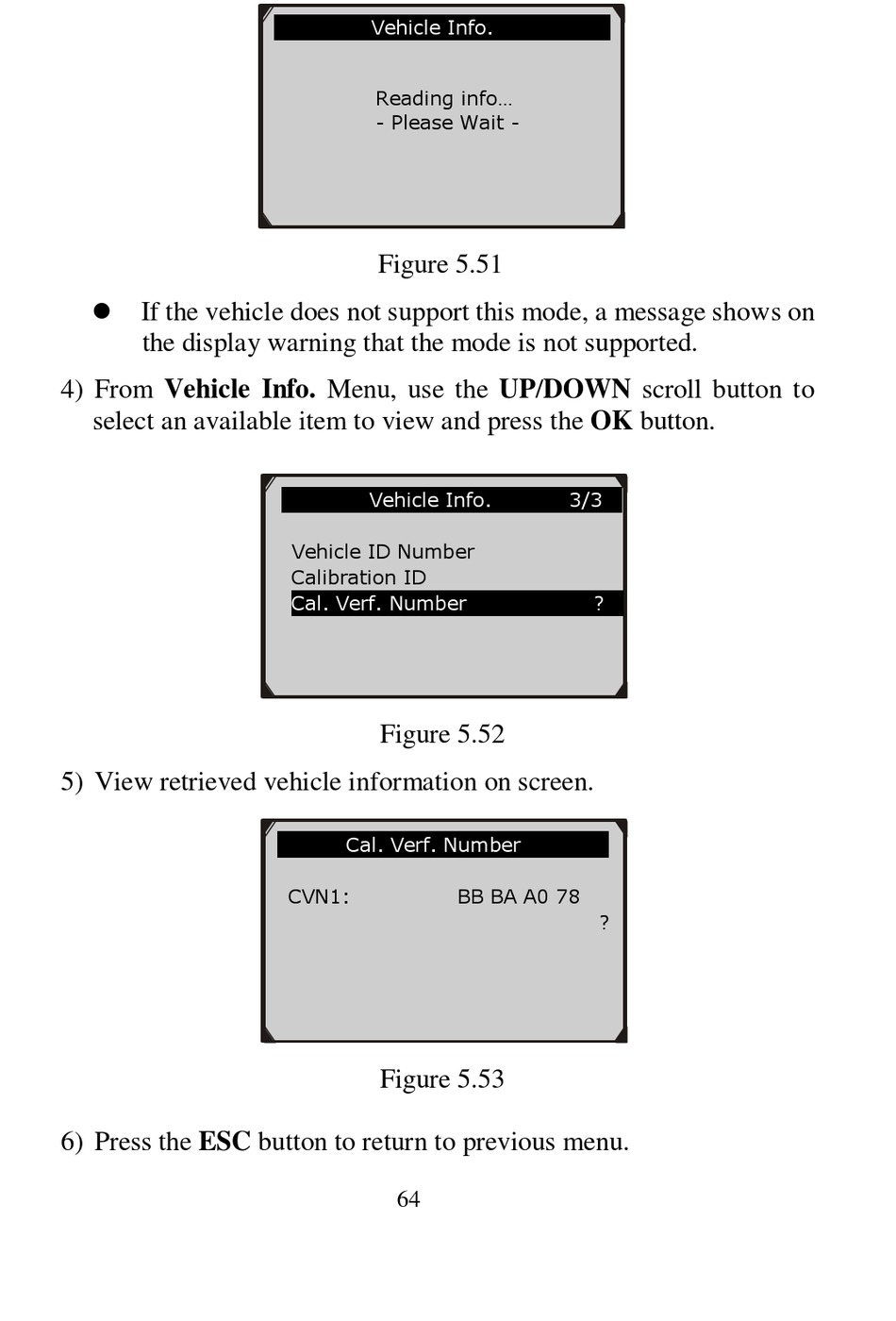

If the vehicle does not support this mode, a message shows on
the display warning that the mode is not supported.
4) From Vehicle Info. Menu, use the UP/DOWN scroll button to
select an available item to view and press the OK button.
5) View retrieved vehicle information on screen.
6) Press the ESC button to return to previous menu.
Vehicle Info.
Reading info...
- Please Wait -
Figure 5.51
Vehicle Info.
Vehicle ID Number
Calibration ID
Cal. Verf. Number
Figure 5.52
Cal. Verf. Number
CVN1:
Figure 5.53
64
3/3
?
BB BA A0 78
?
