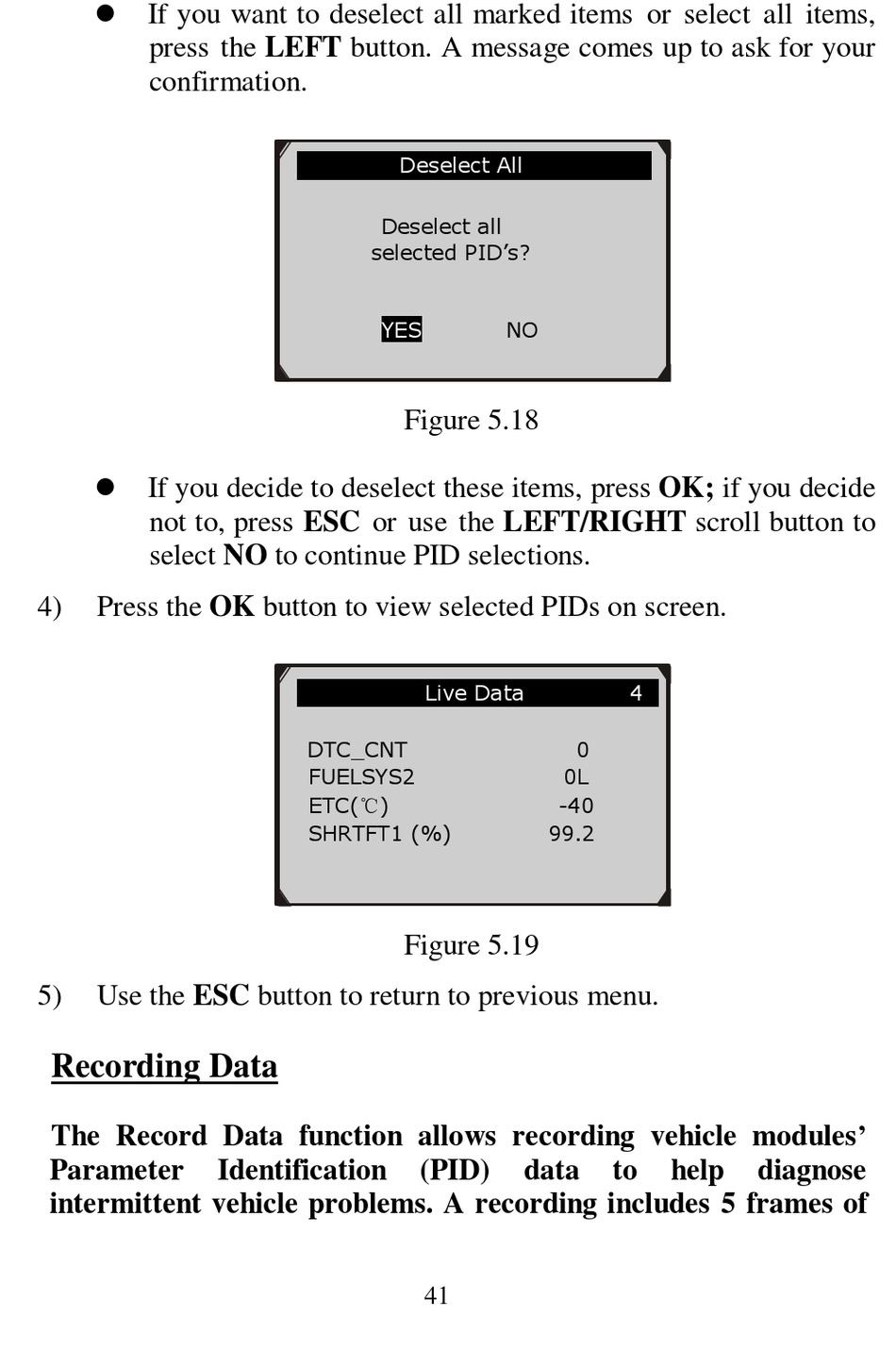

If you want to deselect all marked items or select all items,
press the LEFT button. A message comes up to ask for your
confirmation.

If you decide to deselect these items, press OK; if you decide
not to, press ESC or use the LEFT/RIGHT scroll button to
select NO to continue PID selections.
4) Press the OK button to view selected PIDs on screen.
5) Use the ESC button to return to previous menu.
Recording Data
The Record Data function allows recording vehicle modules'
Parameter
intermittent vehicle problems. A recording includes 5 frames of
..................Deselect
Deselect all
selected PID's?
YES
......................Live Data
DTC_CNT
FUELSYS2
ETC(℃)
SHRTFT1 (%)
Identification
All......................
NO
Figure 5.18
0L
-40
99.2
Figure 5.19
(PID) data
41
4 .
0
to help diagnose
