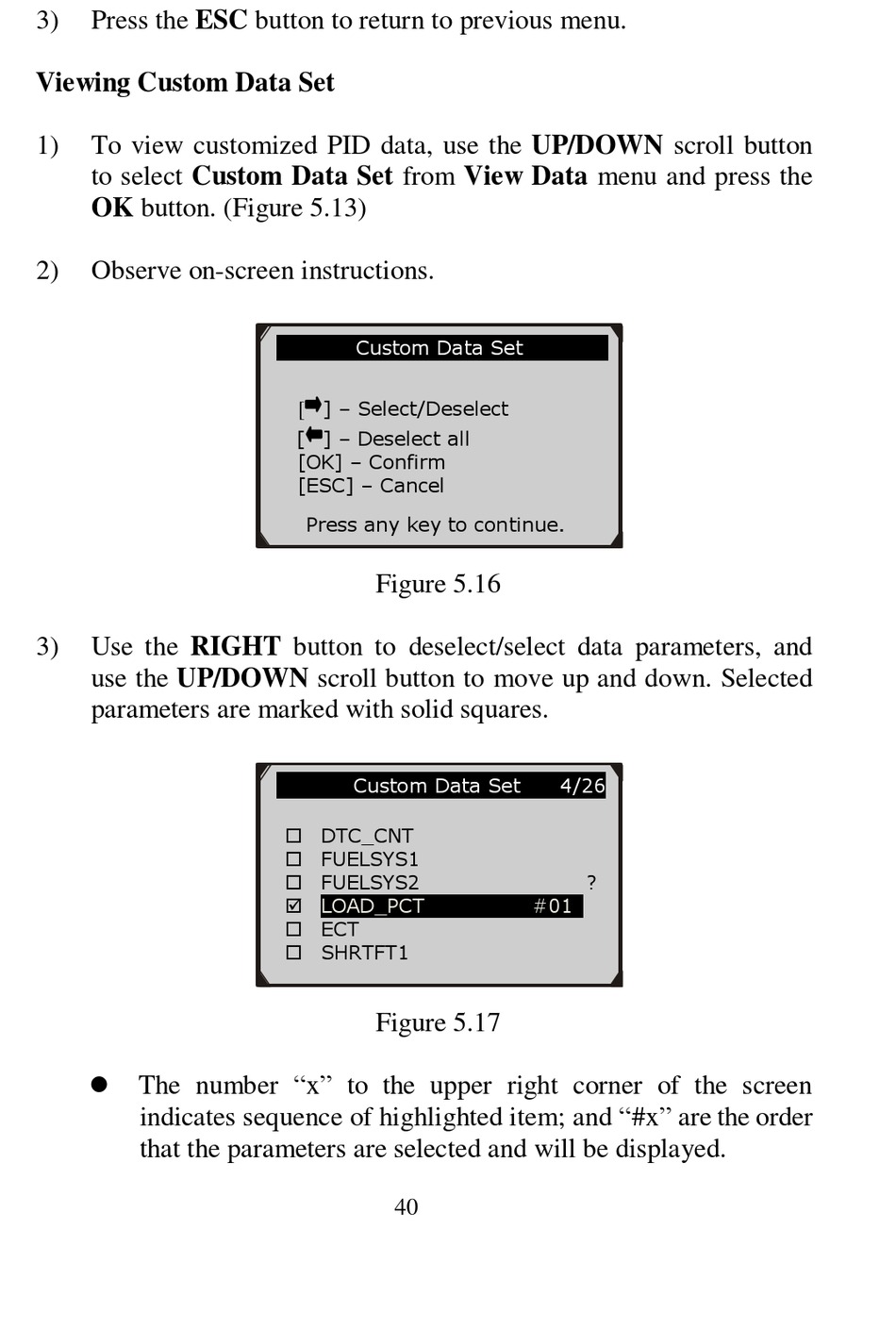

Autel Autolink AL539B Manual page 42

3) Press the ESC button to return to previous menu.
Viewing Custom Data Set
1) To view customized PID data, use the UP/DOWN scroll button
to select Custom Data Set from View Data menu and press the
OK button. (Figure 5.13)
2) Observe on-screen instructions.
3) Use the RIGHT button to deselect/select data parameters, and
use the UP/DOWN scroll button to move up and down. Selected
parameters are marked with solid squares.
 The number "x" to the upper right corner of the screen
indicates sequence of highlighted item; and "#x" are the order
that the parameters are selected and will be displayed.
...............Custom Data
] – Select/Deselect
[
[ ] – Deselect all
[OK] – Confirm
[ESC] – Cancel
Press any key to continue.
Figure 5.16
..............Custom Data Set
 DTC_CNT
 FUELSYS1
 FUELSYS2
LOAD_PCT

 ECT
 SHRTFT1
Figure 5.17
40
Set......... .....
4/26
?
#01
