3)
Press the OK button to save your selection and return to previous
menu.

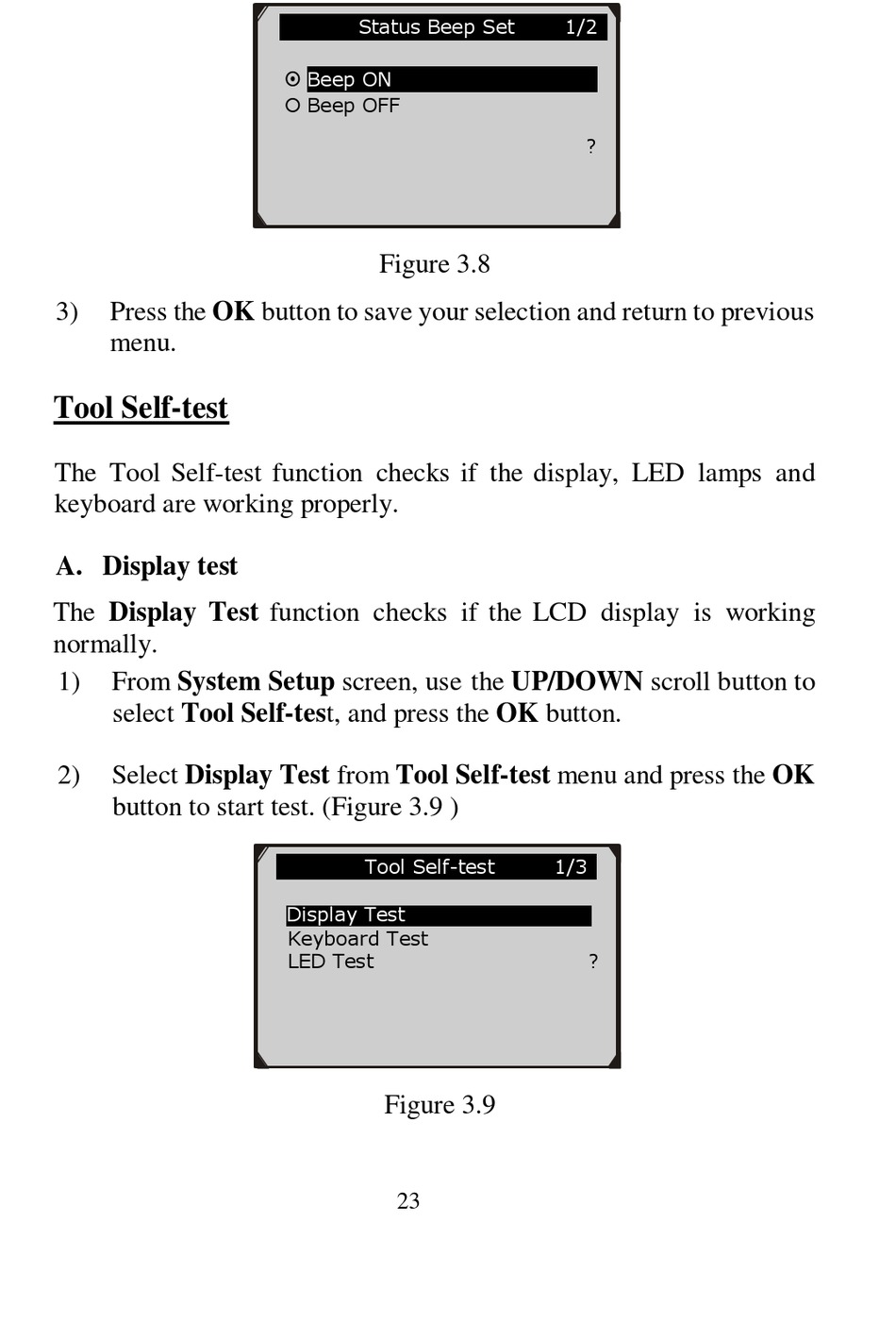

Tool Self-test
The Tool Self-test function checks if the display, LED lamps and
keyboard are working properly.
A. Display test
The Display Test function checks if the LCD display is working
normally.
1)
From System Setup screen, use the UP/DOWN scroll button to
select Tool Self-test, and press the OK button.
2)
Select Display Test from Tool Self-test menu and press the OK
button to start test. (Figure 3.9 )
Status Beep Set
Beep ON
Beep OFF
Figure 3.8
Tool Self-test
Display Test
Keyboard Test
LED Test
Figure 3.9
23
1/2
?
1/3
?
