Summary of Contents for Axis AT1912KIT

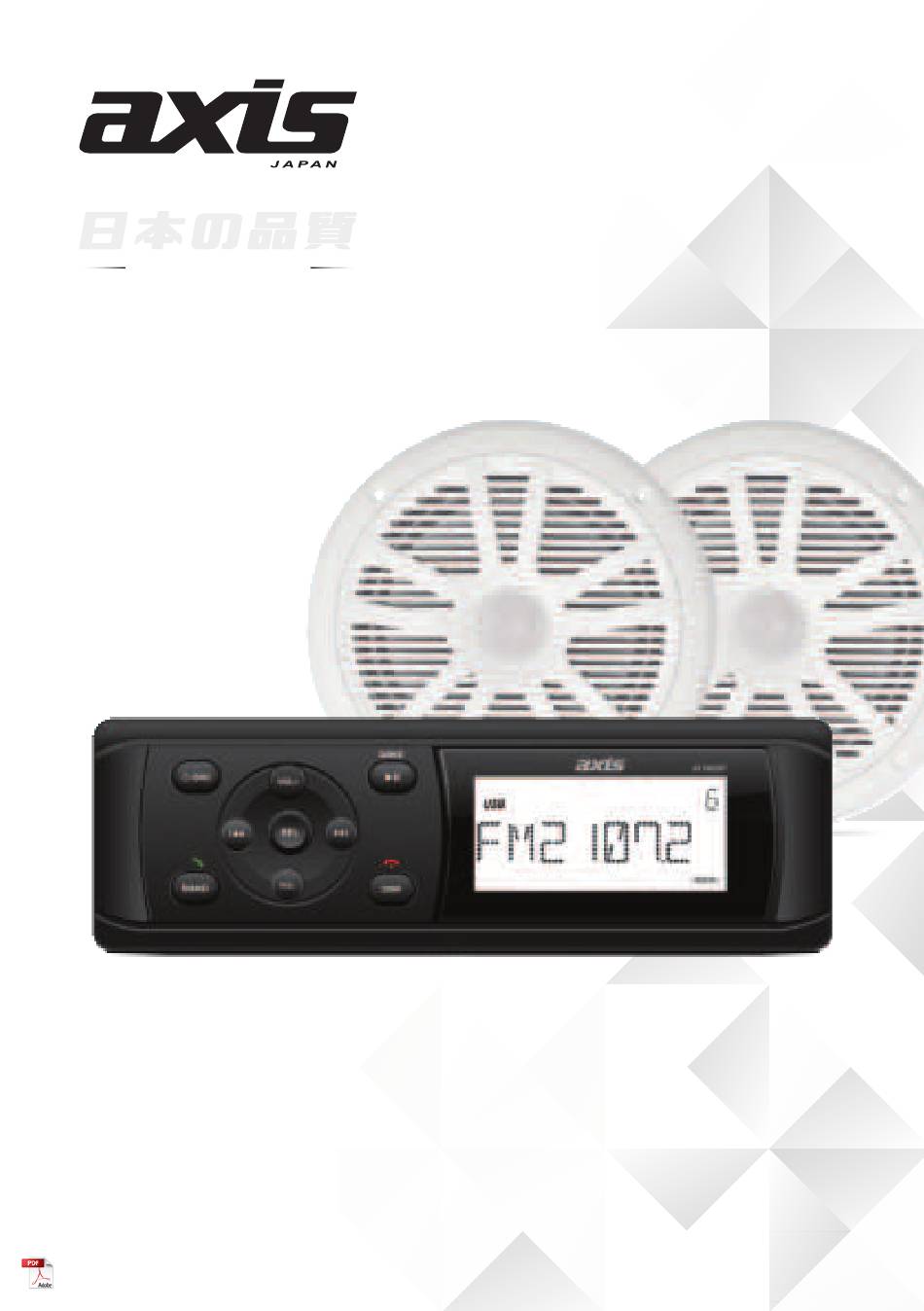

- Page 1 J A P A N Q U A L I T Y AT1912KIT 12V WATERTIGHT MULTIMEDIA SYSTEM...
-
Page 2: Specifications
SPECIFICATIONS GENERAL AUDIO SPEAKERS - IXP5 Watertight (Face Panel) - 4 x 25W Max Power - System: Full Range - Conformal Coated PCB - EQ Presets - Driver Size: 6.5” - Fixed Face Panel - Loud/Mute - Driver Material: White - Illuminated Controls - Telemute Polypropylene... -
Page 3: Wiring Connection
WIRING CONNECTION Mic (Black) Telemute (Brown) (MEMORY) 1.This player should be installed by a professional Auto Electrician. 2. Please read the instructions carefully before installing. 3. Make sure to connect other wires before the connections. 4. To avoid short circuit, please make sure all the exposed wires are insulated. 5. -
Page 4: Location Of Keys
LOCATION OF KEYS 1. BAND/CALL ANSWER SEEK Down 3. SEL POWER/SRC 5. VOL - 6. VOL + SEEK Up 8. DISPL/CALL END PLAY/PAUSE/SAVE 10. LCD... -
Page 5: General Operation
GENERAL OPERATION Turn on/off the unit Press the /SRC button to turn on the unit. When the unit is on. Press and hold it for 2 seconds to turn off the unit. Sound and setting adjustment Shortly press the SEL button to open the audio menu: BASS ->TRE (Treble) ->BAL (Left or Right Speaker Balance) ->FAD (Front or Rear Speaker Fader) ->EQ(class/rock/pop/flat/off) ->LOUD(on/off) Press and hold the SEL button to open the settings menu:... - Page 6 Radio Operation Receive a radio station Press the SRC button to select radio source. Then press the BAND button to select desired band (FM or AM). Press and hold button for automatic tuning. While scanning, shortly press the button for manual tuning function. Auto Store: Press and hold the BAND button for 2 seconds to auto store stations to bands 1~3.
-
Page 7: Troubleshooting
Bluetooth Operation Pairing On your mobile phone, open the Bluetooth settings and search for the Bluetooth device ID “AT1902BT” in the device list. Select “AT1902BT” and then input the password “0000”. When successfully paired, the BT icon will be displayed on the LCD. Bluetooth Audio Press the SRC button to switch to BT MUSIC mode. -
Page 8: Consumer Warranty
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Please complete details below in the event of warranty service being required. Purchaser’s Name: Purchaser’s Address: AT1912KIT Model Number: Serial Number: Dealer Name: Date of Purchase:...
