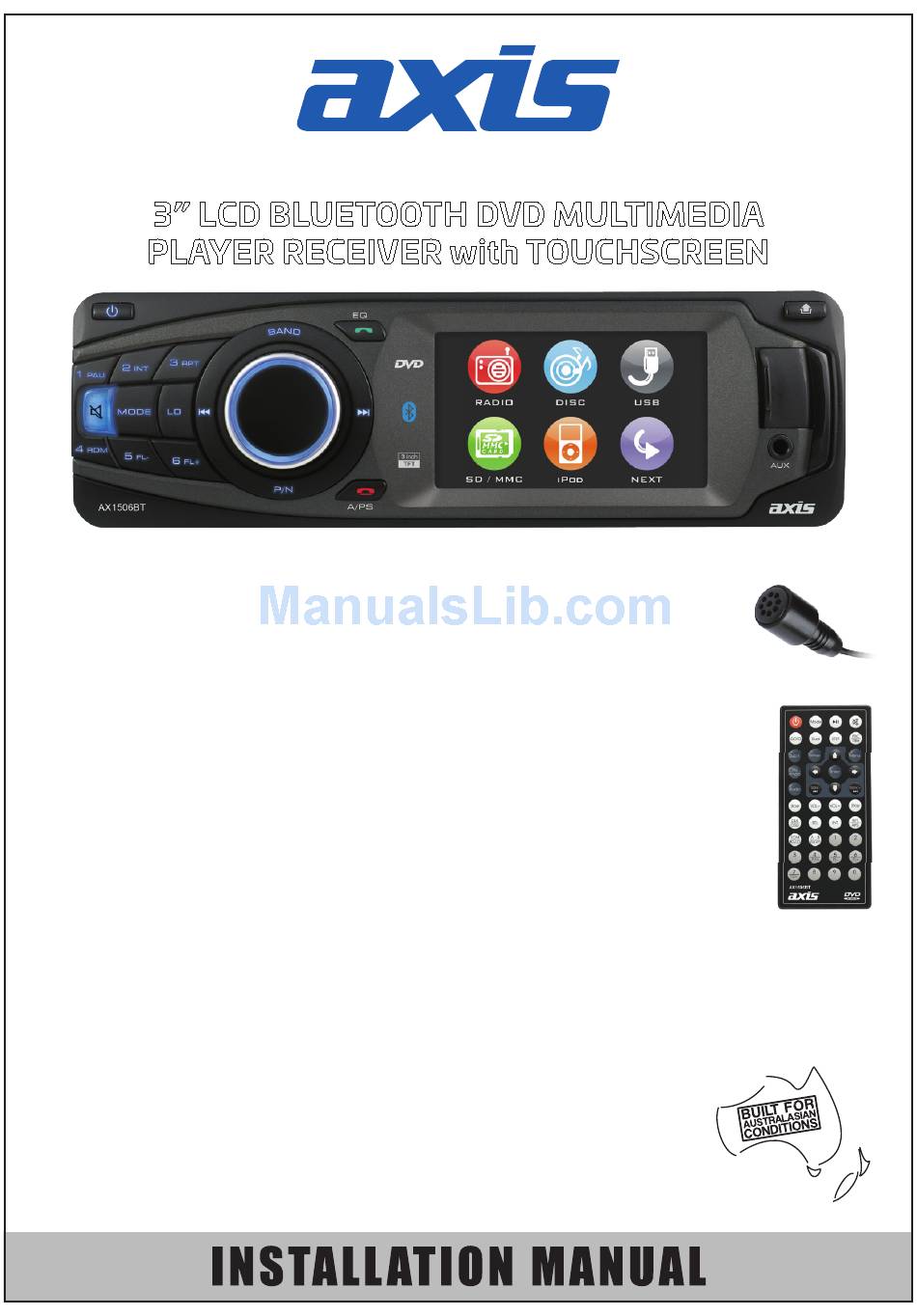

3" LCD BLUETOOTH DVD MULTIMEDIA
PLAYER RECEIVER with TOUCHSCREEN
GENERAL
- 3 Inch Touch Screen LCD
- Flip Down Detachable Face Panel
- Illuminated Controls
- 10.8 - 15.6 DC Voltage
- Digital Clock
- Dimensions:
178W x 50H x 158D mm (Chassis)
188W x 58H x 20D mm (Front Panel)
AUDIO
- 4 x 40W Max Power
- 4 EQ Presets
- Loud/Mute
- 4-8 Ohm Speaker Impedance
- 4 x RCA Pre-out (5V)
- 1 x RCA Sub Pre-out (4V)
DVD/CD PLAYER
- Supports DVD / VCD / MP3 / WMA / JPEG
- Supports DVD±R / DVD±RW / CDR / RW Playback
- Electronic Shock Protection
- PAL Video System
- Auto Loading
- Intro / Repeat / Random Play / Track Up-Down
- Select Folder / Track / File Search
- Zoom / Slow / Multi-Angle / Last Position Memory
AX1506BT
MULTIMEDIA
- 1 x USB Input
- 1 x SD-MMC Input
- 1 x 3.5mm Aux-in
- 1 x Video Input
- 1 x Camera Input
- 1 x Audio Output
- 2 x Video Output (Dual Zone)
- iPhone/iPod Control
TUNER
- PLL Synthesized AM/FM Stereo
- Xtreme Long Range Tuner
(FM 87.5-108 MHz; AM 522-1710 Khz)
- Interference Absorption Circuit
- 30 Station Presets (18 FM, 12 AM)
- Mono/Stereo
BLUETOOTH
- Hands Free
- A2DP Audio Streaming
- Phone Contacts & Call History
- External Hands Free Microphone
INCLUDES
- IR Remote Control
- ISO Universal Plugs to Bare Wires
- Hands Free Microphone
- 2 Year Warranty
2
YEAR
WARRANTY
Advertisement
Table of Contents
Related Manuals for Axis AX1506BT
Summary of Contents for Axis AX1506BT
- Page 1 AX1506BT 3” LCD BLUETOOTH DVD MULTIMEDIA PLAYER RECEIVER with TOUCHSCREEN GENERAL MULTIMEDIA - 3 Inch Touch Screen LCD - 1 x USB Input - Flip Down Detachable Face Panel - 1 x SD-MMC Input - Illuminated Controls - 1 x 3.5mm Aux-in - 10.8 - 15.6 DC Voltage...
-
Page 2: Installation
INSTALLATION PRECAUTIONS • Carefully choose the mounting location so normal driving is not affected. • Avoid installing the unit where it would be subject to high temperatures (direct sunlight or hot air from the heater) or where it would be subject to dust, dirt or excessive vibration. •... -
Page 3: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT 2. RELEASE CASE Dashboard 3. DASH 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT WIRE CONNECTION BLUETOOTH BACK GEAR SUBWOOFER ANTENNA... - Page 4 OPEN GREEN To Hand brake switch WHITE DRIVING WITHOUT VIDEO DISPLAY (Recommended Installation) Follow the wiring diagram below so when the vehicle is in motion, no video will display on the LCD screen. FRONT Only sound can be heard from the speaker system. Operation must comply with safety laws in all Australian & SIDE NZ States.
-
Page 5: Function Of Controls
AX1206 AX1206 FUNCTION OF CONTROLS 9 16 10 11 9 16 10 11 AX1506BT AX1206 AX1206 (1-6) (1-6) LOCATIONS OF FUNCTIONS 9 16 10 11 (Source Unit) 1. POWER ON/OFF ( 2. SELECT FUNCTION BUTTON 3. PRESET STATIONS (1,2,3,4,5,6) 4. EQUALIZER CONTROL (EQ) / ANSWER CALL ( 5. - Page 6 22. CLOCK / ON SCREEN DISPLAY 23. MUTE 24. MAIN MENU 25. STEP (FRAME BY FRAME PLAYBACK) 26. PAL / NTSC SYSTEM AX1506BT 27. SEARCH PREVIOUS/NEXT FOLDER 28. TWO DIGIT TRACKS SEARCHS 29. KEYPAD Use and care of the remote control - Installing the battery Slide the tray out of the back of the remote control and insert the battery with the (+) and minus (-) poles pointing in the proper direction.
-
Page 7: General Operations
GENERAL OPERATIONS Turning the unit ON/OFF ( Press “ ” button to turn on unit. To turn off, press the button again. Main Menu Press and hold “Menu” on remote control, this is root of the screen hierarchy and you can simply access all features. Selecting a source (MODE) Press MODE repeatedly to switch between TUNER, DISC, USB, SD/MMC, iPOD, BLUETOOTH or AUX IN (if Bluetooth is connected). -
Page 8: Viewing Photos
2. Press and hold MODE. Select memory card or USB source. 3. Press the DUAL button on the remote control to select the desired mode. On the left side of the display you will see one these letters: T = TUNER, C = CARD, U = USB, D=DISC. Continue pressing the DUAL button to cycle through the functions. 4. -
Page 9: Listening To Cd/Mp3/Wma
Stopping Playback 1. Press Stop on remote control during play to stop playback. That position is stored in memory. 2. Press continue. Play starts from the position at which it was stopped. Note: Music playback has no stop function.Use button to pause playback. Fast Forward / Fast Reverse 1. -
Page 10: Playing Dvd/Video Cd/Mp4
PLAYING USB / SD/MMC MEMORY CARD & AUX IN FILES USB PORT AUX IN An external audio source (e.g. portable MP3 player) can be connected to the AUX IN socket to be played back by the vehicle loudspeakers. 1. Connect the AUX IN socket with the audio output of the external device. USB/SD/MMC Memory Card The device is equipped with a USB interface and a memory card reader for SD/MMC cards. - Page 11 Repeat Title – Repeat the current playback title. (Press and hold RPT button) Repeat Chapter – Repeat the current playback chapter. Repeat Off – Turn OFF repeat function. Searching for particular track using GOTO Use the GOTO function to search for a desired track number or particular point of a track to play. 1 Press GOTO on the remote control during playback.
-
Page 12: How To Use Bluetooth In Your Car Audio
HOW TO USE BLUETOOTH IN YOUR CAR AUDIO HOW TO PERFORM PAIRING l a i t first i r i Bluetooth devices together. 1. On Main Menu, tap PHONE > Pairing. 2. Turn on Bluetooth feature of your mobile phone. Perform “Add Bluetooth device” from your mobile phone. The mobile will search for any Bluetooth devices within the range. -
Page 13: Customizing Audio / Video Settings
Car Stereo iPOD Functions Rotate VOL knob Rotate CLICK WHEEL Up/down category/file browsing Press VOL knob Press SELECT button Selecting a category/Play song Car Stereo and iPOD equivalent key function Note: Please refer to your iPOD user’s manual for operating instructions. CUSTOMIZING AUDIO / VIDEO SETTINGS AUDIO SETUP 1. -
Page 14: Troubleshooting Guide
CAUTION & MAINTENANCE The detachable panel AM/FM car radio with DVD player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many years of enjoyment. 1. Do not touch the contacts on the front panel or the unit body. 2. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS CD/MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 50 dB (1kHz) Frequency Response 20Hz - 20 kHz TUNER (FM) Frequency range 87.5 - 108 MHz Sensitivity 2.8 µV Stereo separation 30 dB Signal to noise ratio 50 dB Channel step 100 kHz...
