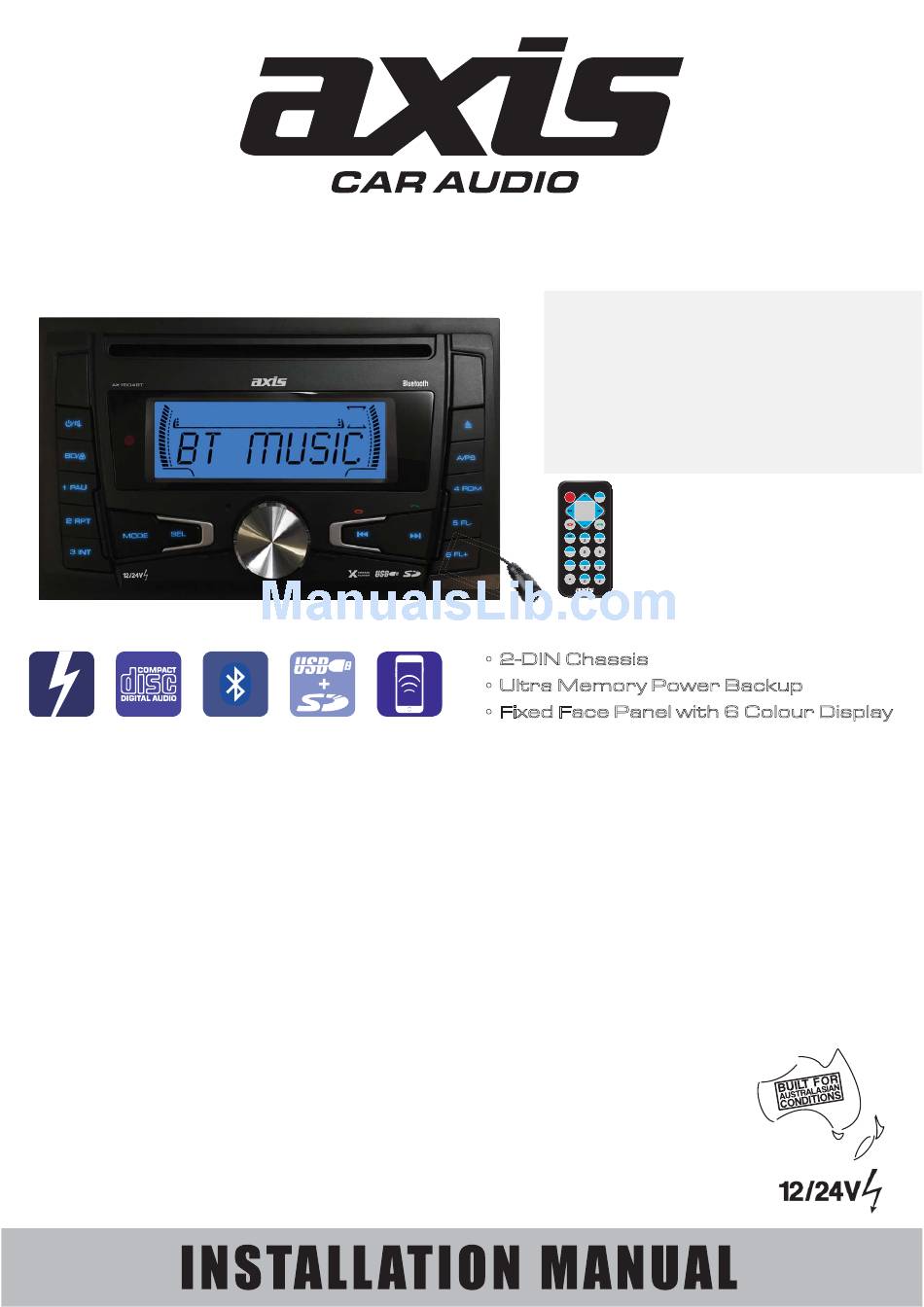

Axis AX1504BT Installation Manual

2-DIN MULTIVOLT CD TUNER with BLUETOOTH
12 24
MULTIVOLT CD/MP3/WMA
GENERAL
- Fixed Face Panel
- Ultra Memory Power Backup
- Selectable 6 Colour Display
- Illuminated Controls
- ISO 2-DIN Chassis
- ISO Connector Built In
- Dimensions:
(Chassis) 178W x 100H x 145D mm
(Nose Piece) 185W x 112H x 20D mm
- 2 Ch RCA Line Out - 4 Volt (Max)
- Speaker Impedance 4-8 Ohm
- 12/24 Volt DC (10.8-32V) Negative Ground
- Max Power 4 x 40 Watts
AUDIO CONTROL
- Rotary Encoder
- Electronic Volume/Balance/Bass/
Treble/Fader
- Loud/Mute
- 4-Band DSP Settings
AX1504BT
BLUETOOTH INPUT BLUETOOTH AUDIO
STREAMING
TUNER
- PLL Synthesized AM/FM Stereo
- Long Range Tuner
- FM 87.5~108 MHz; AM 522~1710 KHz
- Interference Absorption Circuit
- 30 Station Presets:
18FM/12AM Memory
- Station Seek/Preset Scan/Auto Store
- Automatic or Manual Tuning
- Mono/Stereo
- Local/Distant Control
- Digital Clock
MULTIMEDIA
- USB Input: Front Panel
- USB 1.1, USB 2.0 Full Speed
Compatibility
- USB Support up to 16GB
- SD Card Input: Front Panel
- AUX-IN Socket: Front Panel
- MP3 / WMA Player

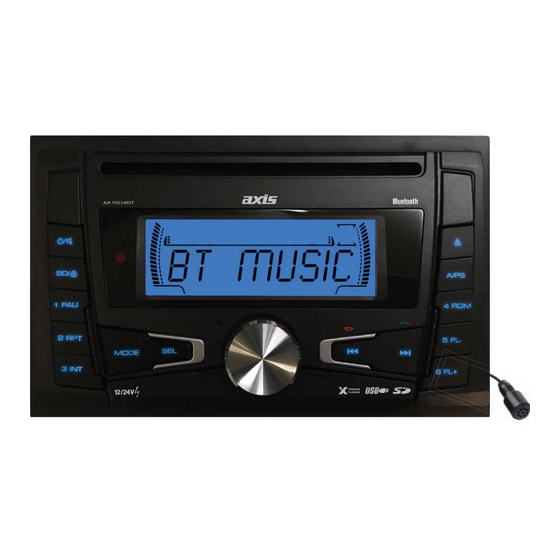

The AX1504 is a robust, full featured multivolt
12/24V double DIN multimedia player. With
convenient features including USB, AUX-IN,
SD, CD & MP3 combined with full integrated
Bluetooth for handsfree phone calling
and audio streaming. You're guaranteed
to enjoy each
MODE
POWER
VOL
LOUD
TUNE/SEEK
VOL
RPT INT
1
RDM
4
LOC ST EQ
7
BAND SEL
• 2-DIN Chassis
• Ultra Memory Power Backup
• Fixed Face Panel with 6 Colour Display
CD PLAYER
- Supports MP3/WMA/CD/CD-R/CD-RW Formats
- Auto Load /Eject
- Electronic Shock Protection
- Intro/Repeat/Random Play/Track Up-Down
- Select Folder/Track/File Search
BLUETOOTH
- Bluetooth in Phone Mode
- External Microphone
- Phone Contacts / History
- Audio Streaming (A2DP)
- 20 Call History Memory
- Firmware Upgrade via USB
INCLUDED
- External Microphone
- Remote Control
- ISO Wiring Harness
- Mounting Bracket
- Installation Hardware
and every journey!
2
YEAR
WARRANTY
