BRY9949

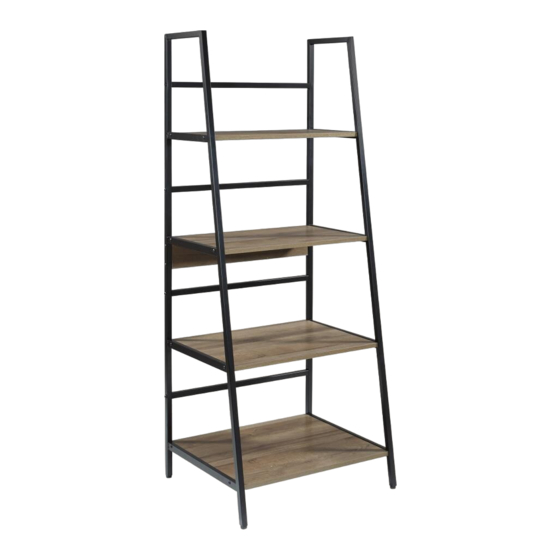

BRAYDON LADDER BOOKCASE
Assembly Instructions - Important:
Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when
assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or
information on other products, please visit our website: www.officestar.net or call or write us.
Advertisement
Table of Contents
Related Manuals for OSP Home Furnishings BRAYDON BRY9949
Summary of Contents for OSP Home Furnishings BRAYDON BRY9949

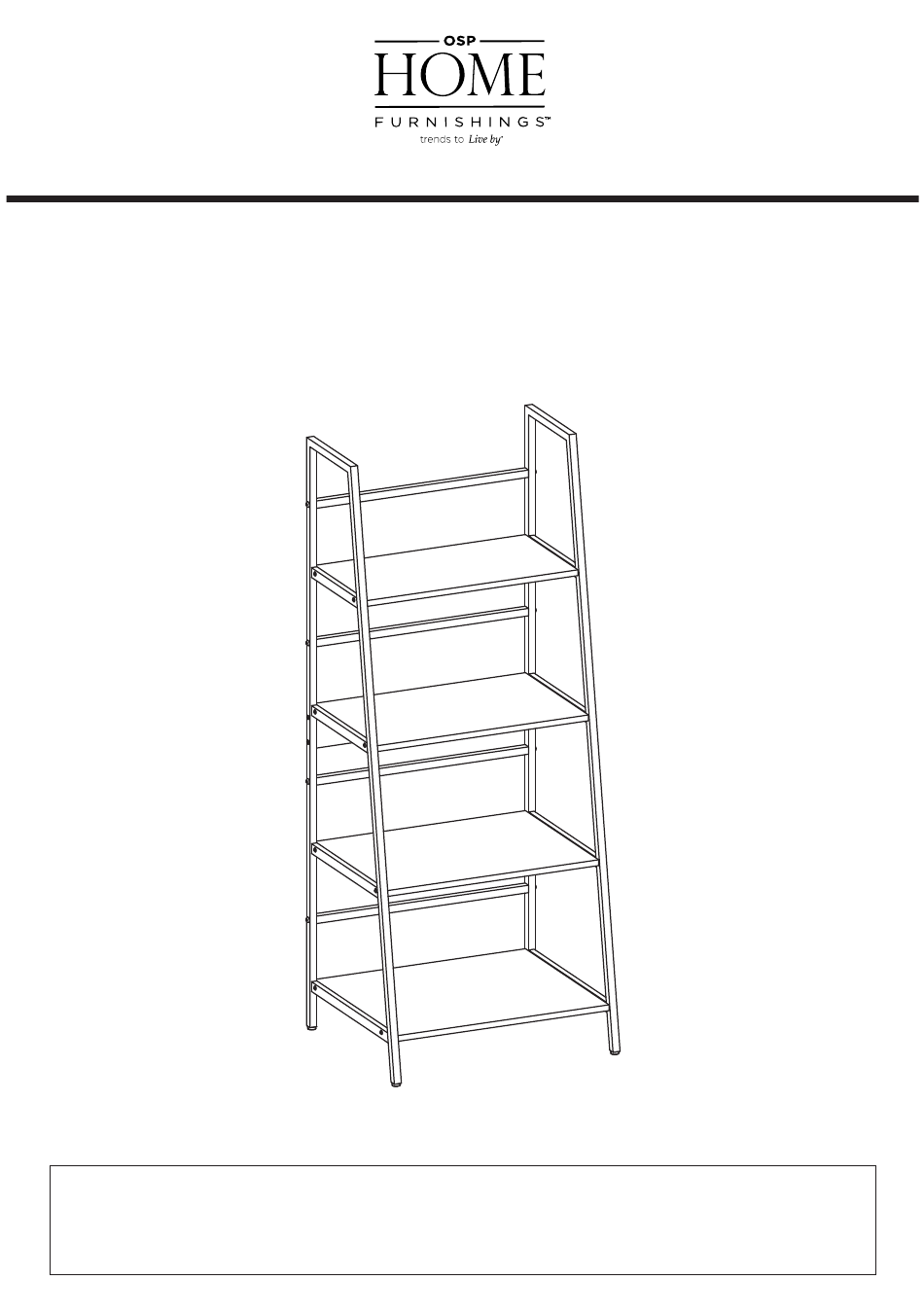

- Page 1 August, 2019 BRY9949 BRAYDON LADDER BOOKCASE Assembly Instructions - Important: Carefully unpack and identify each component before attempting to assemble. Refer to parts list. Please take care when assembling the unit and always set the parts on a clean, soft surface. If you require any assistance with assembly, parts or information on other products, please visit our website: www.officestar.net or call or write us.
- Page 2 LIMITED WARRANTY OSP Home Furnishings™ warrants to the original purchaser that this product will be free from defects in material and workmanship as described below. OSP Home Furnishings™ will repair or replace, at its option, without charge to the original purchaser only, defective products or parts for one (1) year from the date of purchase.
- Page 3 PARTS (A) Top Shelf (1 PC) (B) Second Shelf (1 PC) (C) Third Shelf (1 PC) (D) Support (1 PC) (E) Bottom Shelf (1 PC) (F) Left Frame (1 PC) (G) Right Frame (1 PC) (H) Crossbar (4 PCS)
- Page 4 HARDWARE LIST DRAWING DESCRIPTION QUANTITY Screw 20 PCS + 2 EXTRA Bolt 8 PCS + 1 EXTRA Cam Screw 2 PCS Cam Nut 2 PCS Wooden Dowel 1 PC Plastic Cover 2 PCS Allen Wrench 1 PC Anti-Tip Kit 1 PC Phillips Screwdriver also needed for assembly (not provided).
- Page 5 STEP 1 FULLY TIGHTEN ALL CAM SCREWS (3) USING PHILLIPS SCREWDRIVER (NOT PROVIDED). STEP 2 CAM LOCK INSTRUCTIONS 180° FULLY TIGHTEN ALL CAM NUTS (6) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 6 STEP 3 DO NOT FULLY TIGHTEN BOLTS (2) AND SCREWS (1). STEP 4 FULLY TIGHTEN ALL BOLTS (2). FULLY TIGHTEN ALL SCREWS (1) USING PHILLIPS SCREWDRIVER (NOT PROVIDED).
- Page 7 ANTI-TIP KIT INSTRUCTIONS STEPS: Place in desired location. Carefully drill a ¼’’ pilot hole into wall, gently tap Anchor into pilot hole. Secure one Bracket to wall using one Long Screw, FULLY TIGHTEN LONG SCREW USING PHILLIPS SCREWDRIVER (not provided). Secure remaining Bracket to rear using one Short Screw, FULLY TIGHTEN SHORT SCREW USING PHILLIPS SCREWDRIVER (not provided).
