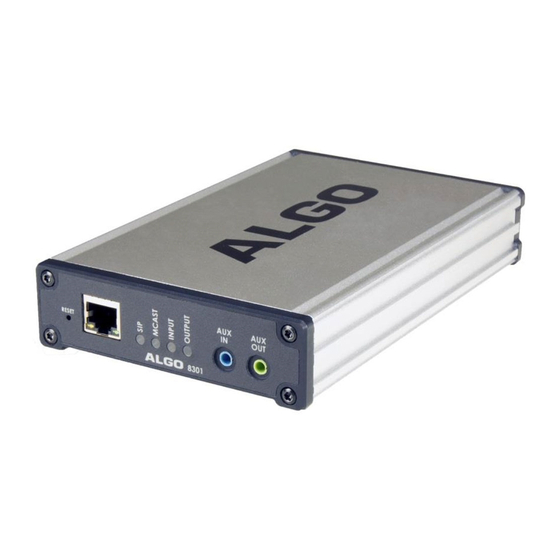

Algo 8301 Installation/Configuration Manual
Paging adapter
Hide thumbs
Also See for 8301:
- User manual (84 pages) ,
- Installation/configuration manual (74 pages) ,
- Integration manual (26 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Algo 8301
Summary of Contents for Algo 8301
- Page 1 8301 Paging Adapter FW Version 1.2.1 Installation & Configuration Order Codes 8301 Paging Adapter Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 1 www.algosolutions.com...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT SAFETY INFORMATION ...................... 6 ABOUT THE ALGO SIP 8301 PAGING ADAPTER ..................7 TYPICAL APPLICATION ........................... 8 GETTING STARTED - QUICK INSTALL & TEST ................... 9 INSTALLATION ............................. 10 WEB INTERFACE ........................... 10 SIP PAGING: ONE ADAPTER ......................... 11 SIP PAGING: MULTIPLE ALGO SIP ENDPOINTS (USING MULTICAST) ............. - Page 3 ..........................34 IALING XTENSION ........................34 NTERVAL ETWEEN ONES ........................34 AXIMUM URATION ........................34 UTBOUND IMIT ..........................34 INGBACK Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 3 www.algosolutions.com...
- Page 4 ITTER UFFER ANGE DTMF T ......................48 ENERATE ONES G.711 ........................48 ICROPHONE ILTER G.722 ......................... 48 PEAKER ILTER Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 4 www.algosolutions.com...
- Page 5 MD5 C ..........................55 HECKSUM SYSTEM - NETWORK LOGGING ......................55 SPECIFICATIONS ........................... 56 FCC COMPLIANCE STATEMENT ......................58 Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 5 www.algosolutions.com...
-
Page 6: Important Safety Information
DRY INDOOR LOCATION ONLY The 8301 Paging Adapter is intended for dry indoor locations only. For outdoor locations Algo offers weatherproof speakers and strobe lights. CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant network PoE switch must not leave the building perimeter without adequate lightning protection. -
Page 7: About The Algo Sip 8301 Paging Adapter
About the Algo SIP 8301 Paging Adapter The 8301 Paging Adapter is a PoE SIP compliant and multicast capable IP adapter designed for integrating consumer, commercial, and professional audio amplifiers into an IP based Unified Communications environment for voice paging and notification. -
Page 8: Typical Application
UC environment either as a SIP extension or multicast endpoint. The Line Output of the 8301 is connected directly to the dry audio input on an amplifier with an input impedance between 600 Ohm and 10 kOhm. -
Page 9: Getting Started - Quick Install & Test
3. Connect the adapter LINE OUT to an amplifier using the mini-XLR connector or pluggable terminal block. 4. Access the 8301 Paging Adapter web page by entering the IP address into a browser (Chrome, IE, Firefox etc) and login using the default password algo. -
Page 10: Installation
After boot up the blue lights on the front will turn off and the adapter will have obtained an IP address. If there is no DHCP server the 8301 Paging Adapter will default to the static IP address 192.168.1.111. -
Page 11: Sip Paging: One Adapter
SIP Paging: One Adapter The 8301 Paging Adapter can be registered as a third party SIP extension with a hosted or enterprise Communications Server supporting 3 party SIP endpoints. To register the adapter with the SIP server, use the Basic Settings ... -
Page 12: Sip Paging: Multiple Algo Sip Endpoints (Using Multicast)
SIP Paging: Multiple Algo SIP Endpoints (Using Multicast) Multicast features in the 8301 Paging Adapter require that only the first adapter be registered as a SIP extension. Additional Algo SIP endpoints, including any combination of paging adapters, speakers, and strobes, may be added as multicast slaves receiving a... -
Page 13: Sip Paging: Multiple Sip Endpoints (Using Individual Sip Extensions)
An Algo SIP endpoint configured as a SIP Multicast Slave will give its highest priority to a page using its SIP extension. Communication Servers with the capability of dialling many SIP... -
Page 14: Polycom Tm Group Paging
Group Paging The 8301 Paging Adapter has been designed to support Polycom Group Paging. The 8301 Paging Adapter can be added to a Polycom group page so that voice paging is heard over Polycom telephone speakers and overhead paging simultaneously. -
Page 15: Wiring Connections
Algo 1202 Call Button, or Algo 1203 Call Switch. The input switches can be connected to the back of the 8301 via a Terminal Block on the “Relay SW Input” pair. 1202 Call Button: A pair of wires from the... -
Page 16: Network Connection
By default, these terminals are inactive. Connection options are a normally closed switch, normally open switch, 1202 Call Button, 1203 Call Switch, or EOL resistor termination. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 17: Terminal Block Relay Out
SIP page/ring. Multicast Steady light will appear when 8301 receives multicast messages as a slave. The light will blink when 8301 sends output to the slaves as a master. Input Input light is on when receiving audio input. -
Page 18: Web Interface Login
Status The device’s Status page will be available before and after log on. The section can be used to check 8301’s SIP Registration status of the Ring/Page extensions, Call Status, Multicast Mode (Slave/Master), Relay Input Status, Proxy Status, and general MAC, IP, Netmask, Date/Time, and Timezone information. -
Page 19: Basic Settings Tab - Sip
WAV file. When activated, screen expands to enter second SIP extension parameters. Page Function Enable or Disable SIP page extension Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 19... -
Page 20: Ring Extension
Ring Extension This is the SIP extension for the 8301 Paging Adapter’s Ring parameter. Authentication ID May also be called Username for some SIP servers and in some cases may be the same as the SIP extension used for the associated Ring or Page parameter. -
Page 21: Basic Settings Tab - Features
Mode” is enabled in the SIP tab. The “Test Tone” field will appear when the Ring Mode is not enabled, to test the WAV tone over the associated speaker. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 22: Ring Speaker Volume (Test Speaker Volume)
Select pre-announce tone for paging. G.722 Support Enable or disable the G.722 codec. Automatic Gain Control (AGC) Normalizes the audio level. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 22... -
Page 23: 'Line Out' Analog Output Level
0dBu 10k (0.775 Vrms) 0dBV 10k (1.0 Vrms) -10dBV 10k (0.316 Vrms) 0dBm 600 ohm (0.755 Vrms) -10dBm 600 ohm (0.245 Vrms) Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 23... -
Page 24: Multicast Ip Addresses
Multicast IP Addresses Each 8301 Paging Adapter has its own IP address, and shares a common multicast IP and port number (multicast zone) for multicast packets. The master transmits to a configurable multicast zone, and the slave units listen to all the multicast zones assigned to them. -
Page 25: Basic Settings Tab - Multicast (Master Settings)
Settings) Multicast Mode (Master/Sender Selected) If master is enabled the 8301 Paging Adapter will broadcast an IP stream when activated in addition to playing the audio. (Note that the 8301 Paging Adapter cannot be both a multicast master and slave simultaneously). -
Page 26: Number Of Zones
The 8301 Paging Adapter may broadcast multicast paging, compatible with Polycom “on premise group paging” protocol and most multicast-enabled phones that use RTP audio packets. Select “Regular” if solely multicasting to Algo SIP endpoints and/or multicast-enabled phones. To multicast page announcements solely to Polycom phones, select “Polycom Group Page”... -
Page 27: Master Single Zone
DTMF Selectable Zone mode (or More Page Extensions per zone) and wishing to make the Master unit a member of only certain zones. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 28: Basic Settings Tab - Multicast (Slave Settings)
Basic Settings Tab - Multicast (Slave Settings) Multicast Mode (Slave Selected) If slave mode is enabled the 8301 Paging Adapter will activate when receiving a multicast message. Number of Zones Select “basic” zones if configuring nine or fewer multicast zones or “expanded”... -
Page 29: Audio Delay
Audio Delay When paging to the 8301 Paging Adapter as well as other third party devices, the low latency of the 8301 Paging Adapter may cause the audio to lead other devices. By adding audio delay up to one second, the 8301 Paging Adapter may be synchronized with other endpoints or telephones that have greater latency. -
Page 30: Multicast Type - Polycom Group Paging/Push-To-Talk
Polycom phones and Channels. The “Default Channel” is the target group in a Polycom paging environment. The Polycom phone used as page audio source for the 8301 Paging Adapter(s) must be configured to use either the G.711 or G.722 audio codec. -
Page 31: Additional Features Tab - Input/Output
The input relay to the Algo 8301 Paging Adapter can be prompted by any normally open or normally closed switch. Algo offers the 1202 Call Button or the 1203 Call Switch with supervision. Via supervision settings, notification actions can also be triggered if the input switch is disconnected. -
Page 32: Action - Play Tone
Action – Play Tone When the 8301 receives input, a tone or a pre-recorded WAV file will play over speaker, or multicast if enabled. This function can be used to call support in service environments, notify about an emergency at a specific location in medical/educational facilities, or sound an alarm during an intrusion. -
Page 33: Action - Make Sip Voice Call
For example, a tone could sound over the speaker(s), or a private pre-recorded message could be sent to a specified phone extension. The supervision configuration options Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 34: Speaker Mute
Select the maximum call length. The call will be terminated once the maximum time is reached. In the event that a call inadvertently reaches voicemail or gets accidentally left on hold, this setting ensures that the 8301 returns on-hook. Document 90-00070 Algo Communication Products Ltd... -
Page 35: Audio Always On
(iPods/iPhones). “Aux Output” is the front green 3.5 headset with microphone (headsets or PC speakers). “Line Input” is the back terminal black and XLR. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 36: Additional Features Tab - More
To configure additional page extensions (up to 50) click “Enable” beside the target extension and enter the Extension, Authentication ID, and Authentication password. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 37: Advanced Settings Tab - Network
DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8301 Paging Adapter on the network. Alternatively the 8301 Paging Adapter can be set to a static IP address. Document 90-00070... -
Page 38: Vlan Mode
Provides quality of service if the DSCP protocol is supported on your network. Can be specified independently for SIP control packets versus RTP audio packets. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 39: Advanced Settings Tab - Admin
Advanced Settings Tab – Admin Password Password to log into the 8301 Paging Adapter web interface. You should change the default password algo in order to secure the device on the network. If you have forgotten your password, you will... -
Page 40: Device Name (Hostname)
Log Level Use on the advice of Algo technical support only. Log Method Allows the 8301 Paging Adapter to write to external Syslog server if the option for external (or both) is selected. Log Server If “Network” or “Both” is selected this is the address of the Syslog server on the network. -
Page 41: Snmp Support
Syn-Apps’ SA-Announce paging application converts unicast streams to multicast and delivers them to the target endpoints. The feature can only be used on the 8301 when Multicast Master Mode is disabled (set to ‘None’) in the Basic Settings > Multicast tab. -
Page 42: Advanced Settings Tab - Time
Date and Time can be set manually. These settings are temporary and the current time will be fetched from the NTP servers when the device is rebooted. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 43: Advanced Settings Tab - Provisioning
“Provisioning Server”: TFTP (Trivial File Transfer Protocol), FTP, or HTTP. For example, 8301 Paging Adapter configuration files can be automatically downloaded from a TFTP server using DHCP Option 66. This option code (when set) supplies a TFTP boot server address to the DHCP client to boot from. -
Page 44: Md5 Checksum
8. File algop8301.conf can now be uploaded onto the Provisioning server If using a generic configuration file, extensions and credentials have to be entered manually once the 8301 Paging Adapter has automatically downloaded the configuration file. Document 90-00070 Algo Communication Products Ltd... -
Page 45: Generating A Specific Configuration File
3. File algom[MAC address].conf can now be uploaded on the Provisioning server. The specific configuration file will only be downloaded by the 8301 Paging Adapter with the MAC address specified in the configuration file name. Since all the necessary settings can be included in this file, the 8301 will be ready to work immediately after the configuration file is downloaded. -
Page 46: Advanced Settings Tab - Tones
Ring Tone Files Included in Memory The 8301 Paging Adapter includes several pre-loaded WAV files that can be selected to play for ring events. The web interface allows selection of the WAV file and also the ability to play the WAV file immediately over a speaker for testing. -
Page 47: Advanced Settings Tab - Advanced Audio
The jitter buffer removes the jitter in arriving network packets by temporarily storing them. This process corrects the inconsistent delays on the network. It is recommended to use the lowest value. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 48: Generate In-Band Dtmf Tones
Enables heavy filtering below 150Hz to reduce mains induced noise (fans). Microphone Noise Filter Enables heavy filtering below 150Hz to reduce mains induced noise (fans). Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 48... -
Page 49: Advanced Settings Tab - Advanced Sip
STUN Server IP address for STUN server if present. Register Period (seconds) Maximum requested period of time where the 8301 Paging Adapter will re-register with the SIP server. Default setting is 3600 seconds (1 hour). Only change if instructed otherwise. -
Page 50: Keep-Alive Method
Keep-alive Method If Double CRLF is selected the 8301 Paging Adapter will send a packet every 30 seconds (unless changed) to maintain connection with the SIP Server if behind NAT. Different Ports for Extensions Enable different ports for extensions for certain proxies such us Cisco Communication Manager 7, to send and page SIP requests through different port numbers. -
Page 51: Poll Active Server
Reconnect with higher priority server once available, even if backup connection is still fine. Polling Method SIP message used to poll servers to monitor availability. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 51 www.algosolutions.com... -
Page 52: Advanced Settings Tab - Advanced Multicast
Master Mode: By default, the same tone can be set for all slave zones in the Basic Settings > Features tab. Unique paging tones may be revised for any given slave zone in the table above. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... - Page 53 “None”. If a page is received from a non-Algo device that doesn’t send a tone, a tone can be inserted on the slaves (above) each time they detect page audio starting, allowing them to play a tone.
-
Page 54: System Tab - Maintenance
Save the device settings to a text file for backup or to setup a provisioning configuration file. Restore Configuration File Restore settings from a backup file. Restore Configuration to Defaults Resets all 8301 Paging Adapter device settings to factory default values. Reboot the Device Reboots the device. Document 90-00070... -
Page 55: Method
3. Login to the device again, and click on System. 4. In the Upgrade section, click on Choose File and select the 8301 Paging Adapter firmware file to upload. Note that both the FW firmware and MD5 checksum files must be loaded. -
Page 56: Specifications
Normally open or normally closed. Max rating 30 V 50 mA. Relay Input: Normally open or normally closed dry contact supervision. Algo 1202 Call Button, Algo 1203 Call Switch, EOL resistor termination. Document 90-00070 Algo Communication Products Ltd (604) 454-3792... - Page 57 6.5'' x 4.27'' x 2.3'' (cm x cm x cm) Mounting: Wall mountable or tabletop Weight: 2.2 lb (1.0 Kg) Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 57...
-
Page 58: Fcc Compliance Statement
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Document 90-00070 Algo Communication Products Ltd (604) 454-3792 2016-02-25 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 58 www.algosolutions.com...
