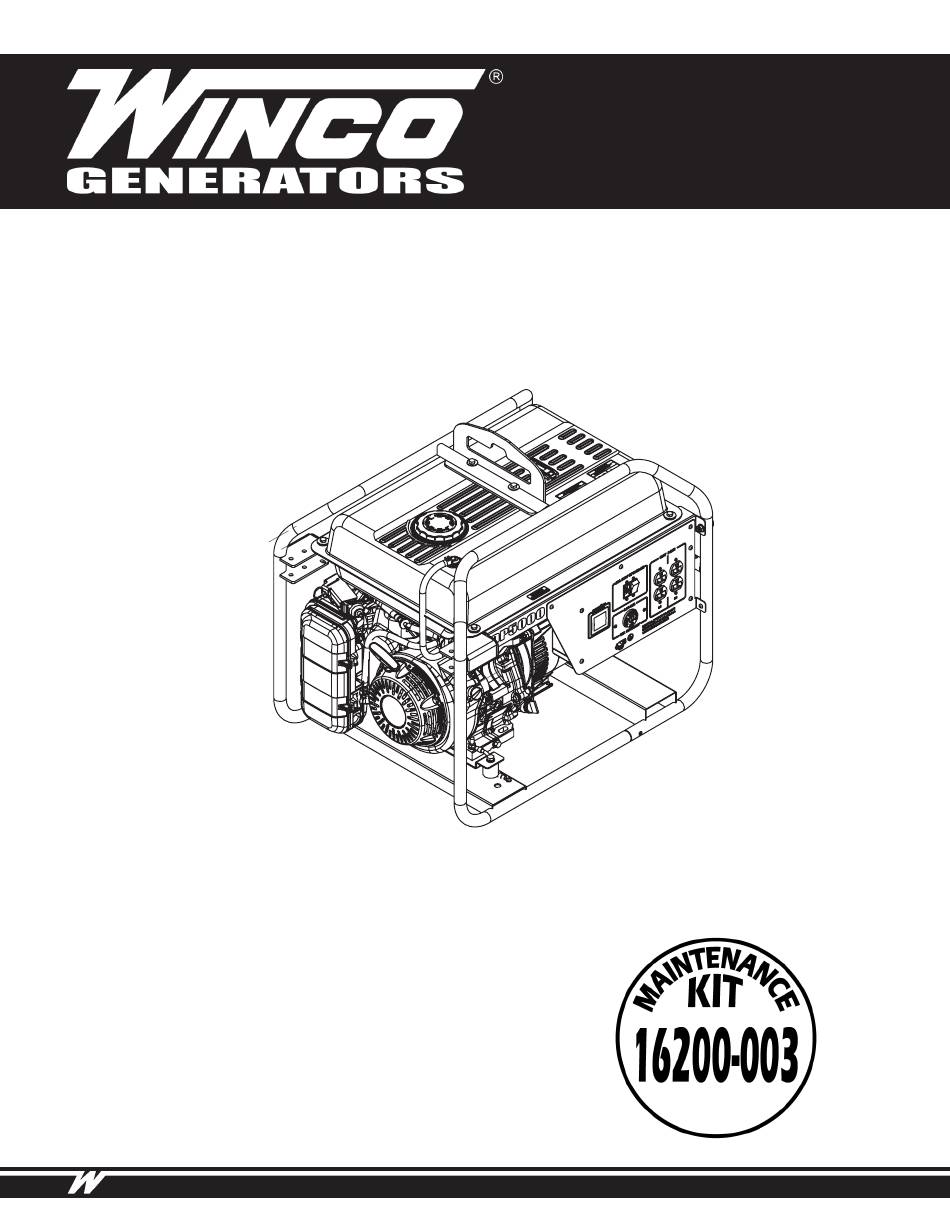

DP5000/T
DP5000-03/A
GENERATOR
INSTALLATION AND
OPERATORS MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us on this unit, it will help us to
respond to your needs faster.
MODEL __________________________________________________
SERIAL NUMBER _________________________________________
PURCHASE DATE _________________________________________
DEALER NAME ___________________________________________
DEALER PHONE # ________________________________________
www.wincogen.com
Advertisement
Table of Contents
Related Manuals for Winco DP5000-03/A
Summary of Contents for Winco DP5000-03/A
- Page 1 OPERATORS MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us on this unit, it will help us to respond to your needs faster.
-
Page 2: Table Of Contents
Should you experience a problem please follow the STARTING ELECTRIC MOTORS “Troubleshooting Tables” near the end of this manual. PREPARING THE UNIT The warranty listed in the manual describes what you can expect from WINCO should you need service assistance in UNPACKING the future. LUBRICATION OIL RECOMMENDATIONS... -
Page 3: Specifications
Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its Model DP5000/T full capacity, and the voltage, current, and frequency are DP5000-03/A carefully checked. Surge Watts 5,000 Continuous Watts 4,560... -
Page 4: Safety Information
SAFETY INFORMATION E. Store fuel only in an approved container, and only in a well ventilated area. This engine generator set has been designed and F. Follow local codes for closeness to combustible manufactured to allow safe, reliable performance. Poor material. -
Page 5: Introduction
INTRODUCTION UNIT CAPABILITIES INTENDED USES GENERATOR CONNECTIONS DP5000/T: 120 Volt and 240 Volt receptacles are provided This engine generator set has been designed primarily for for connection to various loads. The diagram below portable heavy duty commercial use. Both 120 volt and 240 represents this 4,500 watt (rated output) generator. -
Page 6: Preparing The Unit
1. As you receive your unit, it is critical to check it for any damage. If any damage is noted, it is always easiest to refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the... -
Page 7: Lifting Eye Installation
INITIAL START UP LIFTING EYE INSTALLATION The lifting eye is shipped loose along with a bag of parts. The throttle control on these generators is preset and Install the base of the lifting eye below the middle support. locked to operate at 3600 RPM (nominal) with no load See diagram below. -
Page 8: Connecting The Loads
CONNECTING THE LOADS CAUTION: EQUIPMENT DAMAGE Never permit the choke to remain on after the engine has run for a short time. It is not necessary to choke the engine The engine-generator covered in this manual was designed when it is warm. Avoid over-choking. for portable use. -
Page 9: Grounding
The electrician will move the critical circuits to be powered during the outage to the emergency panel. Your WINCO portable generator ships with a bonded Keep in mind only a limited amount of amperage is neutral. You can safely use this generator without external available from the generator set. -
Page 10: Yourgen
For normal usage, the speed setting should The WINCO YourGen meter allows you to see useful not be changed. If the generator is being run continuously information about your generator from the front panel... - Page 11 120 Volt and 240 Volt receptacles are provided for receptacle panel. Locate the backside of the YourGen connection to various loads. meter. Gently pry the back plate off using the slot located on top. The diagram below represents this 4,500 watt (rated output) generator.
-
Page 12: Engine Care
Outdoor temperatures determine the proper oil viscosity for 1. Unsnap the air cleaner cover clips, remove the air the engines. Winco recommends our 5W-30 fully synthetic cleaner cover and remove the air filter element. oil to give you excellent protection in cold temperatures while maintaining excellent performance in warmer weather. -
Page 13: Sediment Cup
GENERATOR CARE 2. Wash the element in a solution of household detergent and warm water, then rinse thoroughly. Or wash in a non-flammable or high flash point solvent. Allow Proper care and maintenance of the generator is necessary the element to dry thoroughly. to ensure a long trouble free life. -
Page 14: Troubleshooting
TROUBLESHOOTING Problem Possible Causes Won’t start Low oil level Fouled spark plug Out of fuel Start switch in OFF position Fuel Valve turned off Choke Open Voltage too low Engine speed is too low Generator overloaded Defective stator Defective rotor (field) Defective capacitor Circuit breaker trips Defective load... -
Page 15: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM OPM-128/E... -
Page 16: Month Limited Warranty
WINCO written instructions and applicable codes. WINCO’s sole liability, and Purchaser’s sole remedy for a failure under this warranty, shall be limited to the repair of the product. At WINCO’s option, material found to be defective in material or workmanship under normal use and service will be repaired or replaced.
