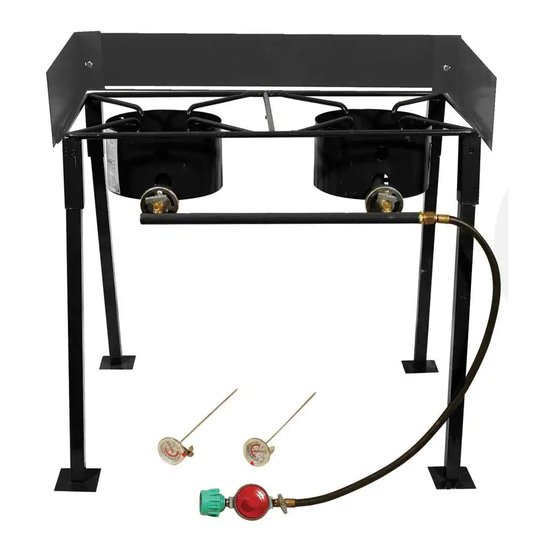

OUTDOOR COOKERS
CS29 & CS42
ASSEMBLY INSTRUCTIONS
AND
USE AND CARE MANUAL
__________
MODEL/SERIAL #
THE INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY
FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE.
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE ASSEMBLING
AND USING THE APPLIANCE. FOLLOW ALL WARNINGS AND INSTRUCTIONS WHEN
USING THE APPLIANCE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
METAL FUSION, INC.
712 St. George Avenue.
Jefferson, LA 70121
If you have any problems or questions
Call Us Toll Free at
1-800-783-3885
7:30 A.M. to 3:30 P.M. CST • Monday through Friday
(504) 736-0201
www.kingkooker.com
FAILURE TO FOLLOW THESE INSTRUCTIONS
AND WARNINGS COULD RESULT IN FIRE, EXPLOSION, BURN HAZARD OR CARBON
MONOXIDE POISONING WHICH COULD CAUSE PROPERTY DAMAGE,
PERSONAL INJURY OR DEATH.
