  • Page 3: Revison History

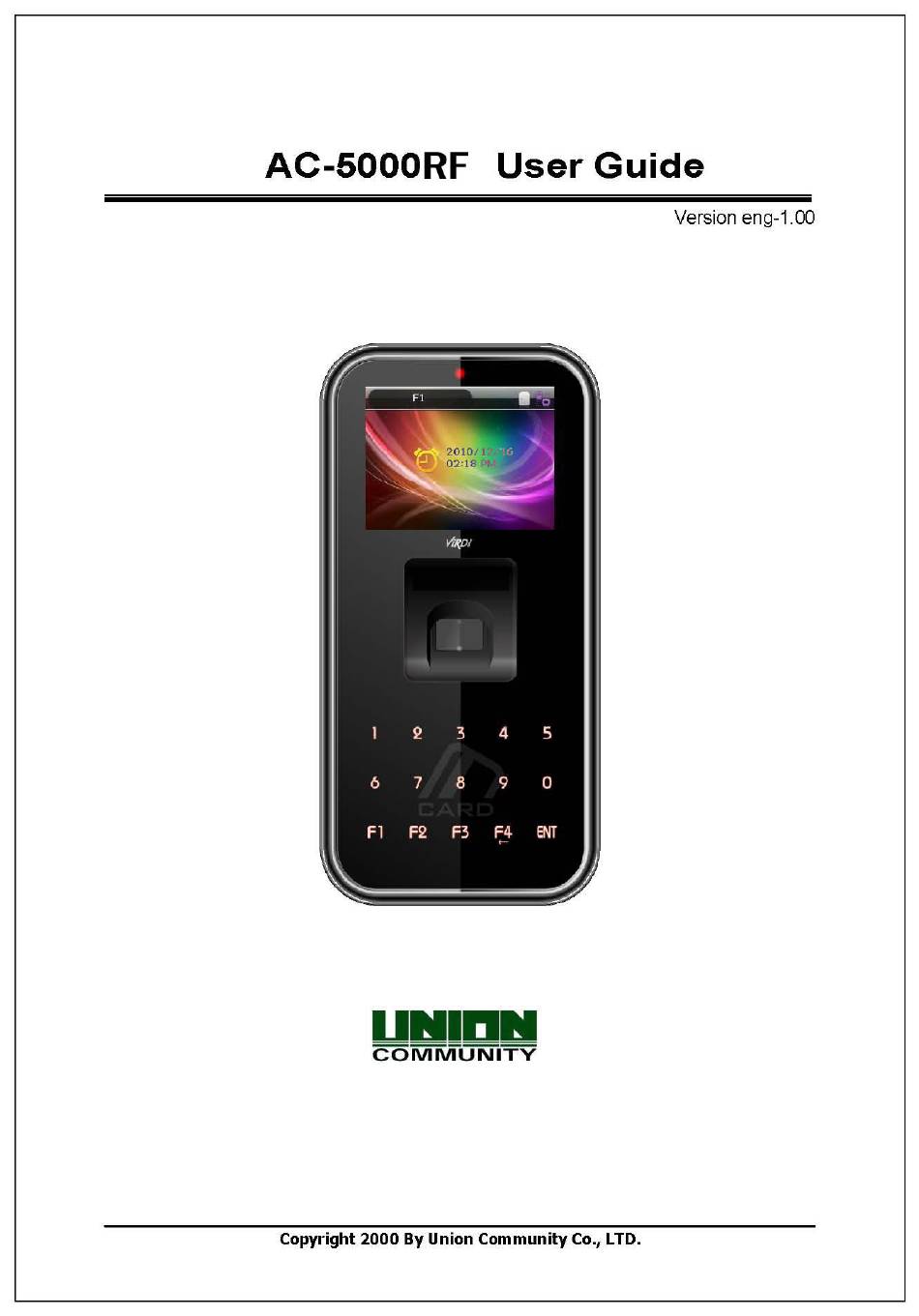

    AC-5000 User Guide <Revison History> Version Date Description Firmware Version 1.00 2011-01-10 Initial Release 10.51.00-000.00 <Glossary> Admin (Administrator) - As a user who can enter the terminal menu mode, he/she is authorized to register/modify/delete terminal users and change the operating environment by changing the settings.
  • Page 4 AC-5000 User Guide LFD (Live Finger Detection) This function allows the input of only real fingerprints and blocks the input of imitation fingerprints produced using rubber, paper, film, and silicone. UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong Songpa-gu, Seoul, Korea (138-050) Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr http://www.unioncomm.co.kr...

  • Page 5: Table Of Contents

    AC-5000 User Guide Table of Contents <Revison History> ....................2 <Glossary>........................ 2 Table of Contents ........오류! 책갈피가 정의되어 있지 않습니다. 1. Before use......................6 1.1. Safety precautions ..................6 1.2. Terminal description ................... 7 1.3. Screen description (during operation) ............7 1.3.1.
  • Page 6 AC-5000 User Guide 3.6.4. Language.................... 41 3.6.5. Data Time ................... 41 3.6.6. Database .................... 42 3.7. Terminal...................... 44 3.7.1. Terminal Option .................. 44 3.7.2. Volume Control ................... 45 3.7.3. Door....................46 3.7.4. Wiegand ..................... 47 3.7.5. Card Reader ..................47 3.7.6.

  • Page 7: Before Use

    - If the above cautions are ignored, it may result in property loss or human injury. ※ Under no circumstances will Union Community be responsible for the accidents or damages caused by inappropriate use of the product and neglect of the precautions stated in the user guide UNIONCOMMUNITY Co., Ltd.

  • Page 8: Terminal Description

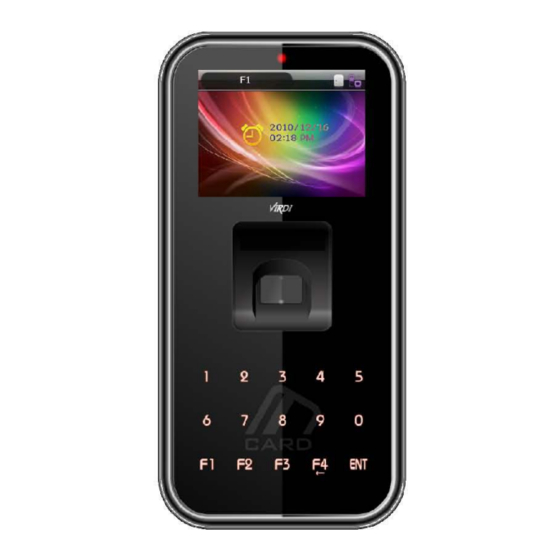

    AC-5000 User Guide 1.2. Terminal description State Display LED Fingerprint Sensor Touch Key Normally, the figure is invisible as LED is off, but LED is on and the figure is shown when the user touches this area lightly. Card Input Area 1.3.

  • Page 9: Icon Shown During Operation

    AC-5000 User Guide 1.3.1. Icon shown during operation None : Normal ① Fire Detection : State that fire is detected by fire sensor (subject to the connection with fire sensor) None : Normal ② Warning : Abnormal state that terminal is disassembled or door has encountered a problem : Door status is unknown ③...
  • Page 10 AC-5000 User Guide - When any unregistered user ID is input - When fingerprint authentication is attempted in the event where the server is not connected and there is no registered fingerprint in the terminal - When any unregistered card is input - When fingerprint input is failed - When the user took the finger off too fast before the fingerprint is input...
  • Page 11 AC-5000 User Guide - When the terminal is set to Locked - When it is not the meal time (in the event it is set to Cafeteria) - When the authentication may not be treated as there are too many authentication requests from the terminal during the server authentication.

  • Page 12: Led Signal Shown During Operation

    AC-5000 User Guide - At the time of fingerprint card authentication, it shows the status that the card reads fingerprint data. The user must put the card for 1~2 seconds until the message disappears. - When waiting for the response after the user attempted authentication to the server - When upgrading the terminal program (Be sure not to power off the terminal during the time the...

  • Page 13: Voices Used During Operation

    AC-5000 User Guide - Used for modifying the mode - Used for saving the value set in the menu mode or moving to the [or MENU] configuration in the screen - Means pressing [ENT] key for 2 seconds or longer - Used for accessing the menu when pressed on the basic screen - When input focus is located in the input box, the user can exit to the [ENT~]...
  • Page 14 AC-5000 User Guide Input the fingerprint of your forefinger if possible. It will facilitate the accurate and stable input of fingerprint. Please check if the fingerprint is not clear or has any scar. Too dry or wet fingerprint, ambiguous fingerprint, fingerprint with scar, etc. may not be recognized.

  • Page 15: Product Introduction

    AC-5000 User Guide 2. Product introduction 2.1. Features Application of POE and Terminal Block – Easy to install - As it supports POE, it can be installed with LAN cable without a separate power cable. Designed in IP65 rainproof specification – Outdoor installation is possible. Slim and polished design - Easy to install as it is designed in a standing type;...
  • Page 16 AC-5000 User Guide registering a user or administrator. Fingerprint registration Fingerprint Authentication Card registration Card authentication FP or PW Fingerprint and password registration Password authentication when fingerprint authentication is failed FP & PW Fingerprint and password registration Fingerprint authentication and then password authentication Card Card registration Card authentication...

  • Page 17: Configuration

    AC-5000 User Guide 2.2. Configuration 2.2.1. Standalone (Access) DC12V Adapter Electromagnetic Lock (Lock+, Lock-, Monitor) 2.2.2. Connect with PC SERVER (Access, Time & Attendance, Cafeteria) TCP/IP TCP/IP Fingerprint authentication TCP/IP server (Fixed IP) UDB Server Internet / Database (MDB or MSSQL) WAN / LAN Remote Admin Program TCP/IP...

  • Page 18: Specification

    AC-5000 User Guide 2.3. Specification Division SPEC REMARK 32Bit RISC CPU (400MHz) Rainproof IP65 2.8” TFT Color (320*240) Touch Key 15key (0~9, F1~F4, Enter) 32M SDRAM 20,016 User MEMORY 32M FLASH 20,016 Finger 61,439 Log Fingerprint sensor Optical Authentication speed Within 1 second Scan Area / Resolution 15 * 17mm / 500 DPI...
  • Page 19 AC-5000 User Guide UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong Songpa-gu, Seoul, Korea (138-050) Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr http://www.unioncomm.co.kr...

  • Page 20: Environment Settings

    AC-5000 User Guide 3. Environment settings 3.1. Items to be checked before environment settings 3.1.1. Enter the Menu Press [ENT] key for two seconds or longer, then the user can access the screen for menu selection as follow; <Figure 3-1> User can transfer to each sub menu and have access by pressing the relevant number key.

  • Page 21: Change Settings

    AC-5000 User Guide Remove the bracket at the backside of the terminal to open the lid. ① With the lid open, as shown in the figure below, connect pin No. 1 with pin No. 3, and ② pin No. 2 with pin No. 4 of J404 connector respectively at backside. <Figure 3-3>...

  • Page 22: Save Environment Settings

    AC-5000 User Guide then input the new value using [0]~[9] key. Select Button ▶ ② In case of selecting an item out of the given sample like ‘Fake Finger Detect’, user must modify the item selection ( ) by pressing the relevant number key, provided that, user must select the item after moving the focus from the input box by pressing [ENT] key if the focus is located at the input box as shown in <Figure 3-5>.
  • Page 23 AC-5000 User Guide <Figure 3-6> Select [1.Yes] to save the revised contents or [2.No] to cancel it, and then press [ENT] key. If there is no input for a certain period of time in this case, it returns to the initial screen. If there is no revised contents, it exits from the environment settings menu without the aforementioned process of “Save?”.

  • Page 24: Menu Configuration

    AC-5000 User Guide 3.2. Menu Configuration 1. User 1. Add 2. Delete 3. Modify 4. Delete All 2. Network 1. IP 1. Static IP / 2. DHCP ▶ I P Address ▶ S ubnet Mask G ateway ▶ 2. Server IP S erver IP ▶...
  • Page 25 AC-5000 User Guide 4. System 1. System Setting ▶ U serID Length D isplay Option ▶ 2. Authentication U ser GroupIP ▶ E nable 1:N ▶ ▶ C ard Only ▶ T emplate On Card V erify Multi-FP ▶ ▶ B locking Time (sec.) 3.

  • Page 26: User

    AC-5000 User Guide 6. Information 1. System Info 2. Network Info 3. Database Info 4. View Log 5. Version Info 3.3. User Select “1. User” in the main menu, then the following screen will appear. Press [1] key to register new user, [2] key to delete user, [3] key to modify user, and [4] key to delete all users.
  • Page 27 AC-5000 User Guide As shown on the screen, the user can register by pressing [2] for fingerprint, [3] for card, and [4] for password. Basically, it is registered in the name of the user. Using the keys [7] and [8], the user can modify into the user and the admin. Once the registration is completed, the user can press [ENT] to save it.
  • Page 28 AC-5000 User Guide When input is complete, the message at the left ③ ③ ③ ③ will appear together with its image accompanied by quality rating in 0~100. If the image is not adequate from the visual aspect or any image shows 30 or less, the user is advised to register again.
  • Page 29 AC-5000 User Guide Input the password in 1~8 digits on the password input screen and press [ENT] key. The ‘Confirm Password’ window will appear again. Input the same password and press [ENT] key. Press [F4(←)] key for 2 seconds or longer to cancel it and exit.
  • Page 30 AC-5000 User Guide When it is registered normally with [6. Save] key pressed When registration is failed with [6. Save] key pressed When the registration means is not registered properly in accordance with authentication method, example, the user didn’t register any fingerprint after setting it as authentication means, nor register any card after setting it as authentication means.

  • Page 31: Delete

    AC-5000 User Guide In case of [2. FP Register], when the user intends to register again the fingerprint that has already been registered. If the user wants to register the same fingerprint ※ with other ID again, he/she must release ‘4. System 3.

  • Page 32: Modify

    AC-5000 User Guide When it is deleted normally When the user inputs an unregistered ID 3.3.3. Modify When the user selects ◆ [ENT~] [1. User] [3. Modify] in the initial screen ◆ , the following screen will appear. Press [ENT] key after inputting the user ID to be changed.

  • Page 33: Delete All

    AC-5000 User Guide 3.3.4. Delete All When the user selects ◆ [ENT~] [1. User] [4. Delete All] in the initial screen ◆ , the following screen will appear. If the user is sure to delete all users, press [1.Yes] while press [ENT] key after selecting [2.No] to cancel it.

  • Page 34: Server Ip

    AC-5000 User Guide No need to set them if the user selected a flexible IP. The user can exit to the parent menu using [ENT~] key to apply the changed value after finishing the setting while using [F4(←)] key to cancel input during setting. In this case, the user can exit only by pressing the key for 2 seconds or longer if he/she is inputting the value in the input box.

  • Page 35: Application

    AC-5000 User Guide 1.Server/Terminal Authentication is made by the server when it is connected to the server while by the terminal when it is disconnected to the server due to network disturbance, etc. 2.Terminal/Server Authentication is made by the terminal even if the server is connected and the result of authentication is transferred to the server on a real-time basis.

  • Page 36: Time Schedule

    AC-5000 User Guide Select the operation type of the terminal by pressing the applicable number key. Press [ENT] key to apply the configuration while [F4(←)] key to cancel it. 3.5.2. Time Schedule 3.5.2.1. Setting to Access / Time & Attendance When the user selects ◆...

  • Page 37: Function Key

    AC-5000 User Guide Exit to the parent menu by pressing [ENT~] key to apply the changed value after finishing the setting while pressing [F4(←)~] key to cancel the input value. 3.5.2.2. . Setting to Cafeteria ▶ I nitial setting: Identical with the screen at the left The user can set the time zone by meal types;...

  • Page 38: Display

    AC-5000 User Guide When the user selects [ENT~] [3. Application] [4. Extended Key] in the initial ◆ screen ◆ , the following screen will appear. ▶ I nitial setting: Identical with the screen at the left To use the Extended Key, press [1] key and then check ‘1.

  • Page 39: System

    AC-5000 User Guide I nitial setting: Identical with the screen at the left ▶ B ackground image ▶ The user can change the background image of the initial screen by pressing [1] and [2] keys. Also, the user can set the cycle to 5 seconds or longer to have the background images saved in the terminal displayed sequentially at every preset interval (seconds).

  • Page 40: Authentication

    AC-5000 User Guide I nitial setting: Identical with the screen at the left ▶ ▶ UserID Length This field sets the length of user ID, which can be changed within the range of 1~9 digits. It must be identical with the length of ID registered in the server program. For example, the user must set it to 6 if the ID registered in the server program is ‘000075’...

  • Page 41: Fingerprint

    AC-5000 User Guide authentication is permitted in the terminal where this option is not checked C ard Only ▶ If checked ( ), this option enables to authenticate with card only without inputting fingerprint. Even if the user is registered with (Card & FP) or (Card & PW), only authentication with card is permitted in the terminal where this option is checked.

  • Page 42: Language

    AC-5000 User Guide ▶ 1 :1 Level Authentication level that is used for 1:1 Fingerprint Authentication, provided that, 1:1 authentication level of the relevant user shall apply for the user whose 1:1 authentication level is not set to ‘0’ (using the authentication level of the terminal) ▶...

  • Page 43: Database

    AC-5000 User Guide I nitial setting: Identical with the screen at the left ▶ ▶ Time Sync It sets the method that synchronizes the current time of the terminal with the server. To synchronize the terminal time with the server time, set to ‘1. Auto’ to perform it automatically while ‘2.
  • Page 44 AC-5000 User Guide Press [1.Yes] key to initialize all configurations while select [2.No] and press [ENT] key to cancel it. When no value is input for a certain period of time in this state, it returns to the initial screen instead of initialization.

  • Page 45: Terminal

    AC-5000 User Guide It deletes all the logs related to authentication, and the deleted logs may not be restored after deletion. When deletion is successfully completed, it proceeds to the parent menu accompanied by the success buzzer sounds. 3.6.6.4. Initialize Terminal When the user selects ◆...

  • Page 46: Volume Control

    AC-5000 User Guide I nitial setting: Identical with the screen at the left ▶ D ooropen ▶ Door is opened when pressing ‘0’ key. It appears only when the terminal is locked. This is option not normally shown. ▶ Terminal Alarm If checked, ( ), it generates a warning sound when the lid of the terminal is opened.

  • Page 47: Door

    AC-5000 User Guide 3.7.3. Door When the user selects [ENT~] [5. Terminal] [3. Door] in the initial screen ◆ ◆ the following screen will appear. ▶ I nitial setting: Identical with the screen at the left ▶ L ock Type Set to ‘1’...

  • Page 48: Wiegand

    AC-5000 User Guide The user can exit to the parent menu using [ENT~] key to apply the changed value after finishing the setting while using [F4(←)] key to cancel input during setting. 3.7.4. Wiegand When the user selects [ENT~] [5. Terminal] [4.
  • Page 49 AC-5000 User Guide When the user selects [ENT~] [5. Terminal] [5. Card Reader] in the initial screen ◆ the following screen will appear. I nitial setting: Identical with the screen at the left ▶ Read Card NO. ▶ When the user puts the card on this screen, the card number will be displayed on the LCD.

  • Page 50: External Device

    AC-5000 User Guide 3.7.6. External Device When the user selects [ENT in the initial screen , the ~] ( [5. Terminal] [6. External Device] ) ◆ following screen will appear. I nitial setting: Identical with the screen at the left ▶...

  • Page 51: Network Info

    AC-5000 User Guide Press [F4(←)] key to exit to the parent menu. 3.8.2. Network Info Select ◆ [ENT~] [6. Information] [2. Network Info] in the initial screen ◆ Press [F4(←)] key to exit to the parent menu. 3.8.3. Database Info Select [ENT~] [6.

  • Page 52: Version Info

    AC-5000 User Guide - All Log: Number of logs saved in the terminal - Max Log: Maximum number of logs that can be saved Press [F4(←)] key to exit to the parent menu. 3.8.5. Version Info Select [ENT~] [6. Information] ◆...

  • Page 53: Change Voice Message

    AC-5000 User Guide 3.9.2. Change Voice Message When selecting ‘Download customized file’ in UNIS program, the following screen will appear. Designate the file as ‘Success voice file (.wav)’, select Wav file (.wav) and click the ‘Send’ button, then the terminal select window will appear. When selecting the terminal from the terminal list window and clicking the ‘Send’...
  • Page 54 AC-5000 User Guide UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong Songpa-gu, Seoul, Korea (138-050) Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr http://www.unioncomm.co.kr...

  • Page 55: How To Use The Terminal

    AC-5000 User Guide 4. How to use terminal 4.1. Change of authentication mode Press the desired mode key Touch the hand <Figure 4-1> Normally, it is not visible; but when the user touches the hand on the card input area as shown in the Figure at the left, LED will be powered ON and a keypad will appear as shown in the Figure at the right.

  • Page 56: Authentication

    AC-5000 User Guide Delete with [F4(←)] key if the figure is wrongly input during the input process. When pressing [ENT] key after inputting ID, the fingerprint input or password input screen appears depending on the method of user authentication. However, authentication will fail if a card user inputs ID first. Therefore, be sure to use the card.
