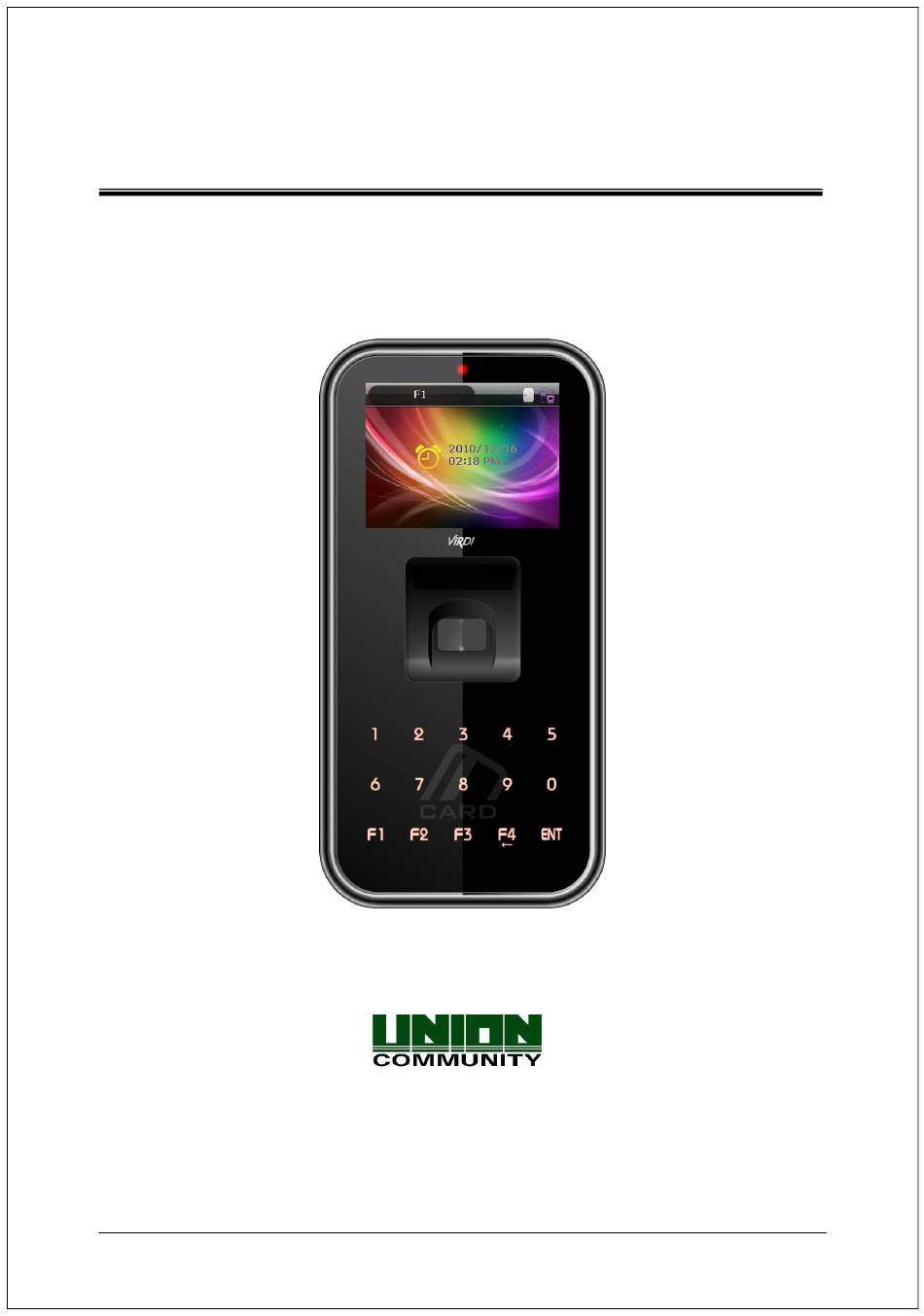

- Page 1 AC-5000 .User Guide Version eng-1.06 Copyright 2000 By Union Community Co., LTD.
-
Page 2: Revison History
AC-5000 User Guide <Revison History> Version Date Description Firmware Version 1.00 2011-01-10 Initial Release 10.51.00-000.00 3.1.3. Change of setting value modification 10.51.01-000.01 1.01 2011-06-21 (p20) :④ Addition of combo box 3.6.4. Language setting (p40):9. Chinese addition 3.7.3 Change of the entrance setting window : Addition of fire/panic/emergency (p45) detecting function when connected with UNIS. -
Page 3: Glossary
AC-5000 User Guide <Glossary> Admin (Administrator) - A user who can enter the terminal menu mode. They are authorised to register/modify/delete terminal users and alter the operating environment by changing the settings. - If there is no administrator registered for a terminal, anyone can enter the terminal menu and change the settings. -
Page 4: Table Of Contents
AC-5000 User Guide Table of Contents <Revison History> ....................2 <Glossary> ........................ 3 Table of Contents ..................... 4 1. Before Use ......................6 1.1. Safety Precautions ..................6 1.2. Terminal Description ................... 7 1.3. Screen Description (During Operation) ............. 7 1.3.1. - Page 5 AC-5000 User Guide 3.7. Terminal ....................423 3.7.1. Terminal Option .................. 44 3.7.2. Volume Control ................. 444 3.7.3. Door ....................445 3.7.4. Wiegand ................... 466 3.7.5. Card Reader ..................467 3.7.6. External Device ................478 3.8. Information ....................489 3.8.1. System Info ..................50 3.8.2.
-
Page 6: Before Use
- If the above cautions are ignored, it may result in property damage or human injury. ※ Under no circumstances will Union Community be responsible for accidents or damages caused by inappropriate use of the product and neglect of the precautions stated in the user guide UNIONCOMMUNITY Co., Ltd. -
Page 7: Terminal Description
AC-5000 User Guide 1.2. Terminal Description State Display LED Fingerprint Sensor Touch Key Normally, the figures are invisible as the LED is off. LED turns on and the figures illuminate when the user lightly touches this area. Card Input Area 1.3. -
Page 8: Icons Shown During Operation
AC-5000 User Guide 1.3.1. Icons Shown During Operation None : Normal ① Fire Detection : State when fire is detected by a fire sensor (subject to the appropriate fire sensor connection). None : Normal. ② Warning : Abnormal state when terminal is disassembled or door has encountered a problem. - Page 9 AC-5000 User Guide - When any unregistered card is input. - When fingerprint input has failed. - If the user removed their finger too quickly before the fingerprint was identified. - When Anti-Pass Back is in error (if the anti-pass back function is being used).
- Page 10 AC-5000 User Guide - When it‟s not a meal time (if being used for Cafeteria operation). - When the authentication cannot be processed due to too many server authentication requests from the terminal. - Show the waiting status for a user‟s ID input.
-
Page 11: Led Signal Shown During Operation
AC-5000 User Guide - When waiting for a response, after the user attempted authentication by the server. - When upgrading the terminal program. Make sure the terminal is not powered off while this message is being output. 1.4. LED Signal Shown During Operation On: Normal ●... -
Page 12: Voices Used During Operation
AC-5000 User Guide - Used to apply the configuration to the current screen in menu mode and then exiting to the parent menu. 1.6. Voices Used During Operation Type of Operation Voice For fingerprint input Please enter your fingerprint. When authentication You are authorised. -
Page 13: Product Introduction
AC-5000 User Guide It facilitates accurate and stable fingerprint input. Check to see if the fingerprint is clear and without any scars. A too dry or wet fingerprint, ambiguous fingerprint, fingerprint with a scar, etc. may not be recognised. In such cases, use/register the print from a different finger. - Page 14 AC-5000 User Guide Download Server Functions – Change the LCD background image and voice - Provides a variety of information messages via the colour LCD screen and voices. You can download background images and voice messages from the server;...
-
Page 15: Configuration
AC-5000 User Guide Card Authentication and then Fingerprint Authentication Card or PW Card and Password Registration Card or Password Authentication Card and PW Card and Password Registration Card Authentication and then Password Authentication (ID or Card) & Card and Fingerprint Registration... -
Page 16: Connect With Pc Server (Access, Time & Attendance, Cafeteria)
AC-5000 User Guide 2.2.2. Connect with PC SERVER (Access, Time & Attendance, Cafeteria) TCP/IP TCP/IP Fingerprint Authentication Server (Fixed IP) TCP/IP UDB Server Database (MDB or MSSQL) Internet / WAN / LAN Remote Admin Program (User and terminal setting TCP/IP... -
Page 17: Environment Settings
AC-5000 User Guide Scan Area / Resolution 15 * 17mm / 500 DPI FRR / FAR 0.1% / 0.001% -20°C ~ +50°C Temperature / Humidity Lower than 90% RH Supports 13W PoE INPUT: Universal AC 100 ~ 250V AC / DC Adapter... -
Page 18: How To Access The Menu Without The Admin Verification
AC-5000 User Guide <Figure 3-1> User can transfer to, and have access to, each sub menu by pressing the relevant numeric key. If the Admin User is already registered, the Verify Admin screen appears as shown below: <Figure 3-2> In adherence with the registered authentication method, such as card, fingerprint or password, users can access each menu - subject to successful identification - after the admin verification has finished. -
Page 19: Modify Set Values
AC-5000 User Guide <Figure 3-3> ③ Access the menu by pressing and holding the [F4(←)] key for 2 seconds or longer. Enter Admin ID as „0‟ on the Verify Admin screen <Figure 3-2>, and press the [ENT] key. The user can now access the menu selected and the buzzer sounds “Brrrrrrp”. -
Page 20: Save Environment Settings
AC-5000 User Guide the input box as shown in <Figure 3-5>. <Figure 3-5> Move Highlight (using the [ENT] key) 오류! As shown in the figure on the left, the number is displayed in reverse colour when the highlight is in the input box. In the figure on the right, the applicable letters are displayed in black instead of grey when the highlight moves to „Fake Finger Detect‟. -
Page 21: Menu Configuration
AC-5000 User Guide <Figure 3-6> Select [1.Yes] to save the new configuration or [2.No] to cancel it. Then press the [ENT] key. In this instance, if, after a period of time there is no input the system returns to the initial screen. - Page 22 AC-5000 User Guide 2. Network 1. IP 1. Static IP / 2. DHCP ▶IP Address ▶Subnet Mask ▶Gateway ▶Server IP 2. Server IP ▶Server Port ▶Terminal ID 3. Terminal ID ▶Authentication ▶Application 3. Application 1. Application 1. Access 2. Time & Attendance 3.
- Page 23 AC-5000 User Guide ▶User GroupIP 2. Authentication ▶Enable 1:N ▶Card Only ▶Template On Card ▶Verify Multi-FP ▶Blocking Time (sec.) ▶NetErrTime(Sec) ▶1:1 Level [1~9] 3. Fingerprint ▶1:N Level [3~9] ▶Fake Finger Detect ▶Template types □Check SameFP 4. Language ▶Time Sync 5. Data Time ▶Display Time...
-
Page 24: User
AC-5000 User Guide 6. Information 1. System Info 2. Network Info 3. Database Info 4. View Log 5. Version Info 3.3. User Select “1. User” in the main menu, and the following screen appears: Press [1] key to register new user. - Page 25 AC-5000 User Guide [4] for password. Basically, it is registered in the name of the user. Using the keys [7] and [8], the user can modify as user or admin. Once the registration is complete, the user can press [ENT] to save it. The user must press the [F4 (←)] key to cancel the registration and exit from the menu.
- Page 26 AC-5000 User Guide ③ When input is complete the message at the left appears, together with the images accompanied by their quality rating from 0~100. If the image is not adequate from a visual aspect, or any image shows 30 or less, the user is advised to register again.
- Page 27 AC-5000 User Guide 3.3.1.5. FP Option This is the setting related to fingerprints, and is the option that can be changed after registering the fingerprint in advance. If the user selects it with the fingerprint already registered, it only results in the failure buzzer sound.
-
Page 28: Delete
AC-5000 User Guide In the case of [4. PW Register] When the user inputs a different number during password confirmation. In the case of [3. Card Register] When the user tried to register a card that has already been registered. -
Page 29: Modify
AC-5000 User Guide Deleting from the terminal doesn‟t mean deletion from the server. Therefore, it is necessary to delete from the server to make the deletion complete. Special care should be taken when deleting, since deletion is performed regardless of User/Admin. -
Page 30: Delete All
AC-5000 User Guide The icons on the left are described with their respective meanings on the right. Authentication type (FP) Number of Registered Fingerprints (1) Number of Registered Cards (0) Whether or not the Password is Registered : not Registered) For the method of changing, see „3.3.1. -
Page 31: Server Ip
AC-5000 User Guide When changing IP, delete the existing values using [F4 (←)] and then input the new values. The „.‟ in between number sequence created automatically. Example: input 192 168 010 50 sequentially to input „192.168.10.50‟. Select [1] when a fixed IP address is assigned to the connected network and select [2] in cases where there is a DHCP server in the connected network which is assigning the address. -
Page 32: Application
AC-5000 User Guide ▶Initial setting Terminal ID: „1‟ Authentication: „2. terminal/server‟ Terminal ID is a unique ID used by the authentication server for the purpose of identifying the terminal having „1‟ as its default value. It must correspond to the entry/exit door ID set in the server program - which can be input as a maximum of 8 digits. -
Page 33: Time Schedule
AC-5000 User Guide Press the applicable key representing the item to be changed. 3.5.1. Application Select ◆ [ENT~] [3. Application] [1. Application] in the initial screen ◆, and the following screen appears: Select the terminal operation type by pressing the applicable numeric key. -
Page 34: Function Key
AC-5000 User Guide ----------------------------------------------------------------------------------------------------------- Exit to the parent menu to apply the changed value, after finishing the settings, by pressing the [ENT~] key. Press the [F4 (←)~] key to cancel the input value. 3.5.2.2. . Setting to Cafeteria ▶Initial setting: Identical with the screen on the left. -
Page 35: Extended Key
AC-5000 User Guide If the „6.Auto Sensing‟ check box is cleared the fingerprint sensor doesn‟t respond, even if the user inputs their fingerprint on the sensor. In this case, be sure to input the ID or card or fingerprint of the user. -
Page 36: System
AC-5000 User Guide ▶Initial setting: Identical with the screen on the left ▶Background image You can change the background image shown on the initial screen by pressing the [1] and [2] keys. Also, you can set the cycle to 5 seconds or longer... -
Page 37: Authentication
AC-5000 User Guide ▶Initial setting: Identical with the screen on the left ▶ UserID Length This field sets the length of user ID, which can be changed within the range of 1~9 digits. It must be identical to the length of ID registered in the server program. For example, the user must set it to 6 if the ID registered in the server program is „000075‟... -
Page 38: Fingerprint
AC-5000 User Guide ID is „12‟. ▶Enable 1:N If checked ( ), this option enables fingerprint only authentication without inputting user ID or card. Even if the user is registered with 1:N authentication, only 1:1 authentication is permitted in the terminal where this option is not checked. -
Page 39: Language
AC-5000 User Guide ▶Initial setting: Identical with the screen on the left. ▶1:1 Level Authentication level used for 1:1 Fingerprint Authentication. Provided that, 1:1 authentication level of the relevant user is applied for the user whose 1:1 authentication level is not set to „0‟ (using the authentication level of the terminal). -
Page 40: Date Time
AC-5000 User Guide ▶Initial setting: „1. English‟ When changing the language settings, the default voice message and on-screen message are changed into that language set. The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during setting. -
Page 41: Database
AC-5000 User Guide 3.6.6. Database Select ◆ [ENT~] [4. System] [6. Database] in the initial screen ◆, and the following screen appears: Press the following keys: [1] key to initialise the configuration. [2] key to delete all users. - Page 42 AC-5000 User Guide deletion. When deletion is successfully completed, it proceeds to the parent menu accompanied by the success buzzer sound. 3.6.6.3. Clear Log Data Select ◆ [ENT~] [4. System] [6. Database] [3. Clear Log Data] in the initial screen ◆, and the following screen appears:...
-
Page 43: Terminal Option
AC-5000 User Guide Press the applicable key representing the item to be changed. 3.7.1. Terminal Option Select ◆ [ENT~] [5. Terminal] [1. Terminal Option] in the initial screen ◆, and the following screen appears: ▶Initial setting: Identical with the screen on the left ▶Door open... -
Page 44: Volume Control
AC-5000 User Guide the [F4 (←)] key to cancel input during setting. 3.7.2. Volume Control Select ◆ [ENT~] [5. Terminal] [2. Volume Control ] in the initial screen ◆, and the following screen appears: ▶Initial setting: Identical with the screen on the left Sets Voice Volume and Beeper Volume. - Page 45 AC-5000 User Guide - „1.Door open NO‟ or „2.Door open NC‟: A door status monitoring pin in connection - „3.Fire detection NO‟ or „4.Fire detection NC‟: A fire sensor in connection -„5.Panic detection NO‟ or „6.Panic detection NC‟: A panic situation sensor in connection - „7.Emergency detection NO‟...
-
Page 46: Card Reader
AC-5000 User Guide the [F4 (←)] key to cancel input during setting. 3.7.4. Wiegand Select [ENT~] [5. Terminal] [4. Wiegand] in the initial screen ◆, and the following screen appears: ▶Initial setting: Identical with the screen on the left This menu configures the Wiegand Output. -
Page 47: External Device
AC-5000 User Guide ▶Initial setting: Identical with the screen on the left. ▶ Read Card No. When the user puts the card on the screen, the card number is displayed on the LCD. ▶Dummy mode If 6.RS232 is set, the authorization is not fulfilled by card reading, rather it send the card data to the RS232(Debug) Port. -
Page 48: Information
AC-5000 User Guide ▶ Initial setting: Identical with the screen on the left. ▶Connector Settings To connect a Slave Reader which uses a card or a fingerprint as a secondary authentication device. If you would like a Wiegand card reader to be connected, set „7‟... -
Page 49: System Info
AC-5000 User Guide Menu to view the terminal settings. Press; [1] key to view various terminal configurations. [2] key to view network configuration, such as IP. [3] key to view the user registration status, etc. [4] key to view log data. -
Page 50: View Log
AC-5000 User Guide - Registered User: Number of registered users (including administrator). - Registered Admin: Number of registered administrators. - Max User: Maximum number of users that can be registered. - Registered FP: Number of whole fingerprints that are registered. -
Page 51: Change Background Image
AC-5000 User Guide 3.9.1 . Change Background Image When selecting „Download customised file‟ in the UNIS program, the following screen appears: Designate the file as „Background image file (.jpg)‟, select the image file (.jpg), and click the „Send‟ button. The terminal select window will appear. Select the terminal on the terminal list window and click the „Send‟... -
Page 52: Change User Text
AC-5000 User Guide 3.9.3. Change User Text When selecting „Download customised file‟ in UNIS program, the following screen appears: Designate the file as „Defined Text File (.csv)‟, select CSV file (.csv) and click the „Send‟ button. The terminal select window will appear. Select the terminal from the terminal list window and click the „Send‟... -
Page 53: Id Input
AC-5000 User Guide Press the Desired Mode Key Touch by Hand <Figure 4-1> Normally it‟s not visible, but when the user touches their hand on the card input area - as shown in the Figure at the left – the LED‟s are powered ON and the keypad appears - as shown in the Figure at the right. -
Page 54: Authentication
AC-5000 User Guide Pressing the [ENT] key, after inputting ID, causes the fingerprint input or password input screen to appear; depending on the method of user authentication. However, authentication will fail if a card user inputs ID first. Therefore, be sure to use the card.
