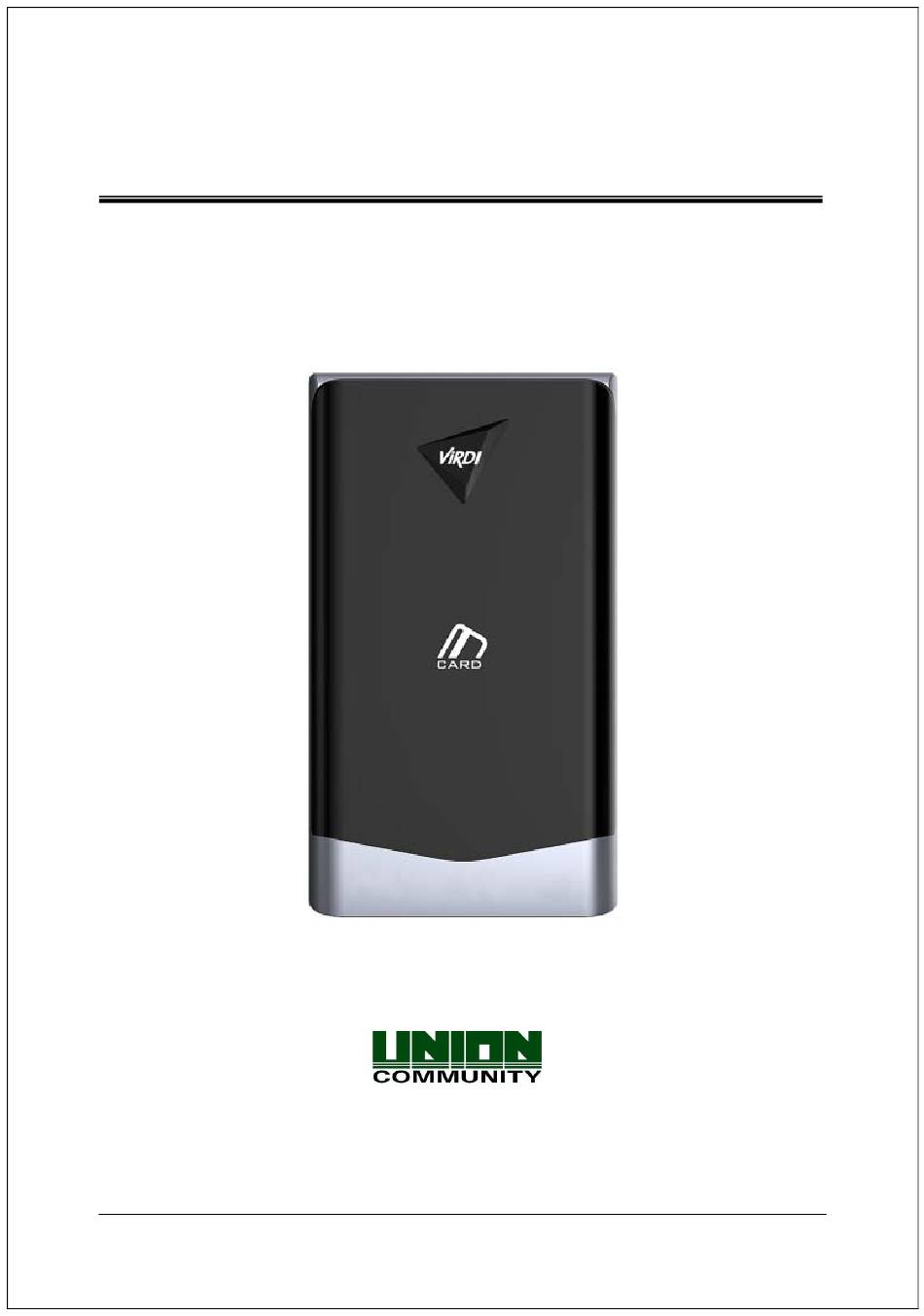

- Page 1 VS-R20D(SC & RF). User Guide Version Eng-1.00 Copyright 2000 By Union Community Co., LTD.
-
Page 2: Glossary
Smart-i 사용자 가이드 <Revison History> Version Date Description Firmware Version 10.51.00- 2012-08- 1.00 Initial Release 000.00 < Glossary > Authentication Method - RF (Card) Authentication ㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050) Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr http://www.unioncomm.co.kr... -
Page 3: Table Of Contents
Smart-i 사용자 가이드 Table of Contents <Revison History> ..................2 <Glossary> ........오류! 책갈피가 정의되어 있지 않습니다. 1. Before use ........오류! 책갈피가 정의되어 있지 않습니다....오류! 책갈피가 정의되어 있지 않습니다. 1.1 Safety Precautions ................ 5 1.2. Terminal Descrpiton 1.3. -
Page 4: Before Use
-- If the above cautions are ignored, it may result in property loss or human injury. ※ Under no circumstances will Union Community be responsible for accidents or damages caused by inappropriate use of the product caused by not referring to the user manual. -
Page 5: Led Signal During Operation
Smart-i 사용자 가이드 1.2. Terminal Description 1.3. LED Signal during operation Abnorm ● ON: When authentication is failed ● Success Green ON: When authentication is successful Flickering: Waiting for a card to input State White ON: If is set as “LED is always ON” in terminal settings ㈜유니온커뮤니티... -
Page 6: Buzzer Sound During Opertaion
Smart-i 사용자 가이드 1.4. Buzzer sound during operation Pressing a key When a button is pressed or a card is being read “ppig” or a reading a When fingerprint input is completed, allowing the user to card remove his fingerprint “ppibig”... -
Page 7: Introduction
Smart-i 사용자 가이드 2. Introduction 2.1. Feataures Quick and convenient authentication function - Simple and quick authentication with only using a card Card authentication method provided - 125khz card and 13.56Mhz card supported per product IP65 Outdoor Rating – Die Cast Casing : The terminal can be installed outdoor. Understated Design - Simple and understated design with minimum interface reflected without LCD - Pursuit of convenience and luxury from simplicity... -
Page 8: Configuration
Smart-i 사용자 가이드 2.2. Configuration ㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050) Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr http://www.unioncomm.co.kr... -
Page 9: Specifications
Smart-i 사용자 가이드 2.3. Specifications Description Item Spec ST Micro 32bit RISC 72MHz 3 LED (Red, White, Blue), Nor Flash Flash Internal 256k Byte Buzzer Sound Possible to control volume 125KHz RF Card Module 13.56MHz Smart (1 Sam Card Socket Support) 125KHz HID Card Authentication Card... -
Page 10: How To Use A Terminal
Smart-i 사용자 가이드 3. How to use a terminal 3.1. Authentication 3.2.1. . Card Authentication Swipe a card on the card input area. 3.2. Dip Switch Setting - It has 4 switches, and they are divided in 485 ID Setting (3pole) and changing 485 <-> Wiegand (1pole) ↓... - Page 11 Smart-i 사용자 가이드 - 485 ID Setting (No.1,2 and 3 Switch) ID Value Function - Wiegand Setting (No.1,2 and 3 Switch) Bits 26bit Function 34bit - Changing 485 <-> Wiegand (No.4 Switch) Mode Wiegand Function RS485 ㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050) Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr http://www.unioncomm.co.kr...
- Page 12 Smart-i 사용자 가이드 * NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. ㈜유니온커뮤니티 / 서울시 송파구 방이동 44-3 현대토픽스 빌딩 3층 (138-050) Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr http://www.unioncomm.co.kr...
