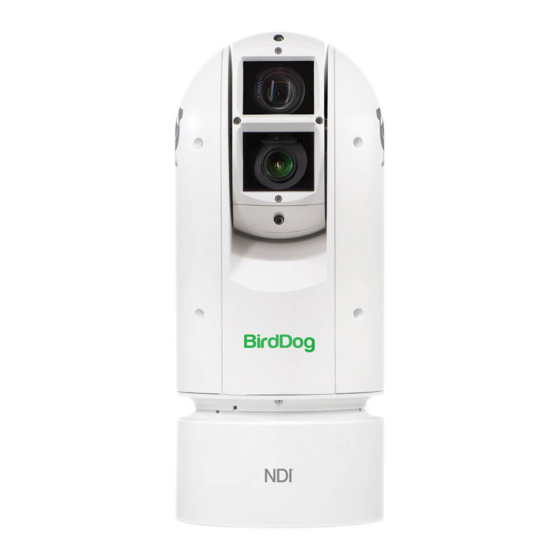

Summary of Contents for birddog BD-A300
- Page 1 EYES A300 FULL NDI . NO COMPROMISES. ® USER MANUAL PART 1...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION..................................3 WHAT’S IN THE BOX....................................5 OVERVIEW......................................5 Features........................................5 Camera Diagrams......................................6 Installing your Camera....................................7 Power Input........................................7 PoE Power Injector.......................................8 Mounting the Camera....................................8 Wall Mount........................................9 Laser Illuminator......................................9 Use SDI video output....................................10 Starting the Camera.....................................10 Setup Camera ID, Baud Rate and Control Protocol..........................10 Controlling the Camera....................................11 Adjusting and Setting with Menus................................11 EXPOSURE Menu......................................12... -
Page 3: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2019 BirdDog Australia all rights reserved. No part of this manual may be copied, reproduced, translated, or distrib- uted in any form or by any means without prior consent in writing from our company. - Page 4 WARNING! Maintenance Precautions: Installation and removal of the unit and its accesso- ries must be carried out by qualified personnel. You • If there is dust on the front glass surface, remove the dust must read all of the Safety Instructions supplied with gently using an oil-free brush or a rubber dust blowing your equipment before installation and operation.
-
Page 5: What's In The Box
CO D and VISCA Protocol Accessories (Optional) • Preset store positions and image parameters (iris, white balance, exposure, picture setting). 1x BD-A300-WM - Wall Mount • 3D positioning, 120dB true WDR • Video Output: SDI+IP, True Dual-Output SDI+IP Simulta- neously 1x BD-A300-CM - Ceiling Mount • Intelligent Adaptive IR Illumination up to 100Meters, IR... -
Page 6: Camera Diagrams
Camera Diagrams IR Laser illuminator Lens Nitrogen Filled Housing Valves NOTE: • Nitrogen filled Valves, for factory use only. Do not open it without consulting your dealer for more infor- mation. • All cables are tagged to indicate their functions sep- arately. -
Page 7: Installing Your Camera
Installing your Camera Power Input The following diagrams are for your reference only. See the BirdDog PTZ camera provides 24VAC power input. actual product to mount your camera. Power Cable Check Camera Components and Installation Conditions. Data listed in the below table is applicable to copper cables Before mounting your camera, check the device model num- that use 24 VAC/24 VDC power supply. -
Page 8: Poe Power Injector
• When mounting the camera, please install the bracket For PoE power, you must use BirdDog 80W Power PoE In- adapter to the bracket first and then mount the camera jector: model BL-PP80. It provides high PoE power up to the to the bracket. -
Page 9: Wall Mount
Wall Mount Laser Illuminator Adaptive IR Laser Illuminator The A300 camera uses adaptive IR laser illuminator to provide up to 1000 ft /1500 ft of long range illumination. IR laser uses diffused illumination that provide the long distance visibility. Precaution & Specs: This product uses Class 3B laser light product. -
Page 10: Use Sdi Video Output
Use SDI video output 1.2 RS422 (VISCA) control connection diagram Starting the Camera • SONY Keyboard RS422 Connection SONY Keyboard RS422 (VISCA) After you have mounted the camera properly, connect the RS422 Connection Multiple Cameras Connection camera to power. (SONY Keyboard) Each time the camera is powered on, it will perform a self- KEYBOARD Keyboard... -
Page 11: Controlling The Camera
Use RS485 Pelco-D can control up to 255 cameras, cam- • After communicating successfully in between the cam- era ID from 001 to 255 has to be set. era and the control, you can modify the ID and baud rate of the camera using the keyboard. -
Page 12: Exposure Menu
EXPOSURE Menu blown out highlights. The EXPOSURE menu is used to set the items related to ex- DEFOG: ON, OFF. If the shooting scene has fog, you can open posure. AE MODE (Exposure Mode) the defog function to improve the penetration of the image. AUTO SLOW SHUTTER: ON, OFF. -
Page 13: Picture Menu
PICTURE Menu JOYSTICK RECOVER: The PICTURE menu is used to set the items related to the NONE: No effect. picture. A/F: After operate the camera, the mode of focus be changed to auto form manual. PICTURE MENU EXPOSURE APERTURE A/I: After operate the camera, the mode of IRIS be WHITE BALANCE EFFECT changed to auto form manual. -
Page 14: System Setup Menu
SYSTEM SETUP Menu the camera and keyboard and IP control will be unable to communicate. The SYSTEM SETUP menu is used to set the items related to the camera system. FLIP: Select ON to flip the image if you need to lift the camera. VIDEO FORMAT: SDI + IP True Dual Output: You can have SYSTEM SETUP MENU parallel SDI and IP video output. -
Page 15: Function Setting Menu
FUNCTION SETTING Menu Adjust the camera to the position that you want the cam- era to be, and then call the preset 1 using the keyboard The FUNCTION SETTING menu is used to set the items relat- to save the position to be the current preset. ed to the camera functionalities. - Page 16 EDIT SEQUENCE: Set up the above tour. 2. Move the camera to the left limit position that you want, and then call the preset 1 to save. 1. In the order of 1, 2, 3, ... , 6, add each of preset and default dwell time to the tour.
-
Page 17: Dimensions
Dimensions Unit: mm Ø 183 118.8 4-5/16-18 UNC*20 118.8... - Page 20 WELCOME TO THE FUTURE. bird-dog.tv hello@bi rd-dog.tv...
