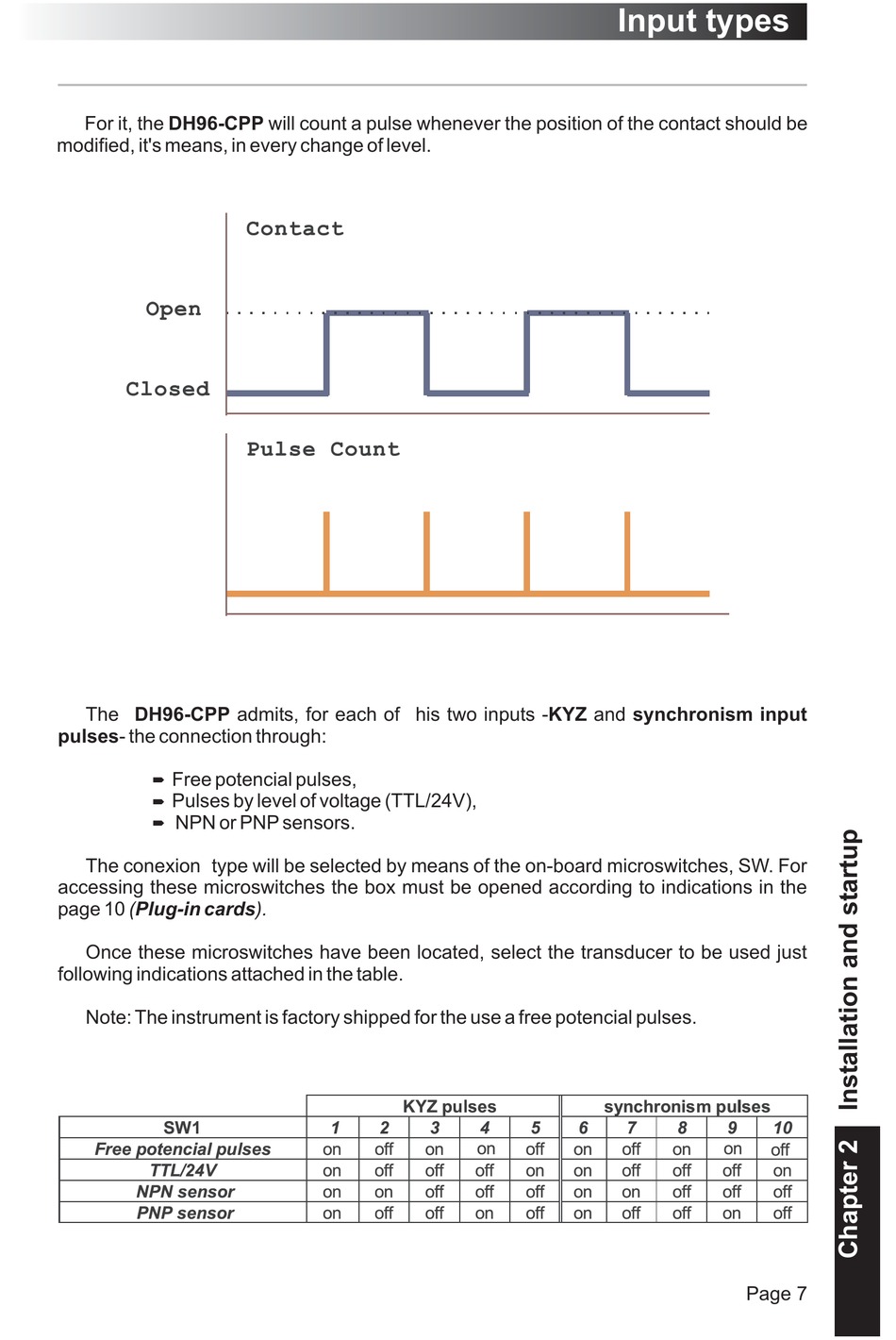

For it, the DH96-CPP
modified, it's means, in every change of level.
The DH96-CPP
pulses - the connection through:
;
Free potencial pulses,
;
Pulses by level of voltage (TTL/24V),
;
NPN or PNP sensors.
The conexion type will be selected by means of the on-board microswitches, SW. For
accessing these microswitches the box must be opened according to indications in the
(
page 10 Plug-in cards
Once these microswitches have been located, select the transducer to be used just
following indications attached in the table.
Note: The instrument is factory shipped for the use a free potencial pulses.
will count a pulse whenever the position of the contact should be
admits, for each of his two inputs -
).
Input types
KYZ and synchronism input
