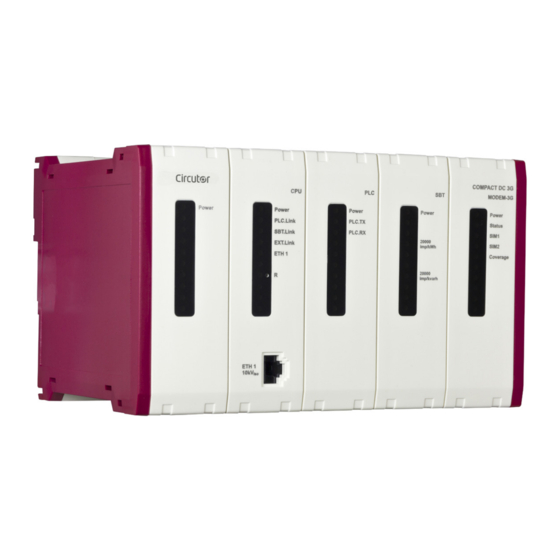

PLC PRIME Concentrator
COMPACT DC
INSTRUCTION MANUAL
(M086B01-03-22A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compact DC-S SBT and is the answer not in the manual?

Questions and answers

Summary of Contents for Circutor Compact DC-S SBT

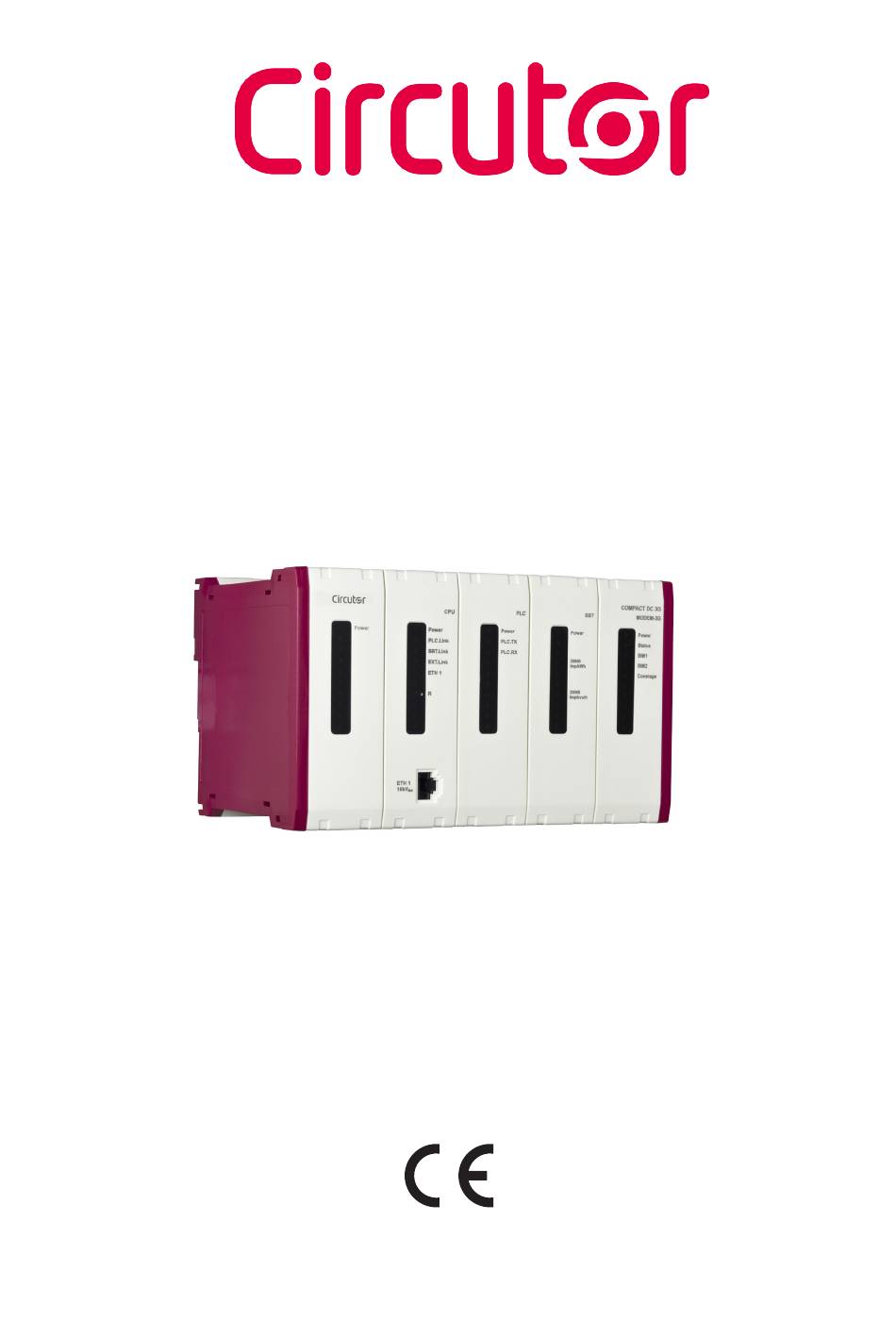

  • Page 1 PLC PRIME Concentrator COMPACT DC INSTRUCTION MANUAL (M086B01-03-22A)
  • Page 2 COMPACT DC Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals.
  • Page 4: Table Of Contents

    COMPACT DC CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �����������������������������������������������������������������������������������������������������������������������������������������������������������������������6 SYMBOLS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 1�- VERIFICATION UPON RECEPTION ������������������������������������������������������������������������������������������������������������������������������������7 2�- INTRODUCTION ���������������������������������������������������������������������������������������������������������������������������������������������������������������7 3�- DEVICE INSTALLATION ����������������������������������������������������������������������������������������������������������������������������������������������������9 3�1�- PRELIMINARY RECOMMENDATIONS ������������������������������������������������������������������������������������������������������������������������9 3�2�- INSTALLATION �������������������������������������������������������������������������������������������������������������������������������������������������������10 3�3�- DEVICE TERMINALS �����������������������������������������������������������������������������������������������������������������������������������������������10 3�3�1�- COMPACT DC SBT, DC-S SBT, DC 3G and DC-S 3G MODELS ���������������������������������������������������������������������������10 3�3�2�- COMPACT DC 4I and DC-S 4I MODELS ������������������������������������������������������������������������������������������������������������11 3�3�3�- COMPACT DC 2 MODEL �����������������������������������������������������������������������������������������������������������������������������������...
  • Page 5 COMPACT DC 5�14�8� FTP CONFIGURATION ������������������������������������������������������������������������������������������������������������������������������������57 5�14�9� FRAMES LOG CONFIGURATION �������������������������������������������������������������������������������������������������������������������� 58 5�14�10� PRIME REMOTE TOOLS ������������������������������������������������������������������������������������������������������������������������������� 58 5�14�11� METER COMMUNICATIONS CONFIGURATION ����������������������������������������������������������������������������������������������59 5�14�12� OTHER PARAMETERS ���������������������������������������������������������������������������������������������������������������������������������� 60 5�14�13� SEND PARAMETERS FILE (B07, G17, C04 OR CERTIFICATE) ������������������������������������������������������������������������ 61 5�14�14� TIME CONFIGURATION �������������������������������������������������������������������������������������������������������������������������������� 61 5�15�- CONCENTRATOR MENU: TASKS ����������������������������������������������������������������������������������������������������������������������������...
  • Page 6: Revision Log

    COMPACT DC REVISION LOG Table 1: Revision log� Date Revision Description 12/15 M086B01-03-15B Initial Version Changes in the following sections: 08/17 M086B01-03-17A 1. - 2. - 3.3.1. - 3.3.2. - 3.4.1. - 3.6. - 4.1.1. - 4.1.2. - 4.1.3. - 4.3. - 5.2.2.2.- 5.2.2.3.
  • Page 7: 1�- Verification Upon Reception

    Check that it has been delivered with the following: - An installation guide, - COMPACT DC SBT, COMPACT DC-S SBT, COMPACT DC 3G and COMPACT DC-S 3G models, 3 connection terminals. - COMPACT DC 4I and COMPACT DC-S 4I models, 4 connection terminals.
  • Page 8 The device features: - Indirect three-phase energy meter with low voltage monitoring functions, LV Monitor. (COMPACT DC SBT, COMPACT DC 3G, COMPACT DC 4I, COMPACT DC 2, COMPACT DC-S SBT, COMPACT DC-S 3G, COMPACT DC-S 4I and COMPACT DC 2 3G models).
  • Page 9: 3�- Device Installation

    COMPACT DC 3.- DEVICE INSTALLATION 3�1�- PRELIMINARY RECOMMENDATIONS In order to use the device safely, it is critical that individuals who handle it follow the safety measures set out in the standards of the country where it is being used, use the personal protective equipment necessary, and pay attention to the various warnings indicated in this instruction manual.
  • Page 10: 3�2�- Installation

    COMPACT DC 3�2�- INSTALLATION The COMPACT DC is designed to be assembled on a DIN rail, with standard fixing points to attach it to the rail. Terminals, opening roofs or removing elements can expose parts that are hazardous to the touch while the device is powered. Do not use the device until it is fully installed. To connect the device, always start by connecting the neutral before the phases and to disconnect it, firstly remove the phases and then the neutral.
  • Page 11: 3�3�2�- Compact Dc 4I And Dc-S 4I Models

    COMPACT DC 3�3�2�- COMPACT DC 4I and DC-S 4I MODELS Table 4:List of COMPACT DC 4I and DC-S 4I terminals� COMPACT DC 4I and DC-S 4I terminals 1: L, Auxiliary power supply 12: SS, S2 current output L2 2: N, Auxiliary power supply 13: T, S1 current input L3 3: L1, PLC connection 14: Vt, Voltage input L3...
  • Page 12: 3�3�3�- Compact Dc 2 Model

    COMPACT DC 3�3�3�- COMPACT DC 2 MODEL Table 5:List of COMPACT DC 2 terminals� COMPACT DC 2 terminals 1: L, Auxiliary power supply 19: TT, SBT: S2 current output L3 2: N, Auxiliary power supply 20: N, SBT: Voltage input neutral 3: L1, PLC : PLC connection 21: R, SBT-S: S1 current input L1 4: L2, PLC : PLC connection...
  • Page 13: 3�3�4�- Compact Dc 2 3G Models

    COMPACT DC 3�3�4�- COMPACT DC 2 3G MODELS Table 6:List of COMPACT DC 2 3G terminals� COMPACT DC 2 3G terminals 1: L, Auxiliary power supply 16: SS, SBT: S2 current output L2 2: N, Auxiliary power supply 17: T, SBT: S1 current input L3 3: L1, PLC : PLC connection 18: Vt, SBT: Voltage input L3 4: L2, PLC : PLC connection...
  • Page 14: 3�3�5�- Compact Dc-S Basic Model

    COMPACT DC 3�3�5�- COMPACT DC-S BASIC MODEL Table 7:List of COMPACT DC-S BASIC terminals� COMPACT DC-S BASIC terminals 1: L, Auxiliary power supply 4: L2, PLC connection 2: N, Auxiliary power supply 5: L3, PLC connection 3: L1, PLC connection 6: N, PLC connection Figure 5:COMPACT DC-S BASIC terminals�...
  • Page 15: 3�4�- Connection Diagrams

    COMPACT DC 3�4�- CONNECTION DIAGRAMS 3�4�1�- COMPACT DC SBT, DC-S SBT, DC 3G, DC-S 3G, DC 4I AND DC-S 4I MODELS ALIMENTACIÓN AUXILIAR POWER SUPPLY Vr Vs S RR CARGA / LOAD Figure 7: Three-phase measuring with a 4-wire connection (COMPACT DC SBT, DC-S SBT, DC 3G, DC-S 3G, DC 4I and DC-S 4I)� Instruction Manual...
  • Page 16: 3�4�2�- Compact Dc 2 And Dc 2 3G Models

    COMPACT DC CARGA / LOAD 3�4�2�- COMPACT DC 2 AND DC 2 3G MODELS ALIMENTACIÓN AUXILIAR POWER SUPPLY Vs Vt CARGA / LOAD Figure 8: Power supply, SBT and PLC connections (COMPACT DC 2 and DC 2 3G)� CARGA / LOAD Figure 9: SBT-S and PLC-S connections (COMPACT DC 2 and DC 2 3G)�...
  • Page 17: 3�4�3�- Compact Dc-S Basic And Dc-S Mini Models

    COMPACT DC 3�4�3�- COMPACT DC-S BASIC AND DC-S MINI MODELS ALIMENTACIÓN AUXILIAR POWER SUPPLY CARGA / LOAD Figure 10: Three-phase measuring with a 4-wire connection (COMPACT DC-S BASIC and DC-S MINI)� 3�5�- ETHERNET PORT CONNECTION The COMPACT DC concentrator has one Ethernet port. This type of communication creates an intranet with IP communications.
  • Page 18: 3�6�- Sim Card Installation (Compact Dc 3G, Dc-S 3G, Dc 2 3G And Dc-S Basic Models)

    COMPACT DC 3�6�- SIM CARD INSTALLATION (COMPACT DC 3G, DC-S 3G, DC 2 3G and DC-S BASIC Models) The COMPACT DC 3G, DC-S 3G, DC 2 3G and DC-S BASIC models has 3G so the device can be connect- ed to and exchange data with other mobile devices without the need for a Wi-Fi connection. The only requirement is 2 SIM cards.
  • Page 19: 4�- Operation

    COMPACT DC 4.- OPERATION 4�1�- LED INDICATORS The LED indicators that provide information on the concentrator status are located on the front panel. 4�1�1�- COMPACT DC SBT AND DC-S SBT MODELS COMPACT DC SBT Power Power Power Power PLC.Link PLC.TX SBT.Link PLC.RX 20.000...
  • Page 20: 4�1�2�- Compact Dc 3G And Dc-S 3G Models

    COMPACT DC 4�1�2�- COMPACT DC 3G AND DC-S 3G MODELS COMPACT DC 3G MODEM-3G Power Power Power Power Power PLC.Link PLC.TX Status SBT.Link PLC.RX SIM1 20.000 imp/kWh EXT.Link SIM2 ETH 1 Coverage 20.000 imp/kvarh ETH 1 10kV Figure 15:COMPACT DC 3G and DC-S 3G indicator LEDs Table 10: Description of the LEDs, COMPACT DC 3G and DC-S 3G�...
  • Page 21: 4�1�3�- Compact Dc 4I And Dc-S 4I Models

    COMPACT DC Table 10 (Continued): Description of the LEDs, COMPACT DC 3G and DC-S 3G� Description SIM card detected in bay 2 Power on SIM 2 Inserted and operating correctly Power off SIM card not detected or not working Coverage level of the 3G modem: Off: 0 or 99 Coverage Red: 1 to 7...
  • Page 22: 4�1�4�- Compact Dc 2 Model

    COMPACT DC Table 11 (Continued): Description of the LEDs, COMPACT DC 4I and DC-S 4I� Description 20000 imp/kWh Active energy pulses 20000 imp/kVArh Reactive energy pulses Digital input 1 Digital input 2 Digital input 3 Digital input 4 4�1�4�- COMPACT DC 2 MODEL COMPACT DC 2 PLC-S SBT-S...
  • Page 23: 4�1�5�- Compact Dc 2 3G Model

    COMPACT DC 4�1�5�- COMPACT DC 2 3G MODEL COMPACT DC 2 3G PLC-S SBT-S MODEM-3G Power Power Power Power Power Power Power PLC.Link PLC.TX PLC.TX Status SBT.Link PLC.RX PLC.RX SIM1 20000 EXT.Link 20000 SIM2 imp/kWh imp/kWh ETH 1 Coverage 20000 20000 imp/kvarh imp/kvarh...
  • Page 24: 4�1�6�- Compact Dc-S Mini Model

    COMPACT DC Tabla 13 (Continued): Description of the LEDs, COMPACT DC 2 3G� Description Coverage level of the 3G modem: Off: 0 or 99 Coverage Red: 1 to 7 Orange: 8 to 15 Green: 16 or more 4�1�6�- COMPACT DC-S MINI MODEL COMPACT DC-S MINI Power Power...
  • Page 25: 4�1�7�- Compact Dc-S Basic Model

    COMPACT DC 4�1�7�- COMPACT DC-S BASIC MODEL COMPACT DC-S BASIC MODEM 3G Power Power Power Power Status PLC.Link PLC.TX SIM1 PLC.RX SBT.Link SIM2 EXT.Link Coverage ETH 1 ETH 1 10kV Figure 20: COMPACT DC-S BASIC indicator LEDs� Table 15: Description of the LEDs, COMPACT DC-S BASIC� Description Power Power supply to each of the modules: CPU, PLC and MÓDEM 3G.
  • Page 26: 4�2�- Reset

    COMPACT DC Tabla 15 (Continued): Description of the LEDs, COMPACT DC-S BASIC� Description SIM card detected in bay 2 Power on SIM 2 Inserted and operating correctly Power off SIM card not detected or not working Coverage level of the 3G modem: Off: 0 or 99 Coverage Red: 1 to 7...
  • Page 27: 5�- Web Page

    COMPACT DC 5.- WEB PAGE COMPACT DC has a configuration web site where users can configure all the concentrator's parameters. 5�1�- HOME SCREEN The COMPACT DC concentrator is accessed through an Ethernet connection. The default IP address of the device is: 192�168�42�30� It can also be accessed from a local IP on the Ethernet port: 100�0�0�1�...
  • Page 28: 5�2�- Main Screen

    COMPACT DC 5�2�- MAIN SCREEN shows the web server's main screen where you can access full information about the con- Figure 23 centrator and the energy meters. Figure 23:Main screen� The screen is divided into three areas of information, as shown in Figure 24 ...
  • Page 29: 5�2�1� Area With Information About The Compact Dc

    COMPACT DC Area of information about the COMPACT DC Menu Central area Figure 24: Areas on the main screen� 5�2�1� AREA WITH INFORMATION ABOUT THE COMPACT DC. Figure 25:Information about the COMPACT DC This area of the main screen shows all the information about the COMPACT DC: Identifier: The device identifier, followed by the installation identifier.
  • Page 30: 5�2�2� Menu

    COMPACT DC 5�2�2� MENU� This menu provides access to the energy meters and COMPACT DC screens. 5�2�2�1� Menu: Meters� Figure 26:Meter selection menu� This menu provides access to the following screens: Meter table: Table of energy meters that are logged in the concentrator. Node map: Node map with the devices that are connected at that moment.
  • Page 31 COMPACT DC Task status: Provides access to the concentrator's task status screen. 5�2�2�3� Menu: Modem� Note: Only visible for the COMPACT DC 3G, DC-S 3G, DC 2 3G and DC-S BASIC model. Figure 28:Modem selection menu� This menu provides access to the following screens: Reports: Provides access to the events log of the 3G modem.
  • Page 32: 5�3�- Meters Menu: Meter Table

    COMPACT DC 5�3�- METERS MENU: METER TABLE Figure 31:Meter table� This screen shows a table with all the energy meters logged in the COMPACT DC� As seen in , the table includes the following fields: Figure 31  #: This column correlatively lists the devices logged in the concentrator. It is also used to display or modify the current group of energy meters.
  • Page 33: 5�3�1� Meter Information Menu

    COMPACT DC Table 19: Meter table buttons� Button Function Refresh Updates the current content of the table of devices. Download the current table of devices that you are viewing on the web Download table site. Changes the current group of energy meters using the energy meters Set group selected in column # as the new group Removes all inactive devices (Status:...
  • Page 34 COMPACT DC Figure 32:Energy meter menu� Details: Provides access to instantaneous information on the selected energy meter. Basic instant data values (S01): Provides access to downloading the basic instant data values (The downloading function is identical to the one found in section “5.3.1.2.
  • Page 35 COMPACT DC fault. Power quality (S08): Provides access to downloading the power quality file. Events (S09): Provides access to downloading the energy meter events in a selected time period. Events handling (S9B): Provides access to to the event management screen. Advanced instant data values (S21): Provides access to to the display screen of the instantaneous advanced data values.
  • Page 36 COMPACT DC Advanced instant data values (S21): Downloads the advanced and instantaneous monitoring values. Write supervision parameters (C01): Allows you to change the monitoring parameters. (The downloading function is identical to the one found in section “5.3.1.9. Write contracts (B04)” 5�3�1�1�...
  • Page 37 COMPACT DC This section displays: General parameters:  Cnt: Energy meter identifier.  Vf: DLMS version of the energy meter.  VPrime: PRIME version of the energy meter. Voltage:  L1v: Voltage in phase 1 (V).  L2v: Voltage in phase 2 (V). ...
  • Page 38 COMPACT DC 5�3�1�2� Hourly incremental (S02) Download the hourly energy curve of an energy meter. Figure 34:Hourly incremental screen� SourceData: Select the source of the report data: Only meter, Only data base or Both. TfStart: Start date for the hourly curve download. TfEnd: End date for the hourly curve download.
  • Page 39 COMPACT DC Figure 36:Energy meter parameters screen� 5�3�1�7� Voltage fault (S07), Power quality (S08), Read of contracts (S23), Configurable instant data values (S26), Current billing values (S27) To read voltage faults (S07), power quality (s08), read of contracts (s23), configurable instant data values (s26) and current billing values (s27).
  • Page 40 COMPACT DC EvGroup: Section used to select the type of event to search: All: All the events logged by the energy meter.  Standard: Contains all the events that are not logged in special events, for example: firmware upgrade, final closure of periods, daylight saving time changes, changes in device configuration, deletion of profiles, errors, alarms, etc.
  • Page 41 COMPACT DC Figure 39:Invalid file� If the file is correct and the energy meter's contracts have been changed, a message will appear in green, as shown in Figure 40 Figure 40:Correct contract update� Below is an example of a B04 file that contains the seasonal configuration of a double tariff for less than 15 kW (2.0 DHA): <Order IdReq=”B04”...
  • Page 42 COMPACT DC 5�3�1�11� Information stored in the database: This screen, , displays the energy meter information stored in the concentrator's database. Figure 43 Figure 43: Database information screen� 5�3�1�12� Passwords used by the concentrator� This screen, , is used to change the passwords used by the concentrator to access the energy Figure 44 meter.
  • Page 43: 5�4�- Meters Menu: Node Map

    COMPACT DC 5�4�- METERS MENU: NODE MAP This screen, , displays the network topology; that is, the communication levels of each device. Figure 45 Figure 45:node map screen� The COMPACT DC identifier is shown first. The devices that are connected downstream appear at a lower level, and so on. Example: In shows how the concentrator with identifier CIR0000000057 functions as a base Figure 45...
  • Page 44: 5�5�- Meters Menu: Meter Update

    COMPACT DC 5�5�- METERS MENU: METER UPDATE From this screen, , you can update the firmware for both the energy meters' DLMS part and Figure 46 their PRIME part. At the bottom is the status of the last upgrade performed. Figure 46:Update the energy meters�...
  • Page 45: 5�6�- Meters Menu: Cycles Test

    COMPACT DC File: In this section you must select the file with the binary for the firmware to be updated. The name of the file containing the binary must have a specific structure, because the COMPACT DC 3G automatically determines whether the DLMS part or the PRIME part should be updated. The structure must be as follows: [flagID]_[UNESA_code]_[FW_DLMS or PRIME]_[FW version_no]�bin Example: CIR_DI_DLMS_v0209.bin or CIR_DI_PRIME_v2201.bin...
  • Page 46: 5�7�- Meters Menu: Topology Log

    COMPACT DC Cycle parameters: PrefixCycles: Prefix of the file name. IpFtpCycles: IP address of the server for downloading the test cycle. DestDirCycles: Path of the server for downloading the test cycle. UserFtpCycles: Username of the server for downloading the test cycle. PwdFtpCycles: Password of the server for downloading the test cycle.
  • Page 47: 5�8�- Meters Menu: Intruder List

    COMPACT DC On this screen you can configure the following parameters: TopologyLog: Topology log enabled or disabled. NameTopology: Name of the file. IpFtpTopology: IP address of the server for downloading the topology log. DestDirTopology: Path of the server for downloading the topology log. UserFtpTopology: Username of the server for downloading the topology log.
  • Page 48: 5�9�- Meters Menu: Manage Group

    COMPACT DC 5�9�- METERS MENU: MANAGE GROUP From this screen, , you can see if a group has been created and, if so, set up different tasks Figure 54 to perform on it. Figure 54:Manage group� Current group: Shows the current group that has been created. It also allows you to download this group by clicking the Download button.
  • Page 49: 5�10�- Meters Menu: Passwords

    COMPACT DC 5�10�- METERS MENU: PASSWORDS , you can batch configure the passwords used by the COMPACT DC to access From this screen, Figure 55 the energy meters. Figure 55:Passwords� The password file format (Q01) is as follows: <Report IdRpt=”Q01” IdPet=”0” Version=”3�1�c”> <Cnc Id=”XXX0000000000”>...
  • Page 50: 5�11�- Concentrator Menu: Reports

    COMPACT DC 5�11�- CONCENTRATOR MENU: REPORTS The following reports can be downloaded on the Reports screen, as shown in Figure 57 Figure 57:Reports� Intruder equipment in PLC (S10): List of energy meters not accepted by the concentrator. Base node PLC information (S11): Report containing information about the PLC base node. Concentrator parameters (S12): Report with static and dynamic information about the concen- trator.
  • Page 51: 5�12�- Concentrator Menu: Statistics

    COMPACT DC 5�12�- CONCENTRATOR MENU: STATISTICS , shows the status of the different COMPACT DC resources, memory, CPU, The Statistics screen, Figure 58 concentrator traffic, etc.: Figure 58:Statistics� Resources: CPU: CPU load during the last 5 minutes. Its value is normally less than 25% although it can ex- perience momentary peaks.
  • Page 52: 5�13�- Concentrator Menu: Inputs (Compact Dc 4I, Dc-S 4I And Dc 2 Models)

    COMPACT DC EthTx: Average value of the number of bytes per second sent over the Ethernet network in the last 5 minutes. Plc: Indicates the usage percentage of the PLC communications for receiving/sending data. SerRx: Average value of the number of bytes per second received over the serial port in the last 5 minutes.
  • Page 53: 5�14�2� Communications Configuration

    COMPACT DC Figure 60:General parameters� 5�14�2� COMMUNICATIONS CONFIGURATION Figure 61: Communications configuration� In this section you can configure the following communications setup parameters: DcPwdAdm: Web site access password for a user with write access. DcPwdRead: Web site access password for a user with read access. IpCom: IP address.
  • Page 54: 5�14�3� Secondary Configuration

    COMPACT DC PrimaryDns: primary DNS IP. SecondaryDns: secondary DNS IP. IpLoc: IP address for local communications. IpMaskLoc: Subnet mask for local communications. PortWS: Receiver port for communications from the STG. PortSSH: Receiver port for communications from the SSH. HttpPort: Option to enable or disable the web server using HTTP. If the HTTP port is deactivated, the web site may only be accessed through HTTPS.
  • Page 55: 5�14�5� Ntp Configuration

    COMPACT DC In this section you can configure the following setup parameters for the STG: IpStg: IP address of the STG. IpStg2: IP address of the STG 2. IpStg3: IP address of the STG 3. StgPath: STG path. StgPwd: STG password. StgTimeout: Maximum STG wait time.
  • Page 56: 5�14�7� Snmp Configuration

    The concentrator's SNMP agent can read OIDs defined in the MIB-2 (RFC 1213) and in the HOST_RE- SOURCES_MIB (RFC 2790). The status of the PLC network can also be read through Circutor's MIBs. It is also possible to configure where the concentrator traps will be sent; they can be generic traps or concentrator events.
  • Page 57: 5�14�8� Ftp Configuration

    COMPACT DC 5�14�8� FTP CONFIGURATION Figure 67:FTP configuration� In this section you can configure the following setup parameters for the FTP: IpFtp: IP address of the server where the reports will be sent. FtpUserReport: Username for the server to which the reports will be sent. FtpPwdReport: Password for the server to which the reports will be sent.
  • Page 58: 5�14�9� Frames Log Configuration

    COMPACT DC 5�14�9� FRAMES LOG CONFIGURATION Figure 68:Frames log configuration� In this section you can configure the following frame log setup parameters so the concentrator can capture PRIME frames: FrameLogMode: Frame log mode. NameFrames: Name of the file. IpFtpFrames: IP address of the frame log server. DestDirFrames: Path of the frame log server.
  • Page 59: 5�14�11� Meter Communications Configuration

    COMPACT DC 5�14�11� METER COMMUNICATIONS CONFIGURATION Figure 70:Meter communications configuration� On this screen, , you can configure all of the parameters required to adjust the communica- Figure 70 tions with the energy meters: Priority: You can select to enable or disable the priorities assigned to the tasks in the case of a collision..
  • Page 60: 5�14�12� Other Parameters

    COMPACT DC TimeDelayRestart: Waiting time to continue the tasks, in seconds. RetryDisconMeterOrder: Number of retries at communication in orders. TimeRetryIntervalOrder: Time between retries at communications in orders, in seconds. CLec: Default password for energy meter read-only access. CGec: Default password for energy meter management (write) access. CAct: Default password for energy meter update (firmware) access.
  • Page 61: 5�14�13� Send Parameters File (B07, G17, C04 Or Certificate)

    COMPACT DC 5�14�13� SEND PARAMETERS FILE (B07, G17, C04 OR CERTIFICATE) Figure 72:Send parameters file (B07, G17 or C04)� All of the concentrator's parameters can also be modified by sending the parameters file B07 or Q03. The file is in “.xml” format. 5�14�14�...
  • Page 62: 5�16�- Concentrator Menu: Task Status

    COMPACT DC The upper section of the Tasks screen shows a list of all the COMPACT DC tasks. The Task settings table appears when you click on one of the tasks, with the configuration of the selected task. The pa- rameters for this table are: Identifier: Task identification number.
  • Page 63: 5�17�- Modem Menu: Reports (Compact Dc 3G, Dc-S 3G, Dc 2 3G And Dc-S Basic Models)

    COMPACT DC 5�17�- MODEM MENU: REPORTS (COMPACT DC 3G, DC-S 3G, DC 2 3G and DC-S BASIC Models) In the Modem menu you can configure the COMPACT DC, DC-S 3G, DC 2 3G and DC-S BASIC concen- trator’s built-in 3G modem. Figure 76:Reports screen�...
  • Page 64: 5�18�- Modem Menu: Parameters (Compact Dc 3G, Dc-S 3G, Dc 2 3G And Dc-S Basic Models)

    COMPACT DC 5�18�- MODEM MENU: PARAMETERS (COMPACT DC 3G, DC-S 3G, DC 2 3G and DC-S BASIC Models) You can configure the 3G modem on this screen. 5�18�1� GENERAL PARAMETERS Figure 78:General parameters� In this section you can configure the following parameter: primarySim: the primary SIM is selected.
  • Page 65: 5�18�3� Sim 2 Configuration

    COMPACT DC pin1: PIN, personal identification number. apn1: APN, access point name. user1: Username. password1: Password. authentication1: the modem allows 3 authentication modes: Automatic, PAP and CHAP. 5�18�3� SIM 2 CONFIGURATION Figure 80:SIM2 configuration� In this section you can configure the following network connection parameters: pin2: PIN, personal identification number.
  • Page 66: 5�18�5� Security Configuration

    COMPACT DC 5�18�5� SECURITY CONFIGURATION Figure 82:Security configuration� In this section you can configure the following parameters for security and protection against external attacks: externalICMP: the modem allows 3 modes of ICPM configuration: Accept, accept external ICPM. Block, block external ICPM. Allow, allow external pings to the modem.
  • Page 67: 5�19�- Modem Menu: Status (Compact Dc 3G, Dc-S 3G, Dc 2 3G And Dc-S Basic Models)

    COMPACT DC 5�19�- MODEM MENU: STATUS (COMPACT DC 3G, DC-S 3G, DC 2 3G and DC-S BASIC Models) Figure 84:Modem status� This screen shows the modem status in terms of network connection, SIM status and traffic sent and received. 5�20�- MODEM MENU: FACTORY RESET (COMPACT DC 3G, DC-S 3G, DC 2 3G and DC-S BASIC Models) This screen, , is used to reset the modem parameters.
  • Page 68: 5�22�- General Menu: Network Tools

    COMPACT DC Kind: Type of connection to filter. The possible options are: Input or Output Protocol: Type of input or output protocol to filter. The possible options are: ALL, TCP or UDP. Address: IP address to filter. Port: Name of input or output port to filter. Action: Action to take: Accept: Accept the IP address and port.
  • Page 69: 5�24�- General Menu: Reboot

    COMPACT DC 5�24�- GENERAL MENU: REBOOT This screen, , allows you to restart the COMPACT DC through the web site. Figure 89 Figure 89:Reboot� Do not disconnect the device from the auxiliary power supply while it is restarting. Instruction Manual...
  • Page 70: 6�- Technical Features

    Frequency 50/60Hz COMPACT DC 3G COMPACT DC SBT COMPACT DC 4I COMPACT DC-S 3G COMPACT DC-S 4I COMPACT DC-S SBT COMPACT DC-S BASIC Consumption 10 ... 26 VA 12.2 ... 30 VA 15 ... 28.5 VA COMPACT DC 2 COMPACT DC-S MINI COMPACT DC 2 3G 11 ...
  • Page 71 Indicator LEDs COMPACT DC 3G COMPACT DC SBT COMPACT DC-S 3G COMPACT DC 2 Indicator COMPACT DC-S SBT COMPACT DC 4I COMPACT DC 2 3G LEDs COMPACT DC-S 4I 2 impulse LED for Active Energy: Impulse 1 impulse LED for Active Energy: 20000 imp/kWh...
  • Page 72 COMPACT DC Figure 90: Dimensions of the COMPACT DC SBT, DC-S SBT and DC-S BASIC� Figure 91: Dimensions of the COMPAC DC 3G, DC-S 3G, DC 4I and DC-S 4I� Instruction Manual...
  • Page 73 COMPACT DC Figure 92: Dimensions of the COMPACT DC 2 and DC 2 3G� Figure 93: Dimensions of the COMPACT DC-S MINI� Standards Electromagnetic compatibility (CEM)� Part 4-2: Testing and measurement tech- UNE-EN 61000-4-2:2010 niques� Electrostatic discharge immdevicey test� Electromagnetic compatibility (CEM)� Part 4-3: Testing and measurement tech- niques�...
  • Page 74: 7�- Maintenance And Technical Service

    COMPACT DC 7.- MAINTENANCE AND TECHNICAL SERVICE The device does not need any maintenance. In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 ( España) / +34 937 452 919 (outside of Spain)
  • Page 75: 9�- Ce Certificate

    COMPACT DC 9.- CE CERTIFICATE Instruction Manual...
  • Page 76 COMPACT DC Instruction Manual...
  • Page 77 COMPACT DC Instruction Manual...
  • Page 78 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 -Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
