  • Page 1 DC Ammeter DHC-96 mAdc, DHC-96 Adc INSTRUCTION MANUAL (M227B01-03-22A)
  • Page 2 DHC-96 mAdc, DHC-96 Adc Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR S�A�U� reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR S�A�U� on its web site, supplies its customers with the latest versions of the device specifi- cations and the most updated manuals.
  • Page 4: Table Of Contents

    DHC-96 mAdc, DHC-96 Adc CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �����������������������������������������������������������������������������������������������������������������������������������������������������������������������6 SYMBOLS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������6 1�- VERIFICATION UPON RECEPTION ������������������������������������������������������������������������������������������������������������������������������������ 7 2�- PRODUCT DESCRIPTION ������������������������������������������������������������������������������������������������������������������������������������������������� 7 3�- DEVICE INSTALLATION ����������������������������������������������������������������������������������������������������������������������������������������������������9 3�1�- PRIOR RECOMMENDATIONS ������������������������������������������������������������������������������������������������������������������������������������9 3�2�- INSTALLATION ������������������������������������������������������������������������������������������������������������������������������������������������������� 10 3�3�- DEVICE TERMINALS ������������������������������������������������������������������������������������������������������������������������������������������������11...
  • Page 5 DHC-96 mAdc, DHC-96 Adc 6�3�4�- REMOTE CONTROL OUTPUT (Relay output) ������������������������������������������������������������������������������������������������� 37 6�3�5�- DEVICE CONFIGURATION VARIABLES �����������������������������������������������������������������������������������������������������������38 7�- TECHNICAL FEATURES �������������������������������������������������������������������������������������������������������������������������������������������������40 8�- MAINTENANCE AND TECHNICAL SERVICE ������������������������������������������������������������������������������������������������������������������ 43 9�- GUARANTEE ����������������������������������������������������������������������������������������������������������������������������������������������������������������� 43 10�- CE CERTIFICATE ���������������������������������������������������������������������������������������������������������������������������������������������������������� 44 ANNEX A�- CONFIGURATION MENU ����������������������������������������������������������������������������������������������������������������������������������� 47...
  • Page 6: Revision Log

    DHC-96 mAdc, DHC-96 Adc REVISION LOG Table 1: Revision log� Date Revision Description 11/18 M227B01-03-18A Initial Version Change in the following sections: 01/19 M227B01-03-19A 6.1. - 7. - 10. Change in the following sections: 02/20 M227B01-03-20A 2. - 5.1. - 5.3.2. - 5.3.3. - 5.4.5. - 5.4.6. - 6.1.- 6.3.1. - 6.3.2. - 6.3.3. - 6.3.4.
  • Page 7: 1�- Verification Upon Reception

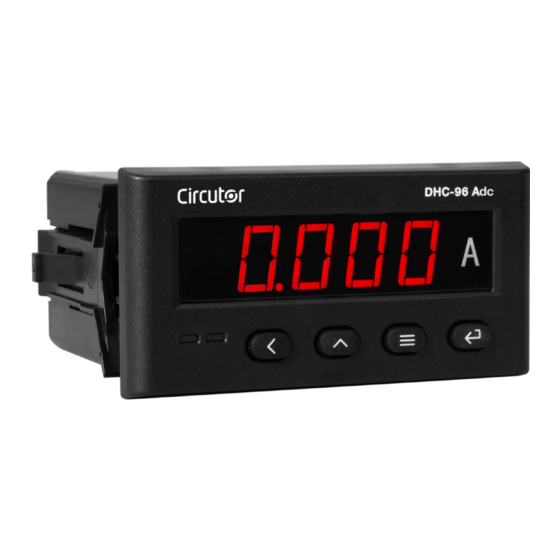

    CIRCUTOR's after-sales service. 2.- PRODUCT DESCRIPTION The DHC-96 Adc gamma is designed to measure and display the DC current. CIRCUTOR has 2 models, for different current ranges: DHC-96 mAdc with 3 programmable current scales: ±20 mA, 0...20 mA and 4...20 mA.
  • Page 8 DHC-96 mAdc, DHC-96 Adc List of models: DHC-96 mAdc Table 3:DHC-96 mAdc list of models� Power Supply Model 80 ��� 270 V ~ 80 ��� 270 V 18 �� 36 V M22368   M223680030000  DHC-96 Adc Table 4:DHC-96 Adc list of models�...
  • Page 9: 3�- Device Installation

    DHC-96 mAdc, DHC-96 Adc 3.- DEVICE INSTALLATION 3�1�- PRIOR RECOMMENDATIONS In order to use the device safely, it is critical that individuals who handle it follow the safety measures set out in the standards of the country where it is being used, use the necessary personal protective equipment, and pay attention to the various warnings indicated in this instruction manual.
  • Page 10: 3�2�- Installation

    DHC-96 mAdc, DHC-96 Adc 3�2�- INSTALLATION Terminals, opening covers or removing elements can expose parts that are hazard- ous to the touch while the device is powered. Do not use the device until it is fully installed. The device should be installed inside an electric panel or enclosure, and panel-mounted.
  • Page 11: 3�3�- Device Terminals

    DHC-96 mAdc, DHC-96 Adc 3�3�- DEVICE TERMINALS Table 5:List of terminals of the DHC-96 Adc� Device terminals 1 : L, Auxiliary power supply. 31: Alarm output 2, relay (Common) 2: N, Auxiliary power supply. 32: Alarm output 2, relay (NO)
  • Page 12: 3�4�- Connection Diagram

    DHC-96 mAdc, DHC-96 Adc 3�4�- CONNECTION DIAGRAM Entradas Digitales Digital inputs Salida Analógica Analog output 70 59 28 29 31 32 RS-485 Salida de relés Relay output Alimentación Auxiliar Power Supply Figure 4: Current measurement DHC-96 Adc� Make sure that the positive and negative current terminals are as shown in the connection diagram.
  • Page 13: 4�- Operation

    DHC-96 mAdc, DHC-96 Adc 4.- OPERATION 4�1�- DISPLAY The device features a 5-digit LED display, which is used to display the measured parameters and to configure these parameters Display 00000 Keyboard Figure 5: Display DHC-96� 4�2�- KEYBOARD FUNCTIONS The DHC-96 Adc features 4 keys to display and configure the device, Figure 5 Table 6: Keyboard functions�...
  • Page 14: 4�3�- Relay Outputs

    DHC-96 mAdc, DHC-96 Adc 4�3�- RELAY OUTPUTS The device features two programmable relay outputs (terminals 28, 29, 31 and 32, as shown in Figure 6 that can be programmed as remote control signals or alarms in the setup menu ( “5.4.- RELAY OUTPUT...
  • Page 15 DHC-96 mAdc, DHC-96 Adc Table 7 (Continuation) : Display menu� Display menu Status of digital inputs: , status of the digital input 1: flashes when the input is activated , status of the digital input 2: flashes when the input is activated...
  • Page 16: 5�- Configuration

    DHC-96 mAdc, DHC-96 Adc 5.- CONFIGURATION Press and hold the key for more than 3 seconds to enter the configuration menu of the device. The configuration of the device is organized in different menus, Figure 7 5.000 >3s rEAd ProG...
  • Page 17 DHC-96 mAdc, DHC-96 Adc rEAd , key to access the configuration menu in the display mode, i.e., On the screen, press the the configuration parameters cannot be modified. rEAd On the screen, press the keys to access the configuration menu in the program- ming mode, i.e., the configuration parameters can be modified.
  • Page 18: 5�1�- Configuration Of The Input

    DHC-96 mAdc, DHC-96 Adc 5�1�- CONFIGURATION OF THE INPUT , shows the main screen of the input configuration menu, from which the display value and Figure 10 measurement range are configured. inPt Figure 10: Input configuration menu, main screen� Press the key to open the configuration menu.
  • Page 19: 5�1�2�- Units Of The Display Value

    DHC-96 mAdc, DHC-96 Adc  Configuration values Table 8:Configuration values: Display value� Display value Minimum value 1.000 Maximum value 9999 To validate the data, press the key. Use the keys to browse the configuration screens of the menu. 5�1�2�- UNITS OF THE DISPLAY VALUE This screen is used to configure the units of the display value.
  • Page 20: 5�1�4�- Save Configuration

    DHC-96 mAdc, DHC-96 Adc  Configuration values Table 10: Configuration values: Measurement range� Measurement range DHC-96 mAdc model For the current scale of 0 ... 20 mA. 0-20 For the current scale of 4 ... 20 mA. 4-20 Possible values For the current scale of ±...
  • Page 21: 5�2�1�- Modbus Address

    DHC-96 mAdc, DHC-96 Adc Press the key to open the configuration menu. Conn Addr 0001 9600 bAUd dAtA n.8.1 Figure 13:RS-485 communications menu 5�2�1�- MODBUS ADDRESS This screen is used to configure the modbus address of the device. Addr 0001...
  • Page 22: 5�2�2�- Baud Rate

    DHC-96 mAdc, DHC-96 Adc 5�2�2�- BAUD RATE In this screen, the baud rate of RS-485 communications is selected. bAUd 9600 Use the ,key to browse the different options.  Configuration values Table 13: Configuration values: Baud rate� Baud rate Possible values...
  • Page 23: 5�3�- Analog Output

    DHC-96 mAdc, DHC-96 Adc Press the key again to show the validation screen. SAuE Use the ,key to browse the different options.  Configuration values Table 15: Configuration values: Save configuration� Save configuration Exit the configuration without saving the changed values.
  • Page 24: 5�3�1�- Type Of Output

    0.5 x A Note: In the DHC-96 mAdc model the variable A has a value of 2000, in the DHC-96 Adc model has a value of 5000 for the measurement range of 5.000 and 1000 for the measurement range of 1.000.
  • Page 25: 5�3�3�- Reading For The End Of The Analog Output

    1.2 x A Note: In the DHC-96 mAdc model the variable A has a value of 2000, in the DHC-96 Adc model has a value of 5000 for the measurement range of 5.000 and 1000 for the measurement range of 1.000.
  • Page 26: 5�4�- Relay Output 1

    DHC-96 mAdc, DHC-96 Adc Press the key to validate the data and exit the configuration menu. 5�4�- RELAY OUTPUT 1 , shows the main screen of the configuration menu of relay output 1. Figure 16 do-1 Figure 16: Configuration menu of relay output 1, main screen�...
  • Page 27: 5�4�2�- Relay Pulse Duration

    DHC-96 mAdc, DHC-96 Adc Use the key to browse the different options.  Configuration values Table 20: Configuration values: Relay mode� Relay mode relay output 1 is disabled. Possible values remote control output. alarm output. To validate the data, press the key.
  • Page 28: 5�4�3�- Alarm Parameter

    DHC-96 mAdc, DHC-96 Adc 5�4�3�- ALARM PARAMETER This screen is used to configure the parameter that will be used to activate the alarm. ñ- itEn i--H Use the key to browse the different options.  Configuration values Table 22: Configuration values: Alarm parameter�...
  • Page 29: 5�4�5�- Alarm Value

    DHC-96 mAdc, DHC-96 Adc 5�4�5�- ALARM VALUE The value after which the alarm will be activated is configured on this screen. 0.000 uALE Use the , key to modify the value of the flashing digit When the desired value is shown on the screen, press the key to skip the digit.
  • Page 30: 5�4�7�- Save Configuration

    DHC-96 mAdc, DHC-96 Adc 5�4�7�- SAVE CONFIGURATION To save the configuration of the device, press the key until the main screen of the relay output 1 configuration menu is opened, Figure 16 Press the key again to show the validation screen.
  • Page 31: 5�6�1�- Password Off Access

    DHC-96 mAdc, DHC-96 Adc CodE 0001 LiGH 120.0 Figure 20:Configuration menu of the display� 5�6�1�- PASSWORD OFF ACCESS This screen is used to configure the value of the password used to access the configuration menu in the programming mode. 0000...
  • Page 32: 5�6�3�- Light Alarm

    DHC-96 mAdc, DHC-96 Adc  Configuration values Table 28:Configuration values: Brightness of the display� Brightness of the display Minimum value Maximum value To validate the data, press the key. Use the keys to browse the configuration screens of the menu.
  • Page 33: 5�7�- Software Version

    DHC-96 mAdc, DHC-96 Adc  Configuration values Table 30: Configuration values: Save configuration� Save configuration Exit the configuration without saving the changed values. Possible values Save the changed configuration values. Press the key to validate the data and exit the configuration menu.
  • Page 34: 6�- Rs-485 Communications

    DHC-96 mAdc, DHC-96 Adc 6.- RS-485 COMMUNICATIONS The DHC-96 devices have one RS-485 communications port,with communications protocols: MODBUS RTU ® . 6�1�- CONNECTIONS The RS-485 cable must be wired with twisted pair cable with mesh shield, with a maximum distance between the DHC-96 and the master device of 1200 metres.
  • Page 35: 6�2�- Modbus Protocol

    DHC-96 mAdc, DHC-96 Adc 6�2�- MODBUS PROTOCOL In the Modbus protocol, the DHC-96 device uses the RTU (Remote Terminal Unit) mode. The Modbus functions implemented in the device are as follows: Function 0x01: Reading a relay. Function 0x02: Reading input status.
  • Page 36: 6�3�- Modbus Commands

    DHC-96 mAdc, DHC-96 Adc Response: Initial Address Function Relay action Register 0000 FF00 8C3A 6�3�- MODBUS COMMANDS All the addresses of Modbus memory are in Hexadecimal. 6�3�1�- MEASUREMENT VARIABLES AND DEVICE STATUS For these variables is implemented the Function 0x03 and 0x04.
  • Page 37: 6�3�3�- Digital Inputs

    DHC-96 mAdc, DHC-96 Adc 6�3�3�- DIGITAL INPUTS For these variables is implemented the Function 0x02� Table 35: Modbus memory map (Table 4) Parameter Format Address Digital input 0000 The format of the parameter is shown in Table 36: Table 36:Format of the variables : Digital inputs�...
  • Page 38: 6�3�5�- Device Configuration Variables

    2: 4 ...12 ... 20 mA In the DHC-96 mAdc model the variable A has a value of 2000, in the DHC-96 Adc model has a value of 5000 for the measurement range of 5.000 and 1000 for the measurement range of 1.000.
  • Page 39 00.00 ... 99.99 Relay 2 hysteresis 0�000 ��� 9�999 For the model DHC-96 Adc 00�00 ��� 99�99 For the model DHC-96 mAdc 6�3�5�5� Configuration of the display Table 44:Modbus memory map : Configuration of the display Configuration of the display...
  • Page 40: 7�- Technical Features

    DHC-96 mAdc, DHC-96 Adc 7.- TECHNICAL FEATURES AC Power supply Rated voltage 80 ... 270 V ~ Frequency 50 / 60 Hz Consumption 2.7 ... 5 VA Installation category CAT III 300 V DC Power supply Rated voltage 80 ... 270 V 18 ...
  • Page 41 DHC-96 mAdc, DHC-96 Adc (Continuation) Digital inputs Maximum voltage in open circuit 17 V Analog output Quantity Maximum internal voltage 17 V Linearity 0.5 % Nominal output range 0-20 mA, 4-20 mA, 4-12-20 mA (Programmable) Maximum load resistor 350 Ω...
  • Page 42 DHC-96 mAdc, DHC-96 Adc ) Standards Continuation Electromagnetic compatibility (EMC) -- Part 4-8: Testing and measurement te- IEC 61000-4-8 chniques - Power frequency magnetic field immunity test Electromagnetic compatibility (EMC) -- Part 4-11: Testing and measurement techniques - Voltage dips, short interruptions and voltage variations immunity...
  • Page 43: 8�- Maintenance And Technical Service

    DHC-96 mAdc, DHC-96 Adc 8.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR S�A�U� Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 (Spain) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 44: 10�- Ce Certificate

    DHC-96 mAdc, DHC-96 Adc 10.- CE CERTIFICATE Instruction Manual...
  • Page 45 DHC-96 mAdc, DHC-96 Adc Instruction Manual...
  • Page 46 DHC-96 mAdc, DHC-96 Adc Instruction Manual...
  • Page 47: Annex A.- Configuration Menu

    Alarm parameter di1L di2L dELy 0010 Connection delay Alarm value uALE 00.00 Hysteresis 00.05 CodE Password o access 0001 Brightness of the LiGH display 120.0 Light alarm Software version 3014 Figure 23:Configuration menu DHC-96 mAdc Instruction Manual...
  • Page 48 DHC-96 mAdc, DHC-96 Adc 5.000 >3s 0000 rEAd ProG CodE inPt 000.0 Display value Units of the display Unt. i value Measurement range in 2 1.000 5.000 Conn Addr 0001 Modbus address 19.20 Baud rate 6Aud 4800 9600 2400 Data format dAtA o.8.1...
  • Page 49 DHC-96 mAdc, DHC-96 Adc Instruction Manual...
  • Page 50 CIRCUTOR S.A.U. Vial Sant Jordi, s/n 08232 -Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...
