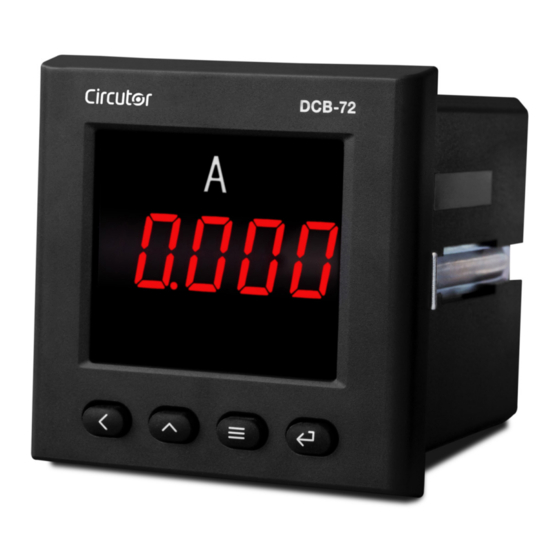

DC Ammeter
DCB-72 mAdc, DCB-72 Adc
INSTRUCTION MANUAL
(M208B01-03-21A)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCB-72 mAdc and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Circutor DCB-72 mAdc

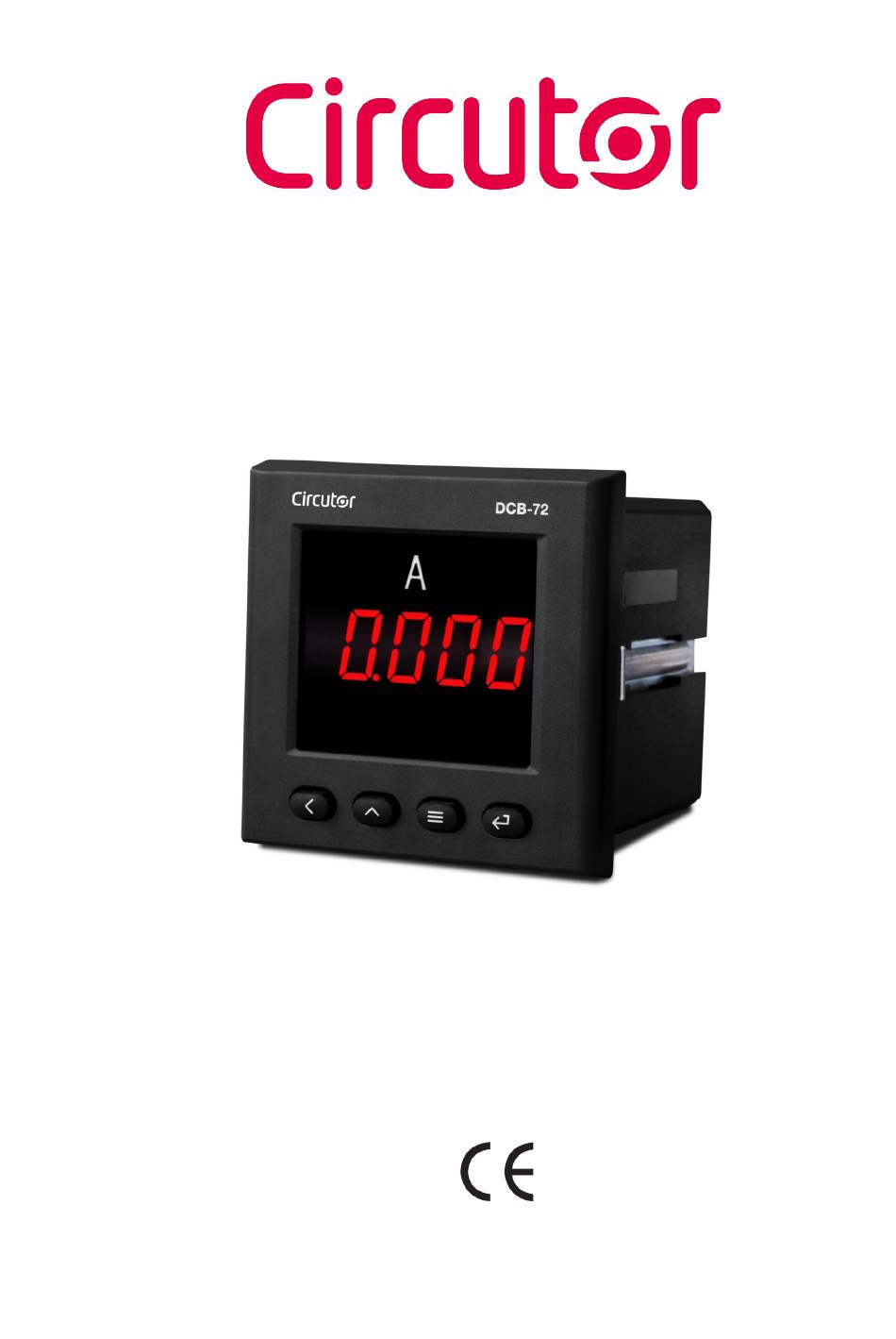

  • Page 1 DC Ammeter DCB-72 mAdc, DCB-72 Adc INSTRUCTION MANUAL (M208B01-03-21A)
  • Page 2 DCB-72 mAdc, DCB-72 Adc Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals.
  • Page 4: Table Of Contents

    7�- MAINTENANCE AND TECHNICAL SERVICE ��������������������������������������������������������������������������������������������������������������������30 8�- GUARANTEE ������������������������������������������������������������������������������������������������������������������������������������������������������������������30 9�- CE CERTIFICATE ������������������������������������������������������������������������������������������������������������������������������������������������������������ 31 ANNEX A�- CONFIGURATION MENU ������������������������������������������������������������������������������������������������������������������������������������34 A�1�- DCB-72 mAdc ��������������������������������������������������������������������������������������������������������������������������������������������������������34 A�2�- DCB-72 mAdc WITH RELAYS ��������������������������������������������������������������������������������������������������������������������������������35 A�3�- DCB-72 Adc �����������������������������������������������������������������������������������������������������������������������������������������������������������36 A�4�- DCB-72 Adc WITH RELAYS �����������������������������������������������������������������������������������������������������������������������������������37 Instruction Manual...
  • Page 5: Revision Log

    DCB-72 mAdc, DCB-72 Adc REVISION LOG Table 1: Revision log� Date Revision Description 06/18 M208B01-03-18A Initial Version Changes in the following sections: 12/18 M208B01-03-18B 3.3. - 3.4. - 4.3. - 5.1.1. - 5.1.2. - 5.1.3. - 5.1.4. - 9. - Annex A...
  • Page 6: 1�- Verification Upon Reception

    CIRCUTOR's after-sales service. 2.- PRODUCT DESCRIPTION The DCB-72 Adc range is designed to measure and display the DC current. CIRCUTOR has 2 models, for different current ranges: DCB-72 mAdc with 3 programmable current scales: ±20 mA, 0...20 mA and 4...20 mA.
  • Page 7 DCB-72 mAdc, DCB-72 Adc List of models: DCB-72 mAdc Table 3:DCB-72 mAdc list of models� DCB-72 mAdc Power Supply Model Relays 80 ��� 270 V ~ 80 ��� 270 V 18 ��� 36 V M22260   M22262  ...
  • Page 8: 3�- Device Installation

    DCB-72 mAdc, DCB-72 Adc 3.- DEVICE INSTALLATION 3�1�- PRIOR RECOMMENDATIONS In order to use the device safely, it is critical that individuals who handle it follow the safety measures set out in the standards of the country where it is being used, use the necessary personal protective equipment, and pay attention to the various warnings indicated in this instruction manual.
  • Page 9: 3�2�- Installation

    DCB-72 mAdc, DCB-72 Adc 3�2�- INSTALLATION Terminals, opening covers or removing elements can expose parts that are hazardous to the touch while the device is powered. Do not use the device until it is fully installed. The device should be installed inside an electric panel or enclosure, and panel-mounted.
  • Page 10: 3�3�- Device Terminals

    DCB-72 mAdc, DCB-72 Adc 3�3�- DEVICE TERMINALS Version 1�0: Table 5:List of terminals of the DCB-72 Adc (Version 1�0)� Device terminals 1: L, Power supply. : Alarm output 1, relay (Common) 2: N, Power supply. : Alarm output 1, relay (NO)
  • Page 11: 3�4�- Connection Diagram

    DCB-72 mAdc, DCB-72 Adc 3�4�- CONNECTION DIAGRAM 28 31 32 Alimentación Auxiliar Power Supply Figure 4: Current measurement DCB-72 Adc� Make sure that the positive and negative current terminals are as shown in the connection diagram. Note: The current measurement cable can be directly connected to the terminals of the 0 ... 5A device.
  • Page 12: 4�- Operation

    DCB-72 mAdc, DCB-72 Adc 4.- OPERATION 4�1�- DISPLAY The device features a 5-digit LED display, which is used to display the measured parameters and to configure these parameters Sign Display 1000.0 Keyboard Figure 5: Display DCB-72� The display features a Sign indicator that is lit to display the negative values.
  • Page 13: 4�3�- Relay Outputs

    DCB-72 mAdc, DCB-72 Adc 4�3�- RELAY OUTPUTS Note: only available for models: M22262, M22272, M222620030000 and M222720030000. The device features two programmable relay outputs (terminals 28, 29, 31 and 32 in terminals Table 5, 28, 31 and 32 in ) that can be programmed as remote control signals or alarms in the setup...
  • Page 14: 5�- Configuration

    DCB-72 mAdc, DCB-72 Adc 5.- CONFIGURATION Press and hold the key for more than 3 seconds to enter the configuration menu of the device. The configuration of the device is organized in different menus, Figure 6 5.000 >3s rEAd ProG...
  • Page 15 DCB-72 mAdc, DCB-72 Adc rEAd , key to access the configuration menu in the display mode, i.e., On the screen, press the the configuration parameters cannot be modified. rEAd On the screen, press the , keys to access the configuration menu in the program- ming mode, i.e., the configuration parameters can be modified.
  • Page 16: 5�1�- Configuration Of The Input

    DCB-72 mAdc, DCB-72 Adc 5�1�- CONFIGURATION OF THE INPUT , shows the main screen of the input configuration menu, from which the primary current and Figure 9 secondary current are configured. inPt Figure 9: Input configuration menu, main screen� Press the key to open the configuration menu.
  • Page 17: 5�1�1�- Display Value

    DCB-72 mAdc, DCB-72 Adc 5�1�1�- DISPLAY VALUE In this screen, the value to be displayed is configured when the maximum value of the measurement range enters the device. 000.0 Use the , key to modify the value of the flashing digit When the desired value is shown on the screen, press the key to skip the digit.
  • Page 18: 5�1�3�- Measurement Range

    Use the keys at the same time to configure the value. Use the ,key to browse the different options. Options for the DCB-72 mAdc model: 0-20 , for the current scale of 0 ... 20 mA. 4-20 , for the current scale of 4 ... 20 mA.
  • Page 19: 5�1�5�- Save Configuration

    DCB-72 mAdc, DCB-72 Adc 5�1�5�- SAVE CONFIGURATION To save the configuration of the device, press the key, until the main screen of the input config- uration menu is opened, Figure 9 Press the key again to show the validation screen.
  • Page 20: 5�2�- Relay Output 1

    DCB-72 mAdc, DCB-72 Adc 5�2�- RELAY OUTPUT 1 Note: Only available for models with relay outputs. , shows the main screen of the configuration menu of relay output 1. Figure 11 do-1 Figure 11: Configuration menu of relay output 1, main screen�...
  • Page 21: 5�2�1�- Relay Mode

    DCB-72 mAdc, DCB-72 Adc 5�2�1�- RELAY MODE This screen is used to configure the operating mode of relay 1. ñ- ñnodE Use the key to browse the different options: , relay output 1 is disabled. , remote control output. Note: This option is only available in devices with communication.
  • Page 22: 5�2�3�- Alarm Parameter

    DCB-72 mAdc, DCB-72 Adc 5�2�3�- ALARM PARAMETER This screen is used to configure the parameter that will be used to activate the alarm. ñ- i--H itEn Use the key to browse the different options: 1--H , Active alarm when the current is higher than the alarm value.
  • Page 23: 5�2�5�- Alarm Value

    DCB-72 mAdc, DCB-72 Adc 5�2�5�- ALARM VALUE This screen configures the value of the measurement input from which the alarm will be activated. 000.0 uALE Use the , key to modify the value of the flashing digit When the desired value is shown on the screen, press the key to skip the digit.
  • Page 24: 5�2�7�- Save Configuration

    DCB-72 mAdc, DCB-72 Adc 5�2�7�- SAVE CONFIGURATION To save the configuration of the device, press the key until the main screen of the relay output 1 configuration menu is opened, Figure 11 Press the key again to show the validation screen.
  • Page 25: 5�4�- Configuration Of The Display

    DCB-72 mAdc, DCB-72 Adc 5�4�- CONFIGURATION OF THE DISPLAY , shows the main screen of the configuration menu of the display. Figure 14 Figure 14: Configuration menu of the display, main screen� Press the key to open the configuration menu.
  • Page 26: 5�4�2�- Brightness Of The Display

    DCB-72 mAdc, DCB-72 Adc To validate the data, press the key. Use the keys to browse the configuration screens of the menu. 5�4�2�- BRIGHTNESS OF THE DISPLAY The brightness of the display is configured on this screen. LiGH Use the...
  • Page 27: 5�4�4�- Save Configuration

    DCB-72 mAdc, DCB-72 Adc 5�4�4�- SAVE CONFIGURATION To save the configuration of the device, press the key until the main screen of the configura- tion menu of the display is opened, Figure 14 Press the key again to show the validation screen.
  • Page 28: 6�- Technical Features

    DCB-72 mAdc, DCB-72 Adc 6.- TECHNICAL FEATURES AC Power supply Rated voltage 80 ... 270 V ~ Frequency 50 / 60 Hz Without relays 1.2 ... 3.3 VA DCB-72 mAdc With relays 2 ... 4 VA Consumption Without relays 0.8 ... 3.5 VA...
  • Page 29 DCB-72 mAdc, DCB-72 Adc User interface Display LED 5 digits Keyboard 4 keys Environmental features Operating temperature -40ºC ... +70ºC Storage temperature -40ºC ... +85ºC Relative humidity ≤ 95% Maximum altitude 2000 m Protection degree Front : IP54, Rear case: IP20...
  • Page 30: 7�- Maintenance And Technical Service

    DCB-72 mAdc, DCB-72 Adc 7.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 ( España) / +34 937 452 919 (outside of Spain)
  • Page 31: 9�- Ce Certificate

    DCB-72 mAdc, DCB-72 Adc 9.- CE CERTIFICATE Instruction Manual...
  • Page 32 DCB-72 mAdc, DCB-72 Adc Instruction Manual...
  • Page 33 DCB-72 mAdc, DCB-72 Adc Instruction Manual...
  • Page 34: Annex A.- Configuration Menu

    Units of the Display Unt. i value in 2 4-20 20.20 0-20 Measurement range Units of the Measurement Unt.2 range CodE Password o access 0001 LiGH Brightness of the display 120.0 Light alarm Software version 3012 Figure 17:Configuration menu DCB-72 mAdc Instruction Manual...
  • Page 35: A�2�- Dcb-72 Madc With Relays

    Alarm parameter 1--L Connection delay dELy 0010 Alarm value uALE 000.0 Hysteresis 000.5 CodE Password o access 0001 LiGH Brightness of the display 120.0 Light alarm Software version 3012 Figure 18:Configuration menu DCB-72 mAdc (with relays) Instruction Manual...
  • Page 36: A�3�- Dcb-72 Adc

    DCB-72 mAdc, DCB-72 Adc A�3�- DCB-72 Adc 5.000 >3s 0000 CodE rEAd ProG inPt Display value 000.0 Units of the Display Unt. i value Measurement in 2 5.000 1.000 range Units of the Measurement Unt.2 range CodE Password o access...
  • Page 37: A�4�- Dcb-72 Adc With Relays

    DCB-72 mAdc, DCB-72 Adc A�4�- DCB-72 Adc WITH RELAYS 5.000 >3s CodE 0000 rEAd ProG inPt 000.0 Display value Units of the display Unt. i value Measurement range in 2 1.000 5.000 Units of the Measurement Unt.2 range do-1 nodE...
  • Page 38 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 -Viladecavalls (Barcelona) Tel.: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.com central@circutor.com...

This manual is also suitable for:

Dcb-72 adc
