- Page 1 ACC-V900X For VESA 600x400, 800x400, 900x400 Mounting Patterns Samsung ME95C and LG 98LS95A 200 lb 98" MAX (91 kg) (250 cm) 2014-04-21 #:125-9490-3 (2018-08-13)
- Page 2 WARNING ENG - Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

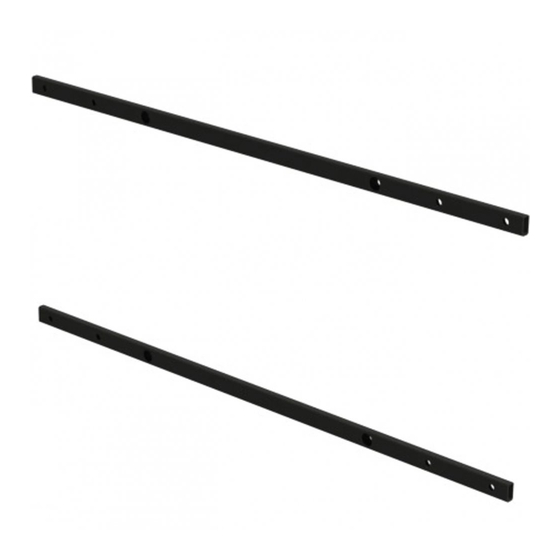

- Page 3 Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # A adaptor rail 202-1708 B M8 x 15mm 520-1068 C 4mm allen wrench 560-9646 D M8 x 20mm 520-1120 E tube cap 590-1334 A ( 2 ) E ( 4 ) adaptor rail tube cap...
- Page 4 A (2) E (4) SAMSUNG ME95C LG 98LS95A A (2) A (2) D (4) D (4) 2014-04-21 #:125-9490-3 (2018-08-13)
-
Page 5: Portrait Orientation
SF680: ACC-V900X not ST680: ACC-V900X not required for landscape required for landscape orientation orientation M6/M8 washer M6/M8 washer (included with SF680) (included with SF680) B (4) B (4) PORTRAIT ORIENTATION PORTRAIT ORIENTATION DS-VW795-QR B (4) B (4) LANDSCAPE ORIENTATION PORTRAIT ORIENTATION... - Page 6 DST995 B (4) B (4) LANDSCAPE ORIENTATION PORTRAIT ORIENTATION 2014-04-21 #:125-9490-3 (2018-08-13)
- Page 7 This page was intentionaly left blank 2014-04-21 #:125-9490-3 (2018-08-13)
-
Page 8: Limited Five-Year Warranty
(from date of the original installation of the product). At its option, Peerless-AV will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
