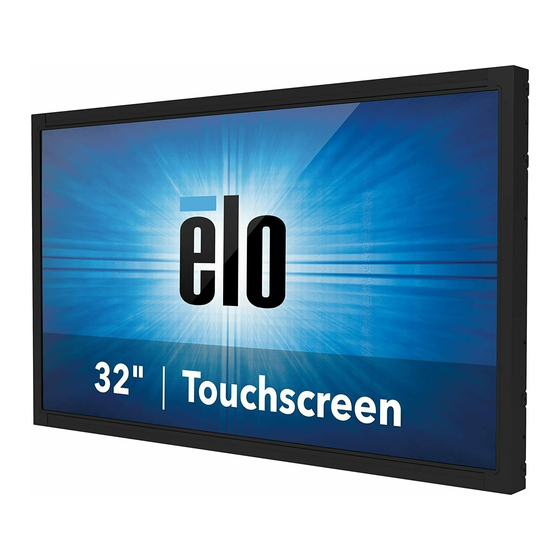

- Page 1 All manuals and user guides at all-guides.com USER MANUAL Elo Touch Solutions 3243L Touchmonitors SW601960 Rev A...
- Page 2 Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afffiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
-
Page 3: Table Of Contents
.....................5 Chapter 3: Mounting ....................10 Chapter 4: Operation .....................12 Chapter 5: Technical Support ................16 Chapter 6: Safety & Maintenance ..............17 Chapter 7: Regulatory Information ..............19 Chapter 8: Warranty Information ...............23 User Manual: 3243L SW601960 Rev A, Page 3 of 26... -
Page 4: Chapter 1: Introduction
Chapter 1: Introduction Product Description Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch products with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. -
Page 5: Chapter 2: Installation
VGA cable HDMI cable (ET3243L-XXWA models only) DVI cable (ET3243L-XXAA models only) USB cable (not available for ET3243L-0NXX models) International power cables Mounting brackets User Manual: 3243L SW601960 Rev A, Page 5 of 26... - Page 6 3. Connect the power cable to the monitor’s input power jack and the AC power outlet. 4. The touchmonitor ships in an ON state, video should be displayed on your monitor already. User Manual: 3243L SW601960 Rev A, Page 6 of 26...
- Page 7 Touch drivers for other operating systems Insert the Elo TouchTools CD into your computer’s CD-ROM drive. The CD should automatically run the Elo TouchTools application. Select “Install Driver for This computer”: User Manual: 3243L SW601960 Rev A, Page 7 of 26...
- Page 8 All manuals and user guides at all-guides.com For Windows XP, Vista, Server 2003, Server 2008, and WEPOS installations, install the “USB Touchscreen Drivers” when prompted: User Manual: 3243L SW601960 Rev A, Page 8 of 26...
- Page 9 For Windows 7 installations, check the “Install driver” box under “Elo USB Interfaces – Other Touchscreens” After accepting the end-user license agreement, the drivers will finish installing. Reboot your computer after the install is complete. User Manual: 3243L SW601960 Rev A, Page 9 of 26...
-
Page 10: Chapter 3: Mounting
The OSD text can be rotated through the OSD menu to better suit your mounting orientation. Side Bracket Mount Threaded holes are provided on the sides of the monitor for mounting using the provided brackets. User Manual: 3243L SW601960 Rev A, Page 10 of 26... - Page 11 Rear VESA Mount A four-hole 400x200mm mounting pattern for M6 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-F, 400, 200, 6. User Manual: 3243L SW601960 Rev A, Page 11 of 26...
-
Page 12: Chapter 4: Operation
When connected to Windows 7 computers, the touchmonitor can report 2 simultaneous touches. The IntelliTouch Plus touchscreen can be re-calibrated to your displayed video image, if needed, through the Calibration function in the Elo driver control panel. User Manual: 3243L SW601960 Rev A, Page 12 of 26... - Page 13 Select “Match Touch to Display…” to calibrate multiple monitors. Gesture Support The IntelliTouch Plus touch technology enables several gestures that support single and multiple contacts. Refer to the Microsoft Website User Manual: 3243L SW601960 Rev A, Page 13 of 26...
- Page 14 Preset Video Modes. On-Screen Display (OSD) Four OSD buttons are located on a wired control box. These can be used to adjust various display parameters. The buttons and their functionality are: User Manual: 3243L SW601960 Rev A, Page 14 of 26...
- Page 15 The touchscreen may need recalibration when switching between Aspect Ratio options. Adjusts sharpness of the displayed images. Default: no sharpness adjustment Sharpness Only applicable at non-native input video resolutions User Manual: 3243L SW601960 Rev A, Page 15 of 26...
- Page 16 Press and hold the “Menu” and “Down” buttons for two seconds to enable/disable the Power Locking feature. When the Power Locking is enabled, pressing the power switch will have no effect on the system. User Manual: 3243L SW601960 Rev A, Page 16 of 26...
-
Page 17: Chapter 5: Technical Support
All manuals and user guides at all-guides.com Chapter 5: Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems... - Page 18 Visit www.elotouch.com/products for technical specifications for this device Visit www.elotouch.com/go/websupport for online self-help. Visit www.elotouch.com/go/contactsupport for technical support. See this user manual’s last page for worldwide technical support phone numbers. User Manual: 3243L SW601960 Rev A, Page 18 of 26...
-
Page 19: Chapter 6: Safety & Maintenance
To clean the touchscreen, use window or glass cleaner applied to a clean cloth or sponge. Never apply the cleaner directly to the touchscreen. Do not use alcohol (methyl, ethyl or isopropyl), thinner, benzene, or other abrasive cleaners. User Manual: 3243L SW601960 Rev A, Page 19 of 26... - Page 20 All manuals and user guides at all-guides.com Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual: 3243L SW601960 Rev A, Page 20 of 26...
-
Page 21: Chapter 7: Regulatory Information
This Information Technology Equipment (ITE) is required to have a CE Mark on the Manufacturer’s label which means that the equipment has been tested to the following Directives and Standards: This equipment has been tested to the requirements for the CE Mark User Manual: 3243L SW601960 Rev A, Page 21 of 26... - Page 22 (Removing or cutting the line cord ground may in crease RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual: 3243L SW601960 Rev A, Page 22 of 26...
- Page 23 X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363-2006. For items marked with X, exemptions were taken according to EU RoHS. User Manual: 3243L SW601960 Rev A, Page 23 of 26...
- Page 24 Operating Conditions: Temperature: 0°C - 40°C Humidity: 20% to 80% (non-condensing) Altitude: 0 to 3,658m Storage Conditions: Temperature: -20°C - 60°C Humidity: 10% to 90% (non-condensing) Altitude: 0 to 12,192m User Manual: 3243L SW601960 Rev A, Page 24 of 26...
-
Page 25: Chapter 8: Warranty Information
Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer’s products or representations or warranties concerning same. User Manual: 3243L SW601960 Rev A, Page 25 of 26... - Page 26 Press releases Software drivers TouchMonitor Newsletter Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
