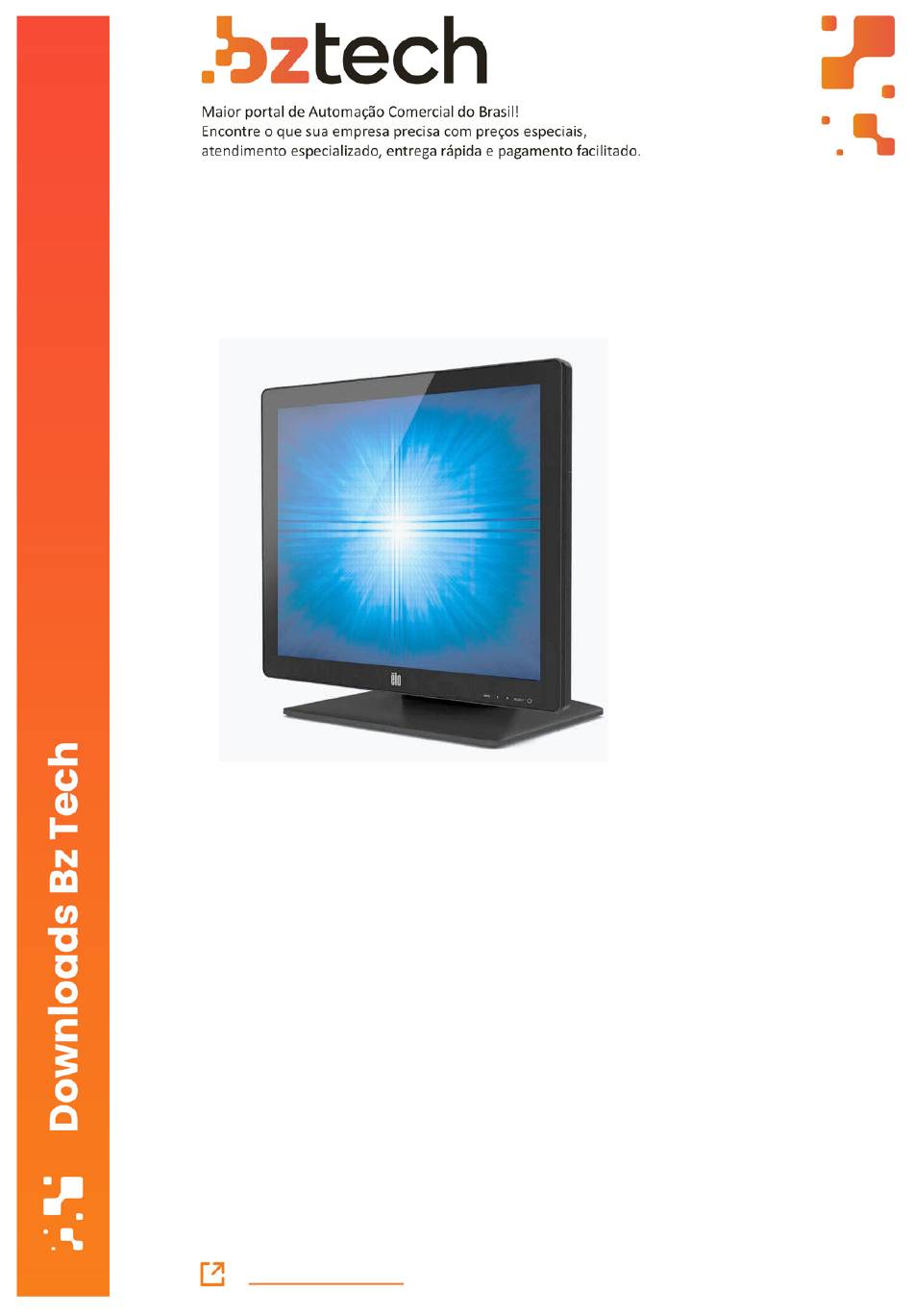

Monitor Elo 1717L
Monitor touch robusto, fabricado com tecnologia resistiva avançada para
suportar condições extremas de uso contínuo. Resistente a líquidos,
alimentos, poeira e insetos, é ideal para ser utilizado em locais com grande
concentração de clientes.
bztech.com.br

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 717L and is the answer not in the manual?

Questions and answers

Related Manuals for Elo Touch Solutions 717L

Summary of Contents for Elo Touch Solutions 717L

  • Page 1 Monitor Elo 1717L Monitor touch robusto, fabricado com tecnologia resistiva avançada para suportar condições extremas de uso contínuo. Resistente a líquidos, alimentos, poeira e insetos, é ideal para ser utilizado em locais com grande concentração de clientes. bztech.com.br...
  • Page 2 E999454 ET1517L-7UWA-1 -WH-ZB-G E247852 ET1517L-8UWA-0 -GY-ZB-G E953836 ET1517L-8UWA-0 -WH-ZB-G E291747 ET1717L-7UWA-1 -GY-ZB-G E433551 ET1717L-7UWA-1 -WH-ZB-G E650075 ET1717L-8UWA-0 -GY-ZB-G E928533 ET1717L-8UWA-0 -WH-ZB-G E854392 ES600904 Rev A Second Edition (July, 2012) © Copyright © 2012 Elo Touch Solutions, Inc. All Rights Reserved.
  • Page 3 Revision History Author Date Description August 10, Ruby Chen Initial release per ECO-12-014715 2012 Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 2 of 44...

  • Page 4: Table Of Contents

    Table of Contents Product Overview ......................4 1.1. Specification overview ..................4 1.2. Interface Functions ....................5 1.3. Software Specification ..................5 1.4. EDID Code ......................21 Level 1 Cosmetic / Appearance / Alignment Service ........... 22 2.1. Firmware and EDID Upgrade Process ............... 22 2.2.

  • Page 5: Product Overview

    1. Product Overview 1.1. Specification overview Model Name ET1517L ET1717L 17” LCD Size 15" CMI / AUO LCD Vendor CMI / AUO M170EGE-L20 / G170EG01-V1 Panel Model No G150XGE-L04 / G150XG03 V5 337.920 (H)x 270.336(V) Active Area (mm) 304.128(H) x 228.096(V) XGA 1280 x 1024 (pixels) Resolution XGA 1024 x 768 (pixels)

  • Page 6: Interface Functions

    1.2. Interface Functions 1.2.1 VGA The monitor will be able to display analog RGB component video when inputted to the DE-15 VGA connector. It shall comply with the VESA DDC/CI standard. 1.2.2 No DVI connector for this product. 1.2.3 LED indicator Condition (Applies to Monitor or Monitor with LED status...
  • Page 7 1.3.2 OSD Table 0.0 HotKey Button Function when OSD is Function when OSD is not displayed: displayed: Menu Display OSD main menu Return to previous OSD menu Display OSD Brightness submenu Increase value of selected parameter / select previous menu item Display Audio submenu(If support Audio) Decrease value of selected parameter /...
  • Page 8 Display Contrast submenu(If not support Audio) Decrease value of selected parameter / select next menu item Auto Adjusting(If not support dual version) Select parameter for Select adjustment / select submenu to enter Input Select Menu(If support dual version) Select parameter for Select adjustment / select submenu to enter...
  • Page 9 Menu Remark Required Yes/No 1.0 Main Menu 1. When Main Menu is not displayed, Press “Menu” then main menu will display. 2. The OSD position should be on the right bottom and the buttons on OSD should be aligning to the physical buttons on the bottom. 1.
  • Page 10 Menu Remark Required Yes/No 1. When “Power Locked”, the “power” button will be disappeared. 1. Press the “Menu” and “+” keys for two seconds to toggle the monitor’s OSD Locking feature between locked and unlocked. This feature allows end-users no access to the monitor’s OSD controls.
  • Page 11 Menu Remark Required Yes/No 1.2 Luminance Menu 1. Show brightness & contrast value on this menu. 1.2.1 Brightness Adjusts the Brightness signal from 0% (minimum brightness) to 100% (maximum brightness) of its range on a scale from 0 to 100 using at least 25 discrete steps. Default: 100% (maximum brightness) 1.
  • Page 12 Menu Remark Required Yes/No 1.3 Image Setting Menu(VGA input source) 1. Show H. Position & V. Position & Clock & Phase & Sharpness value on this menu. 1.3 Image Setting Menu(DVI input source) Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 11 of 44...
  • Page 13 Menu Remark Required Yes/No If VGA input Only, Please remove Input Select 1.3.1 Input Select Menu 1.3.2 H. Position Moves the image horizontally in single-pixel increments on a scale from 0 to 100 using at least 100 discrete steps. Default: 50 (centered in the panel). This adjustment is only available on VGA input video.
  • Page 14 Menu Remark Required Yes/No 1.3.3 V. Position Moves the image vertically in single-pixel increments on a scale from 0 to 100 using at least 50 discrete steps. Default: 50 (centered in the panel). This adjustment is only available on VGA input video. 1.
  • Page 15 Menu Remark Required Yes/No 1.3.6 Aspect Ratio Switches the scaling method between two options: Full Scaling – scales the X- and Y-dimensions of the input video (up or down as needed) to the display’s native resolution. (Default) Fill To Aspect Ratio – Assuming a landscape orientation and an input video with aspect ratio smaller than 16:9, scales the Y-dimension of the input video (up or down as needed) to the display’s Y-resolution, and scales the X-dimension to maintain the aspect ratio (and fills the rest of the display with equal black bars on the left and right).
  • Page 16 Menu Remark Required Yes/No 1. Sharpness will be disable if native resolution. 1.4 Color Menu Adjusts color temperature. Color temperature options shall be 9300K, 7500K, 6500K, 5500K, and User Defined. If the User Defined option is selected, the user shall be able to change the color temperature by changing individual R, G, and B gains on a scale from 0 to 100.
  • Page 17 Menu Remark Required Yes/No 1.4.1.1 Red 1. ”Up” & “Down” Icons will be “+”&”-“ at this menu. 2. Show the Red value and gauge. 1.4.1.2 Green 1. ”Up” & “Down” Icons will be “+”&”-“ at this menu. 2. Show the Green value and gauge. 1.4.1.3 Blue 1.
  • Page 18 Menu Remark Required Yes/No 1.5.1 Rotation 1. When press “Portrait” then all menu will rotate 90 degrees clockwise. 1.5.2 OSD Timeout Adjusts the OSD timeout time. OSD setting changes made prior to the OSD timeout are kept and used. At a minimum, the user shall be able to select options between 5 to 60 seconds.
  • Page 19 Menu Remark Required Yes/No 1.5.3 Language Selects which language the OSD information is displayed in. Options shall be: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese and Japanese. Default: English. 1.5.4 Information 1.6 Recall Menu Selecting “Recall Defaults” shall restore all factory default settings for OSD-adjustable parameters (except OSD Language and OSD Location) and for the Preset Video Modes’...
  • Page 20 Menu Remark Required Yes/No 1. There is a “Recalling” message when executing “Recall defaults” on the center of the screen until finishing. 1.7 Audio Menu 1.7.1 Mute Toggles the audio output between Muted and Not Muted. Default: Not Muted 1.”+”&”-“ are disable on this menu. 1.7.2 Volume Adjusts the volume (of the internal speakers or the headphones) from 0 Watt to 2 Watt x2 on a scale from 0 to 100.
  • Page 21 Menu Remark Required Yes/No 1.8 Factory Menu 1. If the unit is turned on while the “Select” button is held, a “Factory” menu will be available in the OSD. This menu will not be advertised on customer-facing documentation. 1. Factory menu is display on the left-top corner of the screen.

  • Page 22: Edid Code

    Menu Remark Required Yes/No 1. There is an ”Out of Range” message if the input signal’s pixel clock is too big. 1. There is a “No Signal Detected” message if no input signal. 1.4. EDID Code All video interfaces shall contain a DDC-accessible EDID V1.3 file with 0 extension blocks. Each EDID will be write-protected in normal operation.

  • Page 23: Level 1 Cosmetic / Appearance / Alignment Service

    2. Level 1 Cosmetic / Appearance / Alignment Service 2.1. Firmware and EDID Upgrade Process 2.1.1 Software configuration: Step 1. Unzip “RTD Customer Tool V1.7 Install_20110301” Step 2. Click on “RTD Customer Tool V1.7 Install_20110301” to run the program Step 3. Click on “Next” when following screen pops up Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 22 of 44...
  • Page 24 Step 4. Click on “Next” when following screen pops up Step 5. Click on “Next” when following screen pops up Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 23 of 44...
  • Page 25 Step 6. Wait for update progress and click on “finish” when setup complete screen pops up Note: If RTD customer tool can’t detect USB ISP BD after you installed SW in PC and checked all the connection of cables correctly, you can re-boot the PC and try again to solve this problem. Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 24 of 44...
  • Page 26 2.1.2 Hardware configuration: Step 1. Prepare following items a. PC with 2K or XP system*1 b. USB cable (A ty pe to B type) *1 c. D-sub cable *1 d. Power cord *1 e. AC Adaptor *1 RTD USB ISP BD*1 Step 2.
  • Page 27 2.1.3 FW Update Procedure: tep 1. Double click on to run “RTD tool Customer V1.7” and check if the connection is OK a. If connection with JIG is OK, the USB button is green, otherwise the color is gray. b. If Communication with monitor is OK, the Commu button is green, otherwise the color is red...
  • Page 28 Step 2. Select “ISP”, then, select “Serial Flash” Step 3. Click on “ISP Option” to set appropriate setting for monitor Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 27 of 44...
  • Page 29 3.1 Sele ct “Basic Setting” to set file type of firmware Set correct file format in “File type” Others are default. 3.2 Select “Flash Protect” and set as following Select “User Define0” in “Flash Protect” Set “Value” to High Set “Series” to LPA Series Set “LPA Series”...
  • Page 30 Step 4. Click on “64K” to select the firmware file, then, click on to upgrade firmware Step 5. When finish, it will show PASS Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 29 of 44...
  • Page 31 2.1.4 EDID Upgrade Procedure Step 1. Select “IIC” and key in “6e 51 82 e0 00 5d” as following, then, click on “Send Data” to disable EDID EEPROM write protect. Note: DC off monitor when RTD Customer Tool sends write pr otect command to monitor Fill the number “6e,51,82,e0,00,5d”...
  • Page 32 Step 2. Select “EDID” and click on to open EDID file, then, click on to write EDID. 128B for VGA Open EDID file Write EDID Step 3. It will show “Write EDID OK” after finishing EDID writing. Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 31 of 44...

  • Page 33: Alignment Procedure (For Function Adjustment)

    2.2. Alignment p rocedure (f or function adjus tment) list f necessary alignme nt for a L CD monitor: Items Description Remark Preset timing Timing adjustment Timing 114 (VGA480) Auto color balance (640x480@60 adjustment Burn-In Mode: ON Pattern: 5-Mosaic pattern #42 9300K/Cool, Color temperature 7500K...
  • Page 34 Figure-1 5. Turns off the monitor power. Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 33 of 44...

  • Page 35: Level 2 Disassembly /Assembly Circuit Board And Standard Parts Replacement

    3. Level 2 Disassembly /Assembly Circuit Board and Standard Parts Replacement 3.1. Parts list ET1517L: ELO P/N Qisda P/N Qisda Description E164518 5F.MU5VP.011 LCDM15 G150XG03-V5 AUO P/G E120875 5F.MM5VP.001 LCDM 15 G150XGE-L04 P E120875 E516564 TY.5F900.002 TOUCH CCREEN AT 1517 E516564 E892455 TY.5F900.003 TOUCH SCREEN IT 1517 E892455...
  • Page 36 5K.1US01.001 WIRE 5/5P 1571#28 140MM 5K.1US02.001 WIRE 5/6P 1571#28 135MM PANEL 5K.1US03.001 WIRE 6/20P 1061#28 90MM TOUCH 2E.A123D.W16 ADT SW12V3.33A40W DC UNI LITEO 2G.01111.011 CORD SVT125V WO/SH1.8M US DELL 2G.05921.011 CORD 0.75 1.8M EU+KOR+RUSS BLK E744255 EM.4J900.002 MANUAL QIG GENERIC TOUCHMONITO 4J.1US04.001 SHEET STAND ASSEMBLY 1517 E442022...
  • Page 37 ET1717L: ELO P/N Qisda P/N Qisda Description E149399 5F.MU7VP.011 LCDM17 G170EG01-V1 AUO E230053 5F.MM7VP.011 LCDM 17 M170EGE-L20 P E086819 TY.5F900.004 TOUCH SCREEN AT 1717 E086819 E872607 TY.5F900.005 TOUCH SCREEN IT 1717 E872607 CS.5J1UT.001 PACK AD BD 17-AUO EP17TF1 CS.5J1UT.011 PACK AD BD 17-CMI EP17TF1 5E.1UT10.001 PCBA KEYPAD BD EP17TF1 5E.1UT42.001...
  • Page 38 5K.1UT01.001 WIRE 6/6P 1571#28 185MM PANEL 5K.1UT02.001 WIRE 6/6P 1571#28 230MM PANEL 5K.1UT03.001 WIRE 6/6P 1061#28 120MM LED 2E.A123D.W16 ADT SW12V3.33A40W DC UNI LITEO 2G.01111.011 CORD SVT125V WO/SH1.8M US DELL 2G.05921.011 CORD 0.75 1.8M EU+KOR+RUSS BLK E744255 EM.4J900.002 MANUAL QIG GENERIC TOUCHMONITO 4J.1US04.001 SHEET STAND ASSEMBLY 1517 E442022...

  • Page 39: Packing Drawing

    3.2. Packing drawing 3.2.1 Packing Method: 3.2.2 Pallet Packing: Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 38 of 44...
  • Page 40 3.2.3 Pallet Loading Data Model Name ET1517L ET1717L Size(mm) Size(mm) Outer carton 447*380*207 482*436*240 Pallet 1140*900*120 1310*970*120 Quantity Quantity layers Per pallet Container 20' Loading rate Container 40' 1,560 1008 Loading rate Size(mm) Size(mm) Outer carton 447*380*207 482*436*240 Pallet 1140*900*120 1310*970*120 Quantity Quantity...

  • Page 41: Trouble Shooting Guide

    3.3. Trouble Shooting Guide Issue Analysis Solution Check user interface connection: Re-plug in all the cables, or adapter AC plug to outlet, adapter DC plug change a cable to monitor Press ON OSD Power B Check OSD Power button ON button Check internal connector connection: a.
  • Page 42 Issue Analysis Solution A Check internal Keypad cable connection Re-plug in all the cables. Panel displaying, indicator OSD LED not lighting. B Check internal Keypad cable if any broken Replace it, if cable broken. Panel displaying, OSD button no A Refer to No. 5 response.

  • Page 43: Circuit Operation Theory

    3.4. Circuit Operation Theory 3.4.1. Scalar RTD2270CLW Spec  One Analog input supported  Integrated 8-bit triple-channel 210MHz ADC  1 and 2 pixel/clock panel support and up to 210MHz  8 bits LVDS output interface 3.4.2 System Diagram Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 42 of 44...
  • Page 44 3.4.3. AD board Diagram (LCD Controller Board) Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 43 of 44...
  • Page 45 3.4.4. Power structure 3.4.5. LED Driver Board Diagram (For ET1717L Only) Service Manual: ET1517L, ET1717L ES600904 Rev B, Page 44 of 44...
