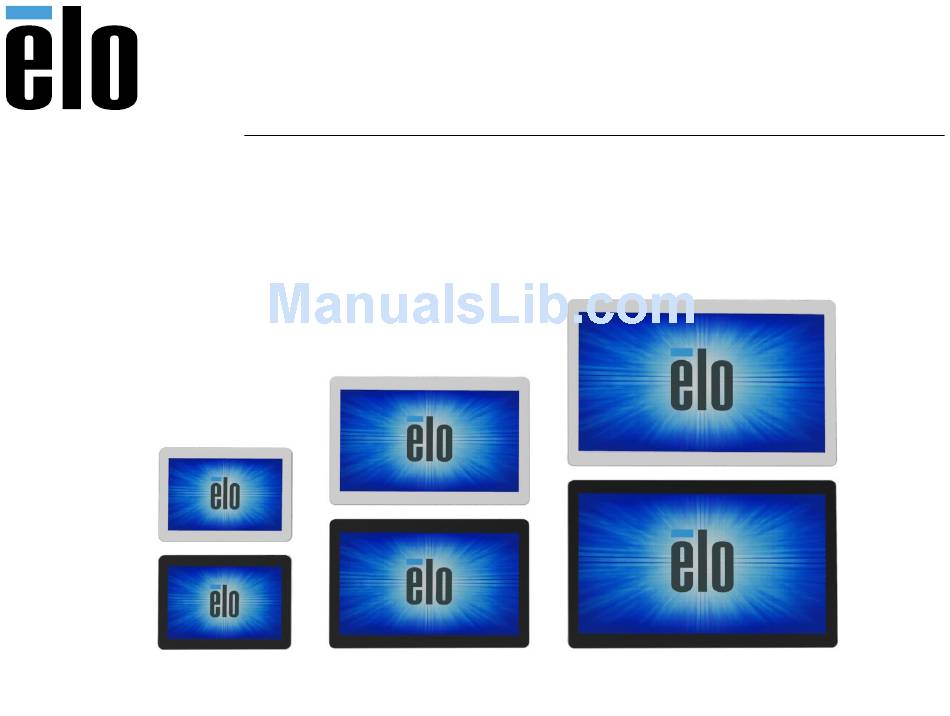

  • Page 1 USER MANUAL Elo Touch Solutions I-Series 2.0...
  • Page 2 Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo...
  • Page 3 User Manual – I-series 2.0 UM600106 Rev A, page 3 of 46...

  • Page 4: Table Of Contents

    Section 2: Unpacking and Operation ......................................... 6 Section 3: Optional Accessories ..........................................21 Section 4: Technical Support and Maintenance ...................................... 35 Section 5: Regulatory Information ..........................................38 Section 6: Warranty Information..........................................45 User Manual – I-series 2.0 UM600106 Rev A, page 4 of 46...

  • Page 5: Section 1: Introduction

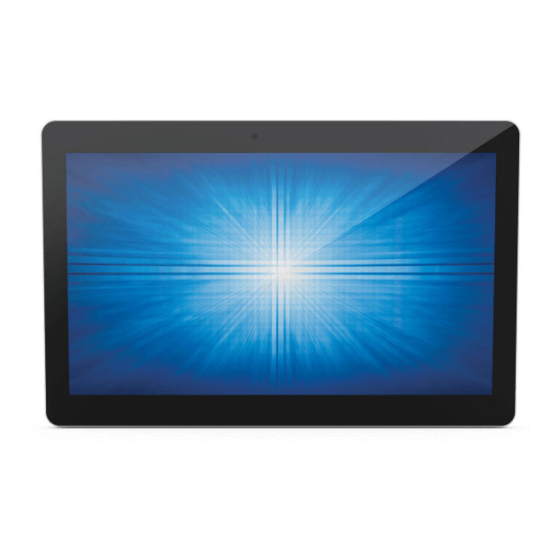

    Section 1: Introduction Product Description Your new I-Series 2.0 Interactive Signage system combines the reliable performance from Elo with the latest developments in touchscreen technology and display design. This combination of features creates a natural flow of information between a user and the I-Series 2.0 system.

  • Page 6: Section 2: Unpacking And Operation

    Two (2) screws • The connectors are accessed by removing the cable security covers from the rear of the I-Series 2.0 system. Elo I-Series 2.0 Note: side peripherals, micro-HDMI out, microphone and webcam are not available on the I-Series Value SKU’s User Manual –...
  • Page 7 User Manual – I-series 2.0 UM600106 Rev A, page 7 of 46...
  • Page 8 Installing the Elo Power over Ethernet module with the I-Series 2.0 (POE) User Manual – I-series 2.0 UM600106 Rev A, page 8 of 46...
  • Page 9 Warning: When using POE, do not connect the Ethernet cable before connecting the POE module. Wallmounting Option: Use any standard VESA mount to wallmount the I-Series 2.0 when PoE is installed. User Manual – I-series 2.0 UM600106 Rev A, page 9 of 46...
  • Page 10 The Elo I-Series 2.0 power button is equipped with an LED that indicates the power status of the system, as follows:...
  • Page 11 Operating System System comes with Android 7.1 pre-loaded. Touch Technology The I-Series 2.0 uses Projected Capacitive touch screens, 10 simultaneous touches can be reported at one time. Gesturing Images Dual Touch Gestures and their Functions: Swipe – The action of moving a finger across the screen.
  • Page 12 HDMI Output I-Series 2.0 is equipped with a micro-HDMI port that can support a secondary monitor with HDMI (1920 x 1080 @ 60) input. When using an Elo touch monitor as a secondary display, you can enable touch by connecting a USB cable to the I-Series 3.0 type A USB port.
  • Page 13 Elo website. Example Circuit G-Sensor All I-Series 2.0 units are equipped with a g-sensor and will rotate the video based on the orientation of the device. User Manual – I-series 2.0 UM600106 Rev. A, page 13 of 46...
  • Page 14 Power Over Ethernet (PoE, Elo Part Number: E615169) The I-Series 2.0 devices support the Elo peripheral for power over Ethernet (PoE). Note: when the PoE is connected, certain features are disabled to maximize available functions. Refer to the table below for what will be available with POE: 10.1 Value w/POE...
  • Page 15 Global Positioning Satellite (GPS) The I-Series 2.0 supports GPS functionality through software where the user can input the longitude and latitude coordinates to pinpoint the location of the specific device. This allows the GPS to function even indoors. In your EloView cloud account, enter the Edit mode under Details and the GPS option will be accessible.
  • Page 16 USB Control The I-Series 2.0 provides control for each individual USB port. Any specific USB port can be enabled or disabled. From EloView: Select the port that you want to enable or disable. If the lock is green, then the USB port is enabled. If the lock is red, then the port is disabled.
  • Page 17 From Android Settings  USB port: User Manual – I-series 2.0 UM600106 Rev. A, page 17 of 46...
  • Page 18 “Developer Options.” From here, enable the option called “USB debugging.” To connect via Wi-Fi, ensure that your I-Series 2.0 is online and not behind a firewall. Find the IP address (by going to Settings  About Phone  Status  IP Address. On your host computer, use the command adb connect <IP address> to be able to perform ADB actions.
  • Page 19 This function is fully controllable through your EloView account. Navigate to the Settings tab and use the dropdown menus that relate to the Display Timer. The default for this function is ON and will turn off the backlight during the hours of midnight and 6AM daily. User Manual – I-series 2.0 UM600106 Rev. A, page 19 of 46...
  • Page 20 Camera and Microphone (for standard models only) The I-Series 2.0 has a built-in microphone located on the bottom of the device when viewed in landscape mode. There is also a built-in camera located near the top of the device when viewed in landscape mode.

  • Page 21: Section 3: Optional Accessories

    • MasterCard PayPass/MCHIP • Visa MSD/qVSDC • Google wallet • Softcard MIFARE Applications • Read/Write of MIFARE Plus/Classic/Ultralight/DESFire cards • Support MIFARE higher baud rate up to 424KHz User Manual – I-series 2.0 UM600106 Rev. A, page 21 of 46...
  • Page 22 Barcode Scanner Functionality 1D (Elo Part Number: E093433) • Incorporates proximity detector to activate Bar Code Scanner. • Outstanding scanning performance up to 270 scans per second. The following are the factory standard default settings: User Manual – I-series 2.0 UM600106 Rev. A, page 22 of 46...
  • Page 23 To return the scanner to the default configuration mode (USB Virtual COM Port), scan the barcode below: For additional settings and configurations, please visit the product page on www.elotouch.com User Manual – I-series 2.0 UM600106 Rev. A, page 23 of 46...
  • Page 24 Once installed, open the USBMSR application. You will be sending commands to the device using the "Send Msg" text box to the right of the "Send Msg" button. Ensure the Set focus... and Auto Add Length check boxes are checked: To change to ASCII mode send: User Manual – I-series 2.0 UM600106 Rev. A, page 24 of 46...
  • Page 25 You will then be presented the utility page and you will perform these steps: 1. In the Reader Config Options drop-down list, select “ASCII_KEYPRESS_ON” 2. Click the “Change Config” button 3. Click the “Reset” button for the change to take effect User Manual – I-series 2.0 UM600106 Rev. A, page 25 of 46...
  • Page 26 3G/4G LTE Module Information The following devices from ConnectedIO are supported: North America: EM1000T-NA Europe: EM1000T-EU Refer to the links above for more details about the modems. User Manual – I-series 2.0 UM600106 Rev. A, page 26 of 46...
  • Page 27 Fig 3-1 shows the software stack of Android system. This implementation based on Android design and extends the framework functionality at java services layer to fulfill customer requirement. The extended functionality at java service is named as “ELOPeripheralService” which provides the interfaces for application development. User Manual – I-series 2.0 UM600106 Rev. A, page 27 of 46...
  • Page 28 Therefore, this framework ability, which forms the fundamental class “ELOPeripheralService,” is based on this kind of server-client design feature from Android User Manual – I-series 2.0 UM600106 Rev. A, page 28 of 46...
  • Page 29 IELOPeripheralServiceListener.aidl Android programming language for java layer IPC communication Used for server to notify the event driven status change to ELOPeripheralManager then ELOPeripheralManager will notify to application layer User Manual – I-series 2.0 UM600106 Rev. A, page 29 of 46...
  • Page 30 As we mentioned at last section, ELOPeripheralManager and ELOPeripheralEventListener will be the component to provide interface for application development. Therefore, we provide the inner member data of ELOPeripheralManager and ELOPeripheralEventListener as below. User Manual – I-series 2.0 UM600106 Rev. A, page 30 of 46...
  • Page 31 Provide interface for application to unregister the feedback structure instance Needs to unregister before leave the application (Activity life cycle: onPause) 3.1.1. activeBCR Activate the BCR device to reading the barcode data User Manual – I-series 2.0 UM600106 Rev. A, page 31 of 46...
  • Page 32 Refer to Table 3-1 GPIOs list Note: The pull action only workable with output pin defined GPIO The input pin defined GPIO can notify the application about the status change by “ELOPeripheralEventListener” also User Manual – I-series 2.0 UM600106 Rev. A, page 32 of 46...
  • Page 33 Refer to Table 3-2 Notify the application about the BCR status change data onGPIO_StateChange Refer to Table 3-2 Notify the application about the GPIOs status change data User Manual – I-series 2.0 UM600106 Rev. A, page 33 of 46...
  • Page 34 1 << 1 ELOPeripheralManager.BCR_STATE_DATA_RECEIVIED 1 << 2 ELOPeripheralManager.BCR_STATE_PIN_AUTO_DISABLE 1 << 3 GPIO state value ELOPeripheralManager.GPIO_STATE_HIGH 1 << 4 ELOPeripheralManager.GPIO_STATE_LOW 1 << 5 GPIO data gpio81 gpio82 Table 3-2 User Manual – I-series 2.0 UM600106 Rev. A, page 34 of 46...

  • Page 35: Section 4: Technical Support And Maintenance

    Suggested Troubleshooting The Elo I-Series 2.0 does not turn on when power is Check that the power cable is properly connected to the wall and the Elo i-series 2.0. applied to the system. If the power LED is solid white, then the system is ON. If the power LED is red, then the system is OFF.
  • Page 36 Technical Assistance Technical Specifications Support visit www.elotouch.com/products visit www.elotouch.com/support for technical support for technical specifications for this device Refer to last page for worldwide technical support phone numbers. User Manual – I-series 2.0 UM600106 Rev. A, page 36 of 46...
  • Page 37 Elo I-Series 2.0 Care and Handling The following tips will help maintain optimal performance of your Elo I-Series 2.0: • Disconnect the power cable before cleaning. • To clean the unit (except for touch screen), use a soft cotton or microfiber cloth lightly dampened with a mild detergent.

  • Page 38: Section 5: Regulatory Information

    CE Mark as required by EMC Directive 2014/30/ EU as indicated in European Standard EN 55032 Class A and the Low Voltage Directive 2014/35/EU as User Manual – I-series 2.0 UM600106 Rev. A, page 38 of 46...
  • Page 39 RF emission levels and may also present a lethal shock hazard to the user.) If you need additional help, consult your dealer, manufacturer, or an experienced radio or television technician. User Manual – I-series 2.0 UM600106 Rev. A, page 39 of 46...
  • Page 40 Radio Equipment Directive Elo hereby declares that the radio equipment type, I-Series 2.0, is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.elotouch.com This device is designed and intended for indoor use only.
  • Page 41 (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement." This equipment should be installed and operated to ensure a minimum of 20 cm spacing to any person at all times. User Manual – I-series 2.0 UM600106 Rev. A, page 41 of 46...
  • Page 42 Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used battery according to the local laws and regulations. User Manual – I-series 2.0 UM600106 Rev. A, page 42 of 46...
  • Page 43 (PBB) (PBDE) 电缆组件 玻璃外罩 液晶面板 金属框架 塑胶盖 印制线路板 本表格依据 SJ/T 11364 的规定编制. 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定 的限量要求以下. 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求. 标志说明 根据 SJ/T11364 的要求, 电子信息产品标有以下污染控制标识。 此产品在10年内不会 对环境产生影响。 User Manual – I-series 2.0 UM600106 Rev. A, page 43 of 46...
  • Page 44 Power Specifications Electrical Ratings Input 110/240VAC Operating Conditions Temperature 0°C - 40°C Humidity 20% to 80% (non-condensing) Storage Conditions Temperature -20°C - 50°C Humidity 10% to 95% (non-condensing) User Manual – I-series 2.0 UM600106 Rev. A, page 44 of 46...

  • Page 45: Section 6: Warranty Information

    Section 6: Warranty Information For warranty information, go to http://support.elotouch.com/warranty/ UM600106 Rev A, page 45 of 46 User Manual – i-series 2.0...

  • Page 46: Specifications

    • Upcoming Events • Press Releases • Software Drivers To find out more about our extensive range of Elo touch solutions, go to www.elotouch.com, or call the office nearest you. Europe North America Asia-Pacific Latin America Tel +32 (0)16 70 45 00...
