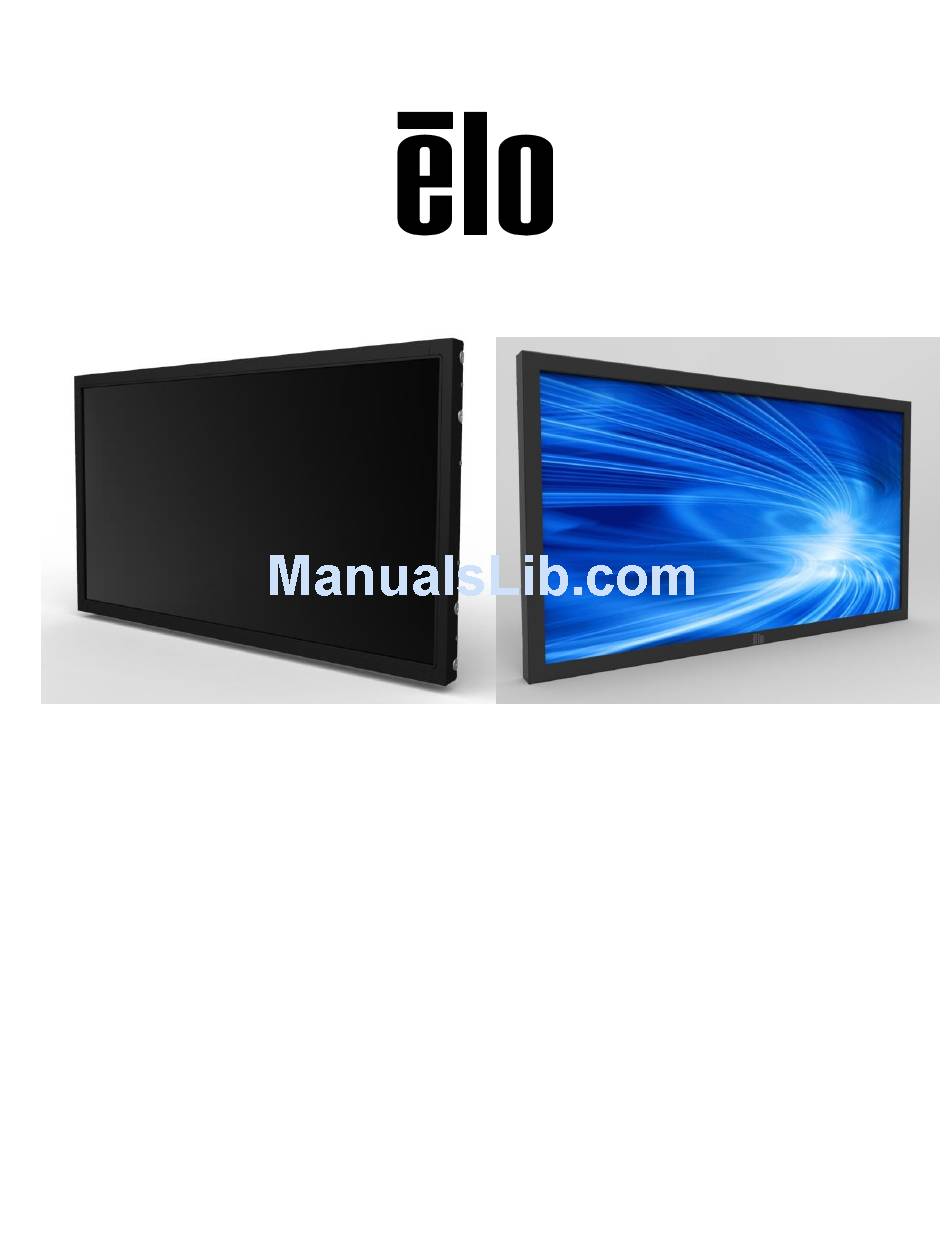

- Page 1 USER MANUAL Elo Touch Solutions 4243L/4209L Touchmonitors SW200174 Rev A...
- Page 2 Elo Touch Solutions, Inc. Disclaimer The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afffiliates (collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
-
Page 3: Table Of Contents
Table of Contents Chapter 1: Introduction ...................4 Chapter 2: Installation .....................5 Chapter 3: Mounting ....................7 Chapter 4: Operation ..................... 10 Chapter 5: Technical Support ................15 Chapter 6: Safety & Maintenance ..............17 Chapter 7: Regulatory Information ..............19 Chapter 8: Warranty Information ............... -
Page 4: Product Description
Chapter 1: Introduction Product Description Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch products with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. -
Page 5: Chapter 2: Installation
Chapter 2: Installation Unpacking the Touchmonitor Open the carton and verify that the following items are present: Touchmonitor User Manuals CD Mounting brackets Quick Install Guide VGA cable HDMI cable (ETX243L-XXWA models only) DVI cable (ETX243L-XXAA models only) ... -
Page 6: Touchmonitor Connections
Connector Panel & Interfaces Note: DVI or HDMI are available on certain models only. Touchmonitor Connections 1. Connect a video cable from your host computer to the monitor. For VGA cables, tighten the video cables screws for best performance. 2. Connect the USB touch cable between the monitors USB connector and your PC’s USB port. (Not applicable for No Touch models) 3. -
Page 7: Chapter 3: Mounting
The OSD text can be rotated between portrait and landscape mode through the OSD menu to better suit your mounting orientation. Side Bracket Mount (ET4243L) Threaded holes are provided on the sides of the monitor for mounting using the provided brackets. For 4243L monitors: USER GUIDE 4243/4209L SW200174 Rev A, Page 7 of 23... - Page 8 Rear VESA Mount For the 4243L/4209L Monitor: A four-hole 400x400mm mounting pattern for M6 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-F, 400, 400, 6. Refer to www.elotouch.com for dimensional drawings.
-
Page 9: Chapter 4: Operation
Chapter 4: Operation Power To turn the touchmonitor on or off, press the touchmonitor power button on the OSD controller once. The Power Status LED on the OSD controller functions according to the following table: TouchMonitor/Computer Module status LED status SLEEP PULSING The system consumes low power when in SLEEP and OFF modes. -
Page 10: Gesture Support
The IntelliTouch Plus driver will only support multiple monitor if they are all using the IntelliTouch Plus touchscreen technology. To use multiple IntelliTouch Plus monitors, double click on the EloConfig desktop shortcut to open up the Elo Touchscreen Configuration screen. Select “Calibrate Touch Screen”... - Page 11 Video A display’s native resolution is its width and height measured in number of pixels. Generally, for best performance, an image displayed on this monitor will look best when your computer’s output resolution matches this monitor’s native resolution of 1920 x 1080. For computer output resolutions at non-native resolutions, the monitor will scale the video to its panel’s native resolution.
- Page 12 The buttons and their functionality are: Button Function when OSD is not displayed: Function when OSD is displayed: Menu Display OSD main menu Return to previous OSD menu Increase value of selected parameter / Display OSD Brightness submenu select previous menu item Decrease value of selected parameter / Display OSD Contrast submenu select next menu item...
- Page 13 Preset Video Mode timings. Defaults Note: This feature does not affect the OSD language setting. For 4243L units, both language and rotation are unaffected. The monitor continually scans for active video on the VGA, DVI, and HDMI connectors. This adjustment selects which of those input ports should be given priority to be displayed.
-
Page 14: Solutions To Common Problems
Chapter 5: Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting The touchmonitor does not respond when Check that the power cable is properly connected. -
Page 15: Technical Assistance
Technical Assistance Visit www.elotouch.com/products for technical specifications for this device Visit www.elotouch.com/go/websupport for online self-help. Visit www.elotouch.com/go/contactsupport for technical support. See this user manual’s last page for worldwide technical support phone numbers. USER GUIDE 4243/4209L SW200174 Rev A, Page 15 of 23... -
Page 16: Care And Handling
Chapter 6: Safety & Maintenance Safety To avoid risk of electric shock, follow all safety notices and do not disassemble the touchmonitor. They are not user-serviceable. Ensure that your installation is equipped to maintain the specified environmental conditions listed in the Technical Specifications chapter. Care and Handling The following tips will help keep your touchmonitor functioning at an optimal level: Disconnect the AC power cable before cleaning. - Page 17 Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. USER GUIDE 4243/4209L SW200174 Rev A, Page 17 of 23...
-
Page 18: Chapter 7: Regulatory Information
Chapter 7: Regulatory Information I. Electrical Safety Information: Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 19 as required by EMC Directive 2004/108/EC as indicated in European Standard EN 55022 Class B and the Low Voltage Directive 2006/95/EC as indicated in European Standard EN 60950. General Information to all Users: This equipment generates, uses and can radiate radio frequency energy.
- Page 20 III. Agency Certifications The following certifications and marks have been issued or declared for this monitor: Argentina S-Mark Japan VCCI Taiwan BSMI Australia RCM Korea KCC, United States FCC, e-Standby Canada CUL, IC Mexico CoC China CCC Russia EAC Europe CE IV.
- Page 21 Explanation of Markings (1). In accordance with the SJ/T11364-2006 requirement, the electronic information products are marked with the following pollution control logo. The Environment-Friendly Use Period for this product is 10 years. The product will not leak or mutate under normal operating conditions listed below, so that the use of this electronic information product will not result in any severe environmental pollution, any bodily injury, or damage to any assets.
-
Page 22: Chapter 8: Warranty Information
Chapter 8: Warranty Information For warranty information, go to http://www.elotouch.com/Support/warranty.asp USER GUIDE 4243/4209L SW200174 Rev A, Page 22 of 23... -
Page 23: Product Information
Upcoming events Press releases Software drivers Getting in Touch with Us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
