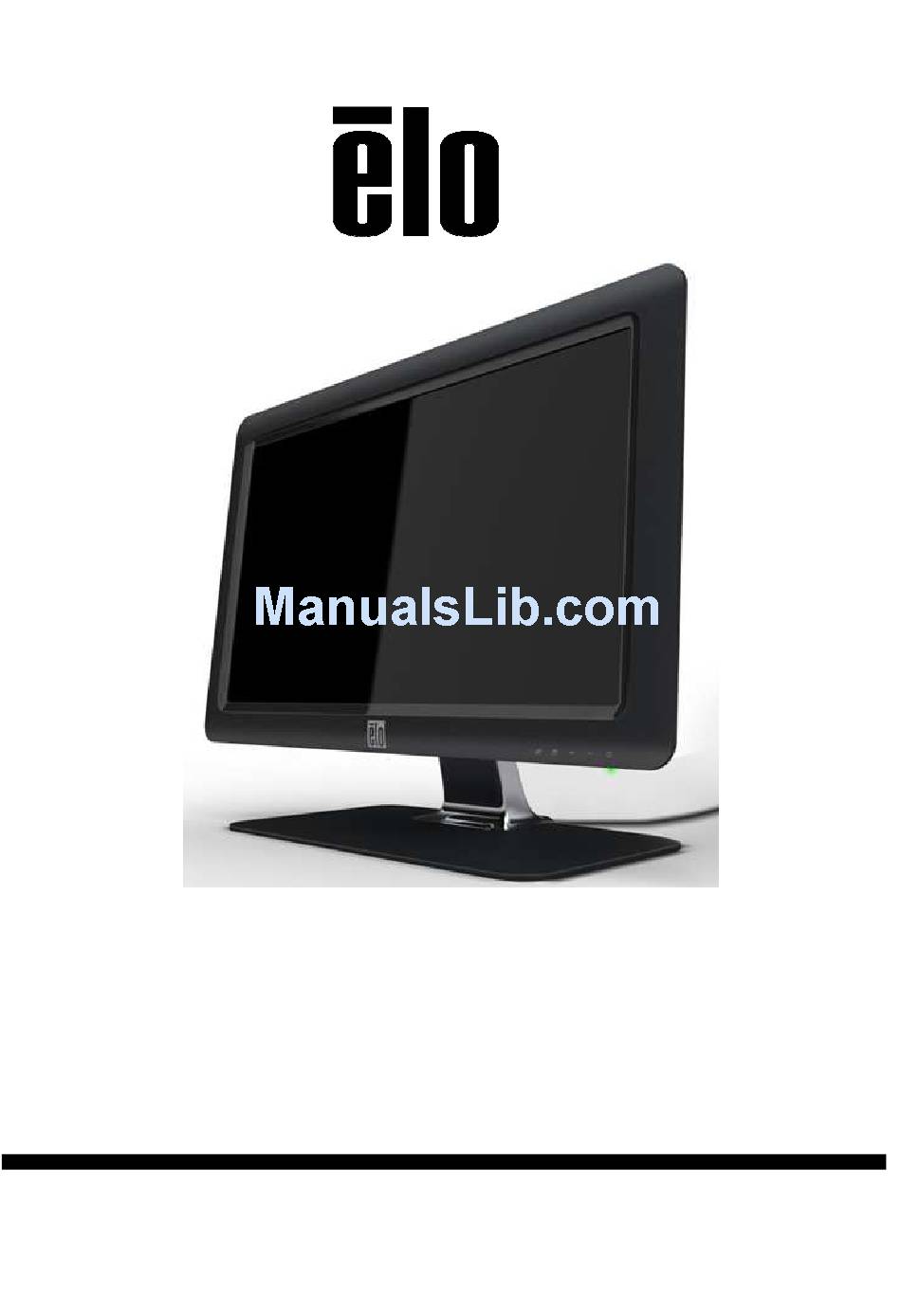

- Page 1 USER MANUAL Elo Touch Solutions 2201L Touchmonitors SW601363 Rev E User Manual – 2201L SW601363 Rev E, Page 1 of 23...
- Page 2 ELO Touch Solutions reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of ELO Touch Solutions to notify any person of such revisions or changes.
-
Page 3: Table Of Contents
Chapter 5 – Technical Support ............... 14 Chapter 6 – Safety & Maintenance ............15 Chapter 7 – Regulatory Information ............. 16 Chapter 8 – Warranty Information ............19 User Manual – 2201L SW601363 Rev E, Page 3 of 23... -
Page 4: Chapter 1 - Introduction

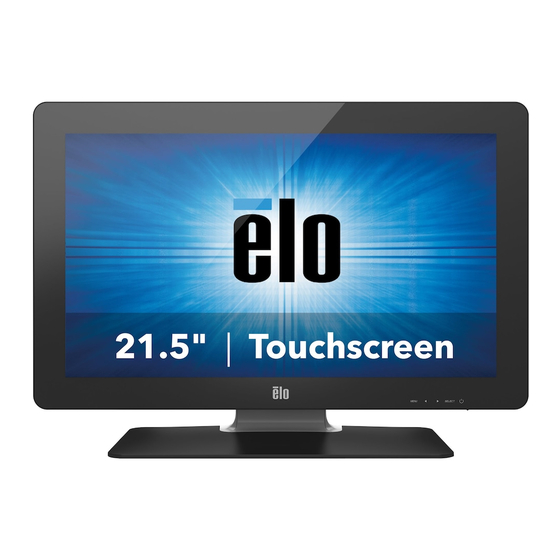

Chapter 1 - Introduction Product Description Your new touchmonitor combines ELO Touch Solutions reliable performance with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. -
Page 5: Chapter 2 -Installation
• An approved power cord greater or equal to H05VV-F(For EUT weight > 3kg), 2G or 3G, 0.75mm² must be used Connector Panel & Interfaces Remove the cable cover on the back of the unit to access the touchmonitor’s connector panel. User Manual – 2201L SW601363 Rev E, Page 5 of 23... - Page 6 5. Replace the cable cover, if desired. Cables can be routed inside the stand – remove and replace the stand cable cover for access and routing. 6. The touchmonitor ships in an OFF state. Press the power button to turn it on. User Manual – 2201L SW601363 Rev E, Page 6 of 23...
- Page 7 6. Enter you email address, Click on “Next Step”. Your driver download will start automatically. 7. If you are a new user, fill in the required information and Click on “Register”. Your driver download will start automatically. User Manual – 2201L SW601363 Rev E, Page 7 of 23...
-
Page 8: Chapter 3 - Mounting
The VESA FDMI-compliant mounting is coded: VESA MIS-D, 100, C For use only with UL Listed Wall Mount Bracket or equivalent. Stand Mounting Threaded through-holes are provided on the bottom of the stand base for mounting or securing. User Manual – 2201L SW601363 Rev E, Page 8 of 23... - Page 9 User Manual – 2201L SW601363 Rev E, Page 9 of 23...
-
Page 10: Chapter 4 - Operation
Your IntelliTouch Plus touchmonitor is factory-calibrated and should not need manual calibration (unless the input video is not fully scaled to the native resolution, or the touch experience needs to be calibrated to a specific user). User Manual – 2201L SW601363 Rev E, Page 10 of 23... - Page 11 To use multiple IntelliTouch Plus monitors, double click on the EloConfig desktop shortcut to open up the Elo Touchscreen Configuration screen. Select “Match Touch to Display…” to calibrate multiple monitors. User Manual – 2201L SW601363 Rev E, Page 11 of 23...
- Page 12 Refer to the technical specifications for this monitor at http://www.elotouch.com for a list of these Preset Video Modes. User Manual – 2201L SW601363 Rev E, Page 12 of 23...
- Page 13 Moves the image horizontally on the display in single-pixel increments. H-position Default: centered. Only applicable for VGA input video Moves the image vertically on the display in single-pixel increments. V-position Default: centered. Only applicable for VGA input video User Manual – 2201L SW601363 Rev E, Page 13 of 23...
- Page 14 This feature saves you from having to reset your choices every time the touchmonitor is unplugged or powered off and on. If there is a power failure, the touchmonitor User Manual – 2201L SW601363 Rev E, Page 14 of 23...
- Page 15 When headphones are plugged into the headphone output jack, the internal speakers turn off and audio is played over the headphones. Volume and muting of the speaker and headphone outputs can be controlled by the OSD. User Manual – 2201L SW601363 Rev E, Page 15 of 23...
-
Page 16: Chapter 5 - Technical Support
Chapter 5 – Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact ELO Touch Solutions Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting... -
Page 17: Chapter 6 - Safety & Maintenance
Ensure the environmental temperature and humidity are maintained within specification and do no block ventilation slots. Monitors are not designed for outdoors. User Manual – 2201L SW601363 Rev E, Page 17 of 23... - Page 18 Waste Electrical & Electronic Equipment Directive (WEEE) This product should not be disposed of with household waste. It should be deposited at a facility that enables recovery and recycling. User Manual – 2201L SW601363 Rev E, Page 18 of 23...
-
Page 19: Chapter 7 - Regulatory Information
If you determine that this equipment is causing the interference, try to correct the interference by using one or more of the following measures: i) Move the digital device away from the affected receiver. User Manual – 2201L SW601363 Rev E, Page 19 of 23... - Page 20 Lead(Pb) Mercury(Hg) Cadmium(Cd) Hexavalent Polybrominated Polybrominated Chromium Biphenyls Diphenyl (Cr6+) (PBB) Ethers (PBDE) Plastic Parts O Metal Parts Wire and Cable Assembly LCD Panel Touch Screen Panel PCBA Software (CD, etc.) User Manual – 2201L SW601363 Rev E, Page 20 of 23...
- Page 21 Operating Conditions: Temperature: 0°C - 40°C Humidity: 20% to 80% (non-condensing) Altitude: 0 to 3,048m Storage Conditions: Temperature: -20°C - 50°C Humidity: 10% to 90% (non-condensing) Altitude: 0 to 12,192m User Manual – 2201L SW601363 Rev E, Page 21 of 23...
-
Page 22: Chapter 8 - Warranty Information
Buyer. Buyer will indemnify Seller and hold Seller harmless from any liability, claims, loss, cost, or expenses (including reasonable attorney’s fees) attributable to Buyer’s products or representations or warranties concerning same. User Manual – 2201L SW601363 Rev E, Page 22 of 23... - Page 23 • Press releases • Software drivers • TouchMonitor Newsletter Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our website at www.elotouch.com, or simply call the office nearest you: North America Tel 800-ELO-TOUCH...
