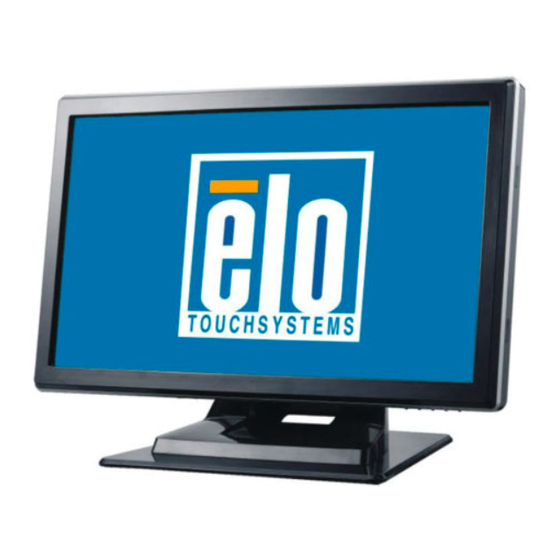

- Page 1 Touchmonitor User Guide 1519L 15.6” LCD Desktop Touchmonitor 1919L 18.5” LCD Desktop Touchmonitor (Optional Magnetic Stripe Reader Available)
- Page 2 Elo Touch Solutions 15.6” and 18.5” LCD Touchmonitor Optional Magnetic Stripe Reader User Guide Revision C P/N E356416 Elo Touch Solutions 1-800-ELOTOUCH www.elotouch.com...
- Page 3 ELO Touch Solutions. Disclaimer The information in this document is subject to change without notice. ELO Touch Solutions and its Affiliates makes no representations or warranties with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
-
Page 4: Table Of Contents
Table of Contents Chapter 1 Chapter 4 Troubleshooting Introduction Solutions to Common Problems .........26 Product Description ............5 Precautions..............5 Appendix A Chapter 2 Native Resolution ............27 Installation and Setup Unpacking Your Touchmonitor ........6 Appendix B Assembling the stand plate ........8 Touchmonitor Safety ...........29 Interface Connection ..........9 Care and Handling of Your Touchmonitor ....30 Speakers and Audio ...........9... -
Page 5: Introduction
C H A P T E R NTRODUCTION Product Description Your new 1519/1919L touchmonitor combines the reliable performance of touch technology with the latest advances in LCD display design. This combination of features creates a natural flow of information between a user and your touchmonitor. This LCD monitor incorporates a 15.6”... -
Page 6: Installation And Setup
C H A P T E R NSTALLATION AND ETUP This chapter discusses how to install the 1519L/1919L LCD touchmonitor and the driver software. Unpacking Your Touchmonitor Check that the following items are present and in good condition: LCD monitor... - Page 7 Power cable for North America models USA/UL Power cable Power cable for European models Europe/VDE power cable UK power cable Power cable for Japan models Japanese/PSE power cable Adapter/Terminal Power cable for Asia models China/CCC power cable Taiwan/BSMI power cable Korea/KC power cable Power cable for Worldwide models USA/UL Power cable...
-
Page 8: Assembling The Stand Plate
Assembling the stand plate Pushing the stand plate toward the stand untill it is tight, then fasten the stand plate using captive screw. -
Page 9: Interface Connection
Interface Connection Note: Before connecting the cables to your touchmonitor and PC, be sure that the computer and touchmonitor are turned off. Headphone Cable Audio Cable Serial Cable VGA Cable USB Cable Power Brick 1. Connect DC cable of the power brick to the monitor and the other end through AC power cable to the AC outlet. -
Page 10: Msr Interface Connection (Optional)
Magnetic Stripe Reader (MSR) Interface Connection (optional) If the MSR is installed on the monitor, plug the USB cable from the MSR directly to the PC. No drivers are required to be loaded. To change the MSR function mode from keyboard emulation to HID, load the “MSR CHANGE MODE.EXE”... -
Page 11: Product Overview
Product Overview Main Unit Rear View Kensington Lock The Kensington lock is a security device that prevents theft. To find out more about this se- curity device, go to http://www.kensington.com. 2-11... -
Page 12: Mounting The Display
Mounting the Display Your medically certified touchscreen display conforms to the VESA Flat Panel Monitor Physical Mounting Interface (FPMPMI) standard. The FPMPMI standard defines a physical mounting interface for flat panel displays. Your display conforms to the corresponding standards for flat panel display mounting devices, such as for walls and table arms. The VESA mounting interface is located on the back of your touchscreen display and is pre-connected to the pedestal. -
Page 13: Rear Mounting Using The Vesa Interface
Rear Mounting Using the VESA Interface 1 If the display is already connected to a pedestal, remove the four screws that connect the pedestal to the display (refer to Figure2-1 , item 1 ). Separate the pedestal from the display. 2 Reinstall the four screws into the VESA interface mount. -
Page 14: Installing The Driver Software
Installing the Driver Software ELO Touch Solutions provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM for the following operating systems: • Windows 7 • Windows Vista • Windows XP •... -
Page 15: Installing The Serial Touch Driver (Not Applicable To Acoustic Pulse Recognition And Projected-Capacitive Monitor)
Installing the Serial Touch Driver (not applicable to Acoustic Pulse Recognition and Projected-Capacitive monitor) Installing the Serial Touch Driver for Windows 7, Windows Vista, Windows XP, Windows 2000, 98/95, ME and NT4.0 NOTE: For Windows 2000 and NT4.0 you must have administrator access rights to install the driver. Make sure the serial connector (RS232) is plugged into the monitor and an open com port on the PC. -
Page 16: Installing The Serial Touch Driver For Windows 7
Installing the Serial Touch Driver for Windows 3.1 and MS-DOS You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS touch driver from Windows 98/95, follow the directions below: 1 Insert the CD-ROM in your computer’s CD-ROM drive. -
Page 17: Installing The Usb Touch Driver
Installing the USB Touch Driver Installing the USB Touch Driver for Windows 7, Windows Vista, Windows XP, Windows 2000, ME and Windows 98. 1 Insert the ELO CD-ROM in your computer’s CD-ROM drive. If Windows 2000 or Windows 98 starts the Add New Hardware Wizard, do the following: 2 Choose Next. -
Page 18: Operation
C H A P T E R PERATION About Touchmonitor Adjustments Your touchmonitor will not likely require adjustment. However, variations in video output and application may require adjustments to the touchmonitor to optimize the quality of the display. For best performance, the input video resolution should be the touchmonitors native resolution, 1366 x 768. -
Page 19: Bottom Panel Controls
Bottom Panel Controls SELECT MENU Audio Output SELECT MENU Control Function 1 Menu/Exit Display/Exits the OSD menus. 1. Enter Luminance of the OSD. 2. Increase value of the adjustment item. 3. Move OSD selection upward. 1. Enter Audio of the OSD. 2. -
Page 20: Controls And Adjustment
Controls and Adjustment On Screen Display (OSD) Menu Functions To Display and Select the OSD Functions: 1. Press the Menu key to activate the OSD menu. 2. Use to move upward or downward through the menu. Press the “Select” key, execute the function or enter the sub-menu. -
Page 21: Osd Control Options
On Screen Display(OSD) Control Options Control Description Auto-Adjust Select “Auto-Adjust” to enable this function. The Auto-Adjust will automatically adjust V-Position, H-Position, Clock and Phase. Luminance . Brightness Increases or decreases brightness . Contrast Increases or decreases contrast Image Setting . H-Position Moves the screen left or right . -
Page 22: Preset Modes
Preset Modes To reduce the need for adjustment for different modes, the monitor has default setting modes that are most commonly used as given in the table below. If any of these display modes are detected, the monitor automatically adjusts the picture size and centering. When none of the modes are matched, the user can store their preferred modes in the user modes. -
Page 23: Power Management System
Power Management System Power Mode Consumption (12VDC input) <42W Sleep <2W <1W It is recommended to switch the monitor off when it is not in use for a long period of time. NOTE: Complies to VESA Power Management (DPM) standards. To activate the monitor, press any key on the keyboard or move the mouse or touch the touchscreen. -
Page 24: Intellitouch Plus Touch Technology
IntelliTouch Plus Touch Technology When connected to Windows 7 computers, the touchmonitor can report 2 simultaneous touches. The IntelliTouch Plus touchscreen can be re-calibrated to your displayed video image, if needed, through the Calibration function in the ELO driver control panel. The IntelliTouch Plus driver will only support multiple monitor if they are all using the IntelliTouch Plus touch technology. -
Page 25: Projected-Capacitive Touch Technology
Projected-Capacitive Touch Technology When connected to Windows 7 computers, the touchmonitor can report 2 simultaneous touches. When connected to Windows XP computers, the touchmonitor reports single touches. No additional drivers are required for this technology to work, it uses Windows HID drivers. No calibration is required for this technology. -
Page 26: Troubleshooting
C H A P T E R ROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or the ELO’service center. Solutions to Common Problems Problem Suggestion(s) The monitor does not respond 1. -
Page 27: Appendix A Native Resolution
18.5 inch size. In almost all cases, screen images look best when viewed at their native resolution. The resolution setting of a monitor can be lowered but not increased. Input Video 1519L/1919L monitor 640 x 480 (VGA) Transforms input format to 1366 x 768... - Page 28 As an example, a SVGA resolution LCD panel has 800 pixels horizontally by 600 pixels vertically. Input video is also represented by the same terms. XGA input video has a format of 1024 pixels horizontally by 768 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels.
-
Page 29: Appendix B Touchmonitor Safety
A P P E N D I X OUCHMONITOR AFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1 To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case. -
Page 30: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick power supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning. - Page 31 A P P E N D I X ECHNICAL PECIFICATIONS C-31...
-
Page 32: Touchmonitor Specifications
Touchmonitor Specifications Model 1519L LCD Display 15.6” TFT Active Matrix Panel Display Size 344.232 (H) x 193.536 (V) mm Pixel Pitch 0.252 (H) x 0.252 (V) mm Native Resolution 1366 x 768 Display Mode 720 x 350 (70Hz) - (may not display at full screen) - Page 33 Touchmonitor Specifications Model 1919L LCD Display 18.5” TFT Active Matrix Panel Display Size 409.8 (H) x 230.4 (V) mm Pixel Pitch 0.3 (H) x 0.3 (V) mm Native Resolution 1366 x 768 Display Mode 720 x 350 (70Hz) - (may not display at full screen) 720 x 400 (70Hz) 640 x 480 (60 / 72 / 75Hz) 800 x 600 (56 / 60 / 72 / 75Hz)
-
Page 34: Lcd Touchmonitor (Et1519L) Dimensions
15" LCD Touchmonitor (1519L) Dimensions 235 0 383 0 344.2 =;ti1i 62 5 d.Li 4 3. 6 I 9" '· I 9 2 6 Mt-11 V'=lll 1un · 'WII !L IlLII " 140.0 240.0 C-34... -
Page 35: Lcd Touchmonitor (Et1919L) Dimensions
19" LCD Touchmonitor (1919L) Dimensions 179 05 453 92 409.80 50.931_ ??111 175.95 C-35... - Page 36 EGULATORY NFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
- Page 37 D) General Information to all Users: This equipment generates, uses and can radiate radio frequency energy. If not installed and used according to this manual the equipment may cause interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors.
- Page 38 III. Agency Certifications The following certifications have been issued for this monitor: • Argentina S-Mark • Australia C-Tick • Canada CUL • Canada IC • China CCC (Asia models only) • China RoHS (Asia models only) • Europe CE • Japan VCCI •...
-
Page 39: Warranty
ARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 3 (three) years. Seller makes no warranty regarding the model life of components. - Page 40 THESE REMEDIES SHALL BE THE BUYER’S EXCLUSIVE REMEDIES FOR BREACH OF WARRANTY. EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE, SELLER GRANTS NO OTHER WARRANTIES, EXPRESS OR IMPLIED BY STATUTE OR OTHERWISE, REGARDING THE PRODUCTS, THEIR FITNESS FOR ANY PURPOSE, THEIR QUALITY, THEIR MERCHANTABILITY, THEIR NONINFRINGEMENT, OR OTHERWISE.
-
Page 41: Specifications
B-3010 Kessel-Lo 1-19-20 Shin-Yokohama Germany Belgium Kanagawa 222-0033 Japan (800) ELO-TOUCH (800-557-1458) Tel +49(0)(89)60822-0 Tel +32(0)(16)35-2100 Tel +81(45)478-2161 Tel 650-361-4800 Fax +49(0)(89)60822-180 Fax +32(o)(16)35-2101 Fax +81(45)478-2180 Fax 650-361-4722 elosales@elotouch.com elosales@elotouch.com www.tps.co.jp customerservice@elotouch.com © 2012 ELO Touch Solutions, Inc. All Rights Reserved.
